Product Overview

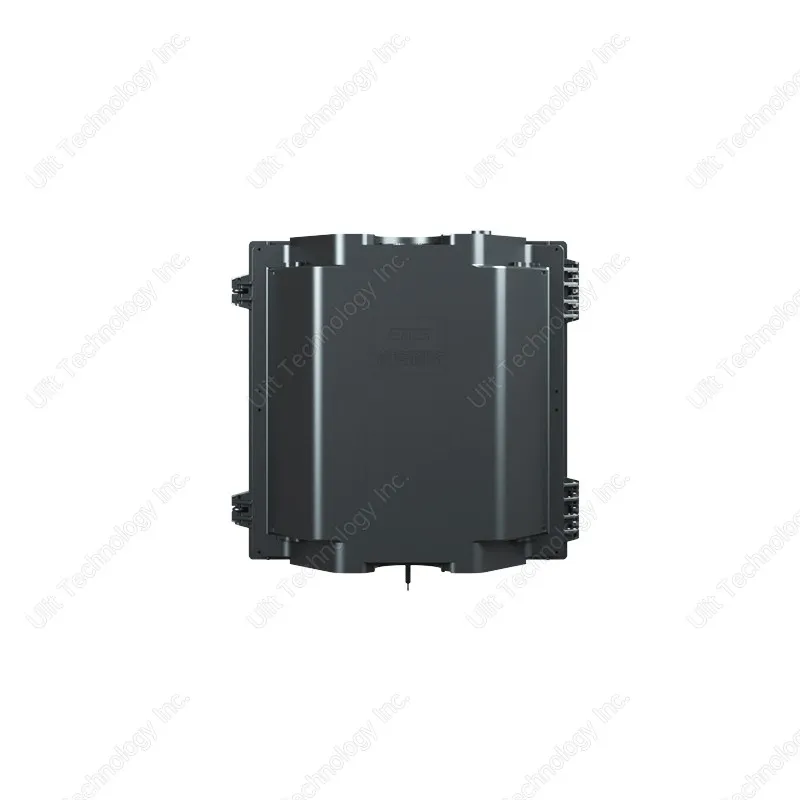

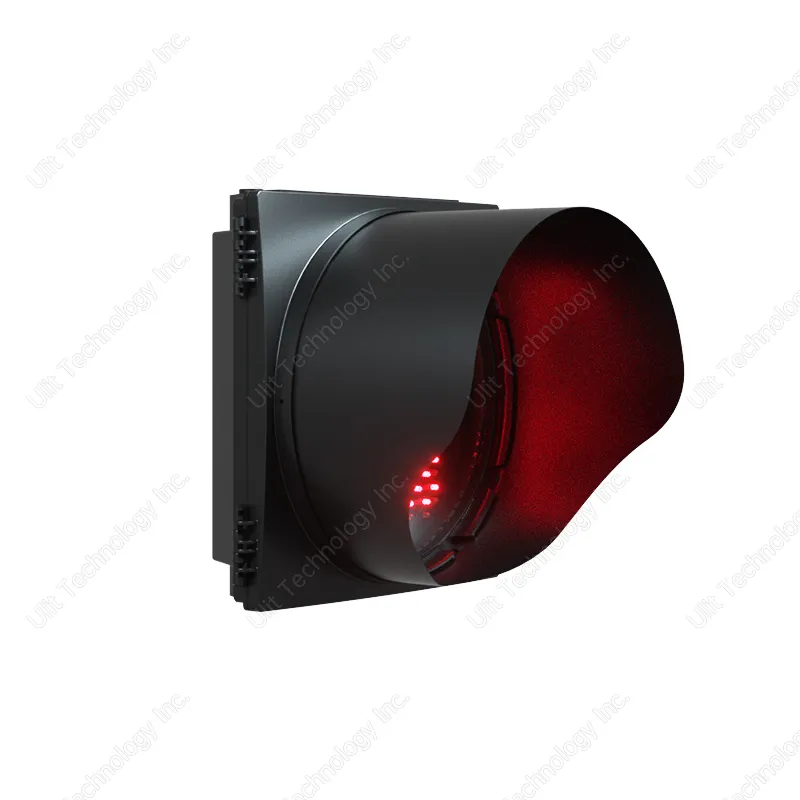

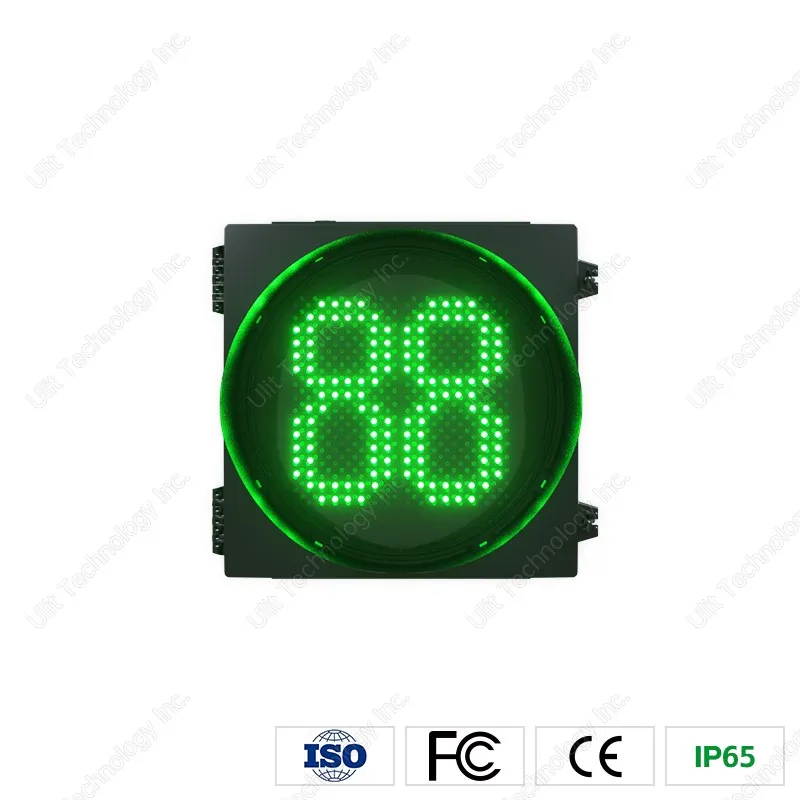

Φ300mm Two Digit Dot Matrix Countdown Timer
This 300mm diameter stop light timer features a full-dot-matrix digital display. It is a two-digit countdown that can present clear digital displays. The light-emitting components adopt premium ultra-bright LEDs specifically designed for traffic, providing a clear display effect. The strokes are smooth, the brightness is balanced, and there is no situation where entire strokes are missing. The casing is made of robust PC material, offering excellent heat resistance, impact resistance, corrosion resistance, and aging resistance, making it ideal for long-term outdoor use. It is CE, RoHS, and FCC certified.
Product Features
Dot-matrix digital display, in red and green;
Support single-phase or double-phase display, following (learning) type, communication (real-time) type and self-adaptive control scheduling display;
Adopt premium ultra-bright LEDs specifically designed for traffic;
Support turning on or off the display under non-communication mode and counting and displaying traffic light time of more than 2 times in one signal cycle;
The casing is made of robust PC material, offering excellent heat resistance, impact resistance, corrosion resistance, and aging resistance, making it ideal for long-term outdoor use;
The unique detachable waterproof modular design makes maintenance and upkeep convenient;
New-type integrated detachable hinge and locking structure; When not locked, it can prevent opening and detachment;
Stainless steel strips, as installation accessories, are sturdy and durable with anti-corrosion properties, and will not accidentally fall off;
Support HiPLC communication function; Support remote querying of stop light timer operation status; Support proactive reporting of LED string damage, communication failures, etc.; Support luminance adjustment. (Optional)
Hot Tags: stop light timer, China stop light timer manufacturers, suppliers, factory
Technical Parameters
|
Product Name |
Φ300mm Two Digit Dot Matrix Countdown Timer |
|
Central Light Strength |
≥5,000cd |
|
Viewing Angle |
30° |
|
Viewing Distance |
≥500m |
|
Communication Mode |
RS485 (Standard) / HiPLC (Optional) |
|
Working Voltage |
AC220V/AC110V/DC48V/DC24V/DC12V |
|
Rated Power |
≤5W |
|
Working Temperature |
-20℃～70℃ |
|
Working Humidity |
≤95%RH[(40±2)℃, No Condensation] |
|
IP Rating |
IP65 |
|
Overall Dimensions |
Length 480mm * Width 480mm * Height 339mm |
|
Digital Display Range |
0-99 |
|
Display Size (Single Number) |
Width 110mm * Height 230mm |
|
Housing Material |
PC |
|
Installation Method |
Back Frame (stainless steel strip and special fasteners) |
Product Applications
Certificates
Company Profile
Located in Chongqing, China, Ulit Technology Inc. has been in intelligent traffic industry for more than 30 years with 15,000 square meter manufacturing base. With city intelligent traffic as main business, we can provide various advanced products, whole solutions, software and services related to city traffic, such as traffic control platform, traffic light controllers, traffic lights, traffic signs, countdowns, LED screens, video detectors, speed signs and various solar lights. With ISO 9001:2015 quality management system certification, our products comply with national standards and industry norms, as well as various international standards, such as CE, RoHS, FCC, EN12966 and EN12368. Strong support from our design and technology departments enables us to receive OEM and ODM projects.
