Product Overview

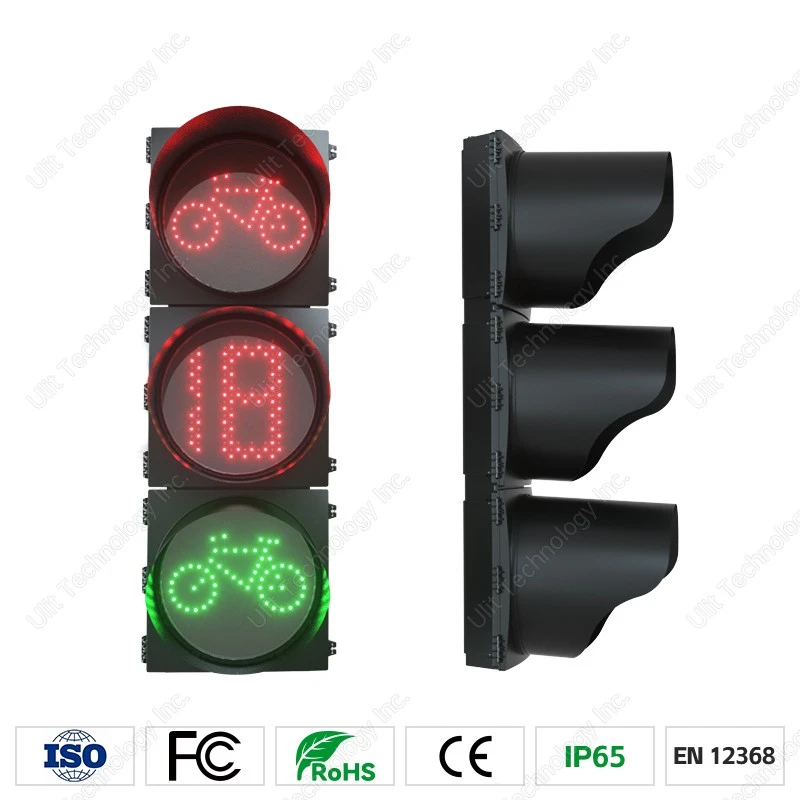

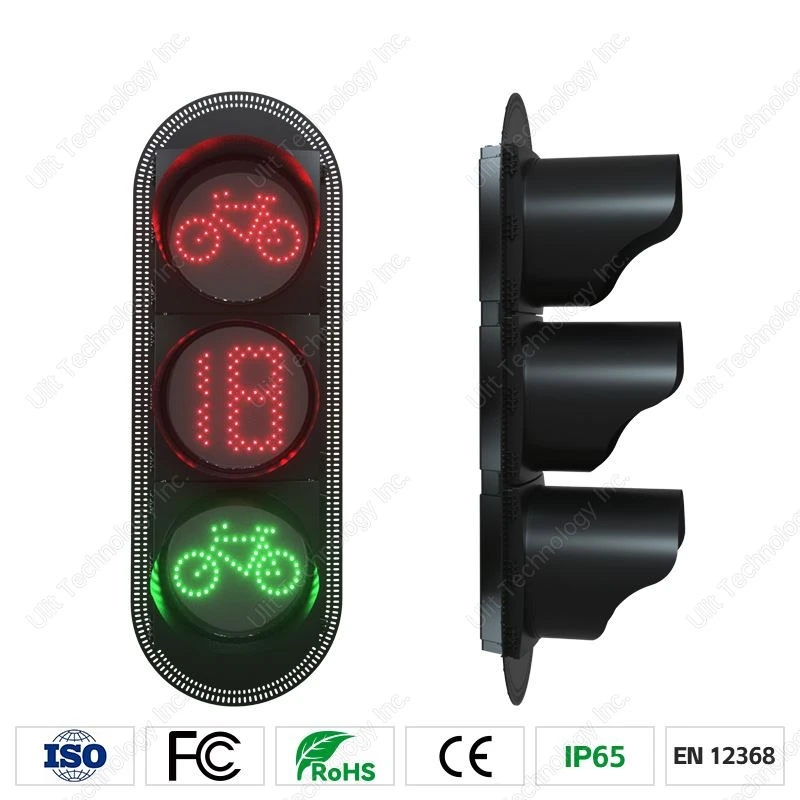

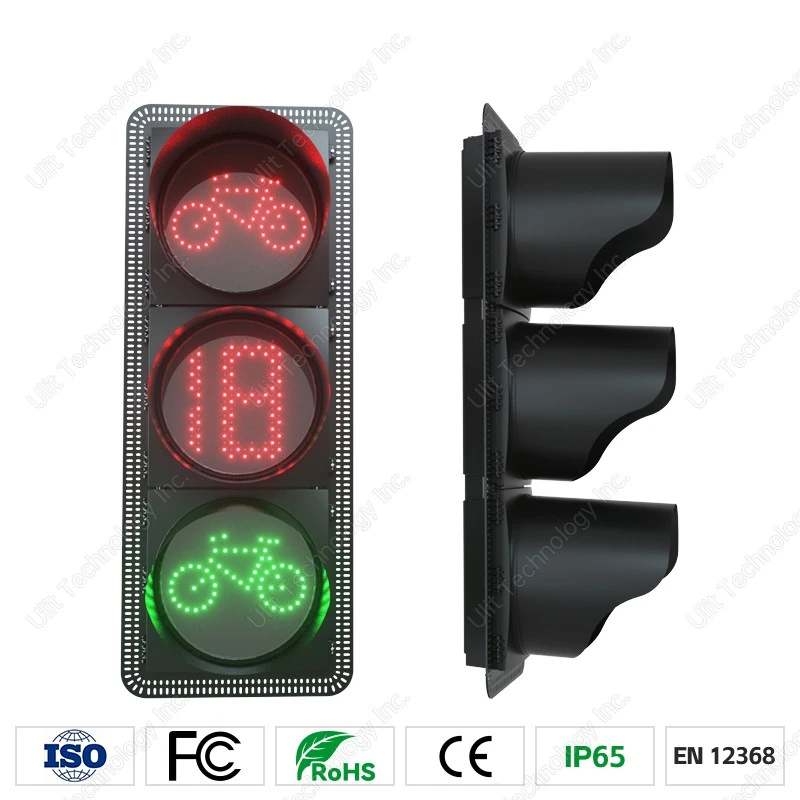

400mm Bicycle Traffic Light with One and a Half Digit Countdown
The bicycle traffic light consists of three 400mm diameter light panels in three colors. The separate light panels are arranged in geometric position, and a one-and-a-half-digit countdown is embedded in the yellow light. It can be used for road signs traffic lights. The PC shell features high strength and hardness, better heat resistance, impact resistance, corrosion resistance and aging resistance. Adopt energy-efficient LEDs. Passed CE, RoHS, FCC and EN 12368 certifications.
Product Features

-
The housing is manufactured from dedicated PC material, delivering exceptional heat resistance, impact resistance, corrosion resistance, and aging resistance, ensuring extremely high safety for bicycle road signs traffic lights;
-
Stainless steel strips are used as mouting accessories; they are anti-corrosion, sturdy, and prevent the traffic lights from falling off;
-

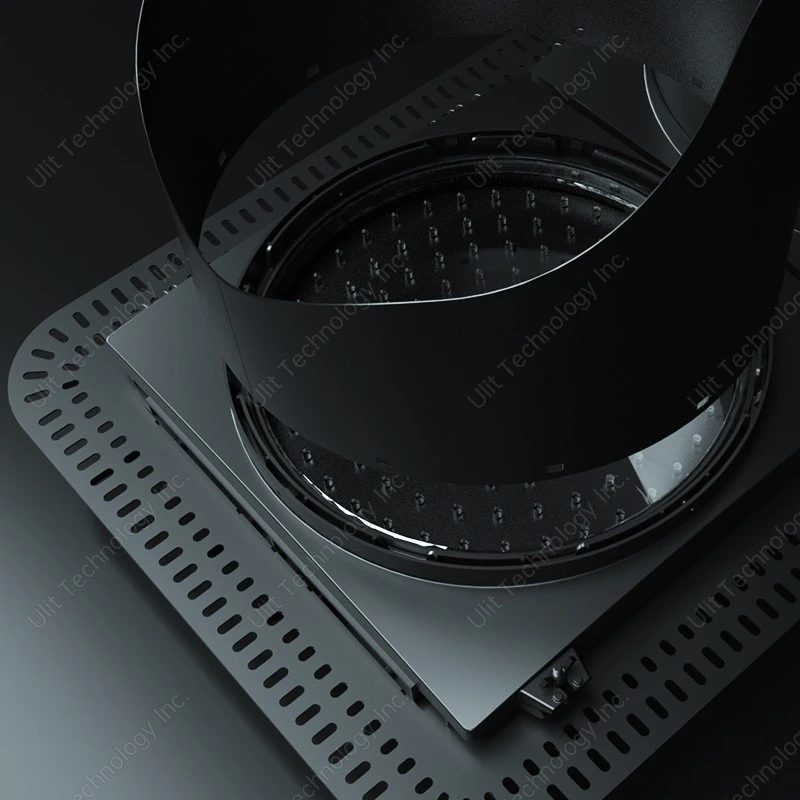

The visor adopts a plug-in design, which is easy and quick to install and will not fall off;
-

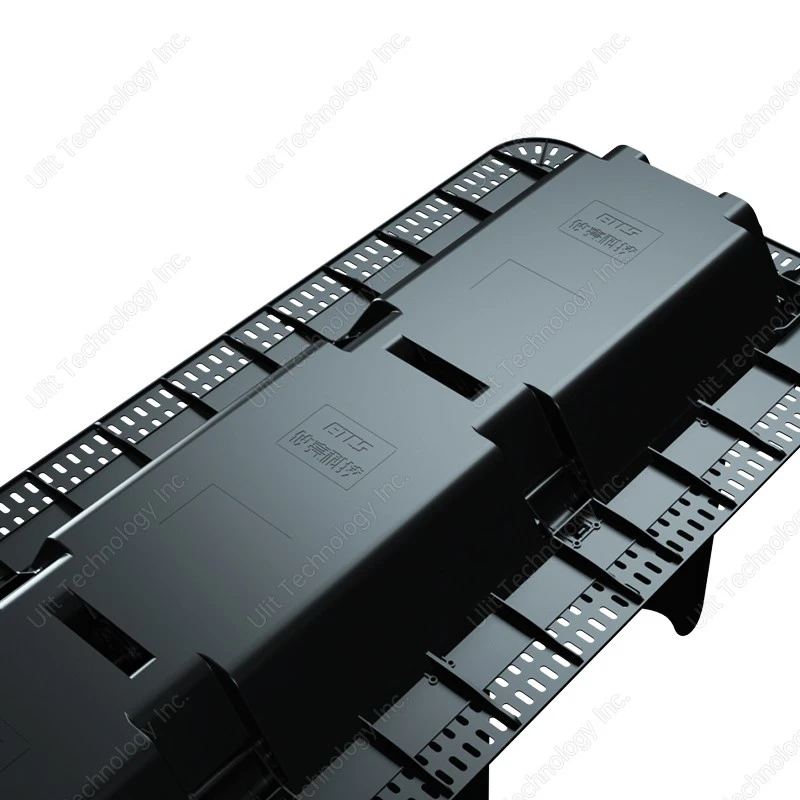

Back frame design; Can be installed horizontally or vertically; Each lamp panel can be opened independently; The lamp body can be adjusted from left to right, upward and downward, with adjustment angle equal or greater than 30°;
-
The light lens adopts anti-ultraviolet high light transmittance colorless PC mask, no yellowing or discoloration during the whole service life;
-
The bicycle road signs traffic lights adopt high-quality LED light-emitting components, which are more than 50% more energy-efficient than traditional light sources. The LEDs in the light-emitting unit have a lifespan of over eight years;
-
PLC communication function can be optionally equipped; Support remote query of traffic light operation status; Support the proactive reporting of faults such as bicycle road signs traffic lights no work, LED light string damage, simultaneous red and green lights, communication issues, etc.; Support adjusting brightness step by step according to the data from the environmental sensor.


Hot Tags: road signs traffic lights, China road signs traffic lights manufacturers, suppliers, factory
Product Parameters

|
Product Name |
400mm Bicycle Traffic Light with One and a Half Digit Countdown |
| Display Content | Bicycle, One and a Half Digit Countdown Embedded in Yellow |
| Communication Mode | HiPLC (Optional) |
| Light Panel Size | Φ400mm |
| Viewing Angle | 30° |
| Viewing Distance | ≥300m |
| Working Voltage | AC220V/AC110V/DC48V/DC24V/DC12V |
| Rated Power | ≤19W |
| Working Temperature | -40℃~80℃ |
| IP Rating | IP65 |
| Overall Dimensions | Length 1,498mm * Width 580mm * Height 539mm (including the visor and the frame) |
| Housing Material | PC |
| Net Weight | 11.25Kg |
| Installation Method | Back Frame (stainless steel strip and functional fastener) |
Product Applications

Certificates


Company Profile
We have been deeply involved in intelligent traffic industry for over 30 years with 15,000 square meter manufacturing base. As a leading manufacturer of traffic intelligent control system, traffic signal and display equipment, a leading provider of city traffic centralized control software, a national high-tech enterprise and a listed enterprise of Beijing Stock Exchange, we also supply OEM/ODM services. Certified by ISO/CE, our products are sold to more than 30 countries, including the USA, Mexico, Germany, Ireland, Romania, Greece, the Netherlands, Israel, Saudi Arabia and so on.

Trade Shows

Production Workshop

FAQs
Q: Are you a factory?
A: Yes. We are a leading manufacturer of LED traffic signal products and intelligent traffic equipment, and a leading IoT (Internet of Things) solution provider in China.
Q: What are your best-selling products?
A: Traffic lights, traffic signs, traffic light systems, LED screens, traffic warning lights, radar speed signs, traffic light controllers, etc..
Q: Which certifications do you have?
A: CE, RoHS, FCC, EN12368, EN12966, IP65, MTC, ISO9001:2015, ISO14001:2015, CMMI-5, CCC and so on.
Q: Whether you could make our brand on your products?
A: Yes. Our R&D department provide strong technical support and enable us to receive OEM and ODM projects.
Q: What's your payment clause and delivery terms?
A: Payment Clause: T/T, L/C, Paypal, Western Union and so on.
Delivery Terms: EXW, FOB, CFR, CIF, DAP, DDP.
