Product Introduction:
400mm U-turn Traffic Light with Two Digit Countdown
Three Φ400mm U-turn lights, three colors, separate light panels in geometric position. The two digit countdown is embedded in the yellow traffic light panel. The housing is made of dedicated PC material with high strength and hardness, better heat resistance, impact resistance, corrosion resistance and aging resistance. Adopt high quality LED light-emitting elements. Compliance with CE, RoHS, FCC and EN12368 certification.
Send Inquiry
Description
Technical Parameters

Product Overview



traffic lights with timers company

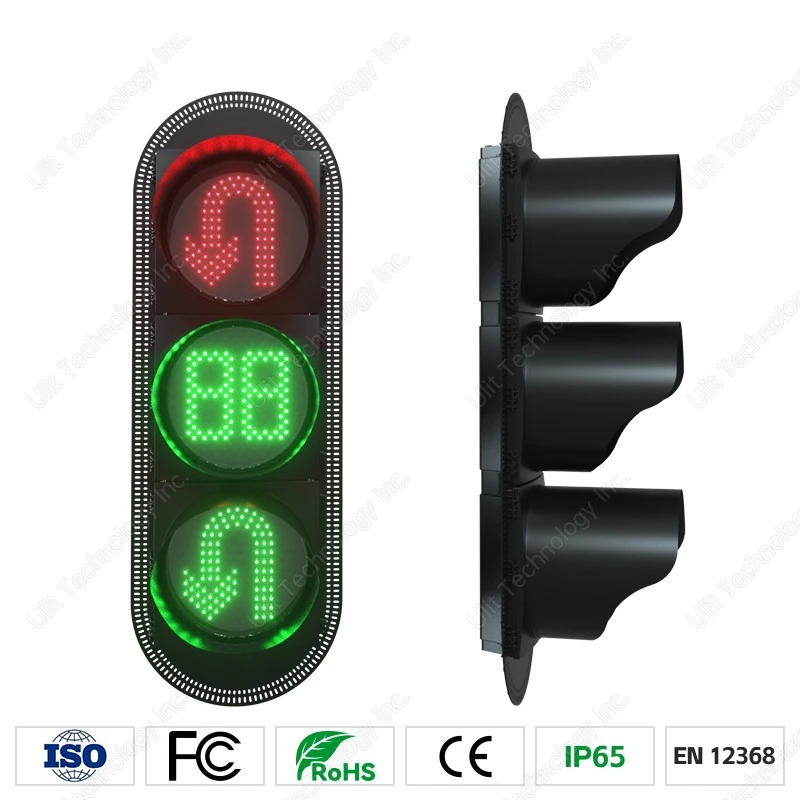

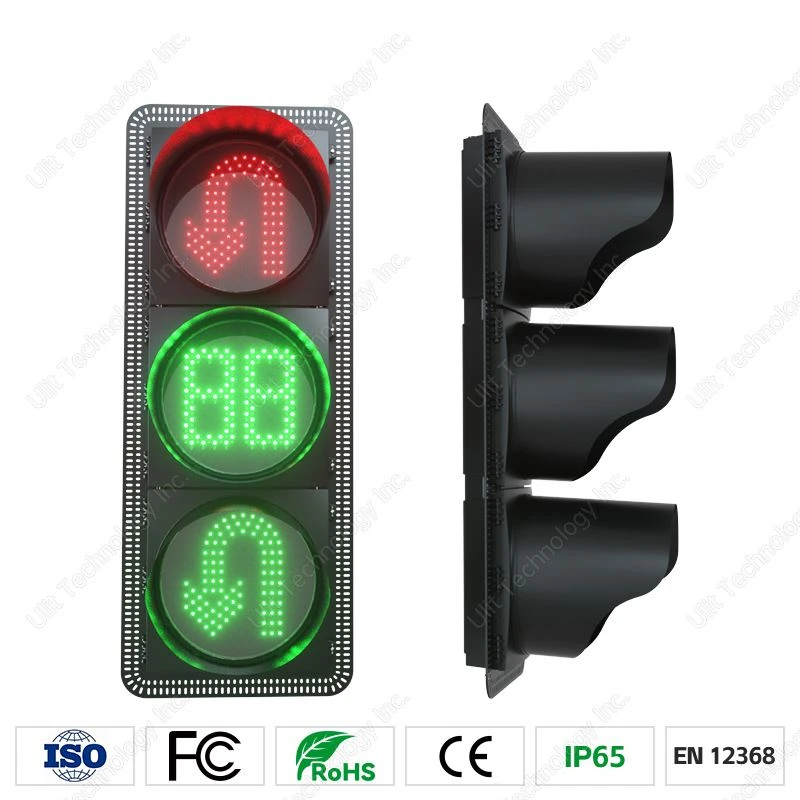

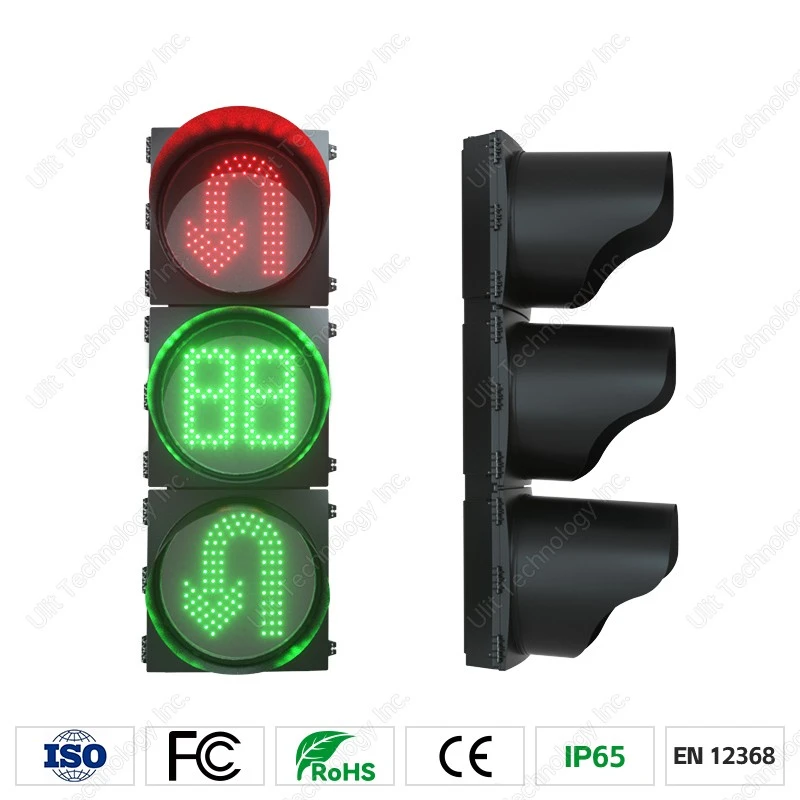

400mm U-turn Traffic Light with Two Digit Countdown

Traffic lights with timers have three separate U-turn light panels. Each panel has a diameter of 400mm and can be opened separately. A two-digit countdown is embedded in the yellow light. The outer shell is made of specialized PC material, offering high strength and hardness, heat resistance, impact resistance, corrosion resistance, and aging resistance. It uses high-quality LED light-emitting elements. Complies with CE, RoHS, FCC and EN12368 certifications.



Product Features

traffic lights with timers features



  • The outer shell is made of specialized PC material, offering high strength and hardness, and is more heat-resistant, impact-resistant, corrosion-resistant and anti-aging, ensuring the traffic lights with timers have outstanding safety;

  • Anti-corrosion stainless steel strips ensure secure installation and prevent the traffic lights with timers from falling off;

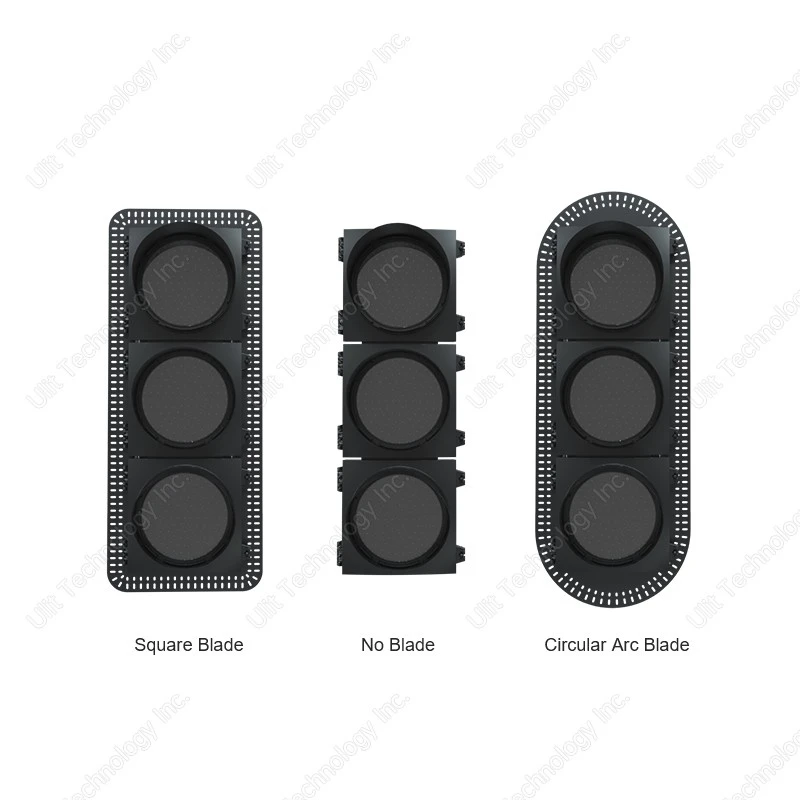

  • Plug-in visor design, easy and quick installation, preventing falling off;

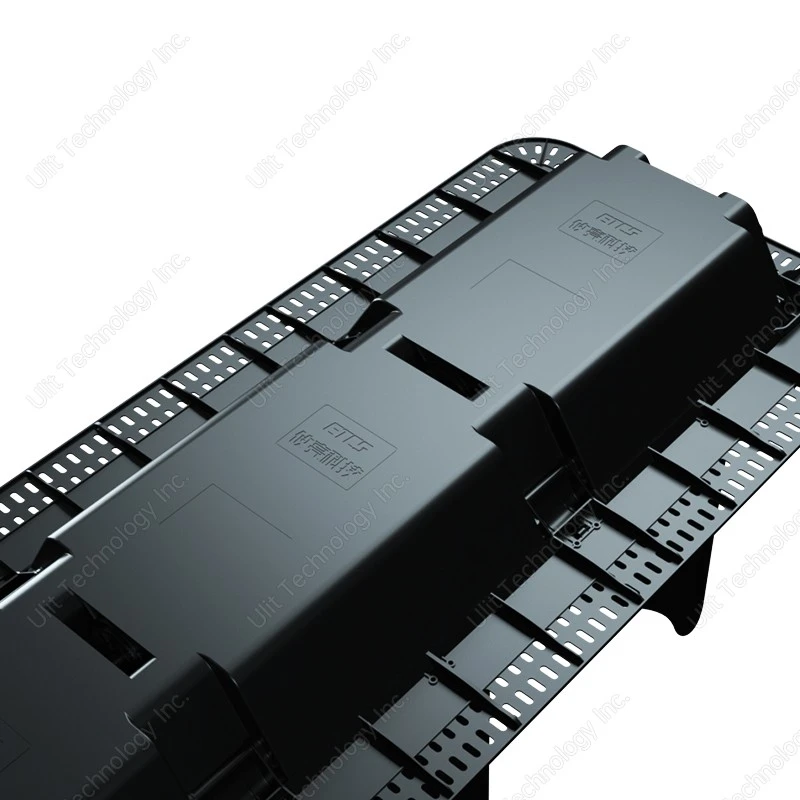

  • The back-frame design allows for horizontal or vertical installation; Each lamp panel can be independently opened; The lamp body can be adjusted left and right as well as up and down, with an angle of ≥30°;

  • The colorless PC material mask, which is UV-resistant and high-transmittance, will not yellow or change color during the entire lifespan of the lamp;

  • It uses energy-saving LED light-emitting elements, consuming over 50% less energy than traditional light sources, with an LED lifespan exceeding eight years;

  • Possess PLC communication function; Support remote query of the operating state; Support proactive reporting failures of traffic lights with timers not working, the red light and the green light being on at the same time, LED string light damage, communication and so on; Support adjusting brightness. (Optional IoT kit for use with IoT traffic light controllers)

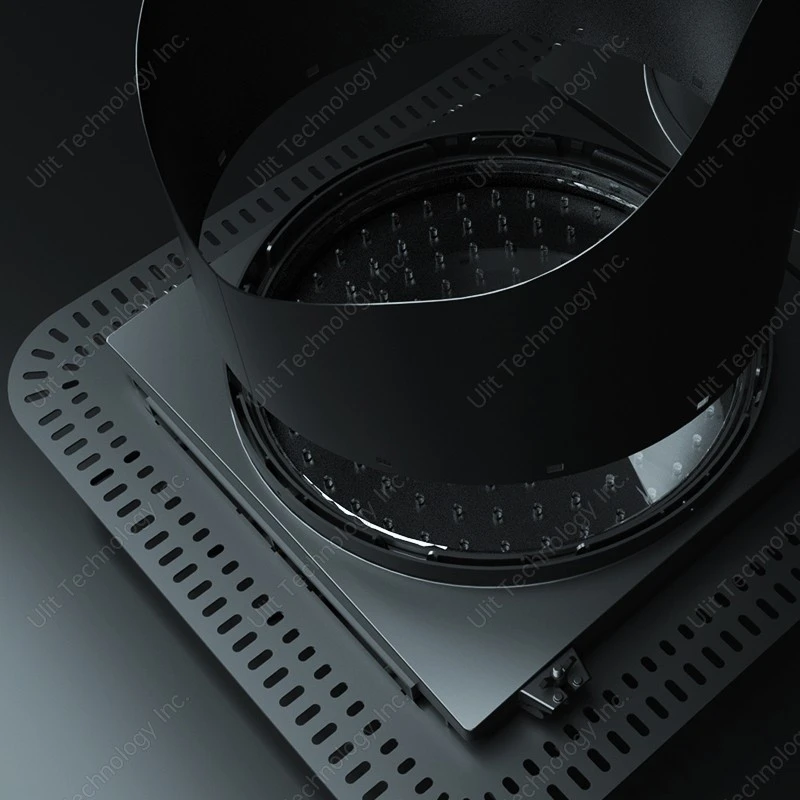

traffic lights with timers particulars



traffic lights with timers lamp panel images



Hot Tags: Traffic Lights with Timers, China Traffic Lights with Timers manufacturers, suppliers, factory

Product Parameters

traffic lights with timers size



Product Name

400mm U-turn Traffic Light with Two Digit Countdown
Display Content U-turn, Two Digit Countdown Embedded in Yellow
Communication Mode HiPLC (Optional)
Light Panel Size Φ400mm
Viewing Angle 30°
Viewing Distance ≥300m
Working Voltage AC220V/AC110V/DC48V/DC24V/DC12V
Rated Power ≤20W
Working Temperature -40℃~80℃
IP Rating IP65
Overall Dimensions Length 1,498mm * Width 580mm * Height 539mm (including the visor and the frame)
Housing Material PC
Net Weight 11.25Kg
Installation Method Back Frame (stainless steel strip and functional fastener)



Product Applications



traffic lights with timers customer photo



Certificates

product certificates



company certificate



Company Profile

30+ Years of experience in intelligent traffic

We have been deeply involved in intelligent traffic industry for over 30 years with 15,000 square meter manufacturing base. As a leading manufacturer of traffic intelligent control system, traffic signal and display equipment, a leading provider of city traffic centralized control software, a national high-tech enterprise and a listed enterprise of Beijing Stock Exchange, we also supply OEM/ODM services. Certified by ISO/CE, our products are sold to more than 30 countries, including the USA, Mexico, Germany, Ireland, Romania, Greece, the Netherlands, Israel, Saudi Arabia and so on.

traffic lights with timers factory

15,000+
Factory area
200+
staff members
100+
technical engineers
100+
overseas projects



Trade Shows



Exhibition



Production Workshop



Production workshop



FAQs



Q: Are you a factory?

A: Yes. We are a leading manufacturer of LED traffic signal products and intelligent traffic equipment, and a leading IoT (Internet of Things) solution provider in China.

Q: What are your best-selling products?

A: Traffic lights, traffic signs, traffic light systems, LED screens, traffic warning lights, radar speed signs, traffic light controllers, etc..

Q: Which certifications do you have?

A: CE, RoHS, FCC, EN12368, EN12966, IP65, MTC, ISO9001:2015, ISO14001:2015, CMMI-5, CCC and so on.

Q: Whether you could make our brand on your products?

A: Yes. Our R&D department provide strong technical support and enable us to receive OEM and ODM projects.

Q: What's your payment clause and delivery terms?

A: Payment Clause: T/T, L/C, Paypal, Western Union and so on.

Delivery Terms: EXW, FOB, CFR, CIF, DAP, DDP.
