Product Overview

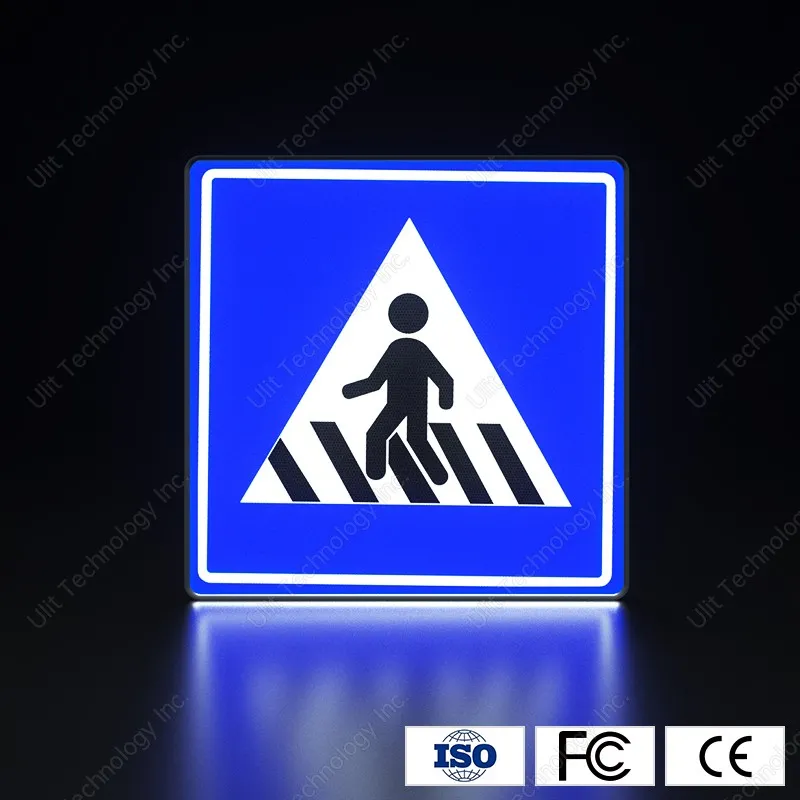

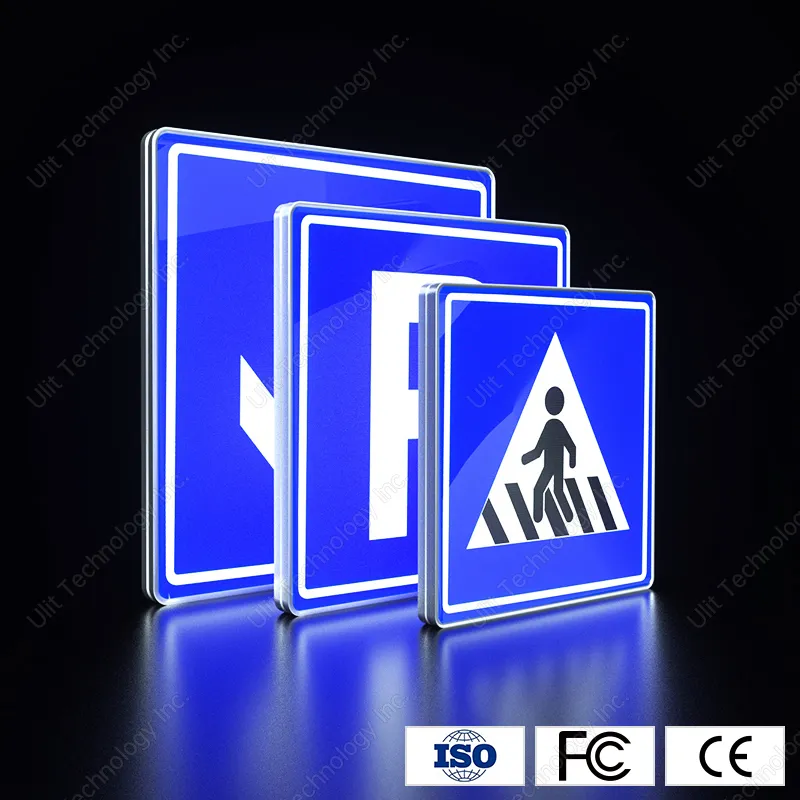

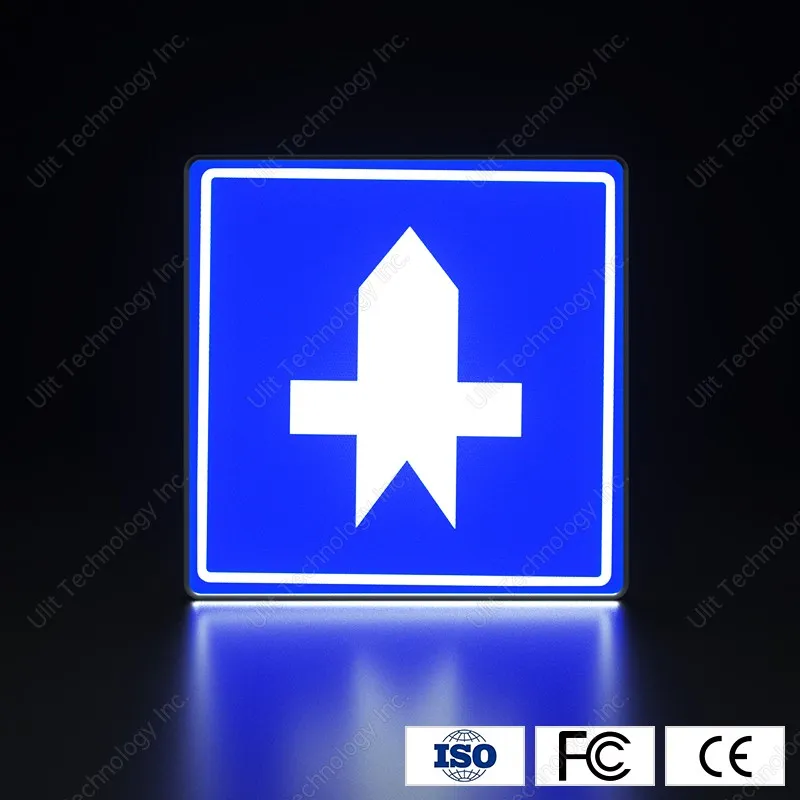

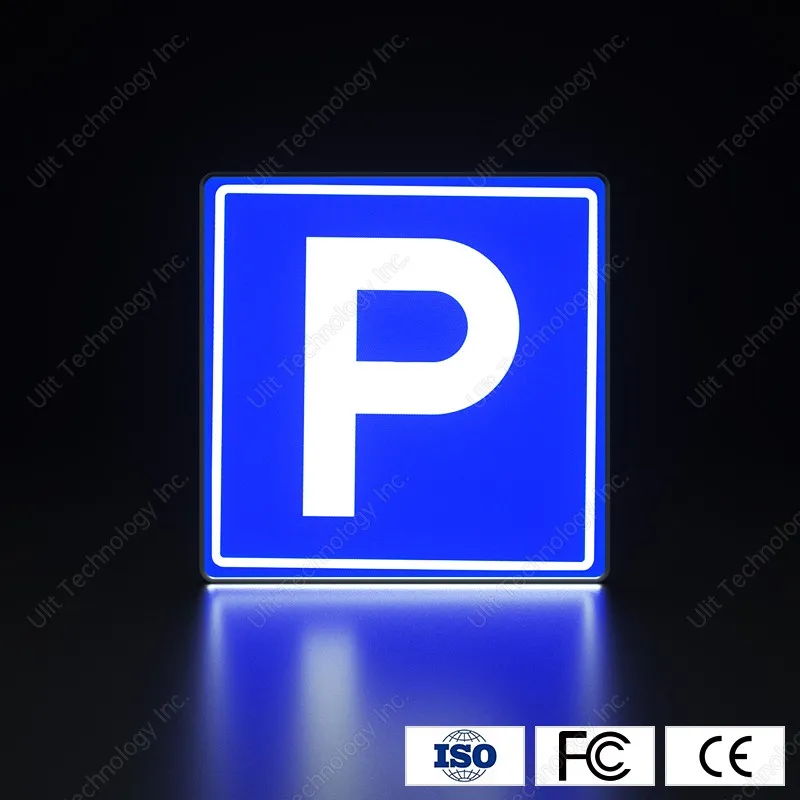

1000mm*1000mm Directional LED Active Luminous Traffic Signs
1000mm*1000mm LED active light-emitting traffic signs can be used as various square directional signs, including no thru traffic signs. These traffic signs are mainly designed for roads with poor field of vision. They use advanced LED light source panels and microprism reflective films, allowing light to fully penetrate the sign base board, text, and patterns. It provides easily identifiable information in all modes-daytime non-illuminating, nighttime reflective, and nighttime active luminous-effectively ensuring traffic order and safety.
Product Features

- The full penetration type active light-emitting traffic sign adopts a pervious faceplate with no seams on the surface;
- Unique optical refraction design, the panel displays no shadow and has balanced brightness;
- Equipped with highly penetrating and long visual range luminous components and microprism reflective film, these signs provide clear indication in various conditions, including daytime (no illumination), nighttime (reflective), and nighttime (illumination), meeting the needs of diverse environments and adverse weather conditions;
- High efficiency and low power consumption are achieved, ensuring light decay does not exceed 8%;
- Support protocol docking and IoT application extension;
- Automatically adjusts the luminance of the signage to maintain optimal visibility under different ambient lighting conditions;
- The contents of the signs can be all different types, like no thru traffic signs.


Hot Tags: no thru traffic signs, China no thru traffic signs manufacturers, suppliers, factory
Technical Parameters

|
Product Name |
1000mm*1000mm Directional LED Active Luminous Traffic Signs |
|
Reflective Film Grade |
Microprism Reflective Film |
|
Structure Material |
Aluminium Profile |
|
Overall Size |
Square, 1000mm*1000mm |
|
Luminance |
≥300cd/㎡, Support adjusting the luminance automatically according to the ambient brightness |
|
Visual Cognition Distance |
Static State≥250m, Dynamic State≥210m |
|
Visual Cognition Angle |
≥30° |
|
Uniformity of Luminance |
the non-uniformity of normal luminous intensity between the same color light-emitting unit pixels ≤5% |
|
Reliability |
Mean Time Between Failures (MTBF) ≥25,000h |
|
Light Attenuation |
50,000h≤8%; Attenuation Consistency ≤±5% |
|
Extension |
Support protocol docking; Support IoT application extension. |
|
Power Supply |
AC220V±15%, 50HZ/60Hz; Solar power is supported. |
|
Average Power Consumption |
≤60W |
|
Working Temperature |
-20℃~55℃ |
|
Working Humidity |
≤98%RH(40℃, No Condensation) |
|
Thickness |
60mm |
|
IP Rating |
IP55 |
|
Installation Method |
Single Pole Type/Outdoor Cantilever Type |
Product Applications

Certificates

Company Profile
Located in Chongqing, China, Ulit Technology Inc. has been in intelligent traffic industry for more than 30 years with 15,000 square meter manufacturing base. With city intelligent traffic as main business, we can provide various advanced products, whole solutions, software and services related to city traffic, such as traffic control platform, traffic light controllers, traffic lights, traffic signs, countdowns, LED screens, video detectors, speed signs and various solar lights. With ISO 9001:2015 quality management system certification, our products comply with national standards and industry norms, as well as various international standards, such as CE, RoHS, FCC, EN12966 and EN12368. Strong support from our design and technology departments enables us to receive OEM and ODM projects.

Exhibitions

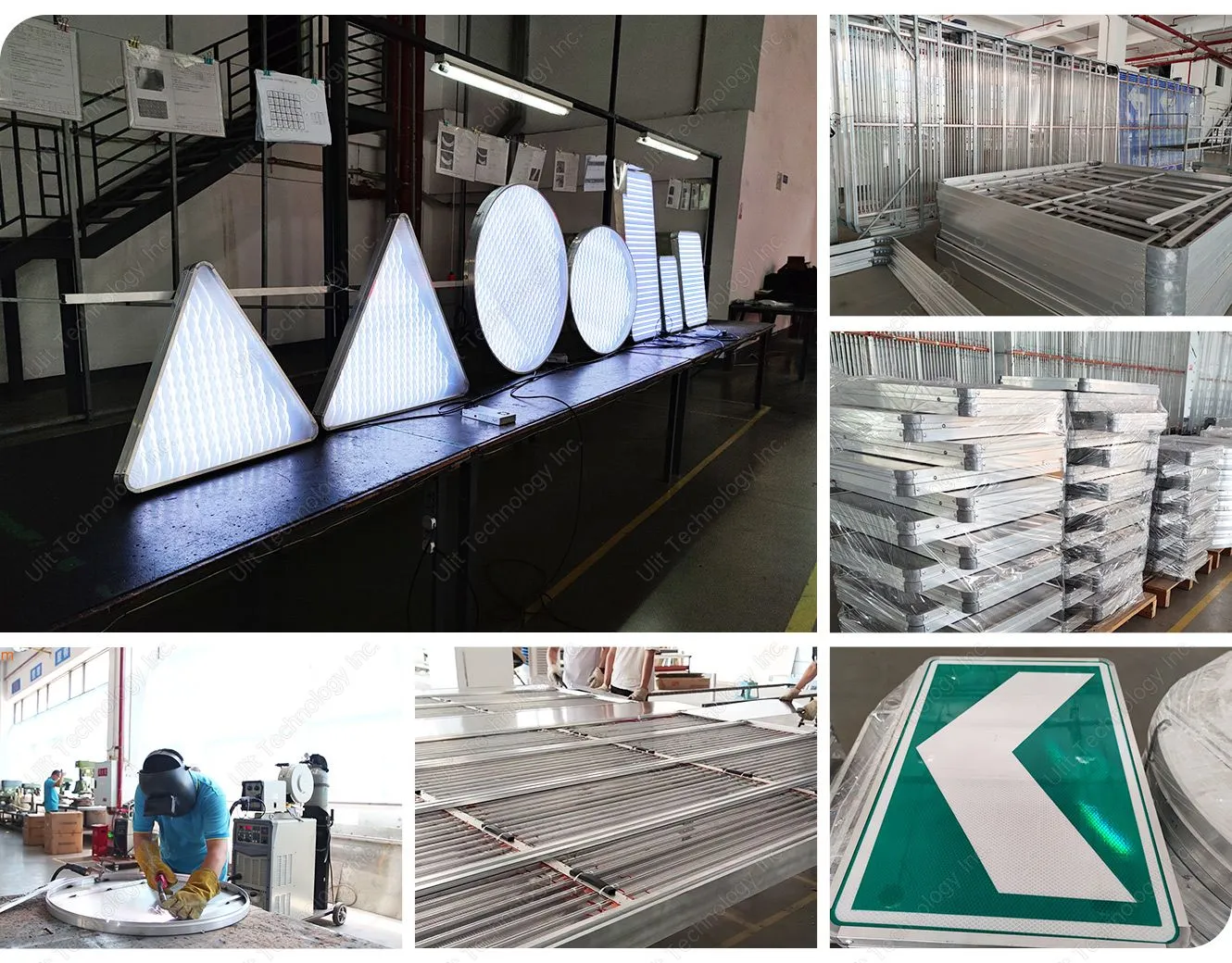

Production Workshop

FAQ
Q: Can I order a sample for testing?
A: Yes, we welcome sample orders to test. We can also make the samples exactly according to your detailed needs and requirements.
Q: How about your delivery time?
A: Typically, in-stock items can be shipped within 7-15 days after receiving the payment. The exact delivery time depends on the products and ordered quantities.
Q: How about the shipping method?
A: We can ship by sea, rail, and air. Samples are usually shipped via DHL, UPS, FedEx and other air transport methods.
Q: How about your warranty?
A: We offer a 2-year warranty and lifetime free remote technical support and service.
Q: How about the packages?
A: The products are first packed in cartons, and then the cartons are packed into standard export wooden cases.
