Products Description

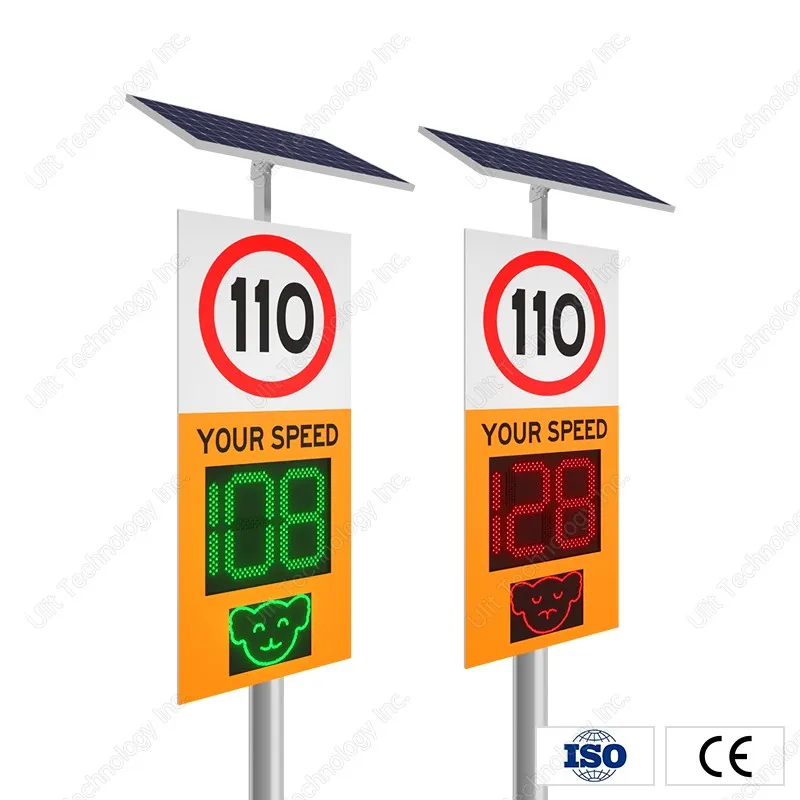

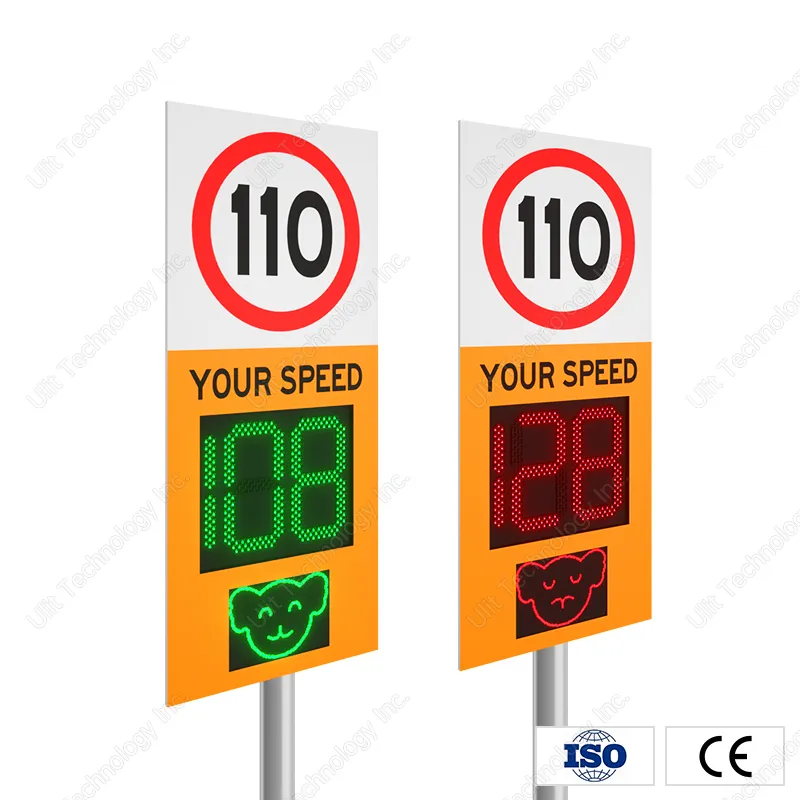

Radar Speed Sign with Kangaroo Pattern
The radar speed limit road sign with kangaroo pattern is added a red and green kangaroo pattern to the conventional three-digit radar speed sign to display speed reminder information. It can be used in a variety of road scenarios. When a vehicle enters the radar detection range, the microwave radar will automatically detect the vehicle's speed and respond to display the relevant speed on the LED screen in real time, reminding the driver to pay attention to the speed in time, thereby effectively reducing the occurrence of road traffic accidents caused by speeding. The speed limit road sign has passed CE certification.
Product Features
- Combined information display: fixed speed limit sign on the top, three-digit segment speed number display in the middle, and kangaroo pattern LED display on the bottom;
- When the vehicle is within the speed limit, the feedback will display a green speed value and a green kangaroo pattern; when the vehicle exceeds the speed limit, the feedback will display a red speed value and a red kangaroo pattern;
- Energy-saving screen-off mode when there is no vehicle, supports automatic adjustment of display brightness;
- Solar power supply, using low-temperature batteries, can work normally for 15 consecutive days on rainy days;
- The speed limit road sign supports storage of historical speed test records and supports connecting to speed analysis APP via Bluetooth;
- The software supports the generation of tables and graphic reports of speed data and supports export in .xls format.
Hot Tags: speed limit road sign, China speed limit road sign manufacturers, suppliers, factory
Technical Parameters
|
Product Name |
Radar Speed Sign with Kangaroo Pattern |
|
|
Sign Panel |
Overall Size |
Width1,100mm * Height 2,400mm |
|
Speed Screen |
Display Content |
Red Green Number and Red Green Kangaroo Pattern |
|
Number Rang |
0~199 |
|
|
Display Brightness |
≥6,000cd/m2 |
|
|
Speed Radar |
Working Frequency |
24.15GHz |
|
Beam Angle |
13.6°×37° |
|
|
Speed Measurement Range |
1 to 4 Lanes, 4～400km/h |
|
|
Speed Measurement Accuracy |
-4～0km/h |
|
|
Covering Distance |
≥150m |
|
|
Directivity |
Support judging the direction of the vehicles. |
|
|
Working Power Supply |
Solar Panel |
300W |
|
Battery |
12V100AH Lithium Battery |
|
|
Working Voltage |
DC12V |
|
|
Power |
≤10W |
|
|
Other Parameters |
Working Temperature |
-40℃～35℃ |
|
Working Humidity |
≤95%RH[(25±2)℃, No Condensation |
|
|
IP Rating |
IP54 |
|
|
Installation Mode |
Pole Installation |
|

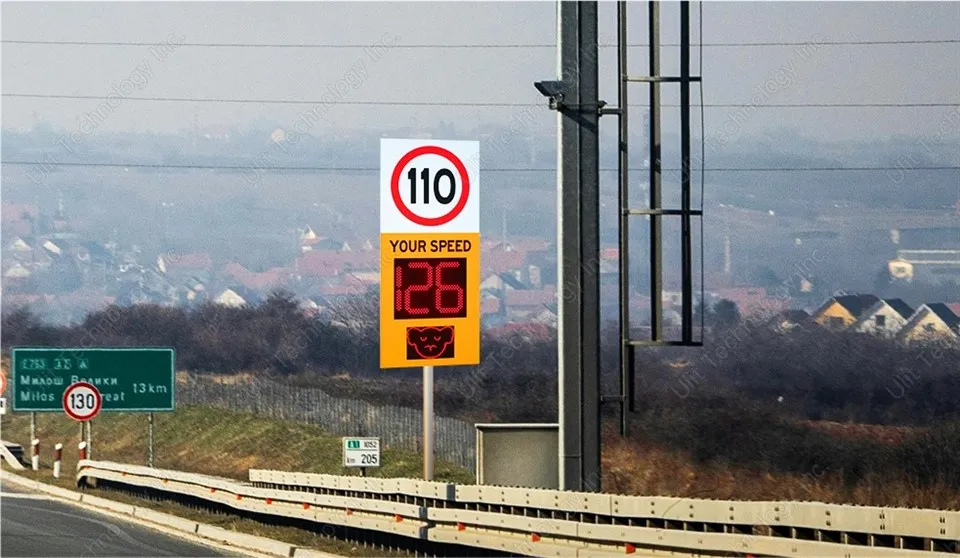

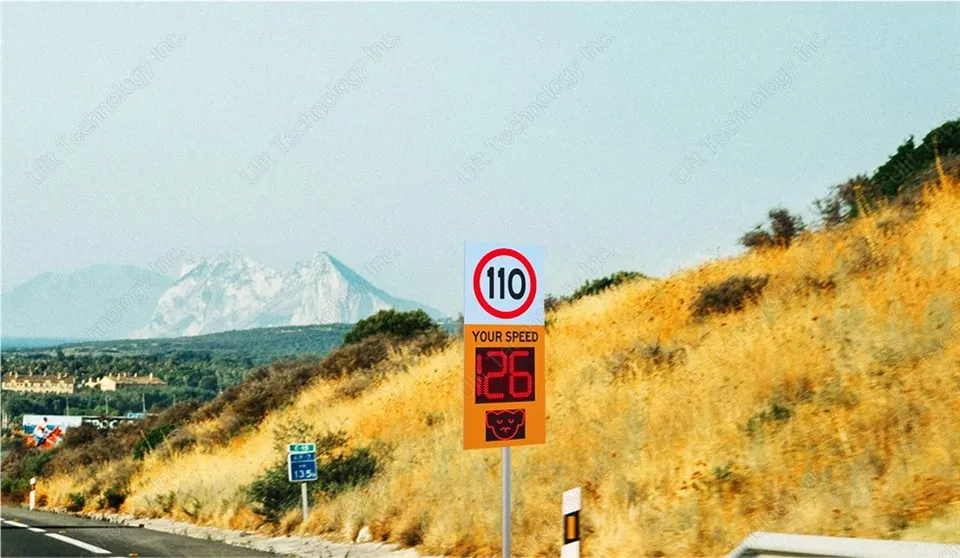

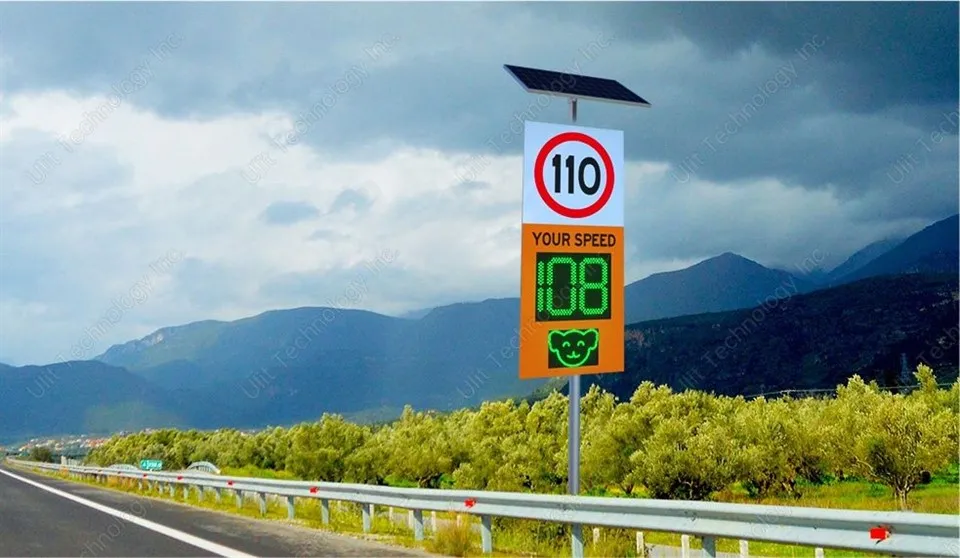

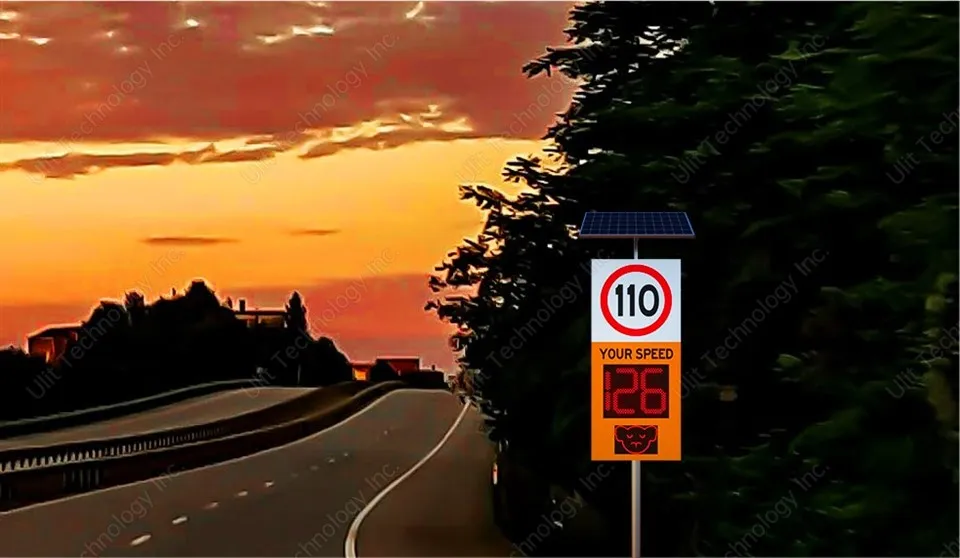

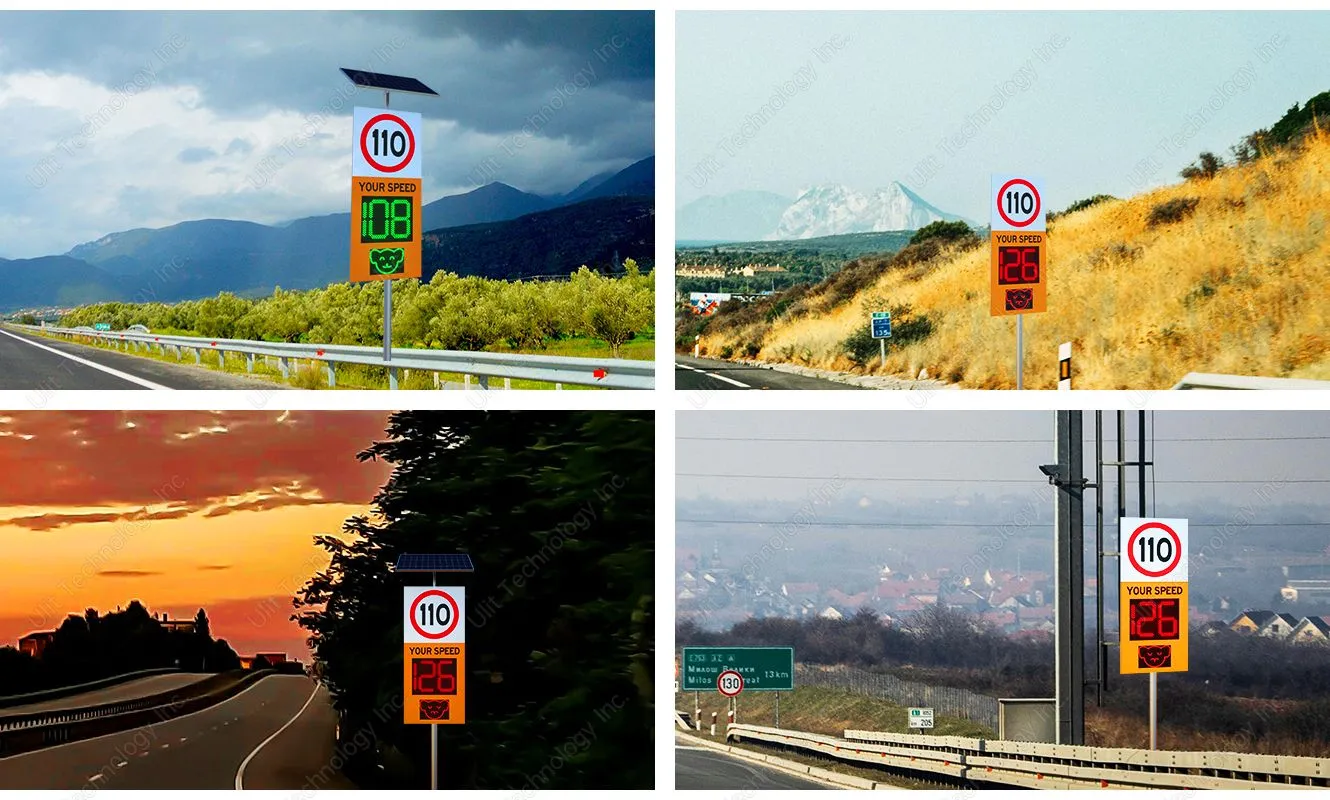

Product Applications
Certificates
Company Profile
We have been deeply involved in intelligent traffic industry for over 30 years with 15,000 square meter manufacturing base. As a leading manufacturer of traffic intelligent control system, traffic signal and display equipment, a leading provider of city traffic centralized control software, a national high-tech enterprise and a listed enterprise of Beijing Stock Exchange, we also supply OEM/ODM services. Certified by ISO/CE, our products are sold to more than 30 countries, including the USA, Mexico, Germany, Ireland, Romania, Greece, the Netherlands, Israel, Saudi Arabia and so on.
Exhibitions
FAQ
Q: Are you a factory?
A: Yes. We are a leading manufacturer of LED traffic signal products and intelligent traffic equipment, and a leading IoT (Internet of Things) solution provider in China.
Q: What are your best-selling products?
A: Traffic lights, traffic signs, traffic light systems, LED screens, traffic warning lights, radar speed signs, traffic light controllers, etc..
Q: Which certifications do you have?
A: CE, RoHS, FCC, EN12368, EN12966, IP65, MTC, ISO9001:2015, ISO14001:2015, CMMI-5, CCC and so on.
Q: Whether you could make our brand on your products?
A: Yes. Our R&D department provide strong technical support and enable us to receive OEM and ODM projects.
Q: What's your payment clause and delivery terms?
A: Payment Clause: T/T, L/C, Paypal, Western Union and so on.
Delivery Terms: EXW, FOB, CFR, CIF, DAP, DDP.
