Product Overview

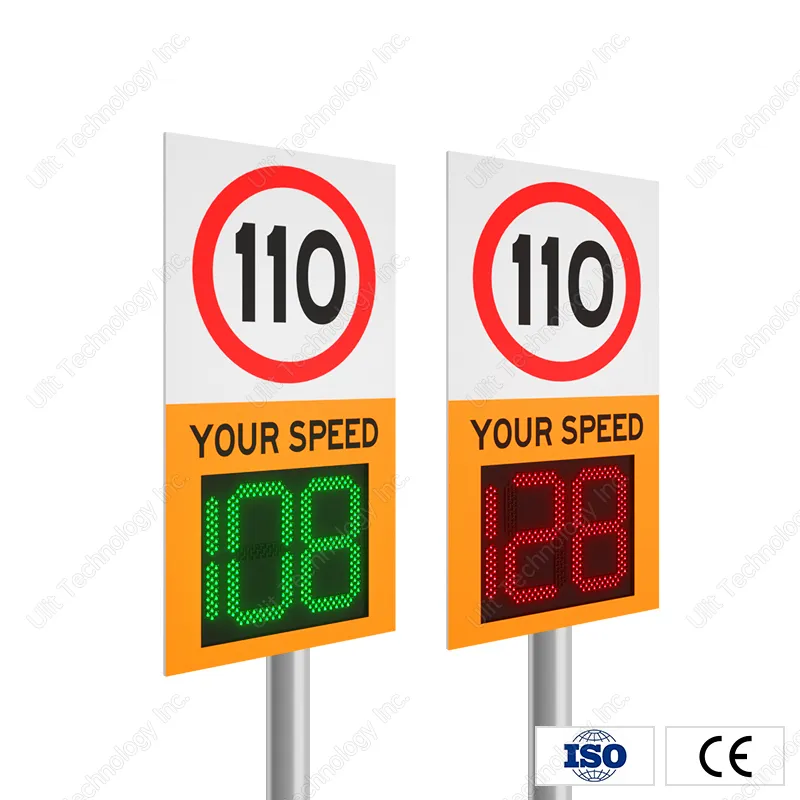

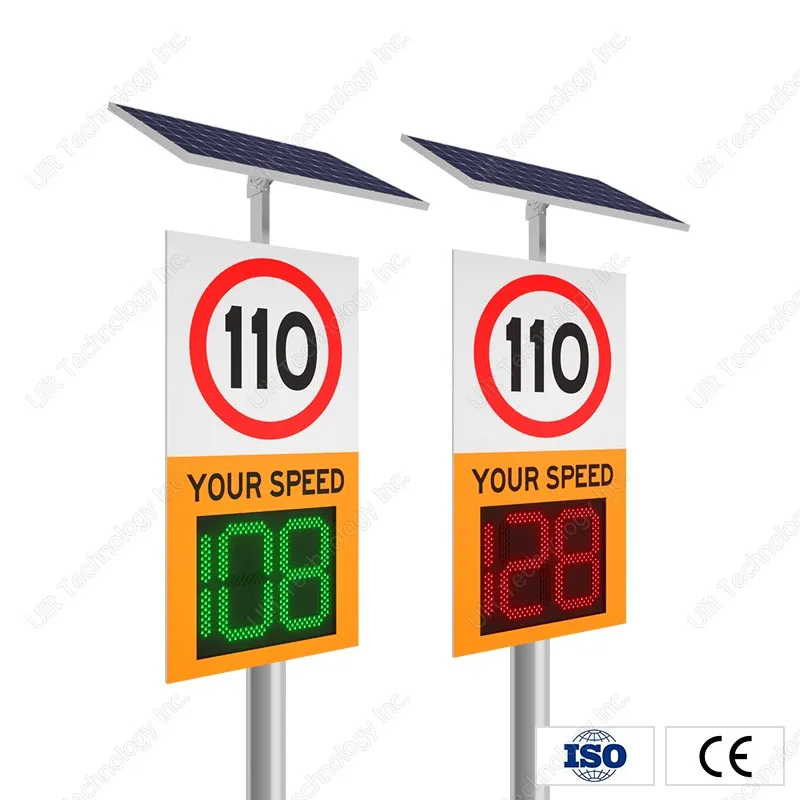

Three-digit Radar Speed Sign
This high-visibility three-digit radar speed limit signage consists of the aluminum profile sign panel, the built-in flat-panel micro radar for detecting vehicle speed, and the LED screen for displaying the vehicle speed. The LED screen displays the vehicle speed data detected by the speed radar in real time using different colored numbers: green for compliant speeds and red for over-speeding. This provides drivers with a clear and intuitive warning, effectively controlling vehicle speed. It is CE certification.
Product Features
-
The sign panel is formed from aluminum profile, which is beautiful, rust-proof, and suitable for long-term outdoor use;
-
The speed limit signae uses high-brightness traffic-specific LEDs and dot matrix displays;
-
It features a wide speed measurement range, enabling precise speed detection and rapid speed feedback;
-
If no vehicle is detected, the screen will automatically enter an energy-saving sleep state; Support automatically adjust the display brightness to adapt to the environment;
-
On-site installation is extremely simple, and the installation angle can be adjusted according to the actual situation.
Hot Tags: speed limit signage, China speed limit signage manufacturers, suppliers, factory
Technical Parameters
| Product Name | Three-digit Radar Speed Sign |
| Display Type | Two-color |
| Number Range | 0-199 |
| Display Brightness | ≥6,000cd/m2 |
| Maximum Effective Viewing Distance | 300m |
| Mean Time Between Failures (MTBF) | ≥100,000 Hours |
| Speed Measurement Range | 2～400km/h |
| Speed Measurement Accuracy | (-4～0)km/h |
| Covered Lane Quantity | 1 to 3 Lanes |
| Power | < 25W |
| Power Supply Mode | Mains Electricity |
| Working Voltage | AC 220V±15％ |
| Working Temperature | -20℃～70℃ |
| Working Humidity | ＜95%@40℃, No Condensation |
| IP Rating | IP54 |
| Overall Dimensions | Width1,000mm * Height 1,850mm * Thickness 150mm |
| Net Weight | 18KG |
| Installation Method | Back Frame (stainless steel strip and special fasteners) |
| Package Size | Length 1,910mm * Width 1,060mm *Thickness 210mm |
| Package Gross Weight | 20KG |
| Package Type | Carton |

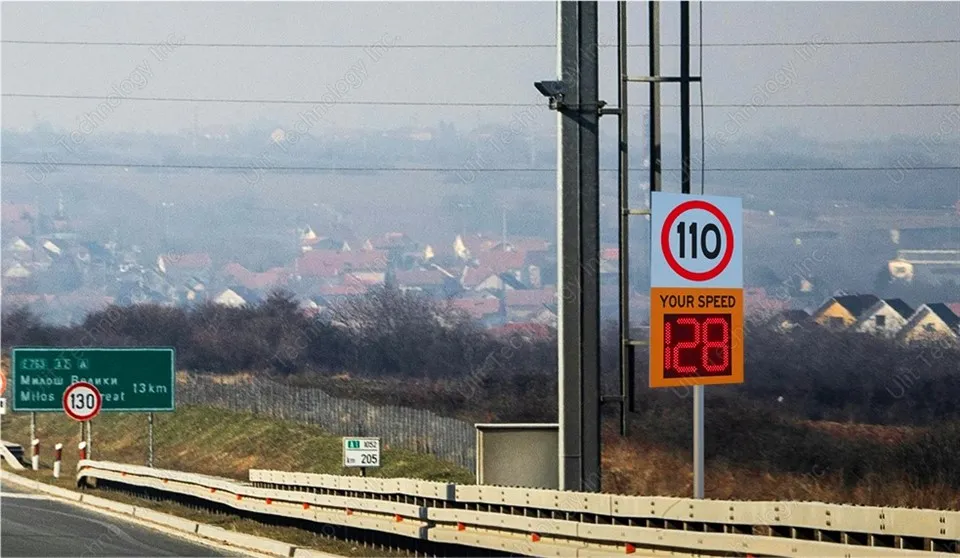

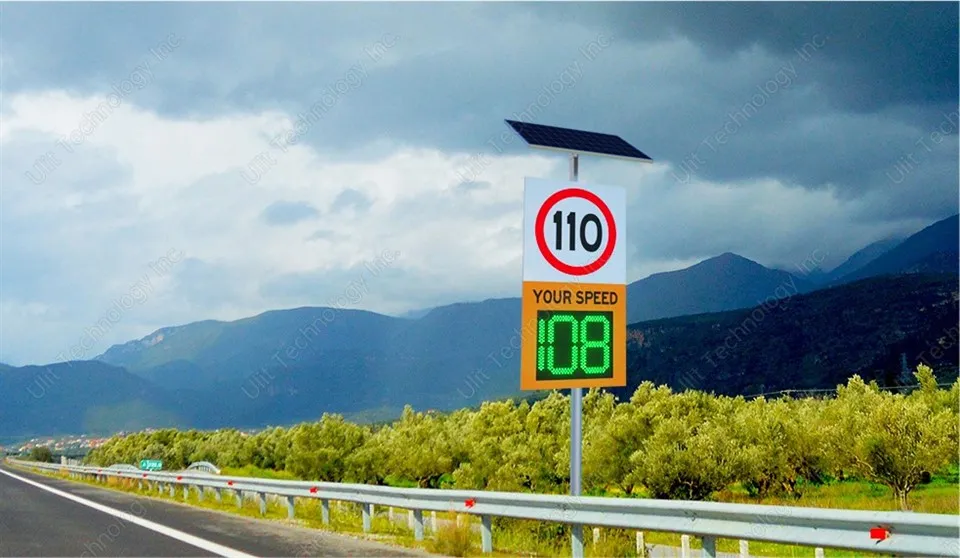

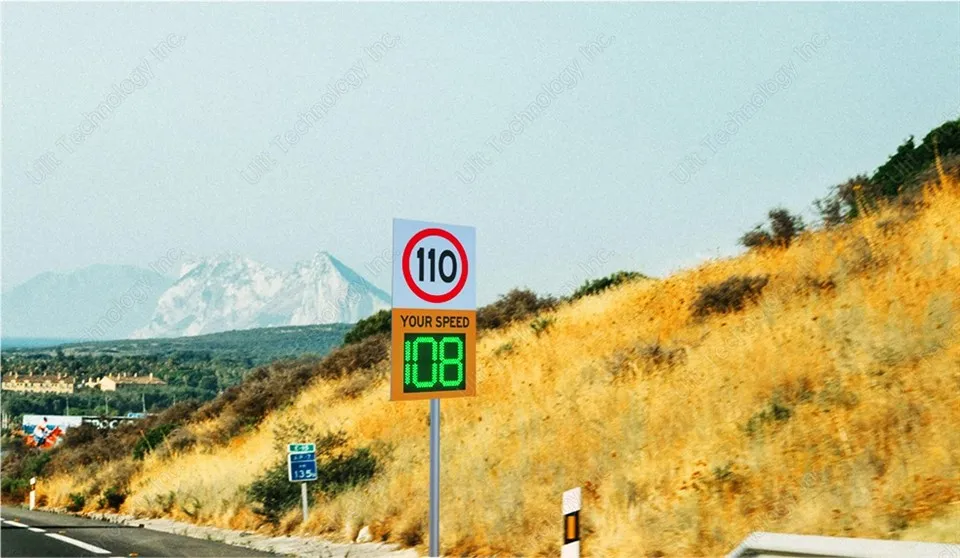

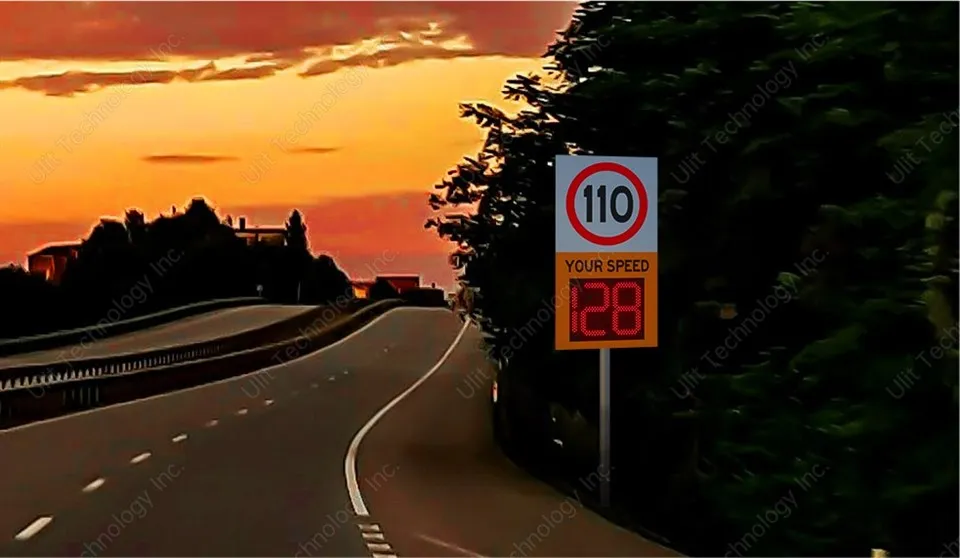

Product Applications
Certificates
Company Profile
Located in Chongqing, China, Ulit Technology Inc. has been in intelligent traffic industry for more than 30 years with 15,000 square meter manufacturing base. With city intelligent traffic as main business, we can provide various advanced products, whole solutions, software and services related to city traffic, such as traffic control platform, traffic light controllers, traffic lights, traffic signs, countdowns, LED screens, video detectors, speed signs and various solar lights. With ISO 9001:2015 quality management system certification, our products comply with national standards and industry norms, as well as various international standards, such as CE, RoHS, FCC, EN12966 and EN12368. Strong support from our design and technology departments enables us to receive OEM and ODM projects.
Exhibitions
FAQ
Q: Can I order a sample for testing?
A: Yes, we welcome sample orders to test. We can also make the samples exactly according to your detailed needs and requirements.
Q: How about your delivery time?
A: Typically, in-stock items can be shipped within 7-15 days after receiving the payment. The exact delivery time depends on the products and ordered quantities.
Q: How about the shipping method?
A: We can ship by sea, rail, and air. Samples are usually shipped via DHL, UPS, FedEx and other air transport methods.
Q: How about your warranty?
A: We offer a 2-year warranty and lifetime free remote technical support and service.
Q: How about the packages?
A: The products are first packed in cartons, and then the cartons are packed into standard export wooden cases.
