Pedestrian Crossing Signal

Pedestrian Crossing Signal
Product Introduction:

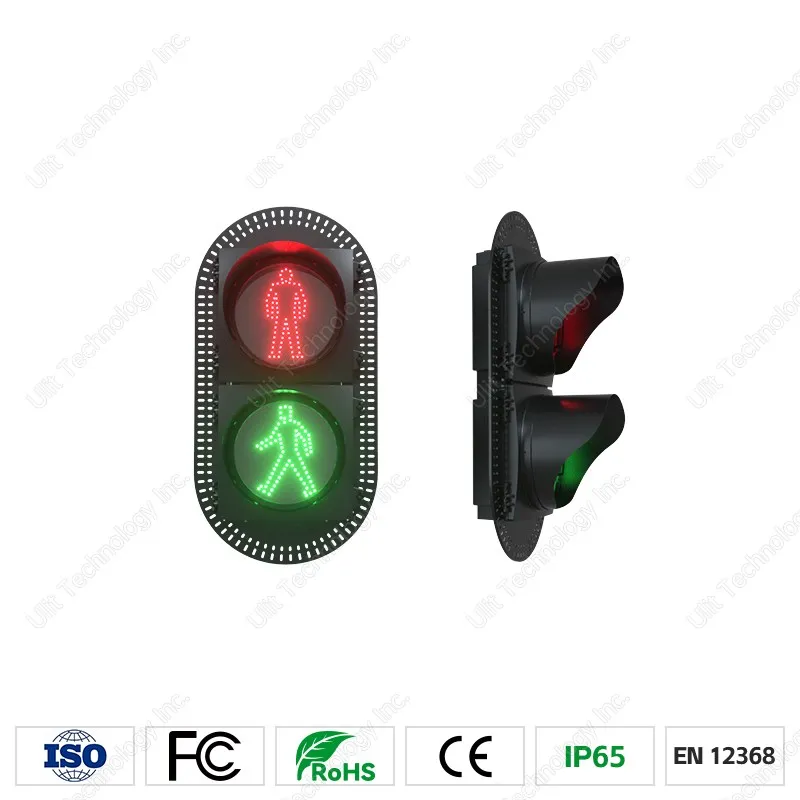

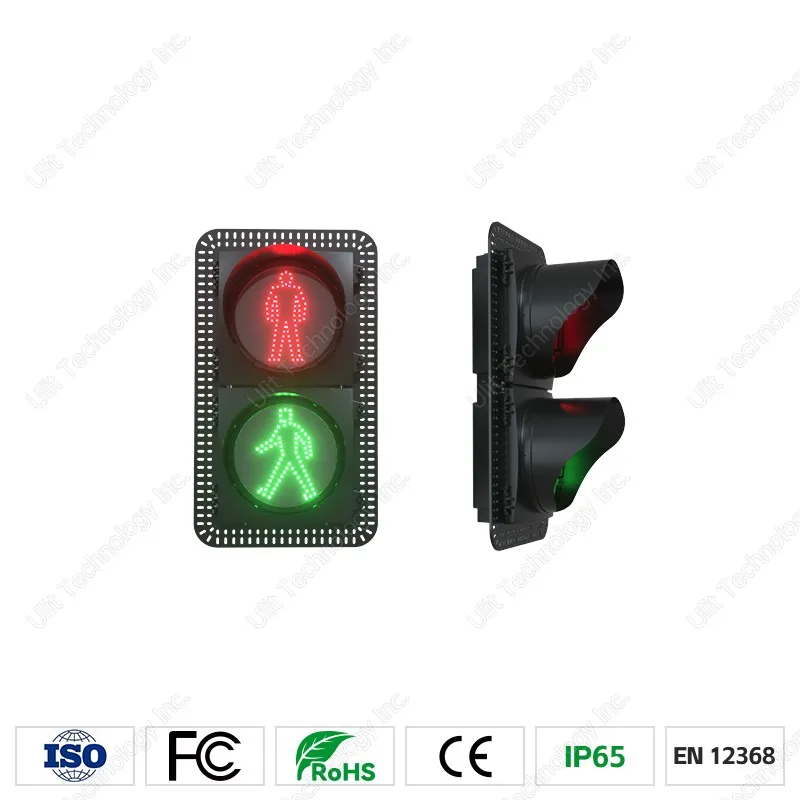

200mm Pedestrian Traffic Light
One set of pedestrian crossing signal consists of two Φ200mm pedestrian lights (one green pedestrian panel and one red pedestrian panel), two colors, separate light panels in geometric position. The housing is made of dedicated PC material with high strength and hardness, better heat resistance, impact resistance, corrosion resistance and aging resistance. It adopts high quality LED light-emitting elements, compliance with CE, RoHS, FCC and EN12368 certification.
Send Inquiry
Description
Technical Parameters

Product Overview



Pedestrian Crossing Signal Banner



200mm Pedestrian Traffic Light

This pedestrian crossing signal kit consists of two independent 200mm red and green pedestrian traffic light modules. To ensure outdoor safety and a longer lifespan, it features a robust and durable PC housing with excellent impact resistance, heat resistance, and corrosion resistance. High-efficiency LED light-emitting elements serve as the light source. It fully complies with international certification standards such as CE, FCC, RoHS, and EN12368.



Product Features

Pedestrian Crossing Signal Features

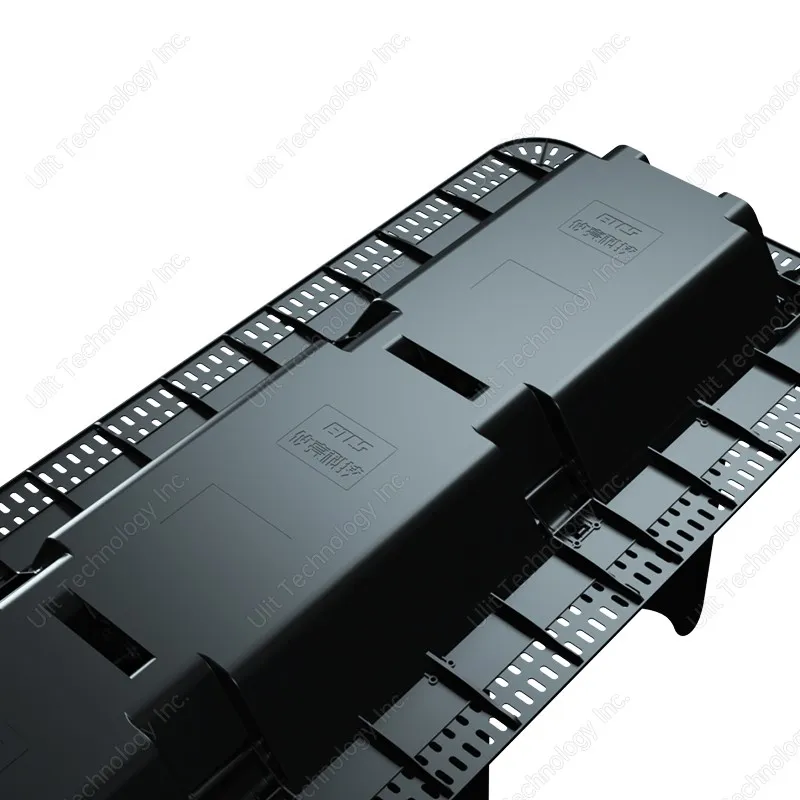

pedestrian crossing signal pc housing

To ensure outdoor safety and a longer lifespan, it features a robust and durable PC housing with excellent impact resistance, heat resistance, and corrosion resistance;

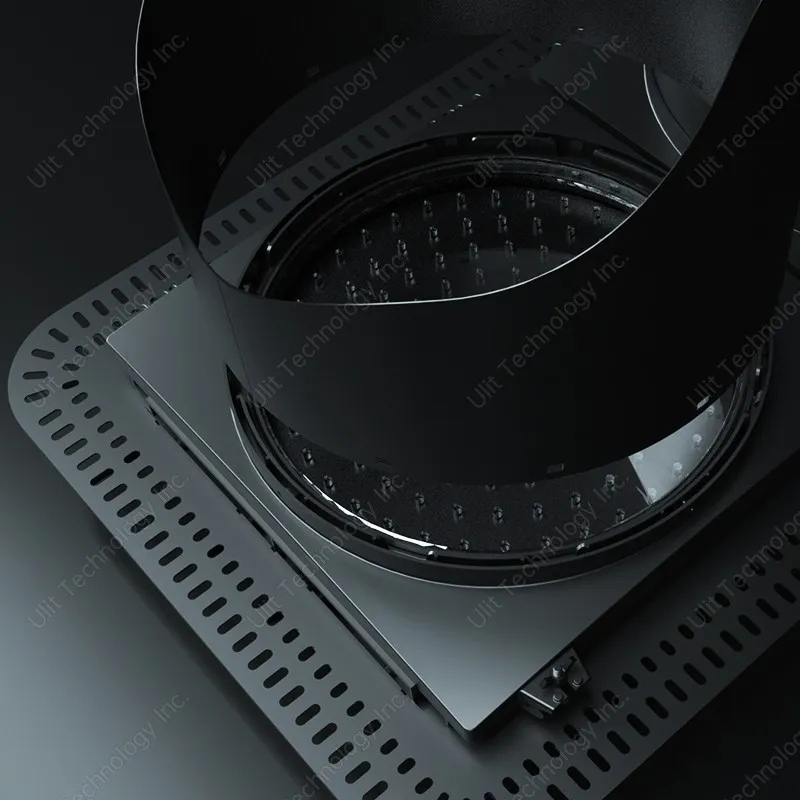

pedestrian crossing signal colorless mask

The lens of the pedestrian crossing signal light is made of transparent and colorless PC material, which has high light transmittance and UV resistance, and will not yellow or discolor during its service life;

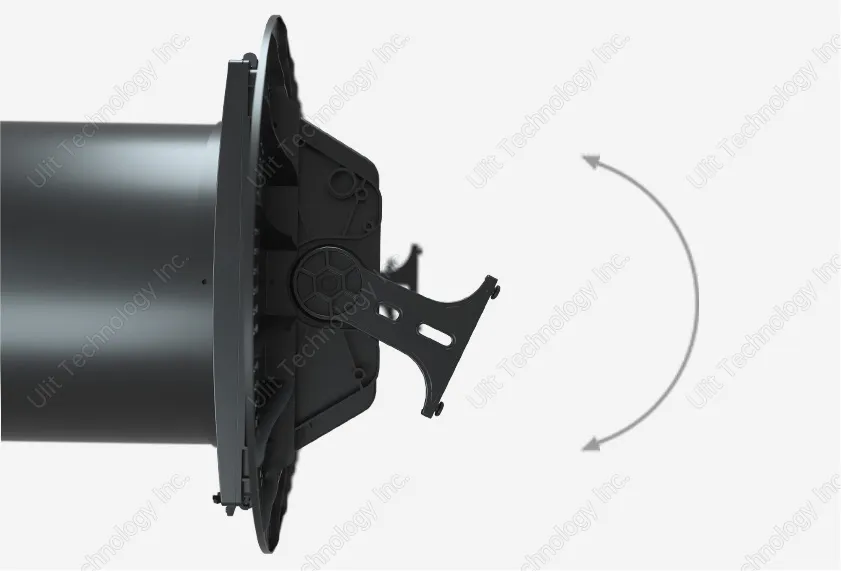

pedestrian crossing signal installation

Both light panels of the pedestrian crossing signal can be opened independently; The light body can be adjusted left and right, and tilted, with an adjustment angle equal to or greater than 30°;

  • The pedestrian crossing signal light is equipped with high-efficiency LED components, saving up to 50% more energy compared to traditional light sources. The light-emitting unit has a lifespan of over 8 years;
  • Corrosion-resistant stainless steel strips are used to ensure installation stability and prevent the pedestrian crossing signal from falling;
  • The pedestrian crossing signal can be equipped with PLC communication function; Can remotely monitor the status of the traffic lights; Can automatically report faults, including traffic siganl stopping working, simultaneous illumination of red and green lights, LED string malfunctions, and communication interruptions. It can automatically adjust brightness based on environmental sensor data to ensure no glare at night.



Hot Tags: pedestrian crossing signal, China pedestrian crossing signal manufacturers, suppliers, factory

Technical Parameters

Pedestrian Crossing Signal Size



Product Name

200mm Pedestrian Traffic Light

Display Content

Green Pedestrian (Static), Red Pedestrian (Static)

Light Panel Size

Φ200mm

Viewing Angle

30°

Viewing Distance

≥200m

Working Voltage

AC220V/AC110V/DC48V/DC24V/DC12V

Rated Power

≤7W

Working Temperature

-40℃~80℃

IP Rating

IP65

Overall Dimensions

Length 600mm * Width 288mm * Height 257mm (including the visor and the frame)

Housing Material

PC

Installation Method

Pole Type (stainless steel strip and functional fastener)



Product Applications

Pedestrian Crossing Signal Applications



Certificates

Pedestrian Crossing Signal Certificates

Pedestrian Crossing Signal Company Certificates



Company Profile

Pedestrian Crossing Signal Company

Ulit Technology Inc.



We are a leading provider of city traffic centralized control software, wireless traffic light systems, and intelligent traffic solutions, as well as a high-tech enterprise listed on the Beijing Stock Exchange. With 30 years of industry experience and a 15,000-square-meter production and office base, our business spans over 30 countries worldwide, providing ISO and CE certified products to markets including the United States, Germany, Romania, Saudi Arabia, and Mexico. Furthermore, our strong R&D team enables us to conduct comprehensive OEM and ODM collaborations.

one-stop Service

OEM and ODM

Rapid Response



Exhibitions



Pedestrian Crossing Signal Exhibitions

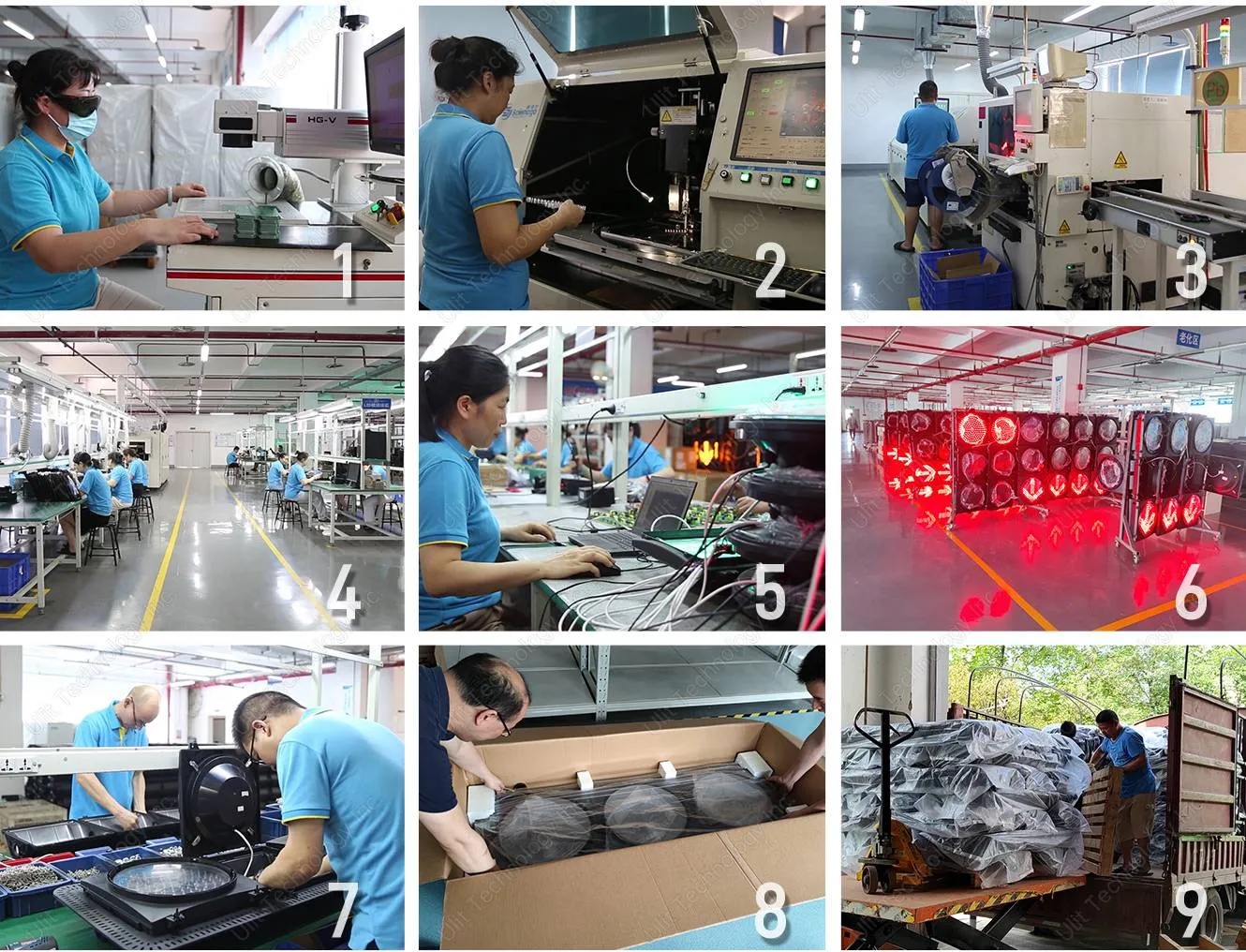

Production Process



Pedestrian Crossing Signal Production Processes



FAQ



Q: Are you a factory?

A: Yes. We are a leading manufacturer of LED traffic signal products and intelligent traffic equipment, and a leading IoT solution provider in China.

Q: What products do you have?

A: Traffic lights, traffic signs, traffic light systems, LED screens, traffic warning lights, radar speed signs, traffic light controllers, etc..

Q: What certifications does the pedestrian crossing signal have?

A: CE, RoHS, FCC, EN12368, EN12966, IP65, MTC, ISO9001:2015, ISO14001:2015, CMMI-5, CCC and so on.

Q: Whether you could make our brand on your products?

A: Yes. Our R&D department provide strong technical support and enable us to receive OEM and ODM projects.

Q: How about the payment clauses and delivery terms?

A: Payment Clauses: T/T, L/C, Paypal, Western Union and so on.

Delivery Terms: EXW, FOB, CFR, CIF, DAP, DDP.
