Product Overview

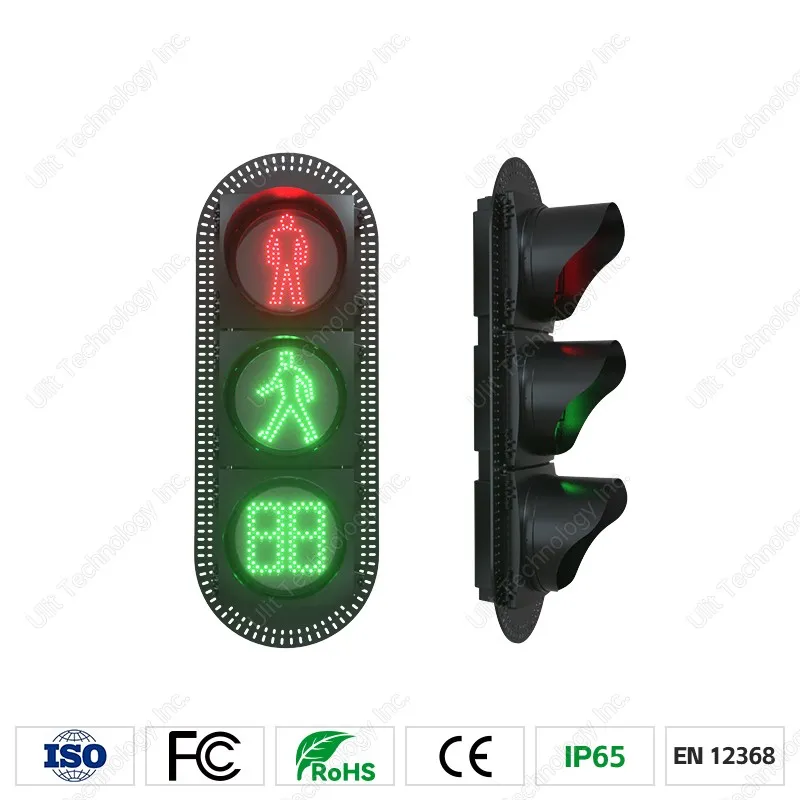

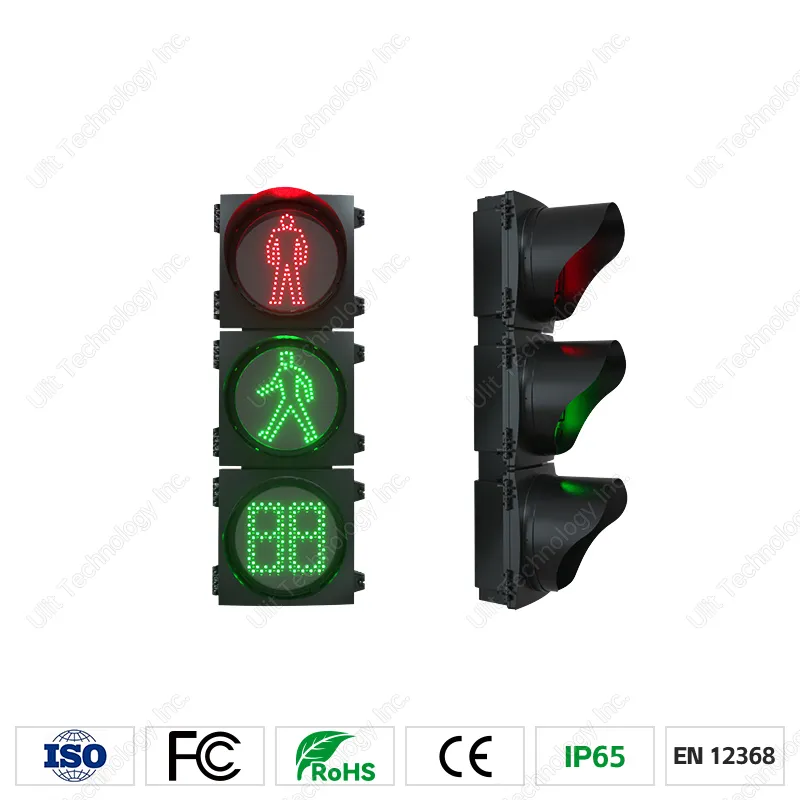

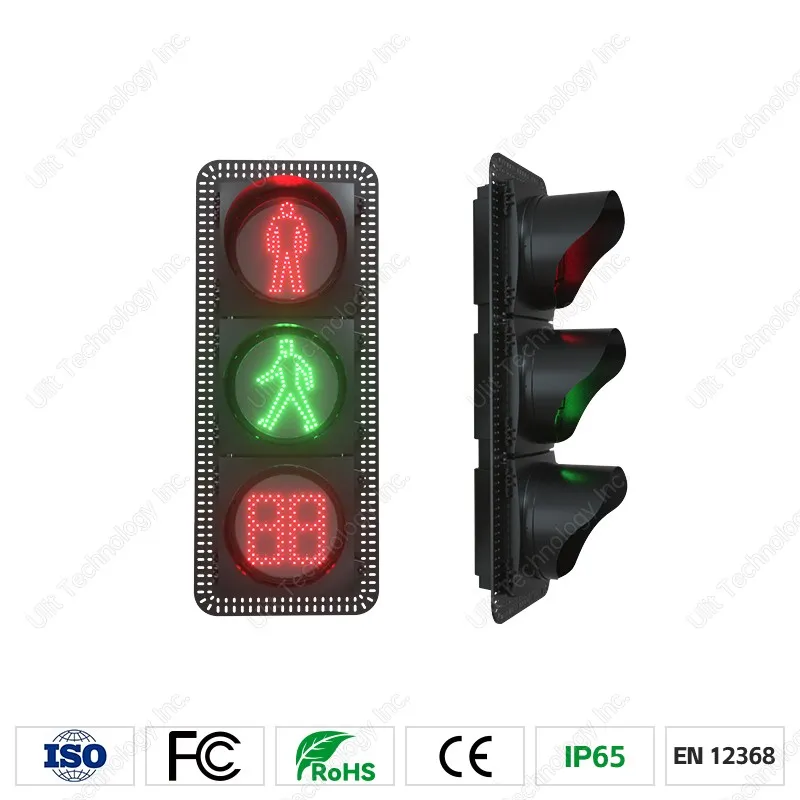

200mm Pedestrian Traffic Light with Parallel Countdown
The pedestrian crossing traffic light comprises two 200mm diameter LED pedestrian traffic light (red and green) and a synchronized parallel countdown timer. The housing is made of high-strength, high-hardness PC, engineered for superior thermal stability, impact resistance, corrosion resistance, and resistance to environmental aging. The light source adopts high-quality LEDs. It meets the certification requirements of CE, RoHS, FCC and EN12368.

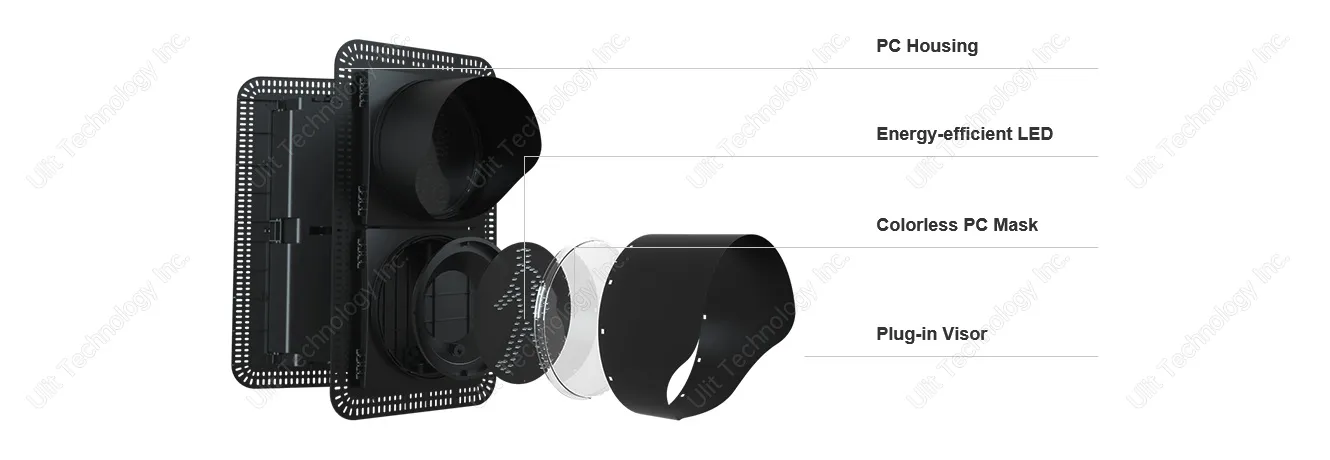

Product Features

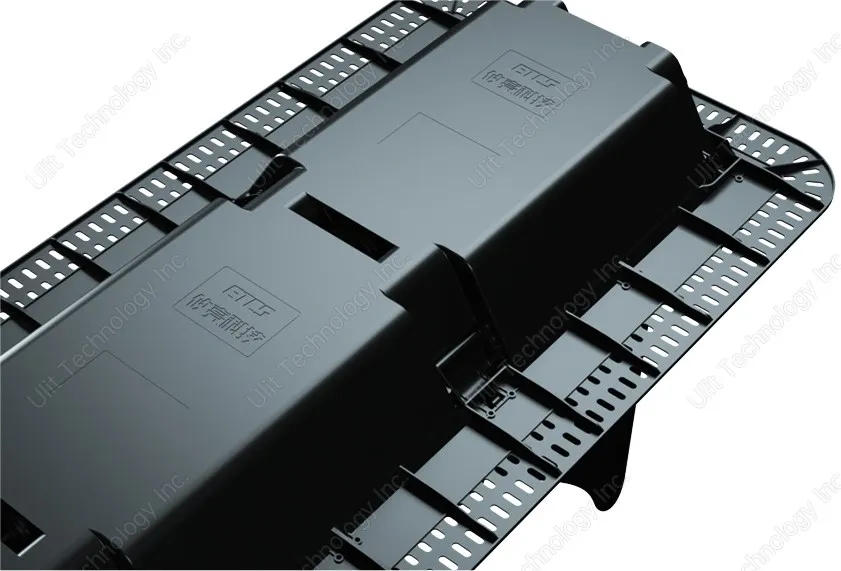

Each light panel can be opened independently;

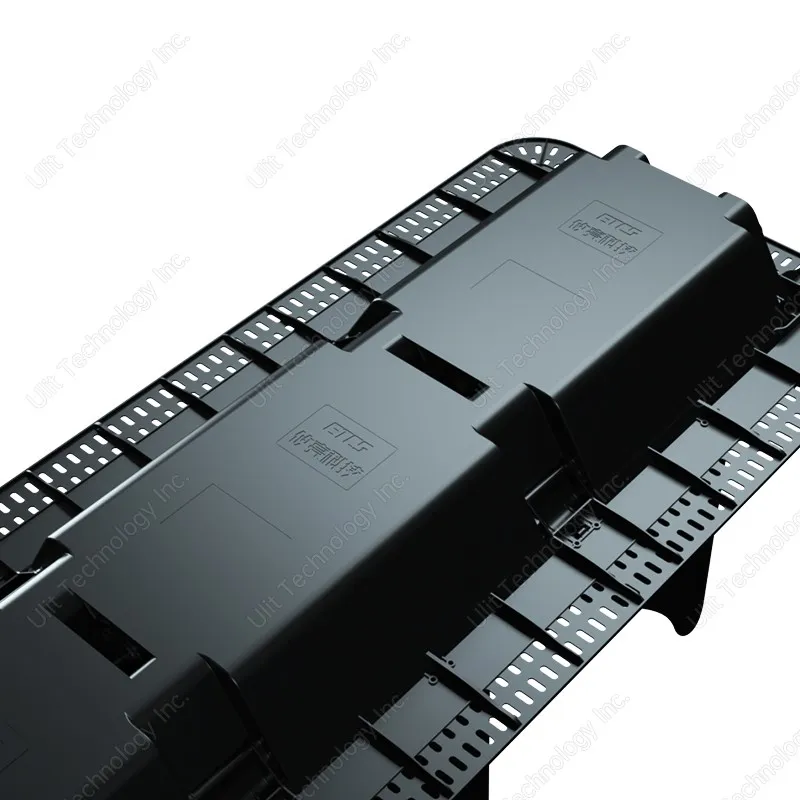

Installed using stainless steel strips, which are sturdy and corrosion-resistant, ensuring the product will not fall;
This model of pedestrian crossing traffic light uses high-quality LEDs. It is over 50% more energy-efficient than traditional light sources; The LEDs in the light-emitting units have a service life of over 8 years;

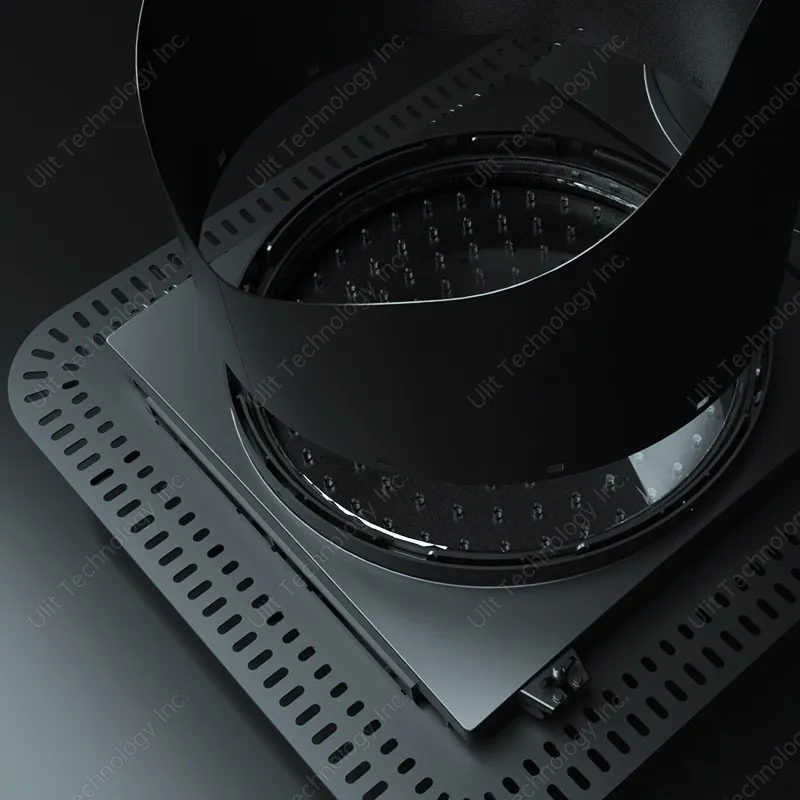

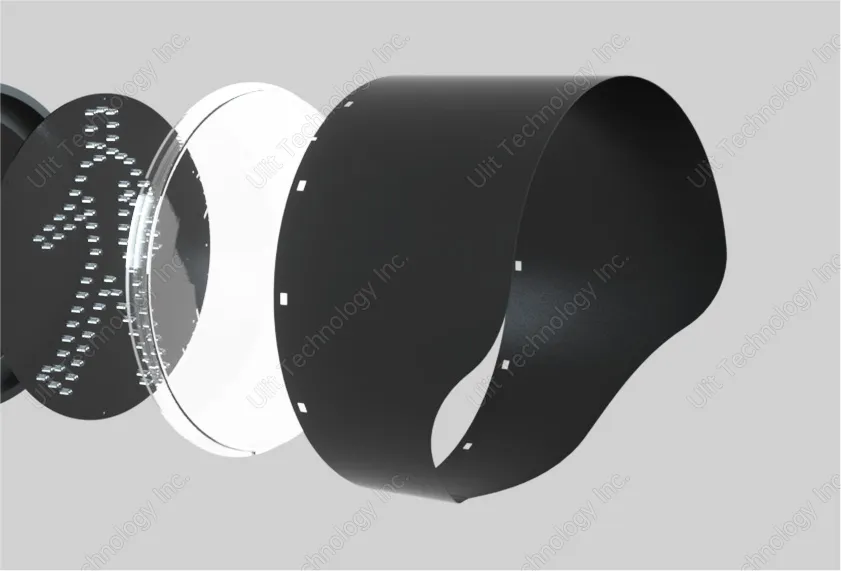

The lens is made of UV-resistant, colorless PC material with high light transmittance and will not yellow or discolor over its service life;
The lamp body can be adjusted left and right, as well as up and down, with an adjustment range of at least 30°;
The pedestrian crossing traffic light can be optionally equipped with PLC communication function; Support remote monitoring of traffic signal operating status; Support automatic fault reporting; Support brightness adjustment.
Hot Tags: pedestrian crossing traffic light, China pedestrian crossing traffic light manufacturers, suppliers, factory
Technical Parameters
|
Product Name |
200mm Pedestrian Traffic Light with Parallel Countdown |
|
Display Content |
Green Pedestrian (Static), Red Pedestrian (Static), Parallel Countdown |
|
Light Panel Size |
Φ200mm |
|
Viewing Angle |
30° |
|
Viewing Distance |
≥200m |
|
Working Voltage |
AC220V/AC110V/DC48V/DC24V/DC12V |
|
Rated Power |
≤13W |
|
Working Temperature |
-40℃～80℃ |
|
IP Rating |
IP65 |
|

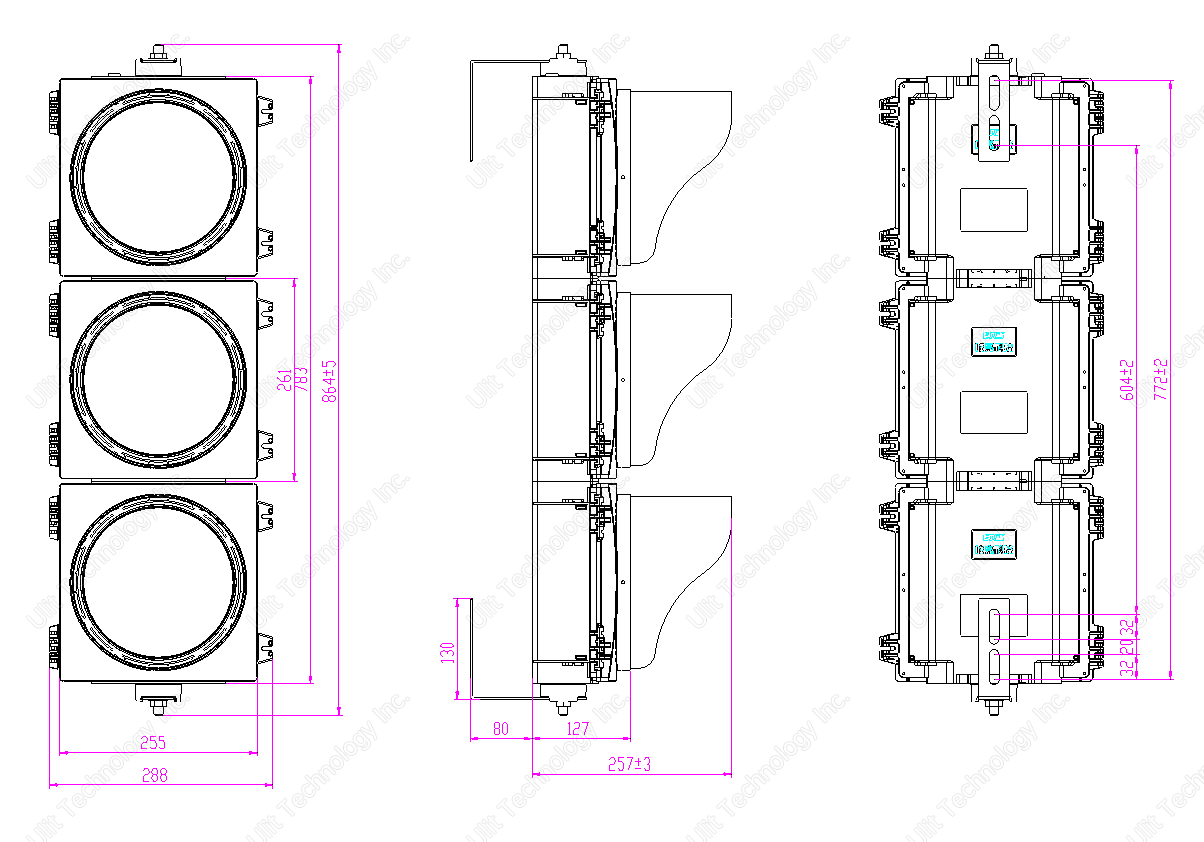

Overall Dimensions |
Length 864mm * Width 288mm * Height 257mm (including the visor and the frame) |
|
Housing Material |
PC |
|
Installation Method |
Pole Type (stainless steel strip and functional fastener) |

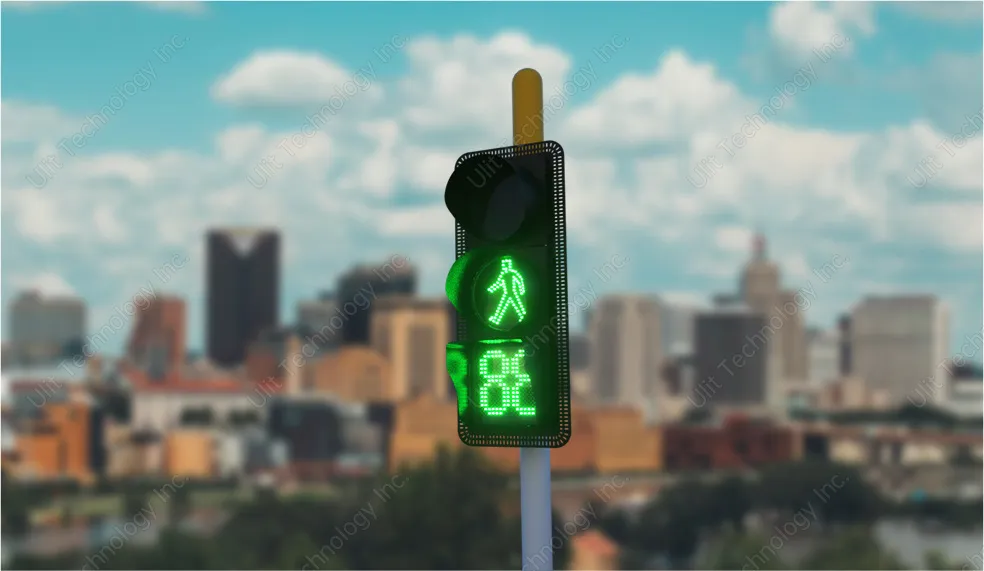

Product Applications
Certificates

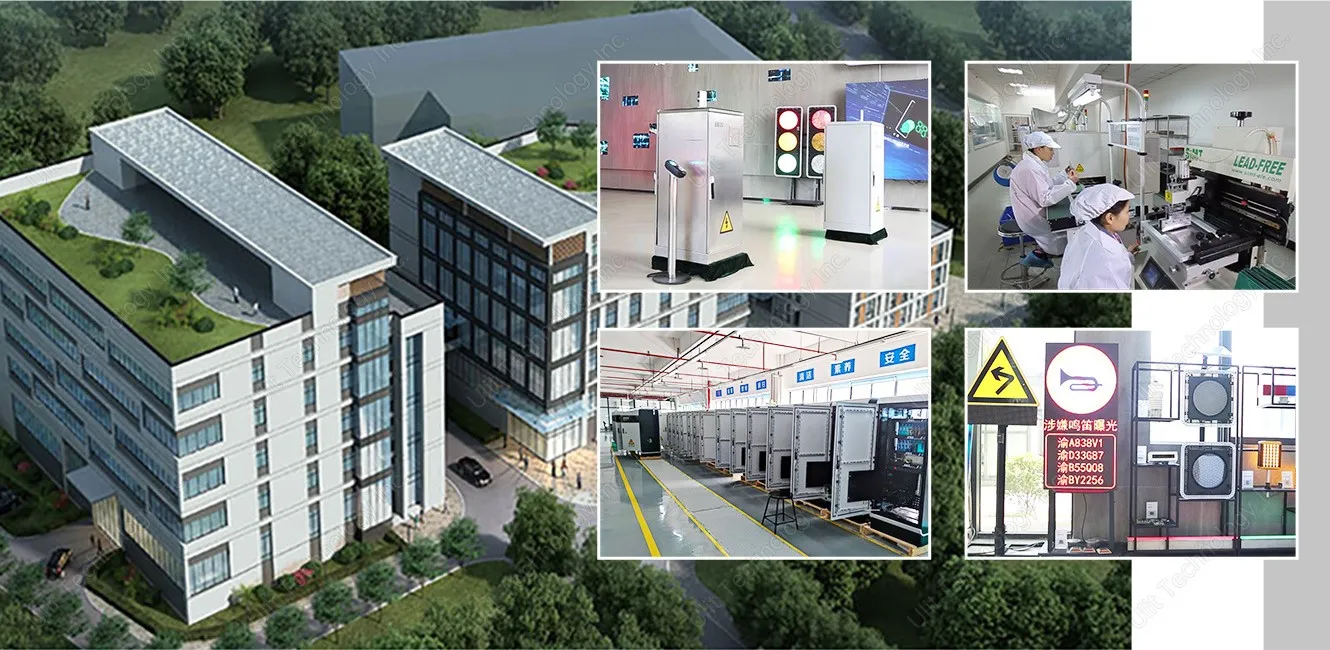

Company Profile
Located in Chongqing, China, Ulit Technology Inc. has been in intelligent traffic industry for more than 30 years with 15,000 square meter manufacturing base. With city intelligent traffic as main business, we can provide various advanced products, whole solutions, software and services related to city traffic, such as traffic control platform, traffic light controllers, traffic lights, traffic signs, countdowns, LED screens, video detectors, speed signs and various solar lights. With ISO 9001:2015 quality management system certification, our products comply with national standards and industry norms, as well as various international standards, such as CE, RoHS, FCC, EN12966 and EN12368. Strong support from our design and technology departments enables us to receive OEM and ODM projects.
Trade Shows

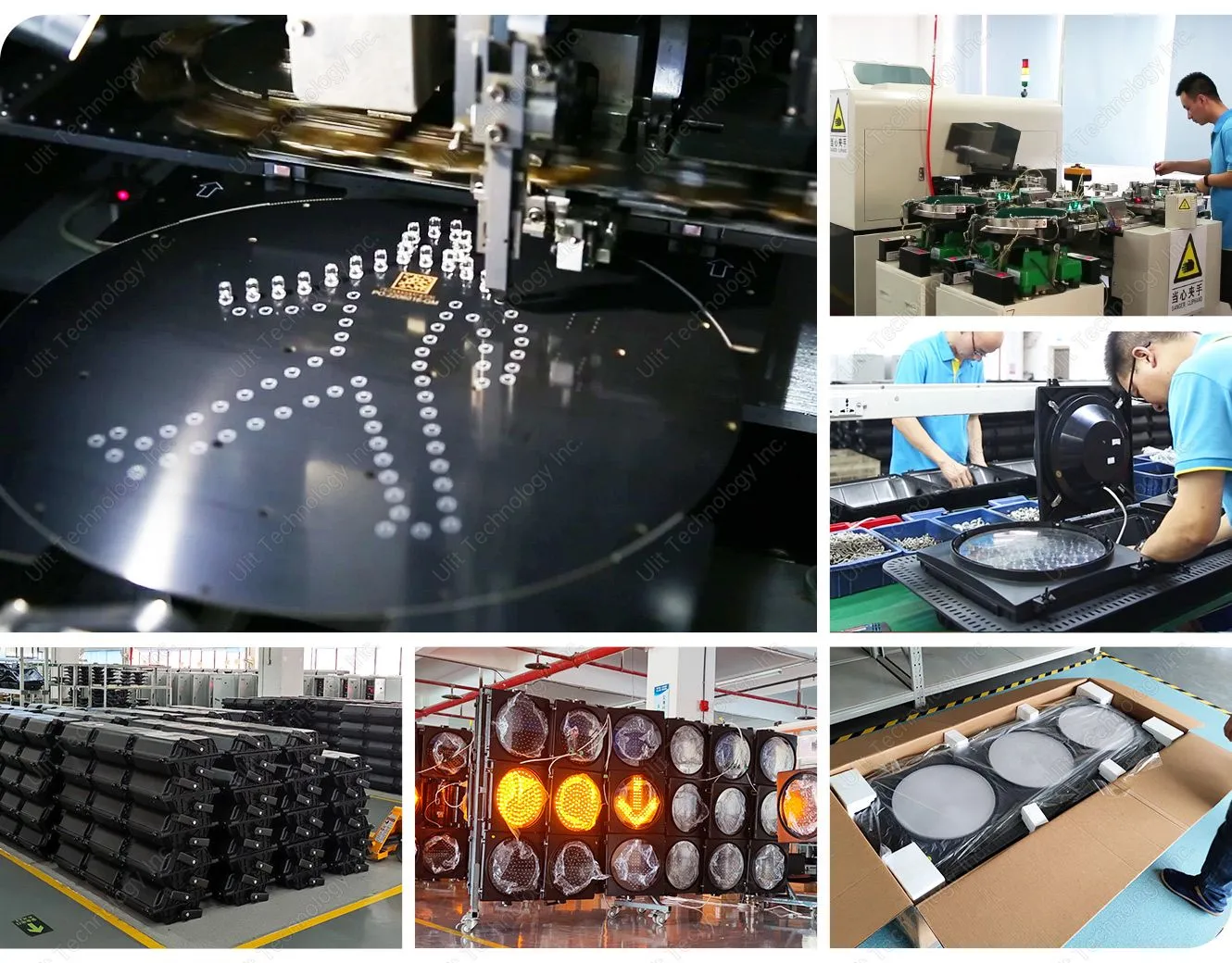

Production Workshop
FAQs
Q: Can I order a sample of this pedestrian crossing traffic light for testing?
A: Yes, we welcome sample orders to test. We can also make the samples exactly according to your detailed needs and requirements.
Q: How about your delivery time?
A: Typically, in-stock items can be shipped within 7-15 days after receiving the payment. The exact delivery time depends on the products and ordered quantities.
Q: How about the shipping method?
A: We can ship by sea, rail, and air. Samples are usually shipped via DHL, UPS, FedEx and other air transport methods.
Q: How about your warranty to this pedestrian crossing traffic light?
A: We offer a 2-year warranty and lifetime free remote technical support and service.
Q: How about its packages?
A: Our products are first packed in cartons, and then the cartons are packed into standard export wooden cases.
