Product Overview

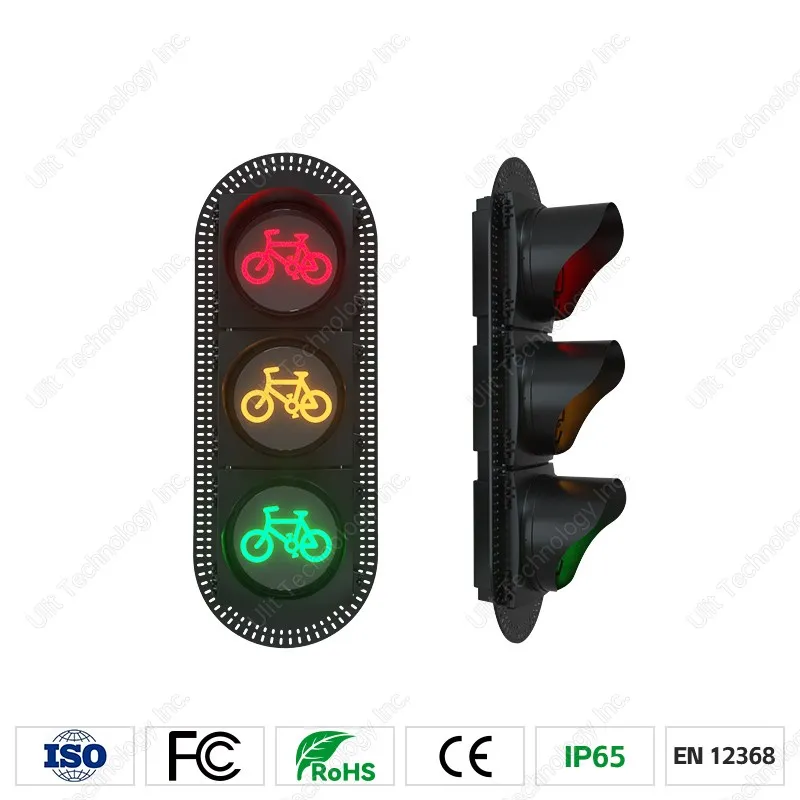

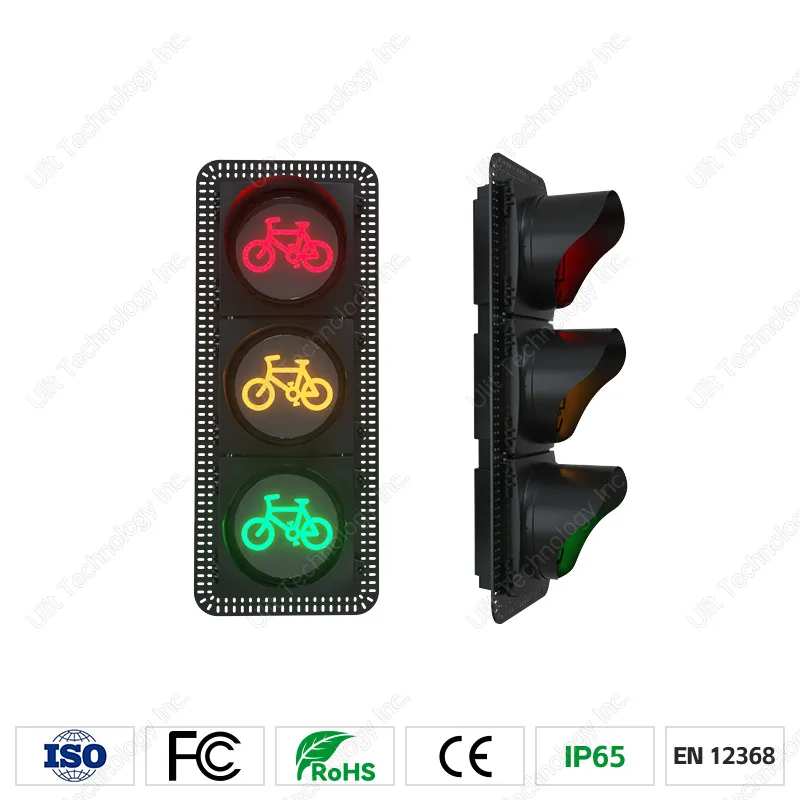

200mm High Flux Bicycle Traffic Light
The traffic safety light consists of three 200mm-diameter bicycle light panels (displaying red, amber, and green bicycle patterns, respectively). To ensure long-term safe operation in outdoor environments, the housing is made of a high-hardness, specialized PC material that offers excellent thermal stability, impact resistance, corrosion resistance. The light source adopts high-quality high-flux LED light-emitting units, featuring excellent energy conservation. The light source design is optimized based on human visual characteristics, ensuring the light emitted is soft and non-glare. The traffic sfety light has obtained CE, FCC, RoHS, and EN12368 certifications.
Product Features
●To ensure long-term safe operation in outdoor environments, the housing is made of a high-hardness, specialized PC material that offers excellent thermal stability, impact resistance, corrosion resistance;
●The installation accessories are made of sturdy and corrosion-resistant stainless steel strips, with no risk of falling off;

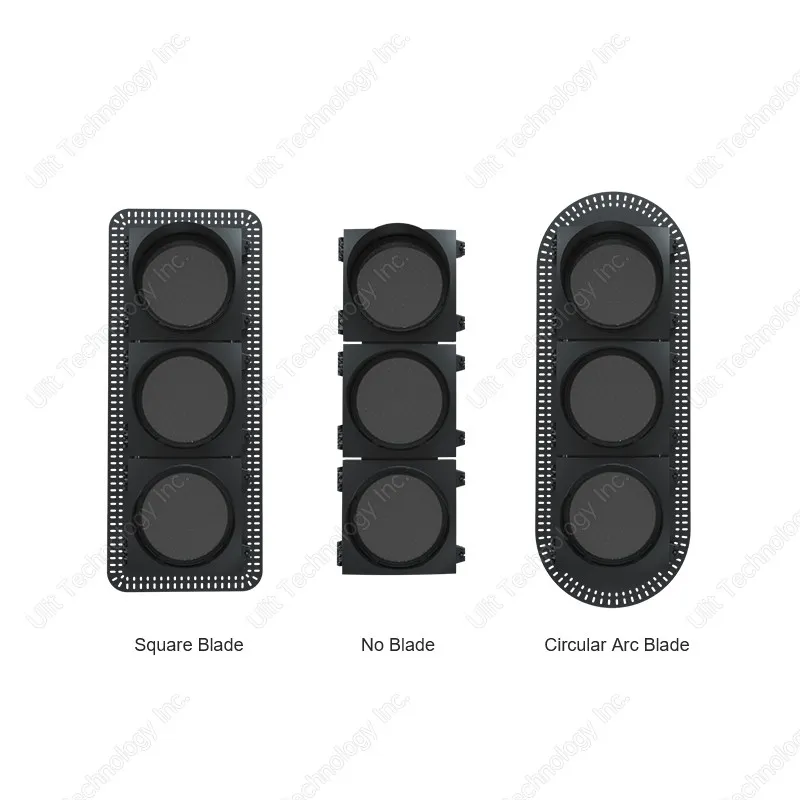

●Featuring a back-frame structure, it supports flexible installation in both horizontal and vertical directions, and the lamp body can be adjusted up and down and left and right by at least 30° each. Each lamp panel can be opened individually, greatly facilitating daily maintenance;
●The lens of the traffic safety light is made of a colorless, UV-resistant, high-transmittance PC cover that will not yellow or discolor throughout its service life;
●It adopts internationally renowned (CREE/OSRAM) LED chips with higher photo-electricity conversion rate; The lifespan of LEDs in the light-emitting unit is more than 10 years;
●Optional PLC communication function; Support remote monitoring of traffic safety light operation status. It can report abnormal conditions such as traffic light failure, simultaneous illumination of red and green lights, LED string damage, and communication errors. Brightness adjustment is supported;
●The light source design is optimized based on human visual characteristics, ensuring the light emitted is soft and non-glare.
Hot Tags: traffic safety light, China traffic safety light manufacturers, suppliers, factory
Technical Parameters
|
Product Name |
200mm High Flux Bicycle Traffic Light |
|
Display Content |
Red Bicycle, Amber Bicycle, Green Bicycle |
|
LED Light Source |
CREE/OSRAM Hi-flux LED Chips |
|
LED Quantity |
6 |
|
Optical Configuration |

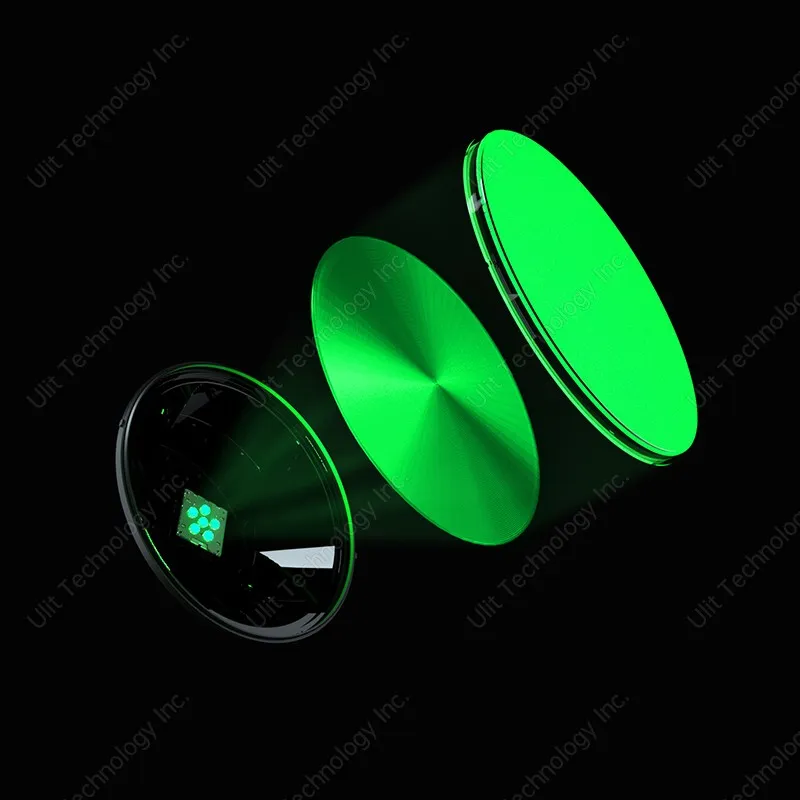

Light Source Lens + Fresnel Lens + Imaging Lens |
|
Photoelectric Efficiency |
≥90 lm/W |
|
Communication Mode |
HiPLC (Optional) |
|
Light Panel Size |
Φ200mm |
|
Viewing Angle |
30° |
|
Viewing Distance |
≥200m |
|
Working Voltage |
AC220V/AC110V/DC48V/DC24V/DC12V |
|
Rated Power |
≤5W |
|
Working Temperature |
-40℃～80℃ |
|
IP Rating |
IP65 |
|
Overall Dimensions |
Length 864mm * Width 288mm * Height257mm (including the visor and the frame) |
|
Housing Material |
PC |
|
Installation Method |
Back Frame (stainless steel strip and functional fastener) |

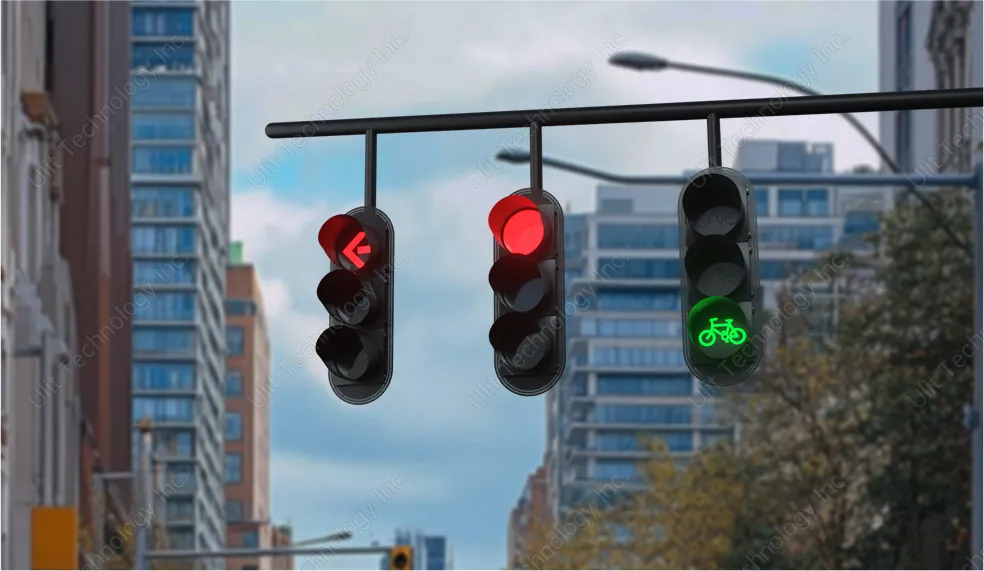

Product Applications
Certificates
Company Profile
Having been Involved in intelligent traffic industry for more than three decades, Ulit Technology Inc. is a leading manufacturer of traffic intelligent control system, traffic signal and display equipment, a leading provider of city traffic centralized control software, a national high-tech enterprise and a listed enterprise of Beijing Stock Exchange. We have consistently provided products and services to clients across numerous countries and regions in Asia, Europe, the Americas, the Middle East, Southeast Asia, and Australia. Our company always advocates customer focus and adheres corporate philosophy of "innovation transcends dreams and hard work creates value". We keep perfecting our core technology products over ten years and are always strenuously making continuous contribution for unblocked city!
Exhibitions
Production Workshop
FAQs
Q: Can I have a sample?
A: Of course, we support sample orders.
Q: What's the delivery time?
A: Shipping time depends on the specifications of the products you order. For in-stock products, shipping usually takes around 7-15 days. For customized products, the production time is typically around 30 days.
Q: Which city or port do you ship from?
A: Our main manufacturing plant is in Chongqing, but we also have branch offices in other cities. We can ship from all major ports and cities in China.
Q: Do you have any MOQ limit?
A: Our company supports testing with one or more samples, and we can also customize samples according to your specific requirements. There is no minimum order quantity (MOQ) limit.
Q: Do you offer after-sales service?
A: Most of our products come with a 2-year warranty. If a product experiences a quality issue within the warranty period, we will send you replacement parts free of charge. After the warranty period expires, we will continue to provide free lifetime remote technical support and service.
