Product Overview

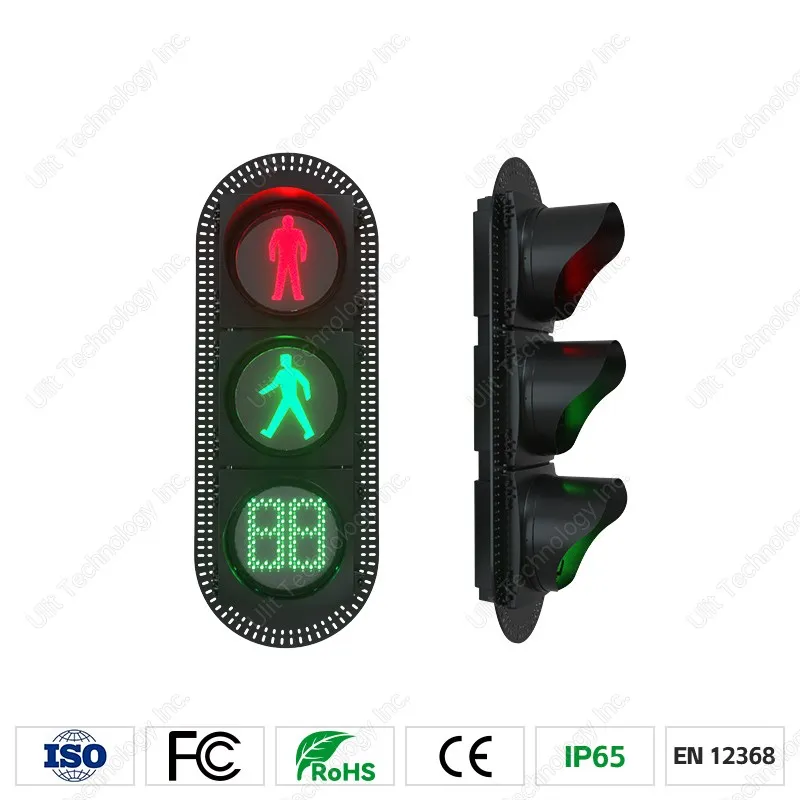

200mm High Flux Pedestrian Traffic Light with Parallel Countdown
One set of the pedestrian stop light includes one red pedestrian light, one green pedestrian light and one countdown timer of two digit from up to down. It is equipped with high flux CREE/OSRAM LED chips with high photoelectric conversion efficiency, and the LED lifespan exceeds 10 years; Adopt optical design; Area light source conforms to the visual characteristics of human body better, no dazzling; The shell is made of special PC material with high strength and hardness, which performs outstandingly in terms of thermal stability, impact resistance, corrosion resistance and anti-aging, enhancing the safety and durability of the traffic light; Compliance with CE, RoHS, FCC and EN12368 certification.
Product Features

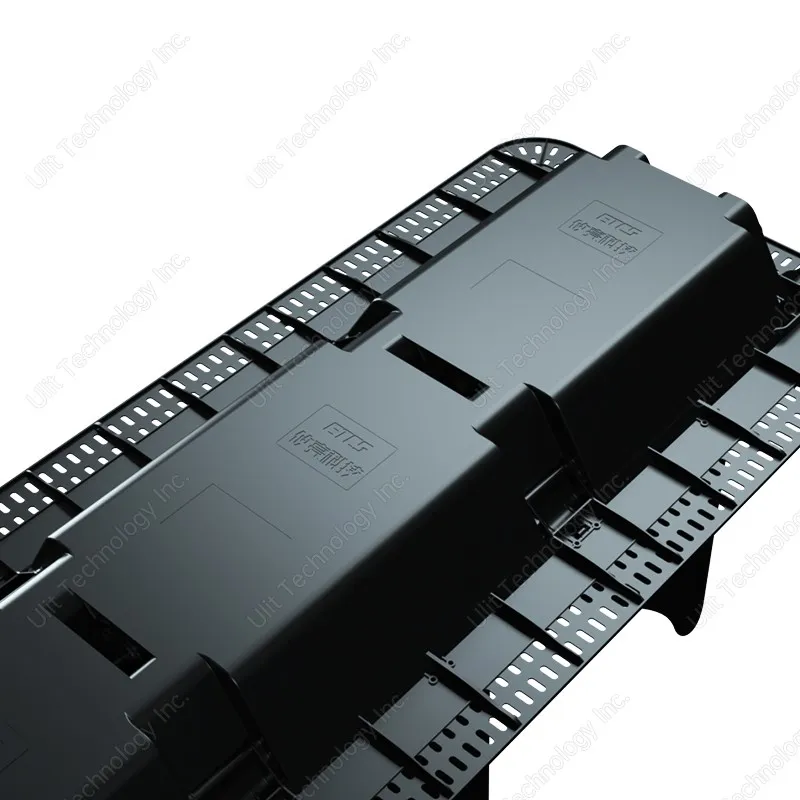

It is equipped with sturdy and durable stainless steel strips for installation, preventing the risk of falling off;
The back-mounted pedestrian stop light can be installed horizontally or vertically depending on site requirements. Both light panels are designed to be opened independently for easy maintenance;
The lamp cover is made of colorless PC material that is UV-resistant and offers high light transmittance; It will not yellow or discolor throughout its entire service life;
It is equipped with high flux CREE/OSRAM LED chips with high photoelectric conversion efficiency, and the LED lifespan exceeds 10 years;
The shell is made of special PC material with high strength and hardness, which performs outstandingly in terms of thermal stability, impact resistance, corrosion resistance and anti-aging, enhancing the safety and durability of the traffic light;
The lamp body can be adjusted from left to right, upward and downward, with adjustment angle equal or greater than 30°;
Area light source conforms to the visual characteristics of human body better, no dazzling.
Possess PLC communication function; Support remotely querying the operating state of traffic lights; Support proactively reporting failures of traffic lights no work, the red light and the green light being on at the same time, LED string light damage, communication and so on; Support luminance adjustment. (Optional)
Hot Tags: pedestrian stop light, China pedestrian stop light manufacturers, suppliers, factory
Technical Parameters
|
Product Name |
200mm High Flux Pedestrian Traffic Light with Parallel Countdown |
|
Display Content |
Green Pedestrian (Static), Red Pedestrian (Static),Parallel Countdown |
|
LED Light Source |
CREE/OSRAM Hi-flux LED Chips |
|
LED Quantity |
6 |
|
Optical Configuration |
Light Source Lens + Fresnel Lens + Imaging Lens |
|
Photoelectric Efficiency |
≥90 lm/W |
|
Communication Mode |
HiPLC (Optional) |
|
Light Panel Size |
Φ200mm |
|
Viewing Angle |
30° |
|
Viewing Distance |
≥200m |
|
Working Voltage |
AC220V/AC110V/DC48V/DC24V/DC12V |
|
Rated Power |
≤11W |
|
Working Temperature |
-40℃～80℃ |
|
IP Rating |
IP65 |
|
Overall Dimensions |
Length 864mm * Width288mm * Height 257mm (including the visor and the frame) |
|
Housing Material |
PC |
|
Installation Method |
Pole Type (stainless steel strip and functional fastener) |
Product Applications
Certificates
Company Profile
Located in Chongqing, China, Ulit Technology Inc. has been in intelligent traffic industry for more than 30 years with 15,000 square meter manufacturing base. With city intelligent traffic as main business, we can provide various advanced products, whole solutions, software and services related to city traffic, such as traffic control platform, traffic light controllers, traffic lights, traffic signs, countdowns, LED screens, video detectors, speed signs and various solar lights. With ISO 9001:2015 quality management system certification, our products comply with national standards and industry norms, as well as various international standards, such as CE, RoHS, FCC, EN12966 and EN12368. Strong support from our design and technology departments enables us to receive OEM and ODM projects.
Exhibitions
Production Workshop
Frequently Asked Questions
Can I have a sample of the pedestrian stop light?
+
-
Absolutely. We welcome sample orders for quality evaluation and technical testing. Whether you need a single unit or multiple samples for your project, we are happy to support your request.
Can you send me your catalogue?
+
-
Please send an email to our email address cqulit@sina.com for catalogue. We will reply you with our latest catalogue to your email.
How about your delivery time?
+
-
Typically, in-stock items can be shipped within 7-15 days after receiving the payment. The exact delivery time depends on the products and ordered quantities.
Do you offer after-sales service?
+
-
Most of our products come with a 2-year warranty. If a product experiences a quality issue within the warranty period, we will send you replacement parts free of charge. After the warranty period expires, we will continue to provide free lifetime remote technical support and service.
How do you guarantee the quality of your products?
+
-
We have a very strict quality controlling system to ensure that all the products are delivered with high quality. Strict detection during each production step. Strict full inspection on products before shipment and intact product packaging ensured.
