Products Description

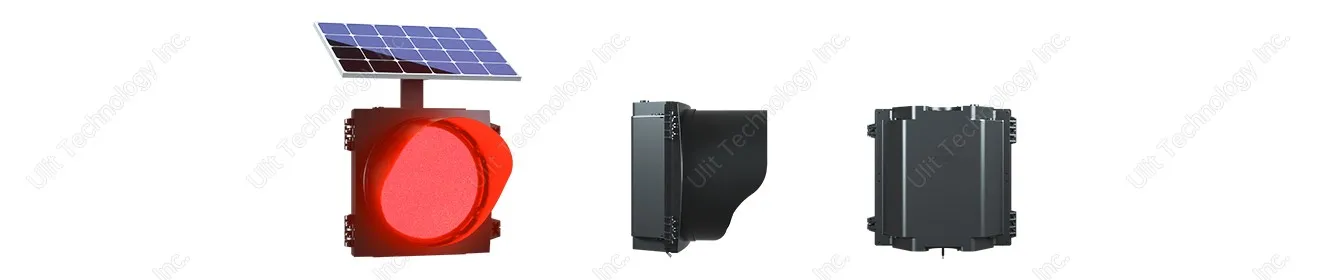

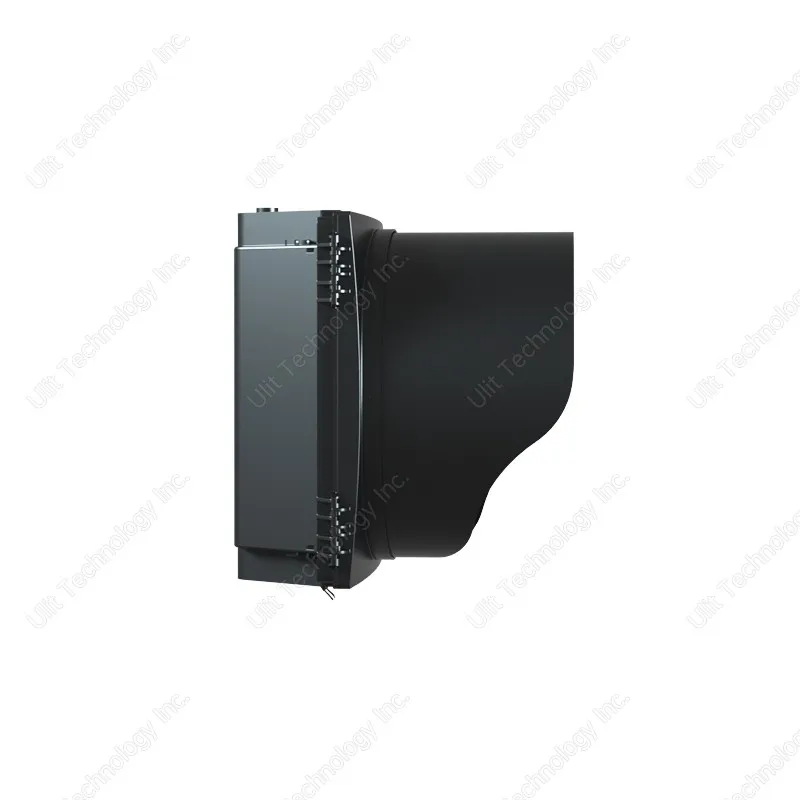

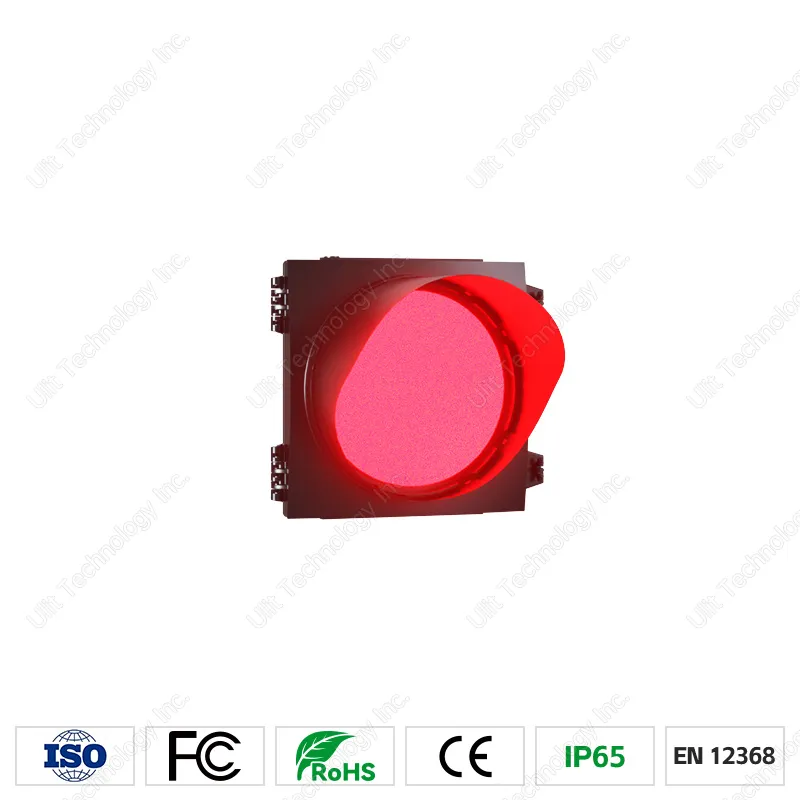

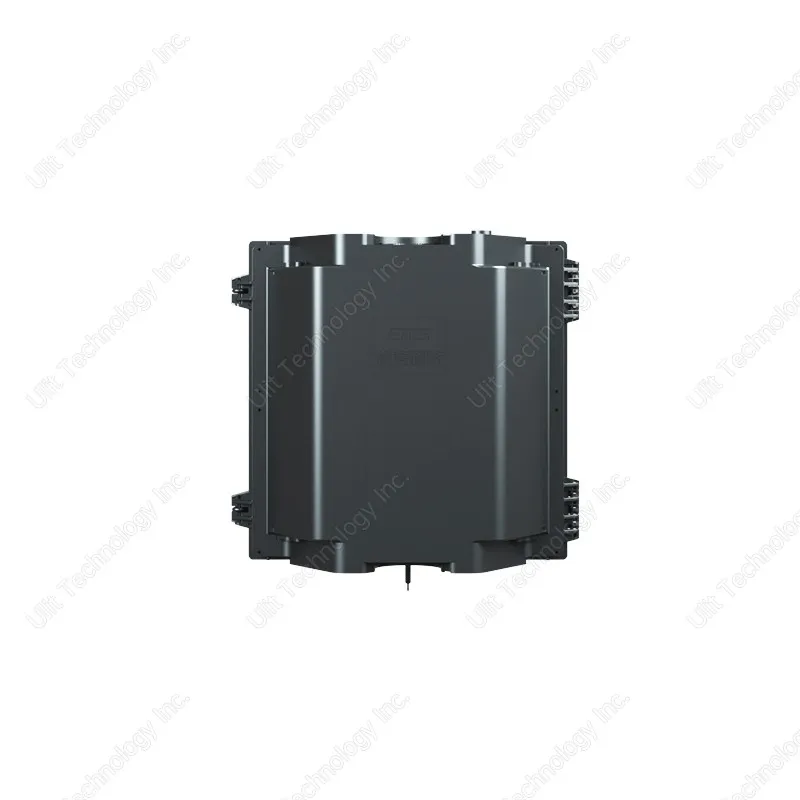

200mm High Flux Red Flashing Traffic Light
The blinking red light traffic light is applied to warning the vehicles going to and from the intersection to reduce the occurrence of traffic accidents through regular flickers. It is mostly used at school gates, railway crossings, village entrances on the road, suburban intersections and other places where it is easy to happen traffic accidents because of heavy traffic flow. Adopt high quality high flux LED light-emitting elements; High photo-electricity conversion rate, lower power consumption; Adopt optical design; Area light source conforms to the visual characteristics of human body better, no dazzling; The housing is made of dedicated PC material with high strength and hardness, better heat resistance, impact resistance, corrosion resistance and aging resistance; Compliance with CE, RoHS, FCC and EN12368 certification.
Product Features
●PC housing with high strength and hardness, better heat resistance, impact resistance, corrosion resistance and aging resistance ensures ultra-high safety for the product;
●Stainless steel strip as installation accessories of the blinking red light traffic light, steady and anti-corrosion, no risk of falling off;
●The light lens adopts anti-ultraviolet high light transmittance colorless PC mask, no yellowing or discoloration during the whole lifespan;
●Adopt internationally renowned (CREE/OSRAM) LED chips with higher photo-electricity conversion rate; The lifespan of LEDs in the light-emitting unit is more than 10 years;
●Intelligent flicker control, support ultra-low power consumption mode.
Hot Tags: blinking red light traffic, China blinking red light traffic manufacturers, suppliers, factory
Technical Parameters
|
Product Name |
200mm High Flux Red Flashing Traffic Light |
|
LED Wave Length |
Red 620-630nm |
|
LED Light Source |
CREE/OSRAM Hi-flux LED Chips |
|
LED Quantity |
6 |
|
Optical Configuration |

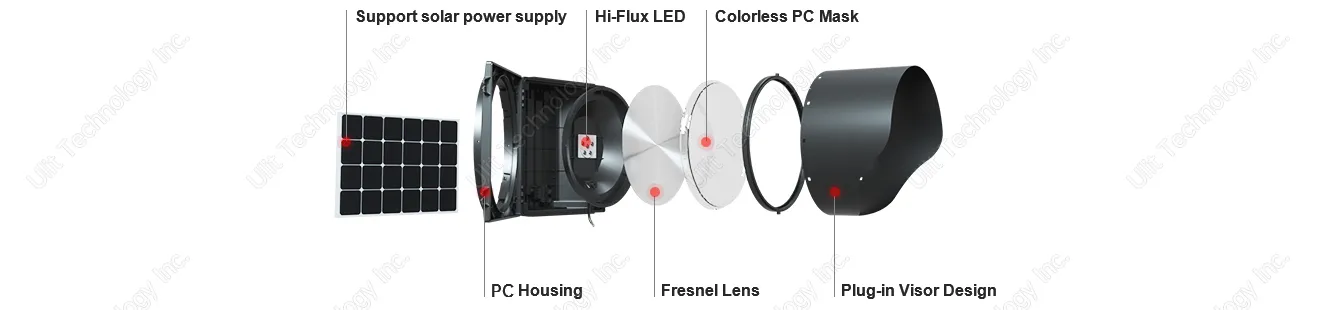

Light Source Lens + Fresnel Lens + Imaging Lens |
|
Photoelectric Efficiency |
≥90 lm/W |
|
Size of Flashing Light Panel |
Φ200mm |
|
Viewing Distance |
＞200 meters |
|
Display Mode |
Flash 2/3Hz, 40 times/minute |
|
Power |
≤5W |
|
Working Voltage |
AC220V/AC110V/DC48V/DC24V/DC12V |
|
Working Mode |
24 Hours of Continuous Blinking |
|
Working Temperature |
-20℃～70℃ |
|
Housing Material |
PC |
|
IP Rating |
IP65 |
|

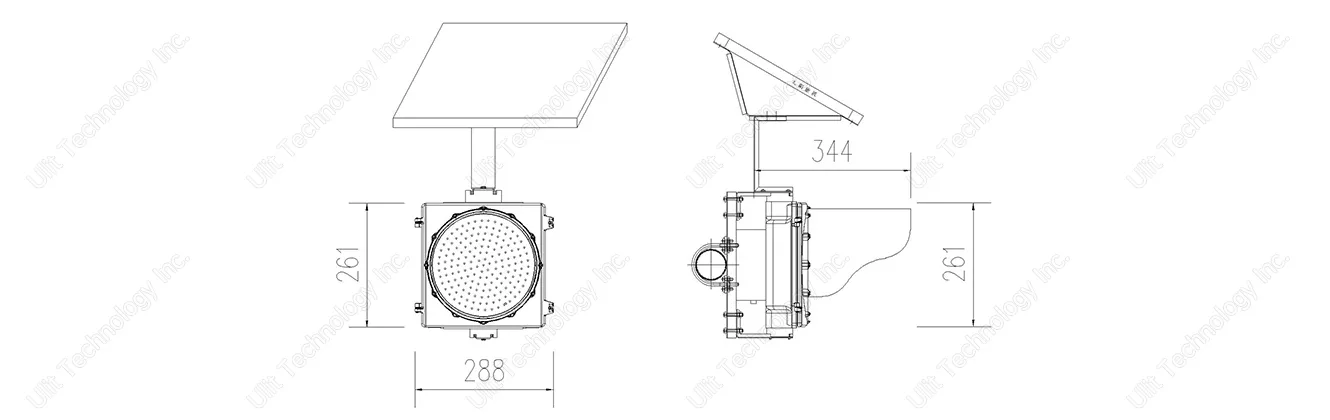

Overall Dimensions |
Length344mm * Width 288mm * Height 261mm |
|
Net Weight |
4KG |
|
Installation Method |
Back Frame (stainless steel strip and special fasteners) |

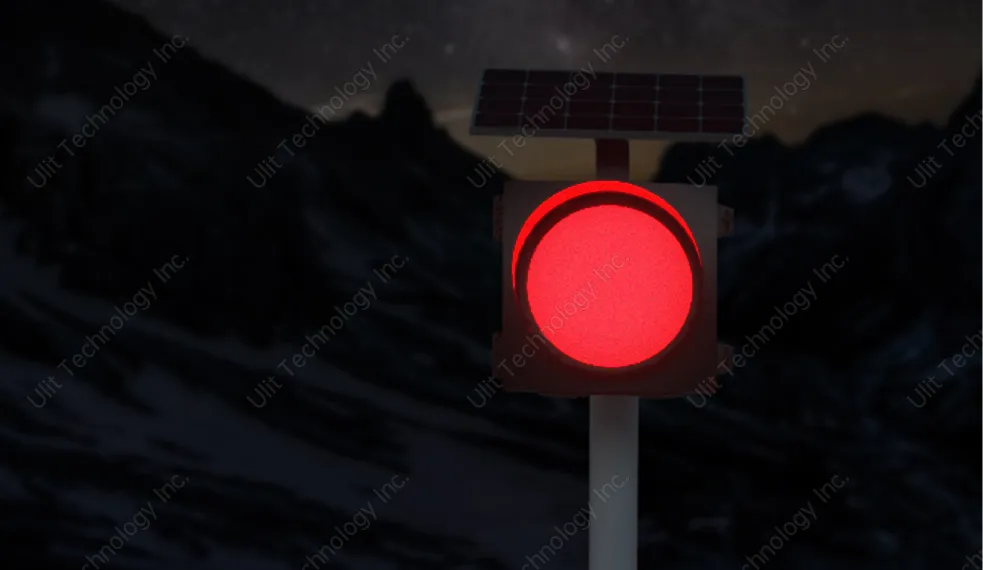

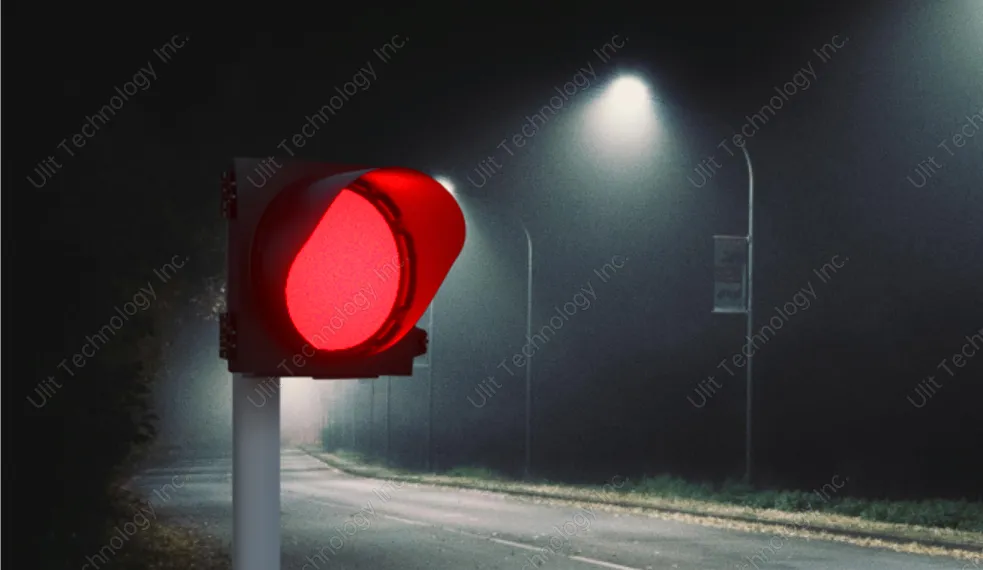

Product Applications
Certificates

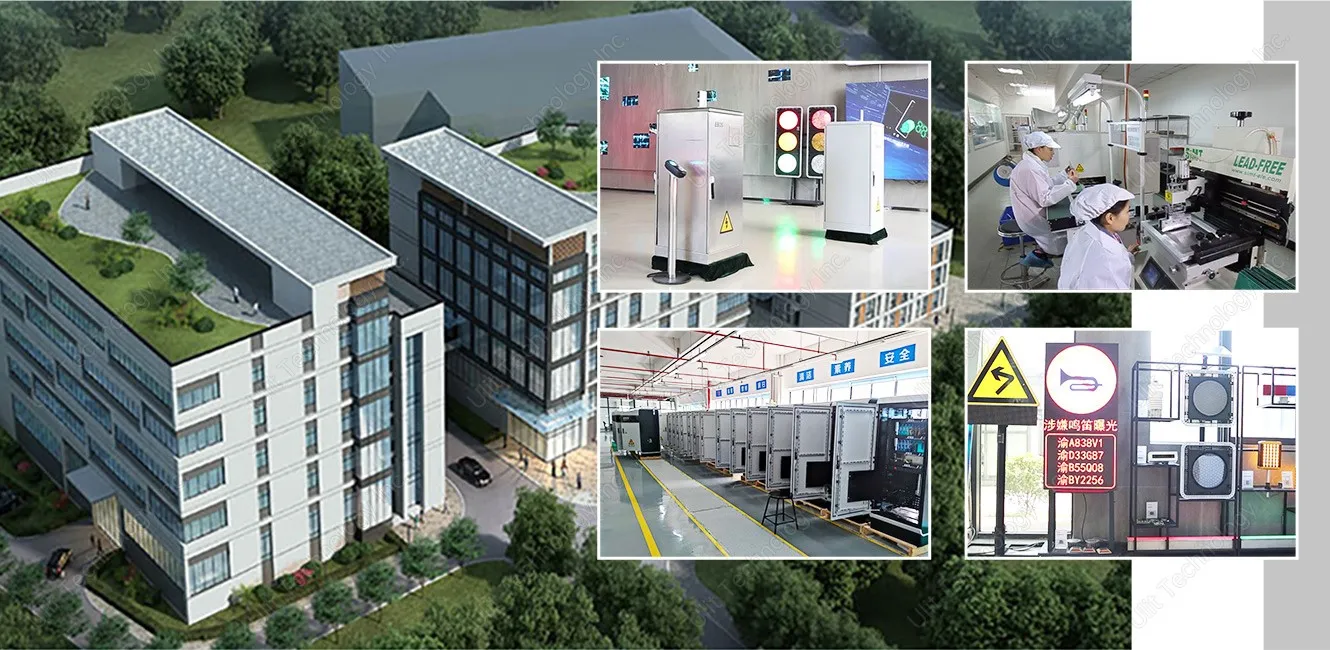

Company Profile
Having been Involved in intelligent traffic industry for more than 30 years, Ulit Technology Inc. is a leading manufacturer of traffic intelligent control system, traffic signal and display equipment, a leading provider of city traffic centralized control software, a national high-tech enterprise and a listed enterprise of Beijing Stock Exchange. We have been providing products and services to customers in the USA, Mexico, Germany, Ireland, Romania, Greece, the Netherlands, Israel, Saudi Arabia, India, Vietnam, Singapore and many other countries. Our company always advocates customer focus and adheres corporate philosophy of "innovation transcends dreams and hard work creates value". We keep perfecting our core technology products over ten years and are always strenuously making continuous contribution for unblocked city!
Exhibitions
Production Process
FAQ
Q: Do your products come with accompanying software systems?
A: Yes. For products that require accompanying software, we provide our own proprietary software. Some of our products also support integration with software from other major manufacturers.
Q: How do you guarantee the quality of your products?
A: We have a very strict quality controlling system to ensure that all the products are delivered with high quality. Strict detection during each production step. Strict full inspection on products before shipment and intact product packaging ensured.
Q: Can you send me your catalogue?
A: Please send an email to our email address cqulit@sina.com for catalogue. We will reply you with our latest catalogue to your email.
Q: What's the price of blinking red light traffic light?
A: Price is negotiable. Based on different quantities and detailed requirements, the prices are a little different. Please kindly contact us for more detailed prices.
Q: Can I have some information about your scope of business?
A: Our company can provide various advanced products, whole solutions, software and services related to city traffic, such as traffic control platform, traffic light controllers, traffic lights, traffic signs, countdowns, LED screens, video detectors, speed signs and various solar lights.
