Product Introduction:
200mm Single Side Lane Control Traffic Light
The lane control traffic light includes red cross and green arrow. The red cross(×) and green arrow(↓) are integrated in one display unit to indicate the vehicles to pass the lane. When the green arrow on, vehicles in this lane are allowed to pass through the lane according to the indicated direction. When the red cross on, the vehicles in the lane are not permitted to pass.
Send Inquiry
Description
Technical Parameters

Product Overview



Lane Control Banner



200mm Single Side Lane Control Traffic Light

The lane control traffic light includes red cross and green arrow. The red cross(×) and green arrow(↓) are integrated in one display unit to indicate whether traffic lanes are open or closed. The green arrow indicates that the current lane is open and vehicles can proceed in sequence. The red cross indicates that the lane is closed to traffic. The housing is made of high-strength and high-hardness PC material, possessing excellent heat resistance, impact resistance, corrosion resistance, and aging resistance. Compliance with CE, RoHS, FCC and EN12368 certification.



Product Features

 Lane Control Models



  • The housing is made of high-strength and high-hardness PC material, possessing excellent heat resistance, impact resistance, corrosion resistance, and aging resistance, ensuring long-term equipment safety even in harsh environments;
  • The stainless steel strips as fixing accessories, are corrosion-resistant and steady, effectively preventing the lane control traffic light from falling off;
  • Adopt plug-in visor design, enabling quick assembly while effectively preventing falling off;
  • The back frame structure supports flexible adjustment of ≥30° in all directions (up, down, left, and right).
  • The lamp lens uses the high-transmittance, ultraviolet-resistant, colorless PC mask to ensure it remains clear and transparent throughout its entire lifespan, without yellowing or discoloration.
  • The lane control traffic light adopts high-quality LED light-emitting elements save more than 50% energy compared to traditional light sources, and the lifespan of LEDs in the light-emitting module can reach more than 8 years.



Hot Tags: lane control, China lane control manufacturers, suppliers, factory

Technical Parameters



Product Name

200mm Single Side Lane Control Traffic Light

Display Content

Single Side Red Cross Green Arrow

Communication Mode

RS485

Size of Display Unit

Φ200mm

Viewing Distance

≥300m

Working Voltage

AC220V/AC110V/DC48V/DC24V/DC12V

Rated Power

≤7W

Working Temperature

-40℃~80℃

Working Humidity

≤97%RH[(40±1)℃, No Condensation]

IP Rating

IP65

Housing Material

PC

Overall Dimensions

Length 339mm * Width 288mm * Height 257mm (excluding the frame)

Installation Method

Back Frame Structure (stainless steel strip and special fastener)



Product Applications

Lane Control Mounted on Pole
Lane Control Installation

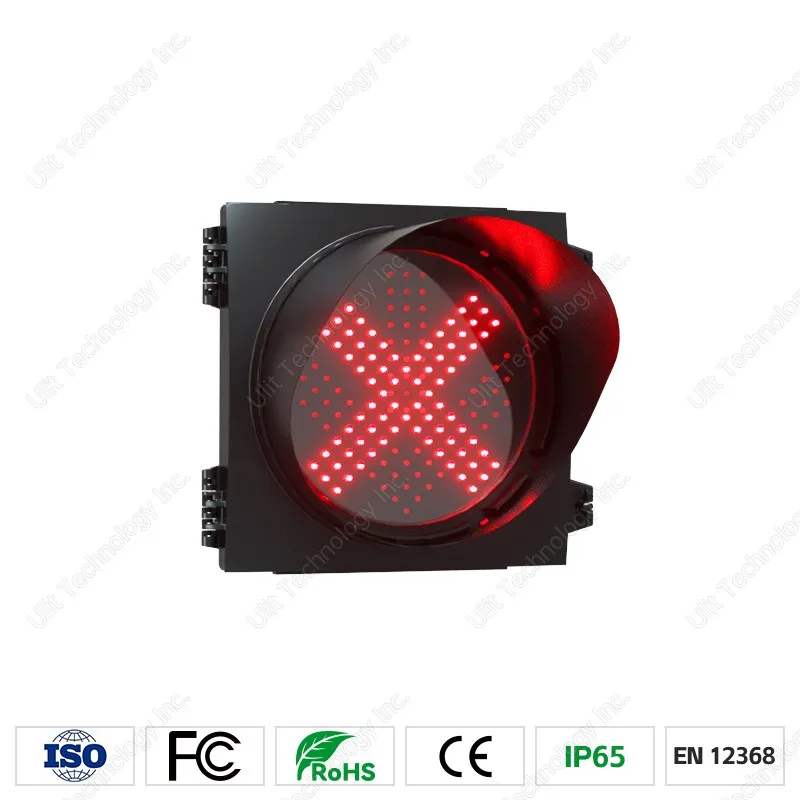

Lane Control Red Cross

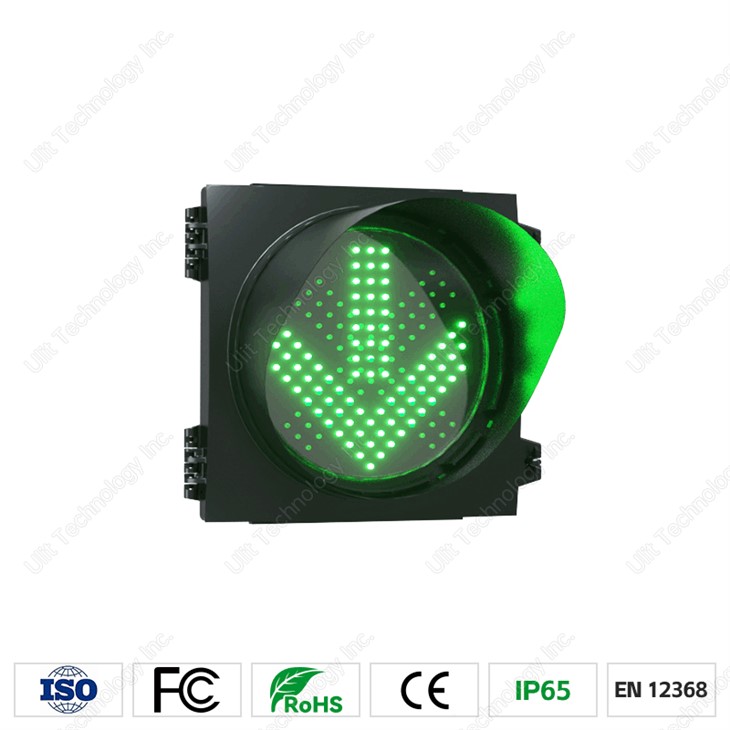

Lane Control Green Arrow

Certificates


lane control CE EMC certificate

CE EMC

lane control CE LVD certificate

CE LVD

lane control FCC certificate

FCC

lane control RoHS certificate

RoHS

lane control EN12368 certificate

EN12368

Lane Control Company Certificates



Company Profile

30+ Years of experience in Intelligent Traffic

Ulit Technology Inc. has been deeply involved in the field of intelligent traffic for more than three decades. We are a leading manufacturer of intelligent traffic control systems, traffic signals and display equipment, a leading supplier of city traffic centralized control software, a national high-tech enterprise, and a listed company on the Beijing Stock Exchange. Our products and services are exported to numerous countries and regions in Europe, America, the Middle East, and Southeast Asia. Our company adheres to the philosophy of "customer first" and upholds the corporate philosophy of "innovation transcends dreams and hard work creates value." For over a decade, we have continuously improved our core technology products, contributing to the construction of smooth-flowing cities!

Lane Control Company

15,000+
Factory Area
200+
staff Members
100+
technical engineers
100+
overseas projects



Exhibitions



exhibitions

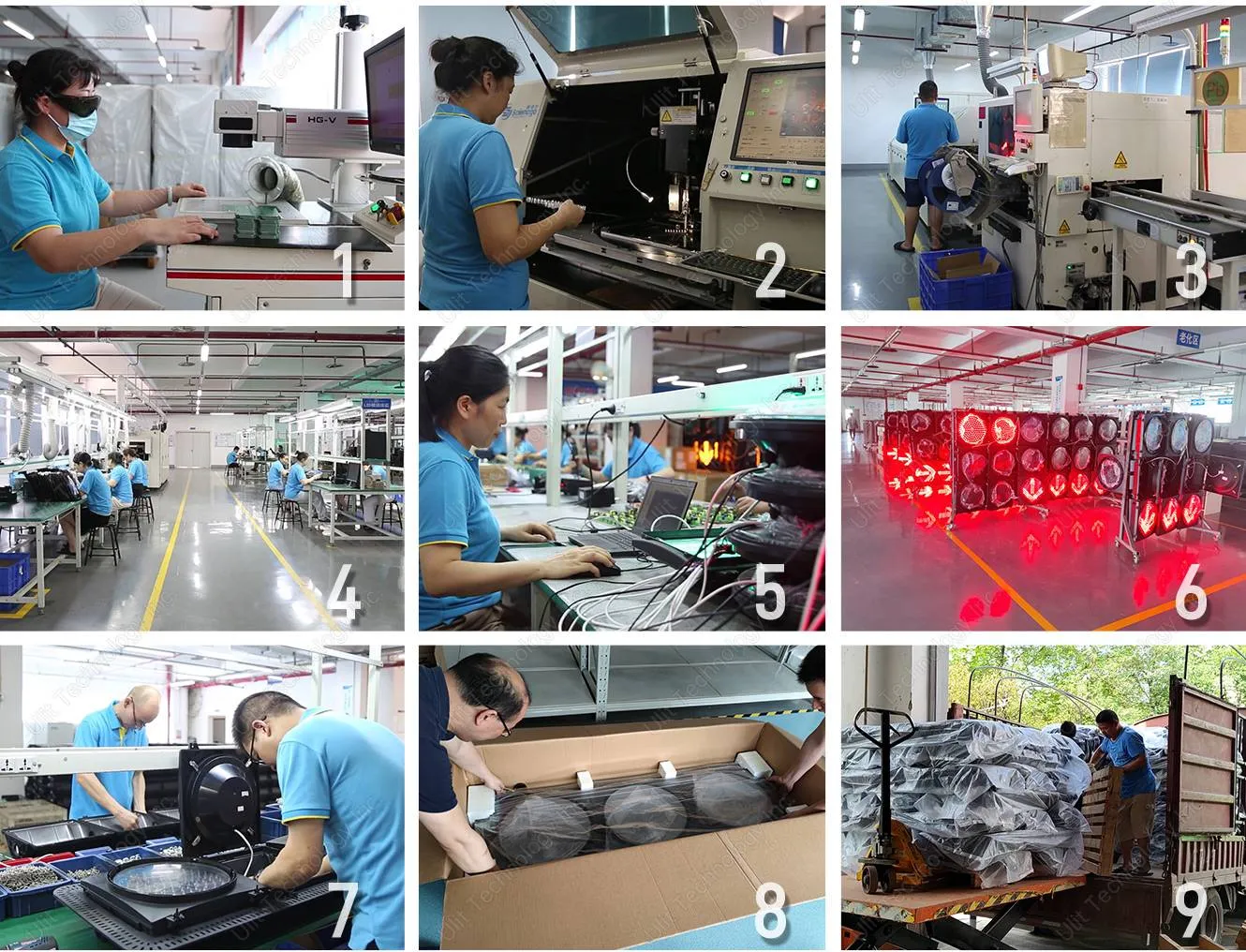

Production Process



Lane Control Production Processes



Frequenty Asked Questions



Q: Can this lane control traffic light be powered by solar?

A: Yes. The lane control traffic light can be produced to be powered by a solar panel and a group of battery.

Q: How do you guarantee the quality of your products?

A: We have a very strict quality controlling system to ensure that all the products are delivered with high quality. Strict detection during each production step. Strict full inspection on products before shipment and intact product packaging ensured.

Q: Can you send me your catalogue?

A: Please send an email to our email address cqulit@sina.com for catalogue. We will reply you with our latest catalogue to your email.

Q: What's the price of the lane control traffic light?

A: Price is negotiable. Based on different quantities and detailed requirements, the prices are a little different. Please kindly contact us for more detailed prices.

Q: Can I have some information about your other related products?

A: Yes, warmly welcome. Our company can provide various advanced products, whole solutions, software and services related to city traffic, such as traffic control platform, traffic light controllers, traffic lights, traffic signs, countdowns, LED screens, video detectors, speed signs and various solar lights.
