Product Overview

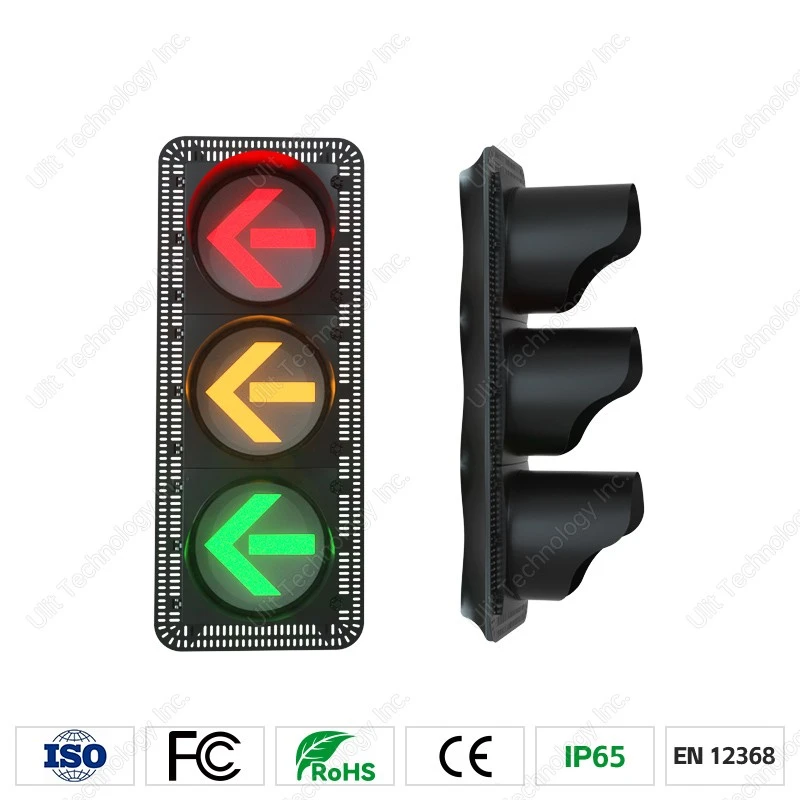

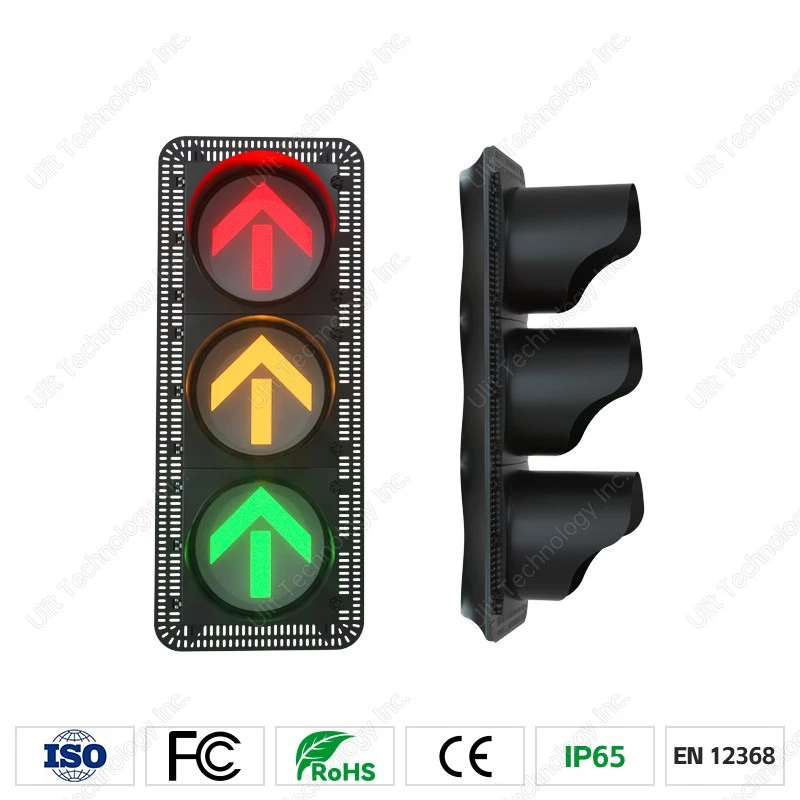

300mm Metal Housing High Flux Arrow Traffic Light
The metal-housing high-flux arrow traffic light consists of three separate traffic light panels in different colors (red, green, yellow). Each lamp panel can be opened individually. It utilizes high-quality, high-flux LEDs that offer higher photoelectric conversion efficiency and lower power consumption; The area light source conforms to human visual characteristics and does not cause glare; The lightweight, high-strength, and environmental metal housing has small deformation under extreme temperature conditions ranging from -40℃ to 80℃ and is corrosion-resistant, ensuring extremely high safety for the arrow traffic light. Certified by CE, RoHS, FCC and EN12368.
Product Features
-

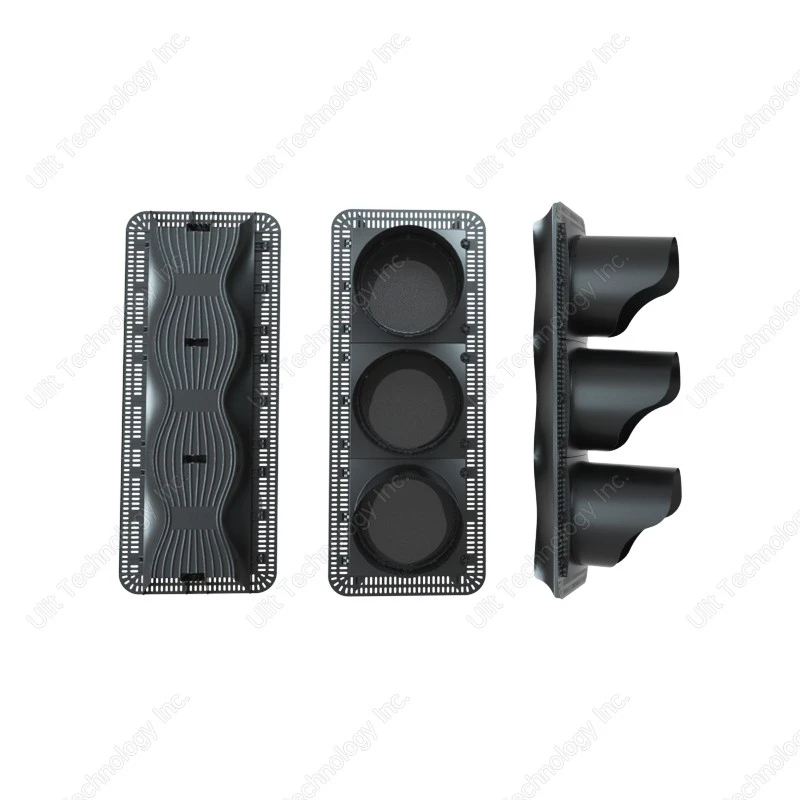

The lightweight high-strength environmental metal housing is shock-resistant, anti-electromagnetic, recyclable, corrosion-resistant, and rust-proof, ensuring extremely high safety for the arrow traffic light; The housing structure has a service life of over 30 years;

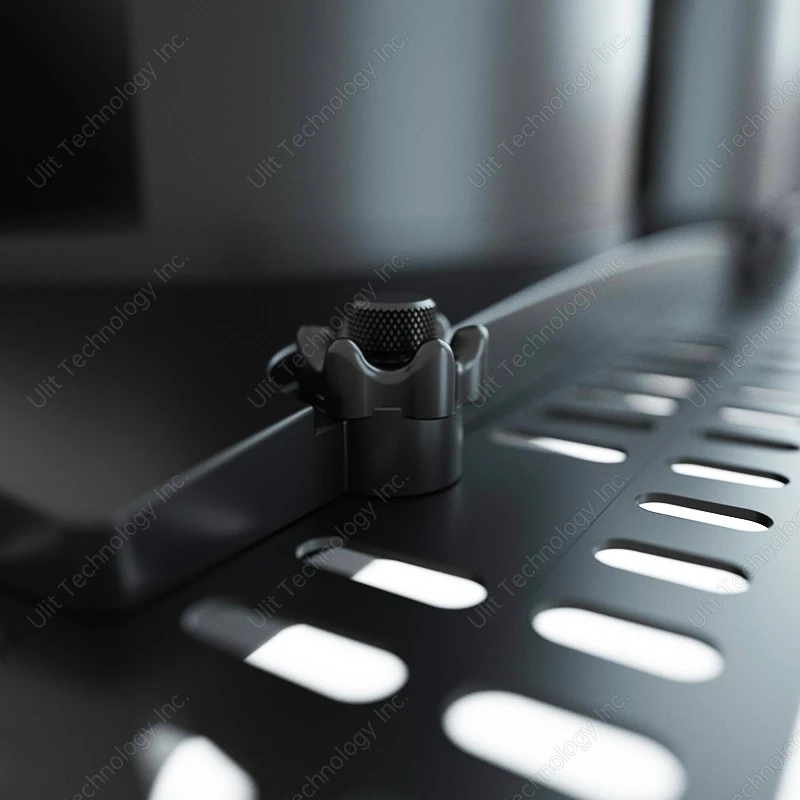

- New-type integrated detachable hinge and locking structure design prevents the arrow traffic light from opening or falling off when it is not locked;
- Integrated blade design, beautiful, high strength, and quick and easy to install;
- Back frame design; Can be installed horizontally or vertically; Each lamp panel can be opened individually; The lamp body can be adjusted to an angle equal to or greater than 30° from left to right, upwards, and downwards;
-
Feature a colorless, UV-resistant PC mask with high light transmittance that will not yellow or discolor over the lamp's whole lifespan;
- Utilize internationally renowned CREE/OSRAM high-flux LED chips that offer higher photoelectric conversion efficiency; The lifespan of LEDs is more than 10 years;
- Optional PLC communication function; Support remote query of the operating state of traffic lights; Support active reporting of traffic lights not working, red and green lights on simultaneously, damaged LED string light, communication and other failures; Support luminance adjustment;
- The area light source conforms to human visual characteristics and does not cause glare.
Hot Tags: arrow traffic light, China arrow traffic light manufacturers, suppliers, factory
Product Parameters
|
Product Name |
300mm Metal Housing High Flux Arrow Traffic Light |
| Display Content | Arrow |
| LED Light Source | CREE/OSRAM Hi-flux LED Chips |
| LED Quantity | 6 |

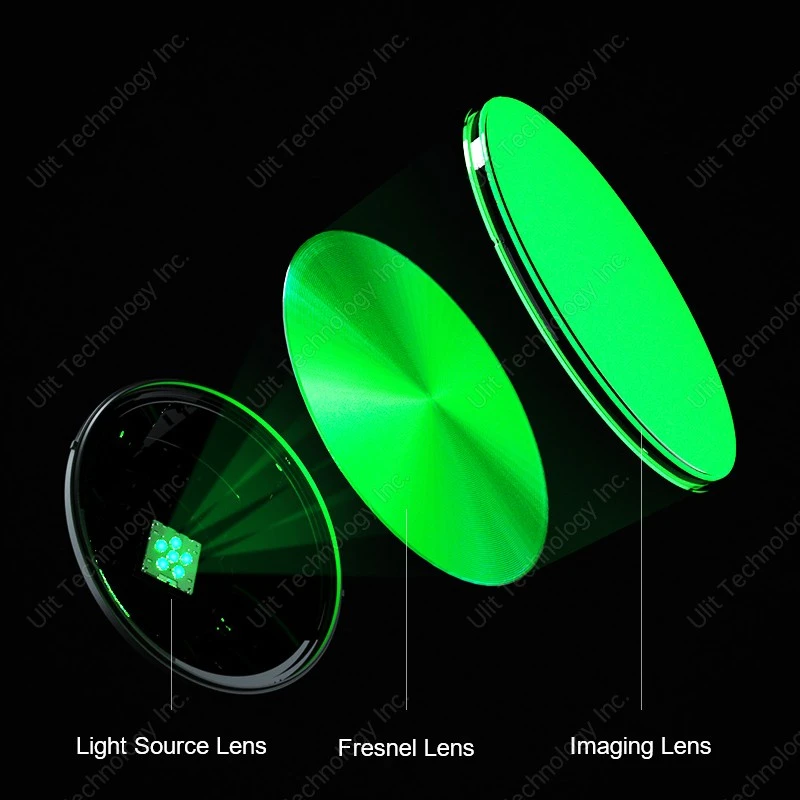

| Optical Configuration | Light Source Lens + Fresnel Lens + Imaging Lens |
| Photoelectric Efficiency | ≥90 lm/W |
| Communication Mode | HiPLC (Optional) |
| Light Panel Size | Φ300mm |
| Viewing Angle | 30° |
| Viewing Distance | ≥300m |
| Working Voltage | AC220V/AC110V/DC48V/DC24V/DC12V |
| Rated Power | ≤6W |
| Working Temperature | -40℃～80℃ |
| Working Humidity | ≤97%RH[(40±1)℃,No Condensation] |
| IP Rating | IP65 |

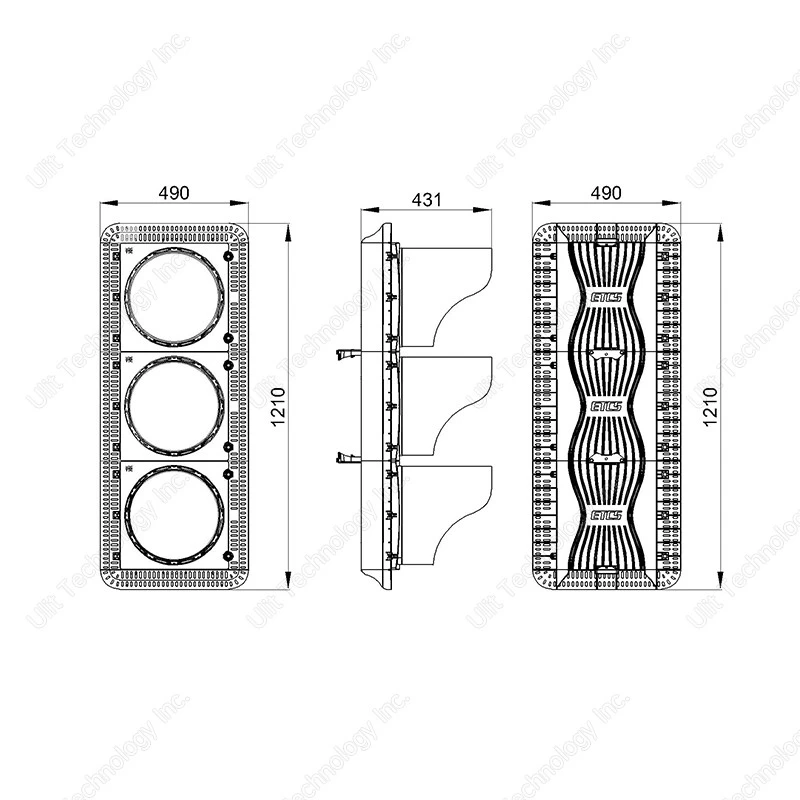

| Overall Dimensions | Length1,210mm * Width 490mm * Height 431mm (including the visor and the frame) |
| Housing Material | Magnesium Alloy, Black Spraying Housing |
| Net Weight | 11.25KG |

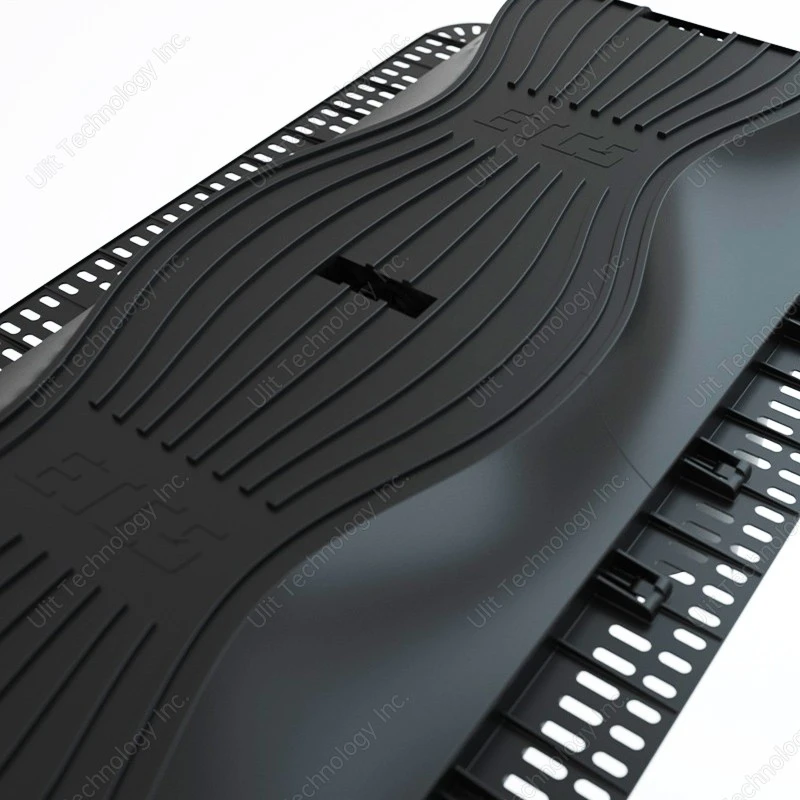

| Installation Method | Back Frame (stainless steel strip and functional fastener) |
Product Applications
Certificates
Company Profile
Ulit Technology Inc. has been deeply involved in the intelligent traffic industry for over 30 years, boasting a 15,000-square-meter production base. With urban intelligent traffic as our core business, our company provides a variety of advanced products, integrated solutions, software, and services, covering traffic control platforms, traffic light controllers, traffic lights, traffic signs, countdown timers, LED displays, video detectors, speed signs, and various solar lighting equipment. We also offer OEM/ODM services. Our products have passed multiple international certifications, including ISO/CE, RoHS, FCC, EN12368, and EN12966, and are exported to more than 30 countries and regions, including Mexico, the United States, Germany, Ireland, Romania, Greece, the Netherlands, Israel, and Saudi Arabia.
Trade Shows
Production Workshop
FAQs
Q: Can I have a sample?
A: Of course, we support sample orders.
Q: What's the delivery time?
A: Shipping time depends on the specifications of the products you order. For in-stock products, shipping usually takes around 7-15 days. For customized products, the production time is typically around 30 days.
Q: Which city or port do you ship from?
A: Our main manufacturing plant is in Chongqing, but we also have branch offices in other cities. We can ship from all major ports and cities in China.
Q: Do you have any MOQ limit?
A: Our company supports testing with one or more samples, and we can also customize samples according to your specific requirements. There is no minimum order quantity (MOQ) limit.
Q: Do you offer after-sales service?
A: Most of our products come with a 2-year warranty. If a product experiences a quality issue within the warranty period, we will send you replacement parts free of charge. After the warranty period expires, we will continue to provide free lifetime remote technical support and service.
