Product Overview

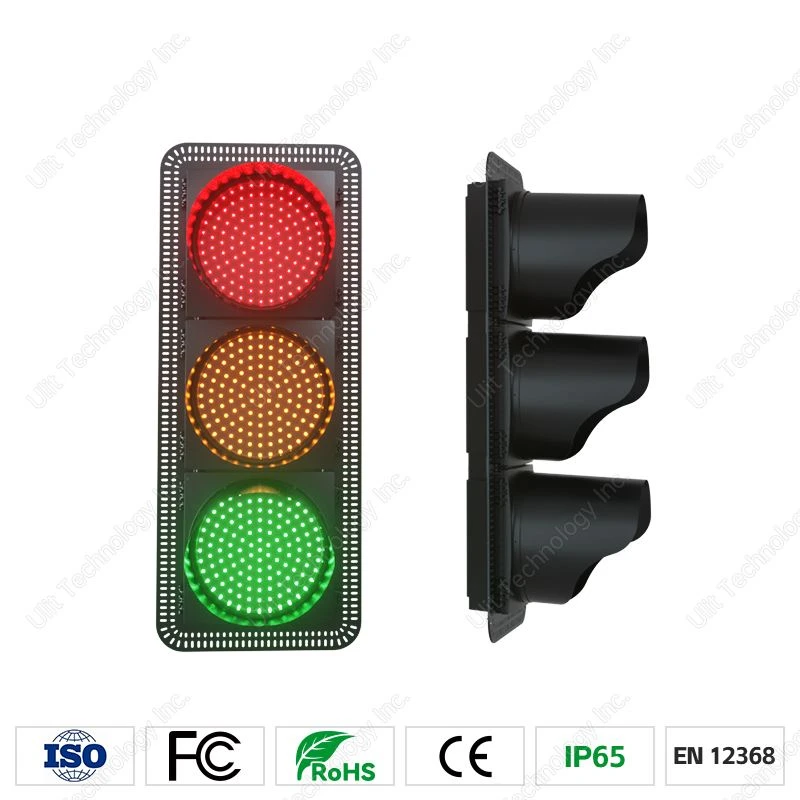

300mm Full Ball Traffic Light
The full ball traffic signal consists of three separate full ball light panels, each 300mm in diameter, displaying red, yellow, and green respectively. Each panel can be individually opened. The housing is made of dedicated PC material, offering high strength and hardness, superior heat resistance, impact resistance, corrosion resistance, and aging resistance. It utilizes high-quality LED light-emitting elements. Certified by CE, RoHS, FCC and EN 12368.
Product Features
-
The housing is made of dedicated PC material, which has high strength and hardness, superior heat resistance, impact resistance, corrosion resistance, and aging resistance, ensuring ultra-high safety for the product;
-
Stainless steel strips, used as installation accessories, are sturdy and corrosion-resistant, eliminating the risk of traffic signal falling off;
-
Plug-in visor design, easy and quick installation, preventing falling off;
-
Back frame design; Can be installed horizontally or vertically; Support left-right and up-down adjustment of the lamp body, with an adjustment angle ≥30°;
-
The light lens adopts anti-ultraviolet high light transmittance colorless PC mask, no yellowing or discoloration during the whole lifespan;
-
Adopt high-quality LED light-emitting elements, which can save energy more than 50% than traditional light source; The lifespan of LEDs in the light-emitting unit is more than eight years;
-
Possess PLC communication function; Support remotely querying the operating state of traffic lights; Support proactively reporting failures of traffic lights no work, the red light and the green light being on at the same time, LED string light damage, communication and so on; Support luminance adjustment, can realize luminance adjustment step by step according to environment sensor data, no dazzling at night; (Optional)
Hot Tags: traffic signal, China traffic signal manufacturers, suppliers, factory
Product Parameters
|
Product Name |
300mm Full Ball Traffic Light |
|
Display Content |
Full Ball |
|
Communication Mode |
HiPLC (Optional) |
|
Light Panel Size |
Φ300mm |
|
Viewing Angle |
30° |
|
Viewing Distance |
≥300m |
|
Working Voltage |
AC220V/AC110V/DC48V/DC24V/DC12V |
|
Rated Power |
≤10W |
|
Working Temperature |
-40℃～80℃ |
|
IP Rating |
IP65 |
|
Overall Dimensions |
Length 1,198mm * Width 480mm * Height 339mm (including the visor and the frame) |
|
Housing Material |
PC |
|
Net Weight |
7.5KG |
|
Installation Method |
Back Frame (stainless steel strip and functional fastener) |
Product Applications
Certificates

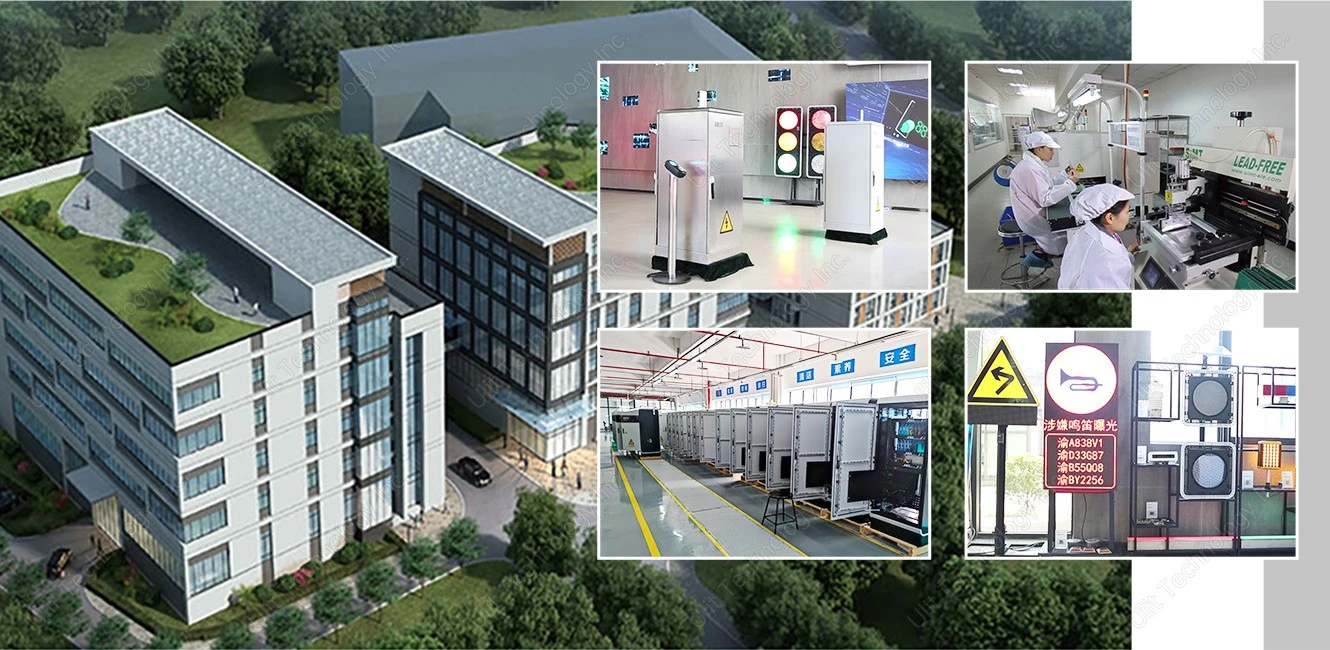

Company Profile
Ulit Technology Inc. has been deeply involved in the intelligent traffic industry for over 30 years, boasting a 15,000-square-meter production base. With urban intelligent traffic as our core business, our company provides a variety of advanced products, integrated solutions, software, and services, covering traffic control platforms, traffic light controllers, traffic lights, traffic signs, countdown timers, LED displays, video detectors, speed signs, and various solar lighting equipment. We also offer OEM/ODM services. Our products have passed multiple international certifications, including ISO/CE, RoHS, FCC, EN12368, and EN12966, and are exported to more than 30 countries and regions, including Mexico, the United States, Germany, Ireland, Romania, Greece, the Netherlands, Israel, and Saudi Arabia.
Trade Shows
Production Process
FAQs
Q: Can I have a sample?
A: Of course, we support sample orders.
Q: What's the delivery time?
A: Shipping time depends on the specifications of the products you order. For in-stock products, shipping usually takes around 7-15 days. For customized products, the production time is typically around 30 days.
Q: Which city or port do you ship from?
A: Our main manufacturing plant is in Chongqing, but we also have branch offices in other cities. We can ship from all major ports and cities in China.
Q: Do you have any MOQ limit?
A: Our company supports testing with one or more samples, and we can also customize samples according to your specific requirements. There is no minimum order quantity (MOQ) limit.
Q: Do you offer after-sales service?
A: Most of our products come with a 2-year warranty. If a product experiences a quality issue within the warranty period, we will send you replacement parts free of charge. After the warranty period expires, we will continue to provide free lifetime remote technical support and service.
