Product Overview

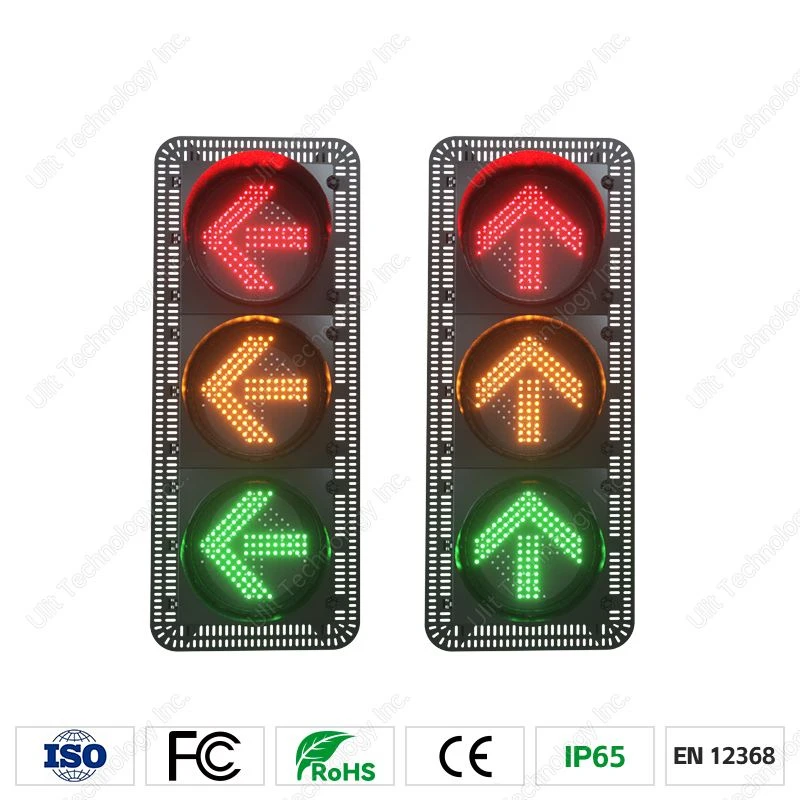

300mm Metal Housing Left Arrow and Straight Arrow Variable Traffic Light
Three Φ300mm left arrow and straight arrow lights, three colors, separate light panels in geometric position. The safety traffic light can switch flexibly between displaying left arrow image or straight arrow image. The shell is made of environmentally friendly metal through one-time die-casting, which is light in weight, high in strength, has small deformation under high and low temperature conditions, and strong corrosion resistance. Adopt high-quality LED light-emitting elements. Compliance with CE, RoHS, FCC and EN12368 certification.
Product Features


Made of environmental metal materials, the outer shell is corrosion-resistant, shock-resistant, electromagnetically shielded, rust-free, and recyclable, with a service life exceeding 30 years;

It uses high-quality LED light-emitting elements, which saves more than 50% of energy compared to traditional light sources, and the LEDs in the light-emitting unit have a lifespan of more than eight years;

The new integrated hinge and locking structure can prevent safety traffic light from opening and falling when it is not locked;

The plug-in visor is easy and quick to install and will not fall off;
Integrated blade design, beautiful, high strength, convenient and quick installation;
- Back frame design; It can be installed horizontally or vertically; The left and right, up and down adjustment angle of the lamp body is ≥30°; Each light panel can be opened separately;
- The mounting accessories are made of stainless steel strips, which are corrosion-resistant and ensures a secure installation, preventing the safety traffic light from falling off;
- The light lens uses colorless PC mask, which is UV resistant and has high light transmittance, and will not yellow or change color throughout the entire lifespan of the lamp;

Hot Tags: safety traffic light, China safety traffic light manufacturers, suppliers, factory
Product Parameters

|
Product Name |
300mm Metal Housing Left Arrow and Straight Arrow Variable Traffic Light |
|
Display Content |
Left Arrow or Straight Arrow |
|
Communication Mode |
HiPLC (Optional) |
|
Light Panel Size |
Φ300mm |
|
Viewing Angle |
30° |
|
Viewing Distance |
≥300m |
|
Working Voltage |
AC220V/AC110V/DC48V/DC24V/DC12V |
|
Rated Power |
≤10W |
|
Working Temperature |
-40℃~80℃ |
|
IP Rating |
IP65 |
|
Overall Dimensions |
Length 1,210mm * Width 490mm * Height 431mm (including the visor and the frame) |
|
Housing Material |
Magnesium Alloy, Black Spraying Housing |
|
Net Weight |
11.25KG |
|
Installation Method |
Back Frame (stainless steel strip and functional fastener) |
Product Applications


Certificates


Company Profile
Located in Chongqing, China, Ulit Technology Inc. has been in intelligent traffic industry for more than 30 years with 15,000 square meter manufacturing base. With city intelligent traffic as main business, we can provide various advanced products, whole solutions, software and services related to city traffic, such as traffic control platform, traffic light controllers, traffic lights, traffic signs, countdowns, LED screens, video detectors, speed signs and various solar lights. With ISO 9001:2015 quality management system certification, our products comply with national standards and industry norms, as well as various international standards, such as CE, RoHS, FCC, EN12966 and EN12368. Strong support from our design and technology departments enables us to receive OEM and ODM projects.

Trade Shows

Production Process

FAQs
Q: Can I order a sample for testing?
A: Yes, we welcome sample orders to test. We can also make the samples exactly according to your detailed needs and requirements.
Q: How about your delivery time?
A: Shipping time depends on the specifications of the products you order. For in-stock products, shipping usually takes around 7-15 days. For customized products, the production time is typically around 30 days.
Q: How about the shipping method?
A: We can ship by sea, rail, and air. Samples are usually shipped via DHL, UPS, FedEx and other air transport methods.
Q: How about your warranty?
A: We offer a 2-year warranty and lifetime free remote technical support and service.
Q: How about the packages?
A: The products are first packed in cartons, and then the cartons are packed into standard export wooden cases.
