Street Stop Light

Street Stop Light
Product Introduction:

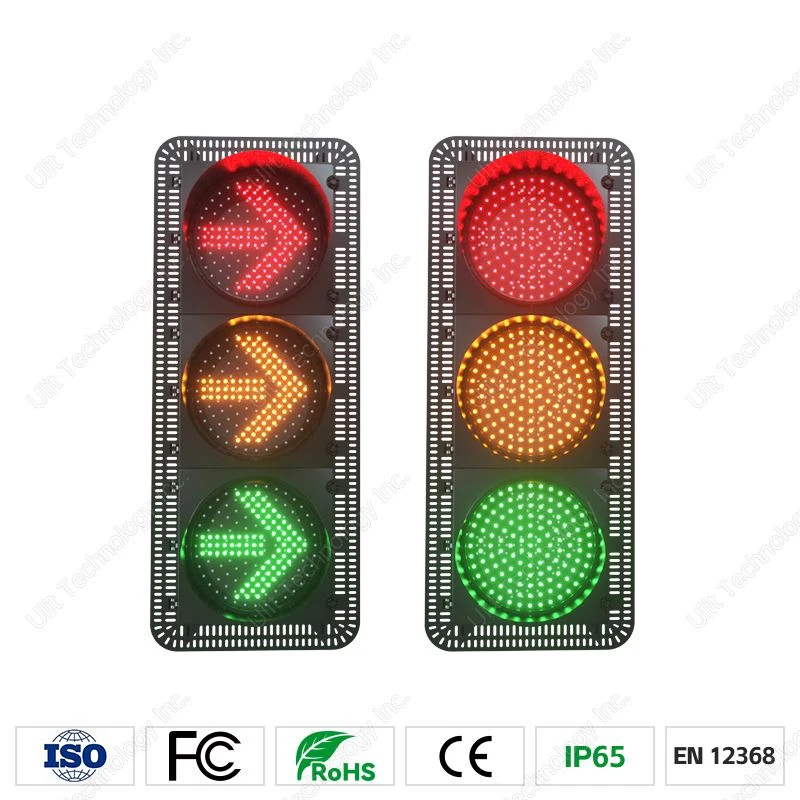

300mm Metal Housing Full Ball and Right Arrow Variable Traffic Light
Three Φ300mm full ball and right arrow lights, three colors, separate light panels in geometric position. It can switch flexibly between displaying full ball image or right arrow image. Dedicated environmental metal die-cast housing is light weight, high strength, small deformation under high and low temperature conditions and good corrosion resistance. Adopt high quality LED light-emitting elements. Compliance with CE, RoHS, FCC and EN12368 certification.
Send Inquiry
Description
Technical Parameters

Product Overview



street stop light banner





300mm Metal Housing Full Ball and Right Arrow Variable Traffic Light

The metal housing street stop light uses composite display panels, featuring three separate Ф300mm tri-color full ball and arrow light panels, which can flexibly switch between displaying right arrow image or full ball image. The housing is made of special environmentally friendly die-cast metal, resulting in lightweight, high-strength design with little deformation under high and low temperature conditions and strong corrosion resistance, ensuring extremely high product safety. It uses high-quality LED light-emitting elements.



Product Features

street stop light features



street stop light housing

Metal housing is lightweight, high-strength, highly corrosion-resistant, rust-free, anti-electromagnetic, shock-resistant, more than 30 years of housing structure lifespan;

street stop light led

Adopt high quality LEDs, which can save energy more than 50% than traditional light source; The lifespan of LEDs in the light-emitting unit is more than eight years;

street stop light visor

Plug-in visor is easy and quick to install and will not fall off;
Integrated blade design, beautiful, high strength, easy and quick installation;

  • New-type integrated detachable hinge and locking structure design; When not locked, it can prevent the street stop light opening and falling off;
  • Stainless steel strip as installation accessories, steady and anti-corrosion, no risk of falling off;
  • Back frame design; Can be installed horizontally or vertically; Each lamp panel can be opened independently; The lamp body can be adjusted from left to right, upward and downward, with adjustment angle equal or greater than 30°;
  • The light lens adopts anti-ultraviolet high light transmittance colorless PC mask, no yellowing or discoloration during the whole lifespan.



street stop light images



Hot Tags: street stop light, China street stop light manufacturers, suppliers, factory

Product Parameters

light traffic size



Product Name

300mm Metal Housing Full Ball and Right Arrow Variable Traffic Light

Display Content

Full Ball or Right Arrow

Communication Mode

HiPLC (Optional)

Light Panel Size

Φ300mm

Viewing Angle

30°

Viewing Distance

≥300m

Working Voltage

AC220V/AC110V/DC48V/DC24V/DC12V

Rated Power

≤10W

Working Temperature

-40℃~80℃

IP Rating

IP65

Overall Dimensions

Length 1,210mm * Width 490mm * Height 431mm (including the visor and the frame)

Housing Material

Magnesium Alloy, Black Spraying Housing

Net Weight

11.25KG

Installation Method

Back Frame (stainless steel strip and functional fastener)



Product Applications

street stop light installation
street stop light application
street stop light vertical mounting

Certificates



product certificates



company certificate



Company Profile

30+ Years of experience in intelligent traffic

We have been deeply involved in intelligent traffic industry for over 30 years with 15,000 square meter manufacturing base. As a leading manufacturer of traffic intelligent control system, traffic signal and display equipment, a leading provider of city traffic centralized control software, a national high-tech enterprise and a listed enterprise of Beijing Stock Exchange, we also supply OEM/ODM services. Certified by ISO/CE, our products are sold to more than 30 countries, including the USA, Mexico, Germany, Ireland, Romania, Greece, the Netherlands, Israel, Saudi Arabia and so on.

street stop light company

15,000+
Factory area
200+
total staff
100+
technical engineers
100+
overseas projects



Trade Shows



Exhibition



Production Process



Production Process



FAQs



Q: Are you a factory?

A: Yes. We are a leading manufacturer of LED traffic signal products and intelligent traffic equipment, and a leading IoT solution provider in China.

Q: What products do you have?

A: Traffic lights, traffic signs, traffic light systems, LED screens, traffic warning lights, radar speed signs, traffic light controllers, etc..

Q: What certifications does the pedestrian crossing signal have?

A: CE, RoHS, FCC, EN12368, EN12966, IP65, MTC, ISO9001:2015, ISO14001:2015, CMMI-5, CCC and so on.

Q: Whether you could make our brand on your products?

A: Yes. Our R&D department provide strong technical support and enable us to receive OEM and ODM projects.

Q: How about the payment clauses and delivery terms?

A: Payment Clauses: T/T, L/C, Paypal, Western Union and so on.

Delivery Terms: EXW, FOB, CFR, CIF, DAP, DDP.
