Product Overview
300mm Metal Housing High Flux Full Ball Traffic Light
Three Φ300mm high flux full ball lights, separate three-color light traffic light panels arranged in geometric position. Adopt premium high-flux LED light-emitting components, featuring a high photoelectric conversion rate and lower power consumption; The optical design of the area light source conforms to the visual characteristics of the human body, neither dazzling nor glaring. Environmental metal die-cast shell is light weight, high strength, small deformation under high and low temperature conditions, good corrosion resistance; Passed CE, RoHS, FCC and EN 12368 certifications.
Product Features
Metal shell, light weight, high strength, high shock resistance, anti-electromagnetic, environmentally friendly, recyclable, corrosion-resistant, rust-free, ensuring ultra-high safety of the product, with a lifespan of over 30 years for the shell structure;
The back-mounted design allows for horizontal or vertical installation; Each lamp panel can be separately opened; The lamp body can be adjusted left and right, and up and down, with an adjustment angle of ≥ 30°;
Adopt internationally renowned (CREE/OSRAM) LED chips with higher photoelectricity conversion rate; The LEDs in the light-emitting unit has a service life of over ten years;
The optical design of the area light source conforms to the visual characteristics of the human body, neither dazzling nor blinding;

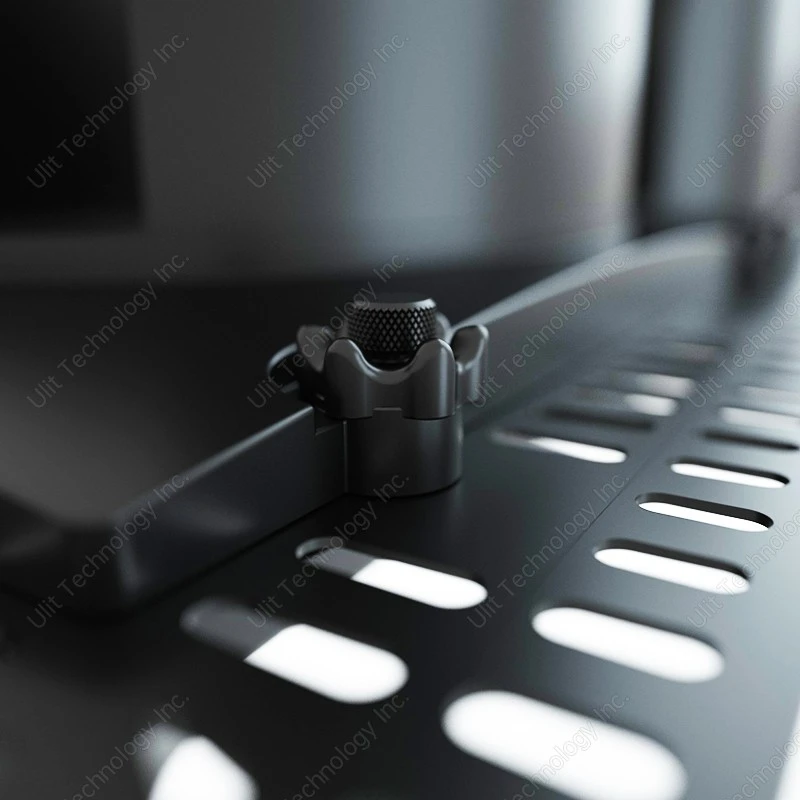

New-type integrated detachable hinge and locking structure design; When not locked, it can prevent opening and falling off;
Integrated blade design, beautiful, high strength, easy and quick installation;
The light lens uses colorless PC mask with high light transmittance and UV resistance, which will not turn yellow or discolor throughout its entire service life;
Possess PLC communication function; Support remotely querying the operating state of three-color light traffic light; Support proactive reporting of other faults such as traffic lights not working, red and green lights being on simultaneously, light string damage, and communication issues; Support adjusting brightness. (Optional)
Hot Tags: light traffic light, China light traffic light manufacturers, suppliers, factory
Product Parameters
|
Product Name |
300mm Metal Housing High Flux Full Ball Traffic Light |
| Display Content | Full Ball |
| LED Light Source | CREE/OSRAM Hi-flux LED Chips |
| LED Quantity | 6 |
| Optical Configuration | Light Source Lens + Fresnel Lens + Imaging Lens |
| Photoelectric Efficiency | ≥90 lm/W |
| Communication Mode | HiPLC (Optional) |
| Light Panel Size | Φ300mm |
| Viewing Angle | 30° |
| Viewing Distance | ≥300m |
| Working Voltage | AC220V/AC110V/DC48V/DC24V/DC12V |
| Rated Power | ≤6W |
| Working Temperature | -40℃～80℃ |
| Working Humidity | ≤97%RH[(40±1)℃,No Condensation] |
| IP Rating | IP65 |

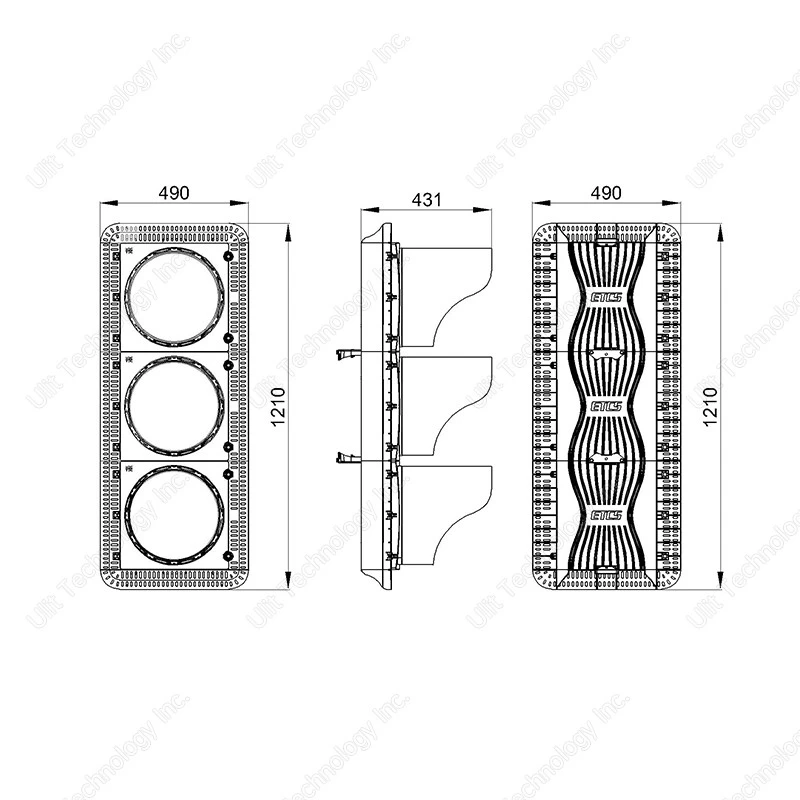

| Overall Dimensions | Length1,210mm * Width 490mm * Height 431mm (including the visor and the frame) |
| Housing Material | Magnesium Alloy, Black Spraying Housing |
| Net Weight | 11.25KG |
| Installation Method | Back Frame (stainless steel strip and functional fastener) |
Product Applications
Certificates
Company Profile
Having been Involved in intelligent traffic industry for more than 30 years, Ulit Technology Inc. is a leading manufacturer of traffic intelligent control system, traffic signal and display equipment, a leading provider of city traffic centralized control software, a national high-tech enterprise and a listed enterprise of Beijing Stock Exchange. We have been providing products and services to customers in the USA, Mexico, Germany, Ireland, Romania, Greece, the Netherlands, Israel, Saudi Arabia, India, Vietnam, Singapore and many other countries. Our company always advocates customer focus and adheres corporate philosophy of "innovation transcends dreams and hard work creates value". We keep perfecting our core technology products over ten years and are always strenuously making continuous contribution for unblocked city!
Trade Shows
Production Workshop
FAQs
Q: Do your products come with accompanying software systems?
A: Yes. For products that require accompanying software, we provide our own proprietary software. Some of our products also support integration with software from other major manufacturers.
Q: How do you guarantee the quality of your products?
A: We have a very strict quality controlling system to ensure that all the products are delivered with high quality. Strict detection during each production step. Strict full inspection on products before shipment and intact product packaging ensured.
Q: Can you send me your catalogue?
A: Please send an email to our email address cqulit@sina.com for catalogue. We will reply you with our latest catalogue to your email.
Q: What's the price of the light traffic light?
A: Price is negotiable. Based on different quantities and detailed requirements, the prices are a little different. Please kindly contact us for more detailed prices.
Q: Can I have some information about your scope of business?
A: Our company can provide various advanced products, whole solutions, software and services related to city traffic, such as traffic control platform, traffic light controllers, traffic lights, traffic signs, countdowns, LED screens, video detectors, speed signs and various solar lights.
