Product Overview

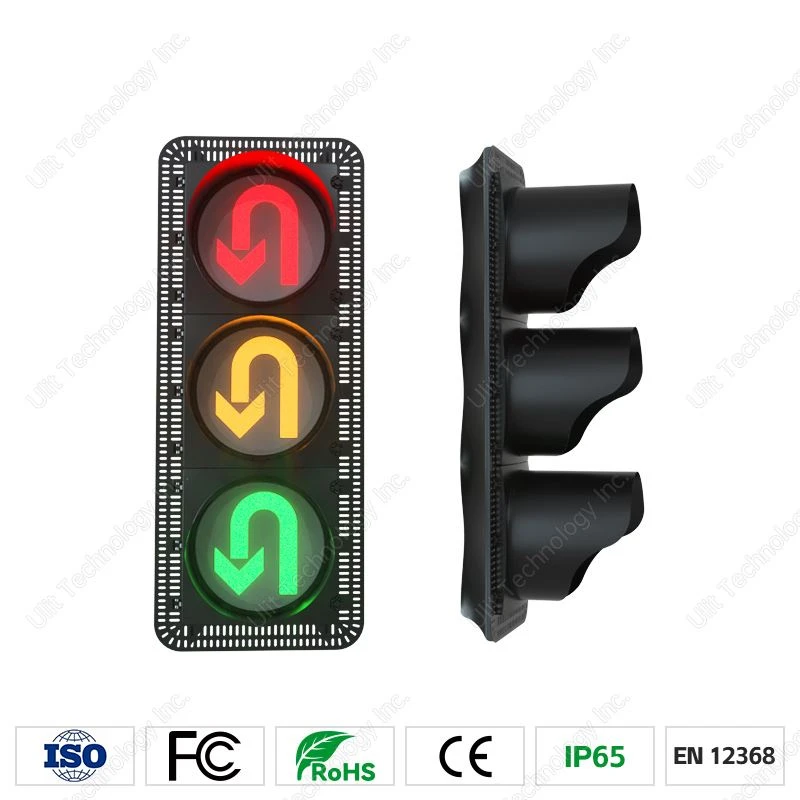

300mm Metal Housing High Flux U-turn Traffic Light
The 300mm traffic indicator light with metal housing can be used as U-turn traffic light. The three separate lamp panels display red U-turn, green U-turn, and yellow U-turn images respectively. It uses high-quality, high-flux LEDs with higher photoelectric conversion efficiency and lower power consumption. The area light source optical design is more in line with human eye characteristics, preventing glare and dazzle. The housing is made of environmentally friendly metal materials, making it lightweight, high-strength, resistant to high and low temperatures, and corrosion-resistant. It is CE, RoHS, FCC, and EN 12368 certified.
Product Features
The shell is made of environmental metal materials, featuring high shock resistance, anti-electromagnetic, recyclability, corrosion resistance and no risk of rusting, ensuring the safety of outdoor use of the product. The shell structure has a service life of over 30 years;
Use internationally renowned CREE/OSRAM LED chips with higher photoelectricity conversion rate; The lifespan of LEDs in the light-emitting unit exceeds 10 years;
The area light source optical design is more in line with human eye characteristics, preventing glare;
The lens mask is made of PC material, which is colorless and UV resistant, has high light transmittance, and will not yellow or change color throughout its entire lifespan;

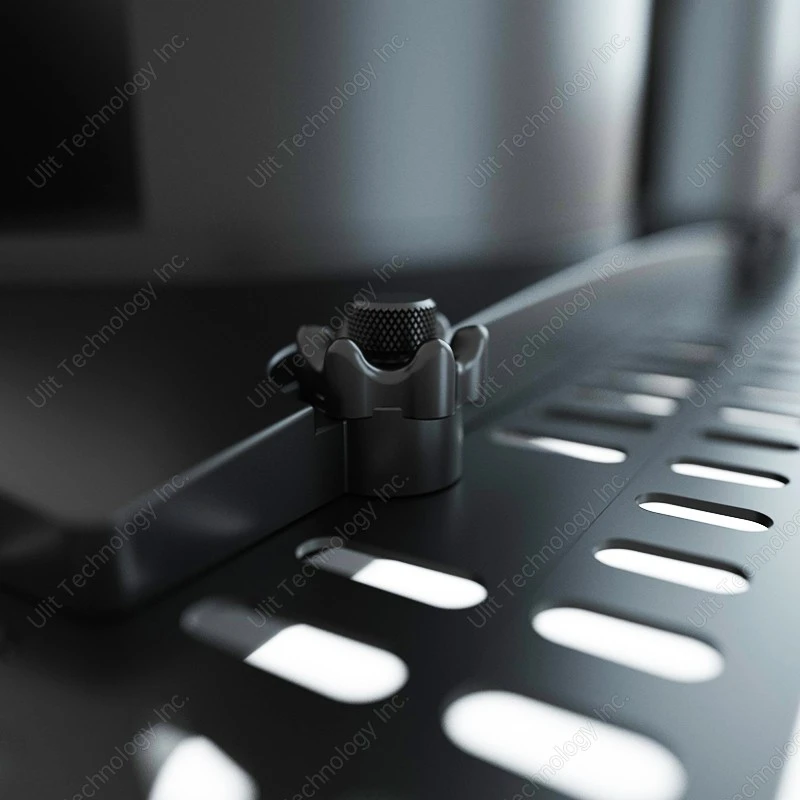

The new-type integrated detachable hinge locking structure design prevents the traffic indicator light from accidentally opening or falling off when not locked;

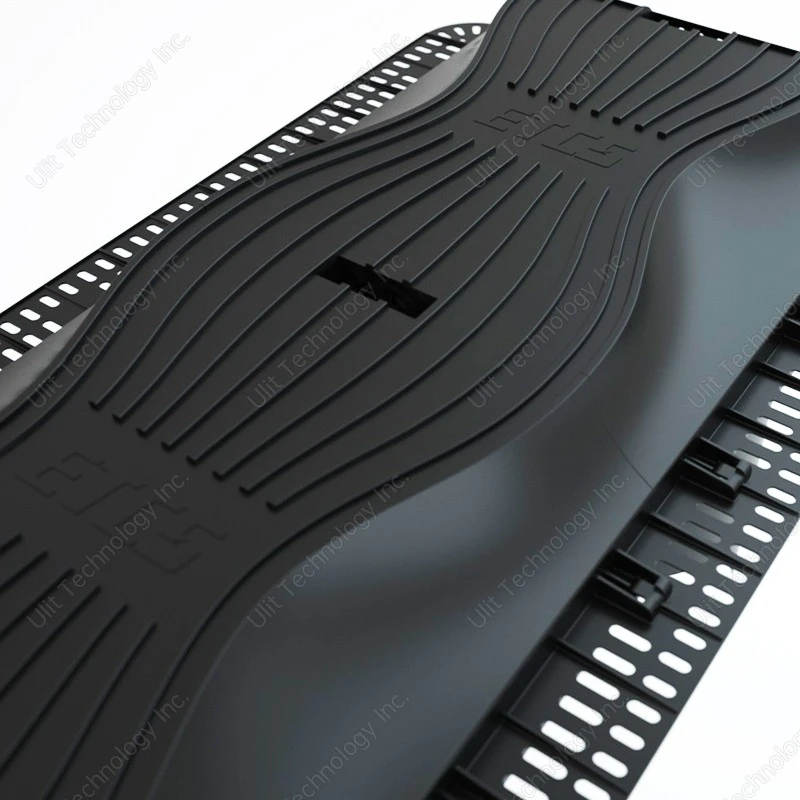

- Integrated blade design, beautiful, high strength, easy and quick installation;
- Back frame design; Can be installed horizontally or vertically; Each lamp panel can be opened independently; The lamp body can be adjusted from left to right, upward and downward, with adjustment angle equal or greater than 30°;
- Possess PLC communication function; Support remotely querying the operating state of traffic lights; Support proactively reporting failures; Support luminance adjustment. (Optional)
Hot Tags: traffic indicator light, China traffic indicator light manufacturers, suppliers, factory
Product Parameters
|
Product Name |
300mm Metal Housing High Flux U-turn Traffic Light |
| Display Content | U-turn |
| LED Light Source | CREE/OSRAM Hi-flux LED Chips |
| LED Quantity | 6 |

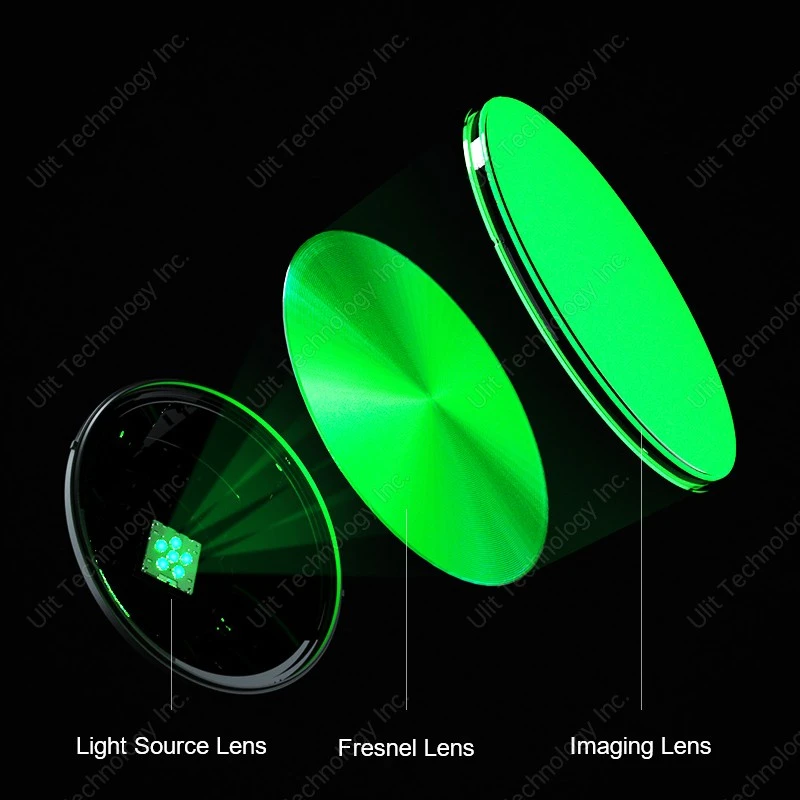

| Optical Configuration | Light Source Lens + Fresnel Lens + Imaging Lens |
| Photoelectric Efficiency | ≥90 lm/W |
| Communication Mode | HiPLC (Optional) |
| Light Panel Size | Φ300mm |
| Viewing Angle | 30° |
| Viewing Distance | ≥300m |
| Working Voltage | AC220V/AC110V/DC48V/DC24V/DC12V |
| Rated Power | ≤6W |
| Working Temperature | -40℃～80℃ |
| Working Humidity | ≤97%RH[(40±1)℃,No Condensation] |
| IP Rating | IP65 |
| Overall Dimensions | Length1,210mm * Width 490mm * Height 431mm (including the visor and the frame) |
| Housing Material | Magnesium Alloy, Black Spraying Housing |
| Net Weight | 11.25KG |
| Installation Method | Back Frame (stainless steel strip and functional fastener) |
Product Applications
Certificates
Company Profile
Located in Chongqing, China, Ulit Technology Inc. has been in intelligent traffic industry for more than 30 years with 15,000 square meter manufacturing base. With city intelligent traffic as main business, we can provide various advanced products, whole solutions, software and services related to city traffic, such as traffic control platform, traffic light controllers, traffic lights, traffic signs, countdowns, LED screens, video detectors, speed signs and various solar lights. With ISO 9001:2015 quality management system certification, our products comply with national standards and industry norms, as well as various international standards, such as CE, RoHS, FCC, EN12966 and EN12368. Strong support from our design and technology departments enables us to receive OEM and ODM projects.
Trade Shows
Production Workshop
FAQs
Q: Can I order a sample for testing?
A: Yes, we welcome sample orders to test. We can also make the samples exactly according to your detailed needs and requirements.
Q: How about your delivery time?
A: Shipping time depends on the specifications of the products you order. For in-stock products, shipping usually takes around 7-15 days. For customized products, the production time is typically around 30 days.
Q: How about the shipping method?
A: We can ship by sea, rail, and air. Samples are usually shipped via DHL, UPS, FedEx and other air transport methods.
Q: How about your warranty?
A: We offer a 2-year warranty and lifetime free remote technical support and service.
Q: How about the packages?
A: The products are first packed in cartons, and then the cartons are packed into standard export wooden cases.
