Product Overview

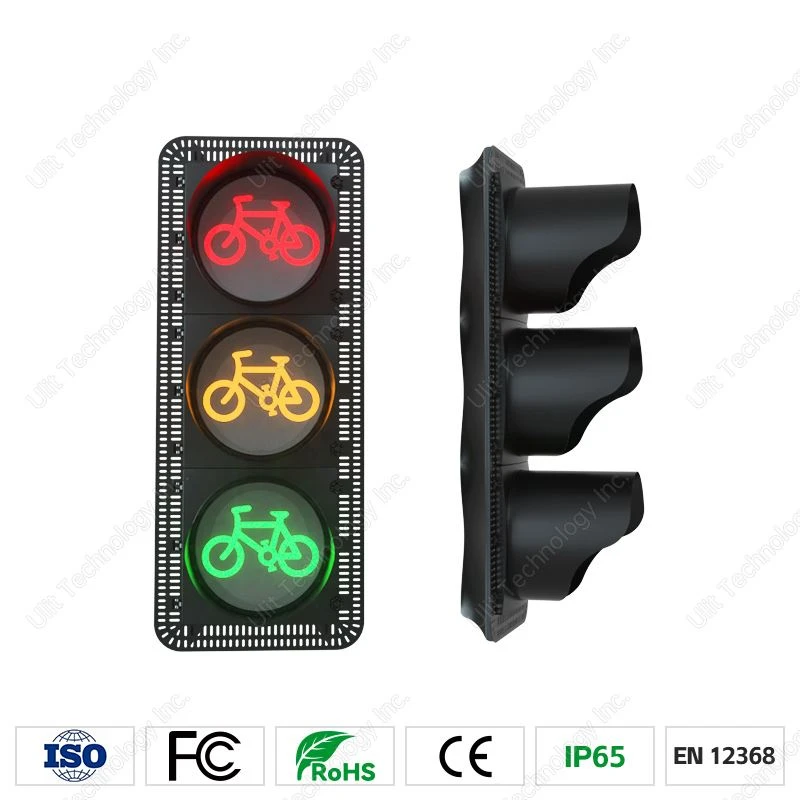

300mm Metal Housing High Flux Bicycle Traffic Light
The high flux traffic light cycle lane signal is composed of three separate light panels of different colors arranged in a geometric position, each 300mm in diameter, specifically designed for bicycle traffic safety. It utilizes high-quality, high-flux LEDs with higher photoelectric conversion rate and lower power consumption. The optimized optical design, with a area light source conforming to human visual characteristics, eliminates glare. The lightweight and high-strength shell is made of environmentally friendly metal by die-casting, which is anti-corrosive and has little deformation at both high and low temperatures. The traffic light cycle lane signal complies with CE, RoHS, FCC and EN12368 certifications.
Product Features

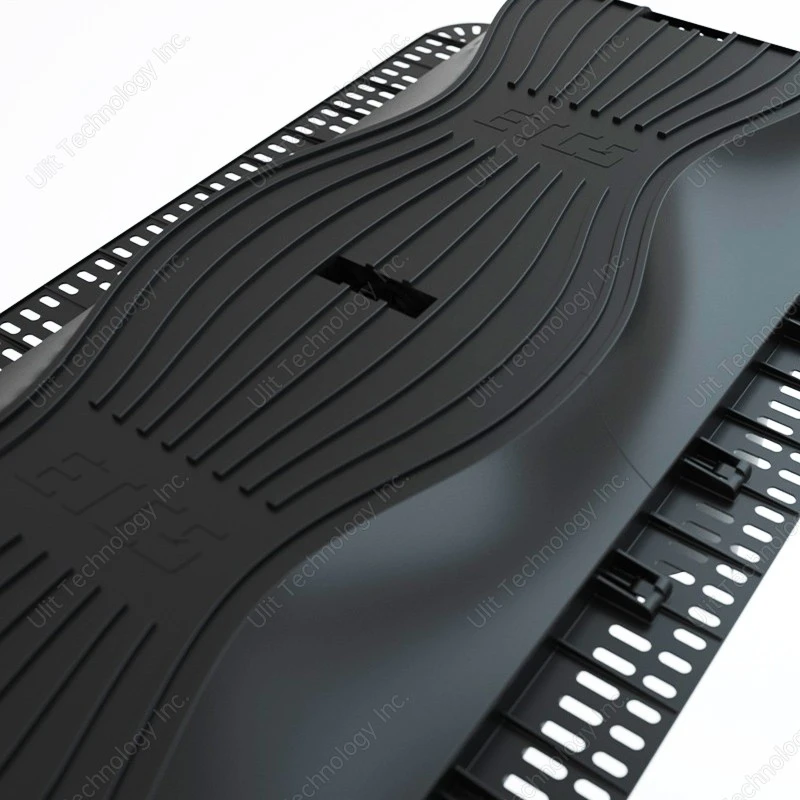

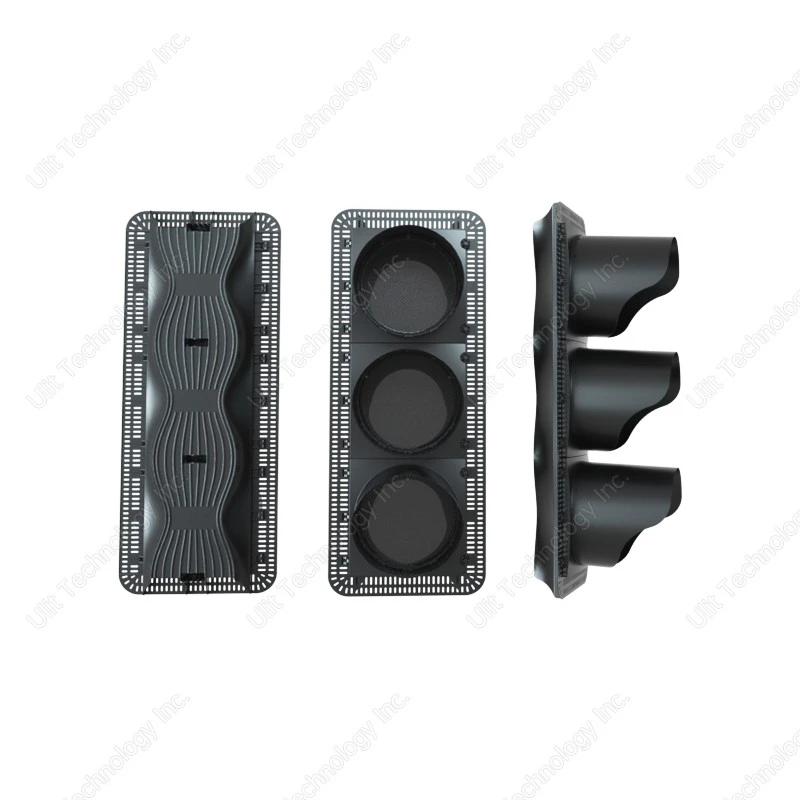

Use recyclable environmental metal shell, which is highly shockproof, electromagnetically shielded and anti-corrosive, with no risk of rust, ensuring the product's ultra-high safety. The shell structure has a lifespan of more than 30 years;
The traffic light cycle lane signal use internationally renowned CREE/OSRAM high-flux LED chips, which have higher photoelectric conversion rate, lower power consumption and a lifespan of more than 10 years;

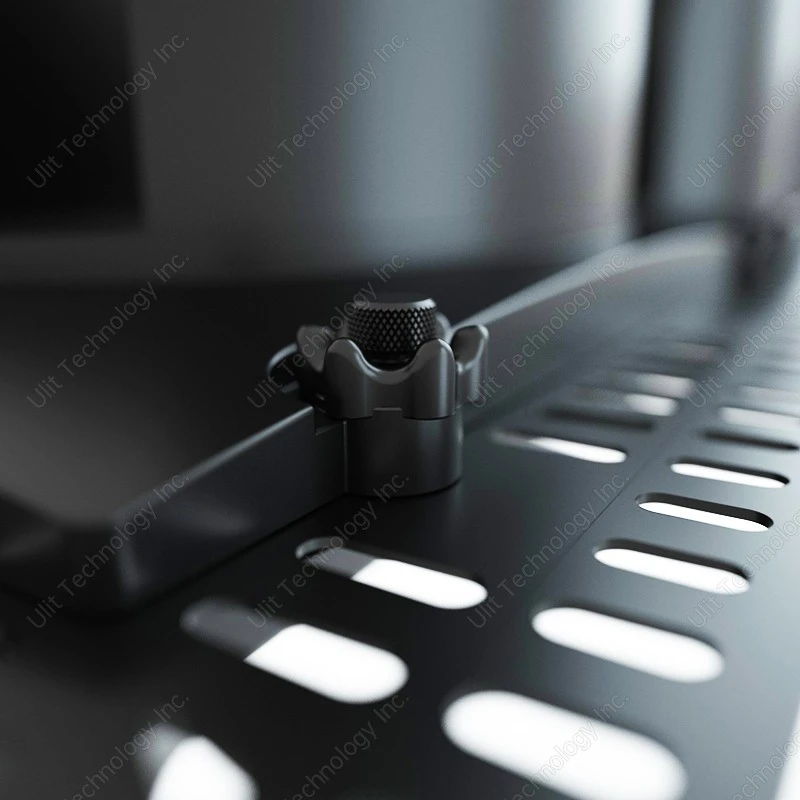

New-type integrated detachable hinge and locking structure design prevents opening and detachment when not locked;
Integrated blade is beautiful, high-strength, and easy and quick to install;
- Back frame design; Support horizontal or vertical installation; Each lamp panel can be opened independently; The lamp body can be adjusted from left to right, upward and downward, with adjustment angle equal or greater than 30°;
- The light lens adopts anti-ultraviolet high light transmittance colorless PC mask, no yellowing or discoloration during the whole lifespan;
- Possess PLC communication function; Support remotely querying the operating state of traffic lights; Support proactively reporting failures; Support adjusting brightness; (Optional)
- The optimized optical design, with a area light source conforming to human visual characteristics, eliminates glare.
Hot Tags: traffic light cycle, China traffic light cycle manufacturers, suppliers, factory
Product Parameters
|
Product Name |
300mm Metal Housing High Flux Bicycle Traffic Light |
| Display Content | Bicycle |
| LED Light Source | CREE/OSRAM Hi-flux LED Chips |
| LED Quantity | 6 |

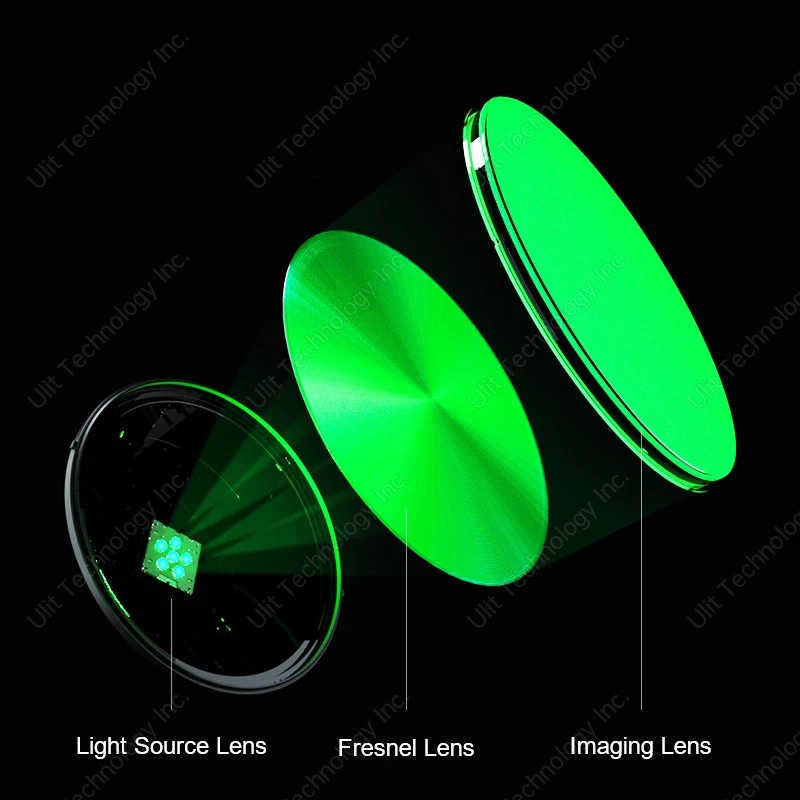

| Optical Configuration | Light Source Lens + Fresnel Lens + Imaging Lens |
| Photoelectric Efficiency | ≥90 lm/W |
| Communication Mode | HiPLC (Optional) |
| Light Panel Size | Φ300mm |
| Viewing Angle | 30° |
| Viewing Distance | ≥300m |
| Working Voltage | AC220V/AC110V/DC48V/DC24V/DC12V |
| Rated Power | ≤6W |
| Working Temperature | -40℃～80℃ |
| Working Humidity | ≤97%RH[(40±1)℃,No Condensation] |
| IP Rating | IP65 |

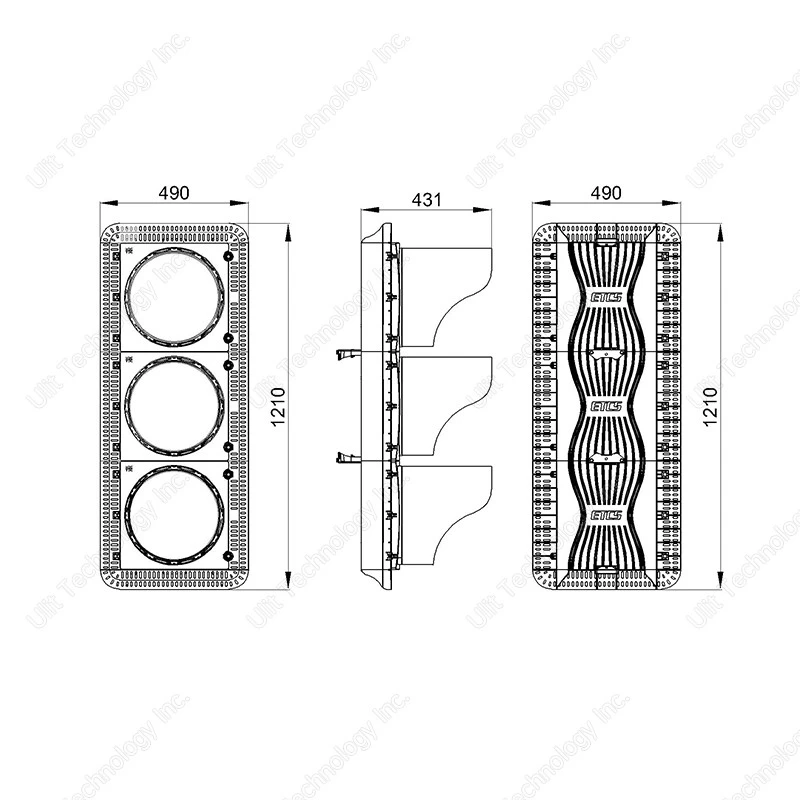

| Overall Dimensions | Length1,210mm * Width 490mm * Height 431mm (including the visor and the frame) |
| Housing Material | Magnesium Alloy, Black Spraying Housing |
| Net Weight | 11.25KG |
| Installation Method | Back Frame (stainless steel strip and functional fastener) |
Product Applications
Certificates
Company Profile
We have been deeply involved in intelligent traffic industry for over 30 years with 15,000 square meter manufacturing base. As a leading manufacturer of traffic intelligent control system, traffic signal and display equipment, a leading provider of city traffic centralized control software, a national high-tech enterprise and a listed enterprise of Beijing Stock Exchange, we also supply OEM/ODM services. Certified by ISO/CE, our products are sold to more than 30 countries, including the USA, Mexico, Germany, Ireland, Romania, Greece, the Netherlands, Israel, Saudi Arabia and so on.
Trade Shows
Production Workshop
FAQs
Q: Are you a factory?
A: Yes. We are a leading manufacturer of LED traffic signal products and intelligent traffic equipment, and a leading IoT solution provider in China.
Q: What products do you have?
A: Traffic lights, traffic signs, traffic light systems, LED screens, traffic warning lights, radar speed signs, traffic light controllers, etc..
Q: Which certifications does your company have?
A: CE, RoHS, FCC, EN12368, EN12966, IP65, MTC, ISO9001:2015, ISO14001:2015, CMMI-5, CCC and so on.
Q: Whether you could make our brand on your products?
A: Yes. Our R&D department provide strong technical support and enable us to receive OEM and ODM projects.
Q: How about the payment clauses and delivery terms?
A: Payment Clauses: T/T, L/C, Paypal, Western Union and so on.
Delivery Terms: EXW, FOB, CFR, CIF, DAP, DDP.
