Product Overview

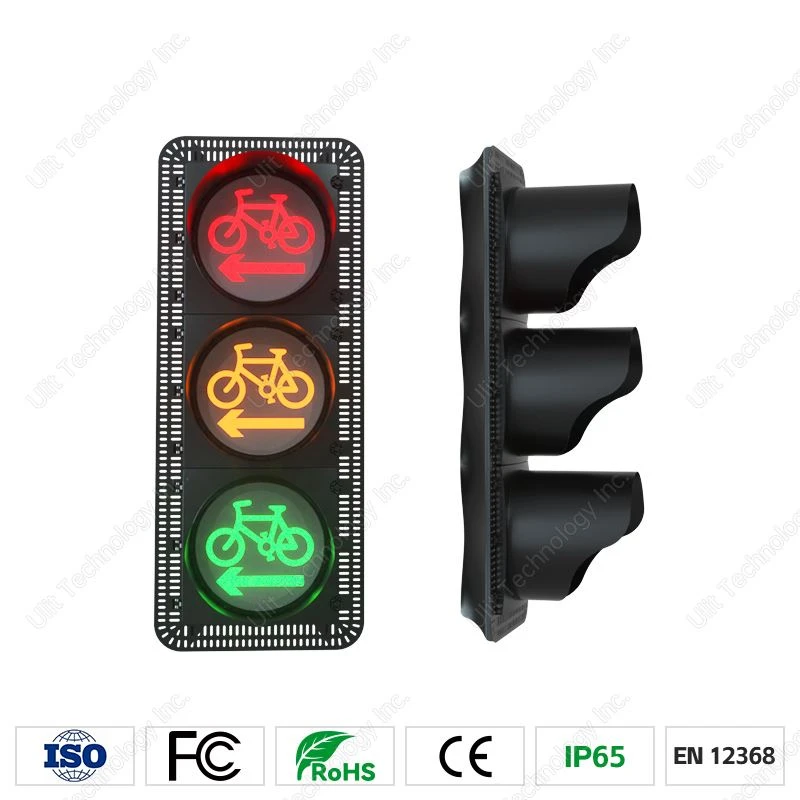

300mm Metal Housing High Flux Left Arrow and Bicycle Traffic Light
The high-flux street light with a metal houding includes three separate LED panels (red, yellow, and green), each 300mm in diameter, displaying a left arrow and a bicycle image. The light-emitting elements utilize high-quality, high-flux LEDs, offering higher photoelectric conversion efficiency and lower power consumption. Designed as area light source, it better conforms to human visual characteristics, preventing glare and dazzling effects. The environmentally friendly metal die-cast housing is lightweight, high-strength, exhibits small deformation under high and low temperature conditions, and is anti-corrosive. It is CE, RoHS, FCC, and EN 12368 certified.
Product Features
- The environmentally friendly metal die-cast housing is shockproof, anti-electromagnetic, recyclable, anti-corrosive, and rust-free, with a service life of over 30 years, ensuring the long-term outdoor safety of street light signals;

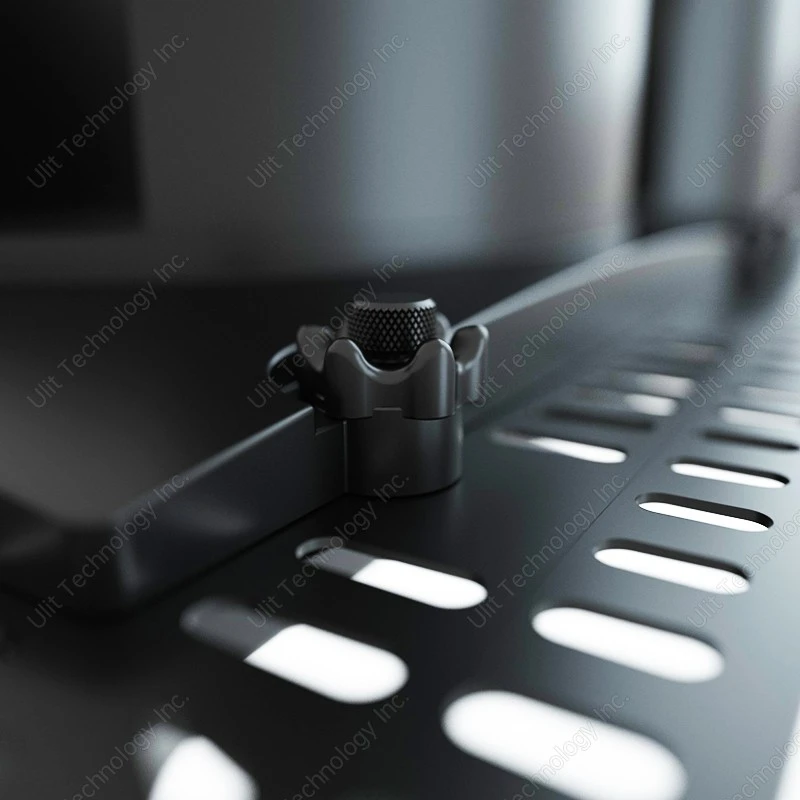

- New-type integrated detachable hinge and locking structure design; When not locked, it can prevent opening and falling off;

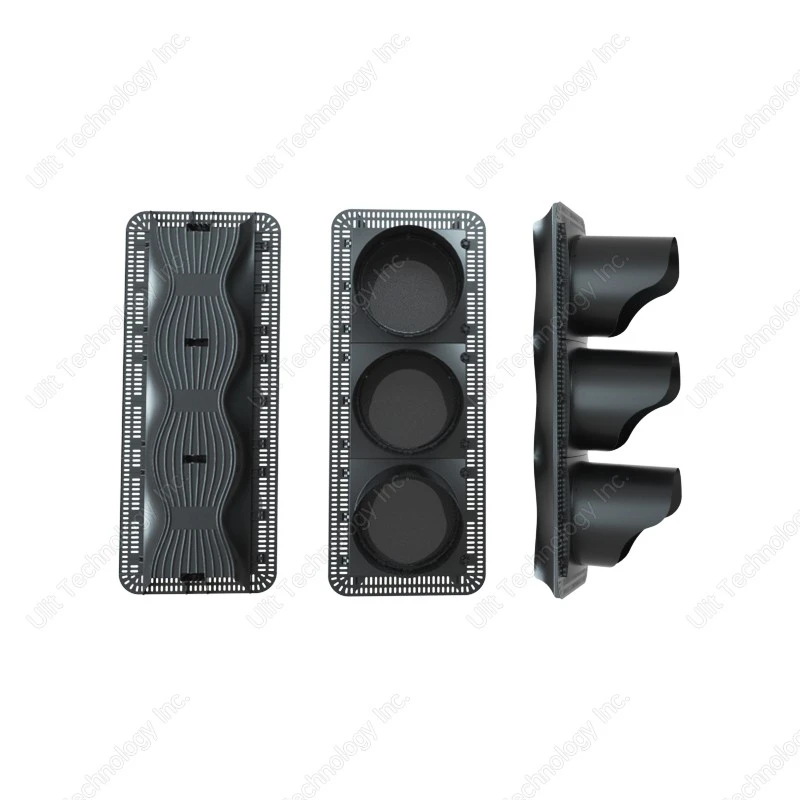

- Integrated blade design, beautiful, high strength, easy and quick installation;

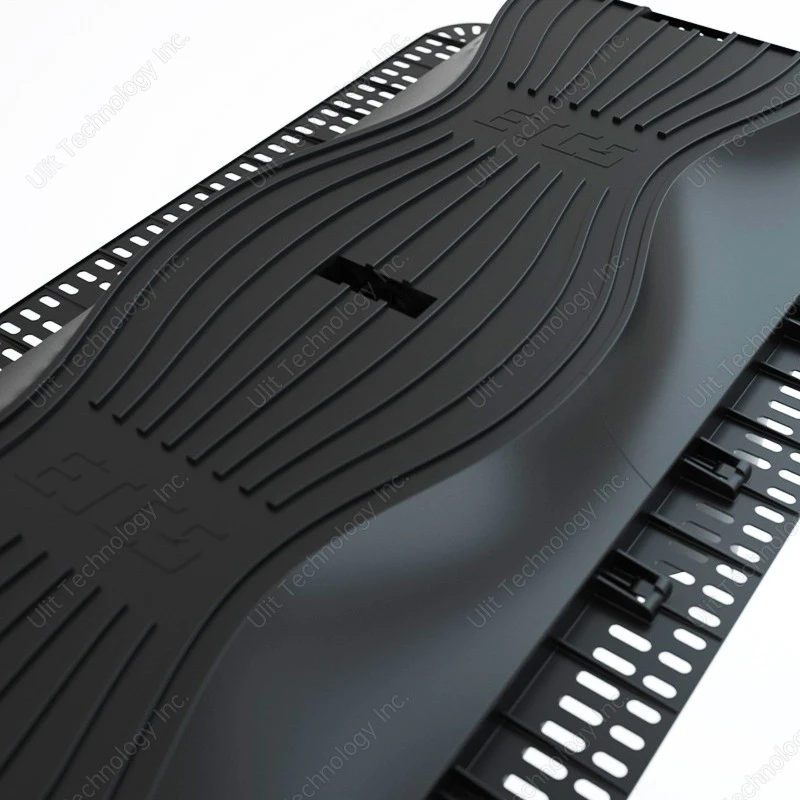

- Back frame design; Can be installed horizontally or vertically; Each lamp panel can be opened independently; The lamp body can be adjusted from left to right, upward and downward, with adjustment angle equal or greater than 30°;
- The colorless PC mask with UV resistance and high light transmittance will not yellow or change color throughout the entire lifespan of the lamp;
- Adopt CREE/OSRAM high-flux LED chips with higher photoelectric conversion rate and an LED lifespan of over 10 years;
- It supports optional PLC communication function; Support remote query of street light signal operation status; Support proactive reporting of faults; Support brightness adjustment;
- Area light source better conforms to human visual characteristics, preventing glare and dazzling effects.
Hot Tags: street light signal, China street light signal manufacturers, suppliers, factory
Product Parameters
|
Product Name |
300mm Metal Housing High Flux Left Arrow and Bicycle Traffic Light |
| Display Content | Left Arrow + Bicycle |
| LED Light Source | CREE/OSRAM Hi-flux LED Chips |
| LED Quantity | 6 |

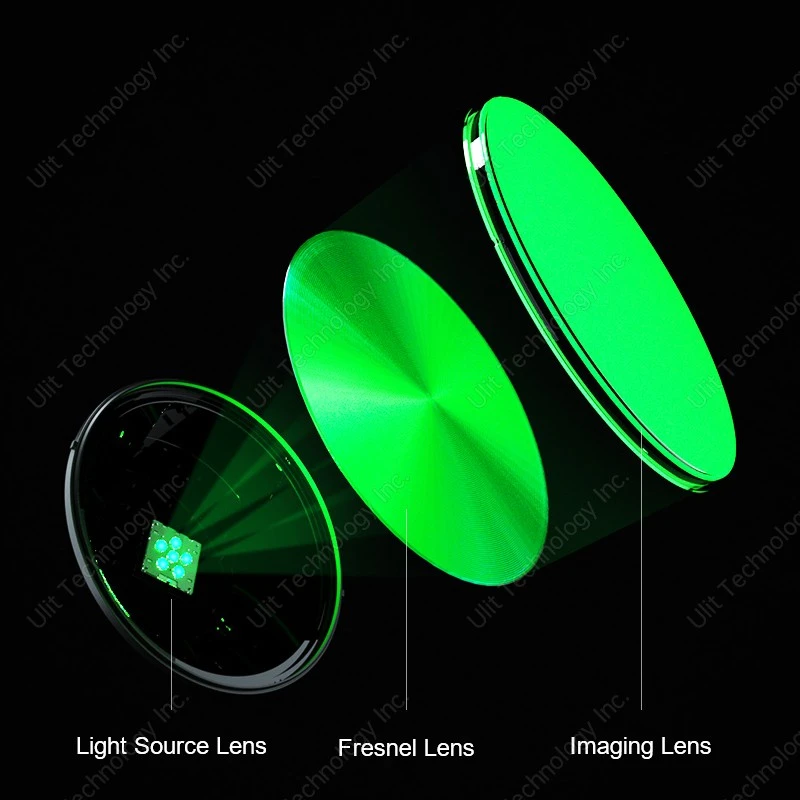

| Optical Configuration | Light Source Lens + Fresnel Lens + Imaging Lens |
| Photoelectric Efficiency | ≥90 lm/W |
| Communication Mode | HiPLC (Optional) |
| Light Panel Size | Φ300mm |
| Viewing Angle | 30° |
| Viewing Distance | ≥300m |
| Working Voltage | AC220V/AC110V/DC48V/DC24V/DC12V |
| Rated Power | ≤6W |
| Working Temperature | -40℃～80℃ |
| Working Humidity | ≤97%RH[(40±1)℃,No Condensation] |
| IP Rating | IP65 |

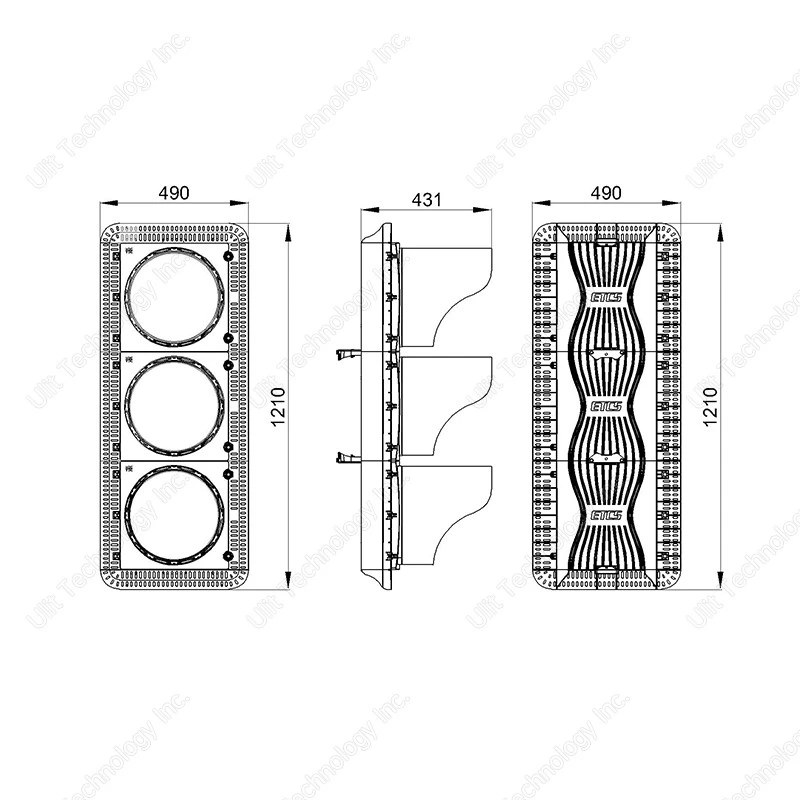

| Overall Dimensions | Length1,210mm * Width 490mm * Height 431mm (including the visor and the frame) |
| Housing Material | Magnesium Alloy, Black Spraying Housing |
| Net Weight | 11.25KG |
| Installation Method | Back Frame (stainless steel strip and functional fastener) |
Product Applications
Certificates
Company Profile
Ulit Technology Inc. has been deeply involved in the intelligent traffic industry for over 30 years, boasting a 15,000-square-meter production base. With urban intelligent traffic as our core business, our company provides a variety of advanced products, integrated solutions, software, and services, covering traffic control platforms, traffic light controllers, traffic lights, traffic signs, countdown timers, LED displays, video detectors, speed signs, and various solar lighting equipment. We also offer OEM/ODM services. Our products have passed multiple international certifications, including ISO/CE, RoHS, FCC, EN12368, and EN12966, and are exported to more than 30 countries and regions, including Mexico, the United States, Germany, Ireland, Romania, Greece, the Netherlands, Israel, and Saudi Arabia.
Trade Shows
Production Workshop
FAQs
Q: Can I have a sample?
A: Of course, we support sample orders.
Q: What's the delivery time?
A: Shipping time depends on the specifications of the products you order. For in-stock products, shipping usually takes around 7-15 days. For customized products, the production time is typically around 30 days.
Q: Which city or port do you ship from?
A: Our main manufacturing plant is in Chongqing, but we also have branch offices in other cities. We can ship from all major ports and cities in China.
Q: Do you have any MOQ limit?
A: Our company supports testing with one or more samples, and we can also customize samples according to your specific requirements. There is no minimum order quantity (MOQ) limit.
Q: Do you offer after-sales service?
A: Most of our products come with a 2-year warranty. If a product experiences a quality issue within the warranty period, we will send you replacement parts free of charge. After the warranty period expires, we will continue to provide free lifetime remote technical support and service.
