Product Overview

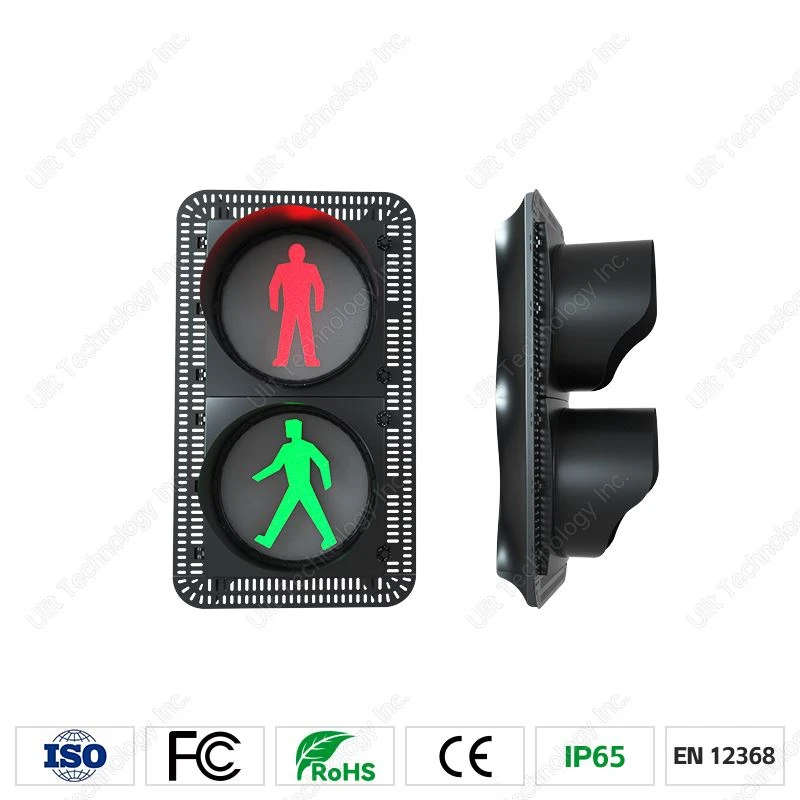

300mm Metal Housing High Flux Pedestrian Traffic Light
The 300mm crossing traffic lights consist of the red pedestrian and the green pedestrian light panel, which are used at pedestrian crossings to ensure pedestrian safety. Adopt internationally renowned CREE/OSRAM high-flux LED light-emitting components, featuring a higher photoelectric conversion rate and lower power consumption. The optical design of the area light source is more in line with the visual characteristics of the human body, neither dazzling nor glare. The outer shell is made of environmentally friendly metal, making it lightweight, high-strength, highly resistant to deformation under extreme temperatures ranging from -40°C to 80°C, and corrosion-resistant. Passed CE, RoHS, FCC and EN 12368 certifications.
Product Features
The outer shell is made of environmentally friendly, recyclable metal, making it lightweight, high-strength, shock-resistant, electromagnetically shielded, corrosion-resistant, and rust-free. This ensures the crossing traffic lights' exceptional safety. The shell structure has a lifespan exceeding 30 years;
Both lamp panel can be opened individually; The left and right adjustment angle of the lamp body is no less than 30°;
Adopt internationally renowned (CREE/OSRAM) LED chips with higher photoelectricity conversion rate; The LEDs in the light-emitting unit have a lifespan of over 10 years;
The optical design of the area light source is more in line with the visual characteristics of the human body, neither dazzling nor glare;

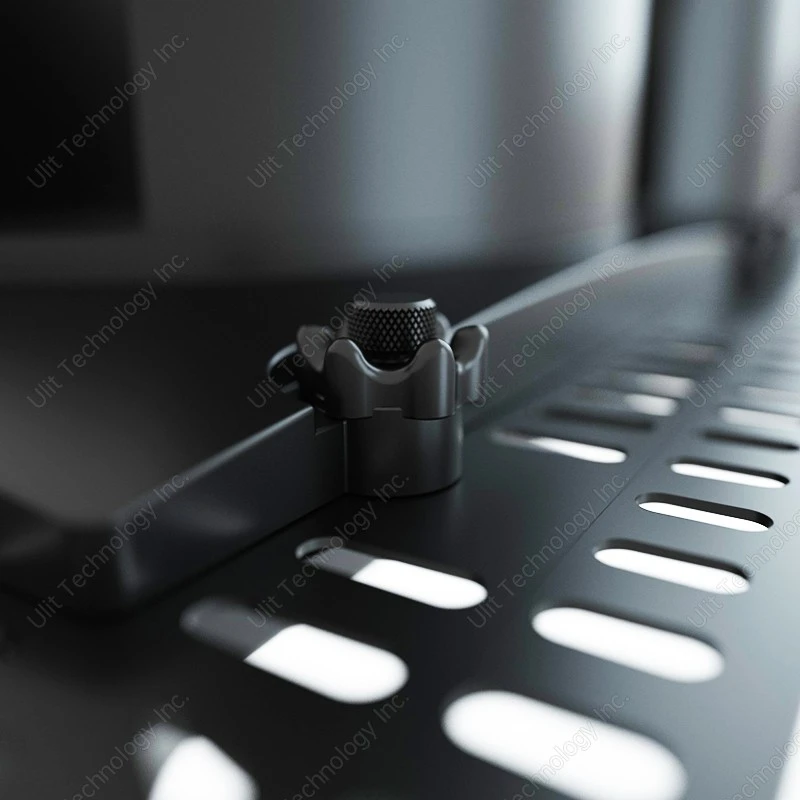

New-type integrated detachable hinge and locking structure design; When not locked, it can prevent opening and falling off;
Integrated blade design, beautiful, high strength, easy and quick installation;
The light lens adopts anti-ultraviolet high light transmittance colorless PC mask, no yellowing or discoloration during the whole lifespan;
Possess PLC communication function; Support remotely querying the operating state of traffic lights; Support the active reporting of faults such as non-functioning crossing traffic lights, red and green lights being on simultaneously, damaged LED light strings, and communication failures and so on; Support luminance adjustment. (Optional)
Hot Tags: crossing traffic lights, China crossing traffic lights manufacturers, suppliers, factory
Product Parameters
|
Product Name |
300mm Metal Housing High Flux Pedestrian Traffic Light |
| Display Content | Green Pedestrian (Static), Red Pedestrian (Static) |
| LED Light Source | CREE/OSRAM Hi-flux LED Chips |
| LED Quantity | 6 |

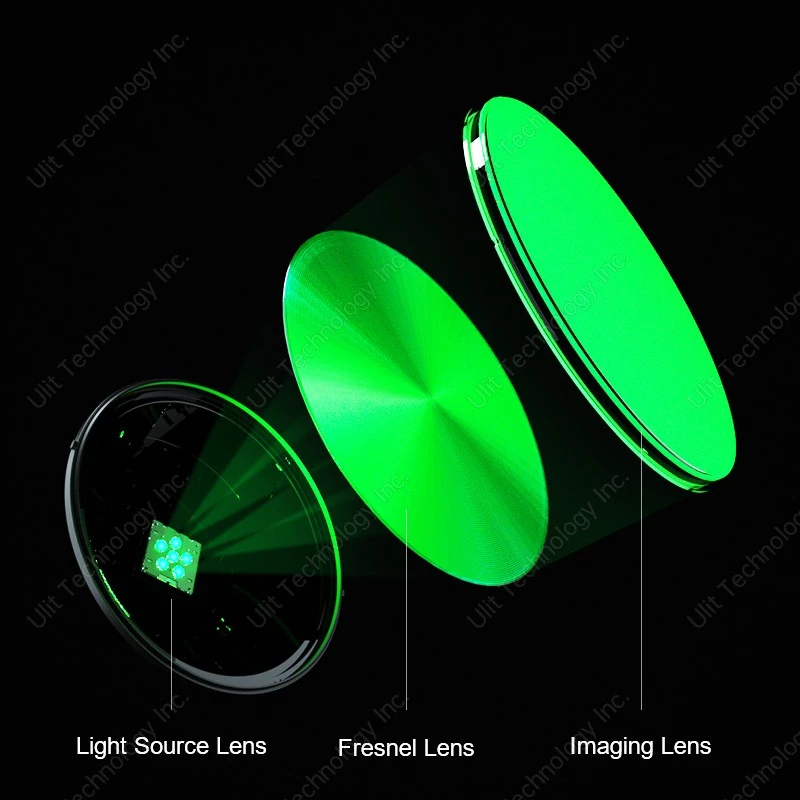

| Optical Configuration | Light Source Lens + Fresnel Lens + Imaging Lens |
| Photoelectric Efficiency | ≥90 lm/W |
| Light Panel Size | Φ300mm |
| Viewing Angle | 30° |
| Viewing Distance | ≥300m |
| Working Voltage | AC220V/AC110V/DC48V/DC24V/DC12V |
| Rated Power | ≤6W |
| Working Temperature | -40℃～80℃ |
| Working Humidity | ≤97%RH[(40±1)℃,No Condensation] |
| IP Rating | IP65 |

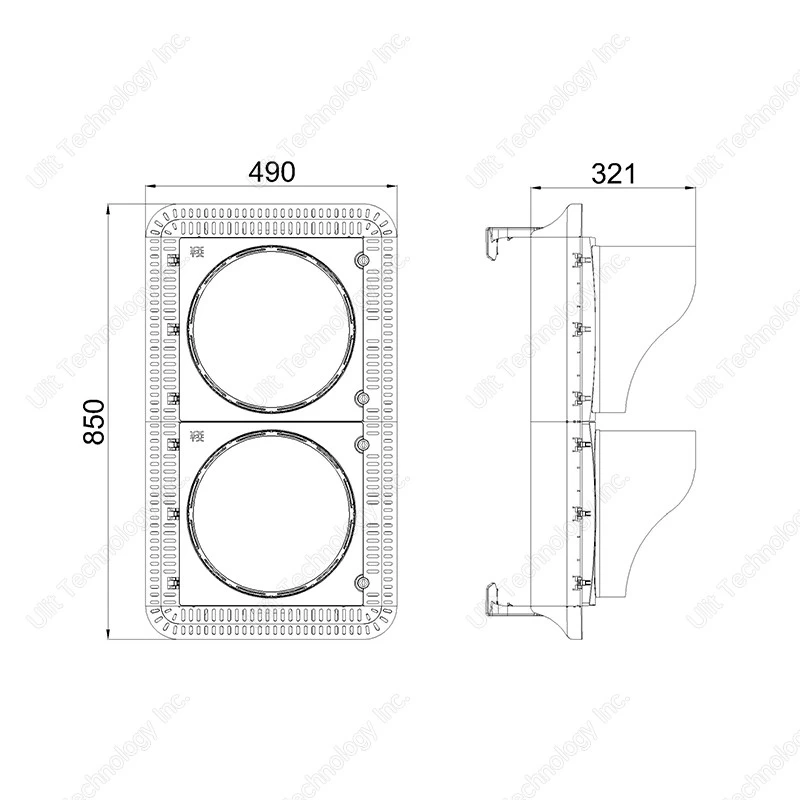

| Overall Dimensions | Length 850mm * Width490mm * Height 321mm (including the visor and the frame) |
| Housing Material | Magnesium Alloy, Black Spraying Housing |
| Net Weight | 9.75KG |
| Installation Method | Pole Type (stainless steel strip and functional fastener) |
Product Applications
Certificates
Company Profile
Having been Involved in intelligent traffic industry for more than 30 years, Ulit Technology Inc. is a leading manufacturer of traffic intelligent control system, traffic signal and display equipment, a leading provider of city traffic centralized control software, a national high-tech enterprise and a listed enterprise of Beijing Stock Exchange. We have been providing products and services to customers in the USA, Mexico, Germany, Ireland, Romania, Greece, the Netherlands, Israel, Saudi Arabia, India, Vietnam, Singapore and many other countries. Our company always advocates customer focus and adheres corporate philosophy of "innovation transcends dreams and hard work creates value". We keep perfecting our core technology products over ten years and are always strenuously making continuous contribution for unblocked city!
Trade Shows
Production Workshop
FAQs
Q: Do your products come with accompanying software systems?
A: Yes. For products that require accompanying software, we provide our own proprietary software. Some of our products also support integration with software from other major manufacturers.
Q: How do you guarantee the quality of your products?
A: We have a very strict quality controlling system to ensure that all the products are delivered with high quality. Strict detection during each production step. Strict full inspection on products before shipment and intact product packaging ensured.
Q: Can you send me your catalogue?
A: Please send an email to our email address cqulit@sina.com for catalogue. We will reply you with our latest catalogue to your email.
Q: What's the price of the crossing traffic lights?
A: Price is negotiable. Based on different quantities and detailed requirements, the prices are a little different. Please kindly contact us for more detailed prices.
Q: Can I have some information about your scope of business?
A: Our company can provide various advanced products, whole solutions, software and services related to city traffic, such as traffic control platform, traffic light controllers, traffic lights, traffic signs, countdowns, LED screens, video detectors, speed signs and various solar lights.
