Product Overview

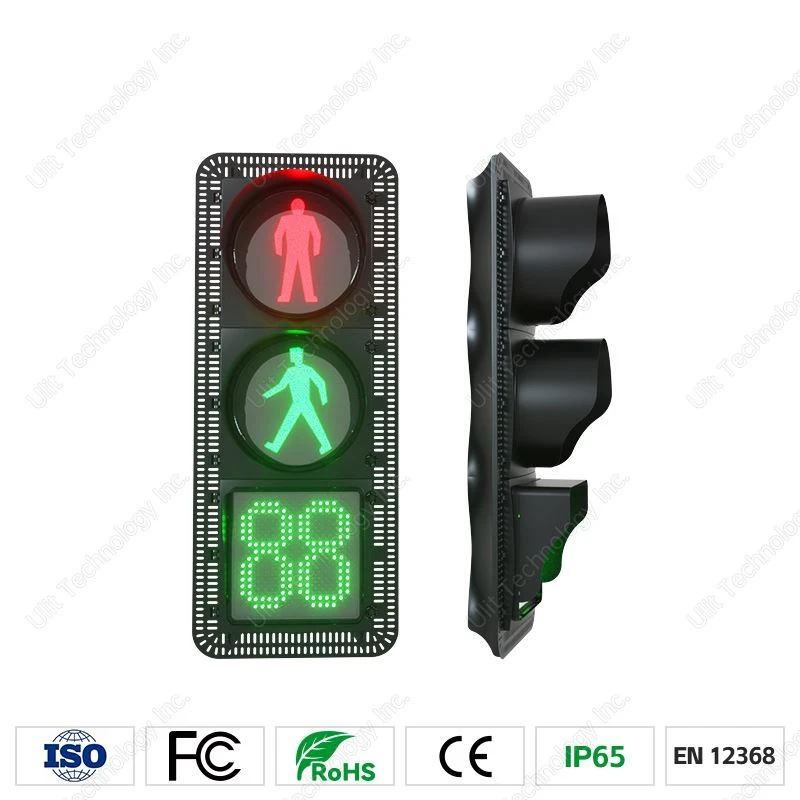

300mm Metal Housing High Flux Pedestrian Traffic Light with Parallel Countdown
The pedestrian countdown signals consist of 300mm-diameter red pedestrian lamp panel and green pedestrian lamp panel, as well as parallel countdown. The light-emitting components utilize high-quality, high-flux LED chips, offering the advantages of high photoelectric conversion efficiency and low power consumption; The area light source better aligns with human visual characteristics, resulting in a non-glaring, non-dazzling display effect; The outer shell is made of environmentally friendly metal, combining the advantages of light weight and high strength, with little deformation at high or low temperatures and strong corrosion resistance. The product has obtained CE, RoHS, FCC, and EN 12368 certifications.
Product Features
The metal outer shell is light in weight, high in strength, high shock- resistant, anti-electromagnetic, environmentally friendly, recyclable, corrosion-resistant and has no risk of rusting, ensuring the product has extremely high safety; The service life of the outer shell structure exceeds 30 years;
Adopt internationally renowned (CREE/OSRAM) LED chips with higher photoelectricity conversion rate; The lifespan of LEDs in the light-emitting unit is more than 10 years;
Area light source better aligns with human visual characteristics, resulting in a non-glaring, non-dazzling display effect;
The light lens adopts anti-ultraviolet high light transmittance colorless PC mask, no yellowing or discoloration during the whole lifespan;

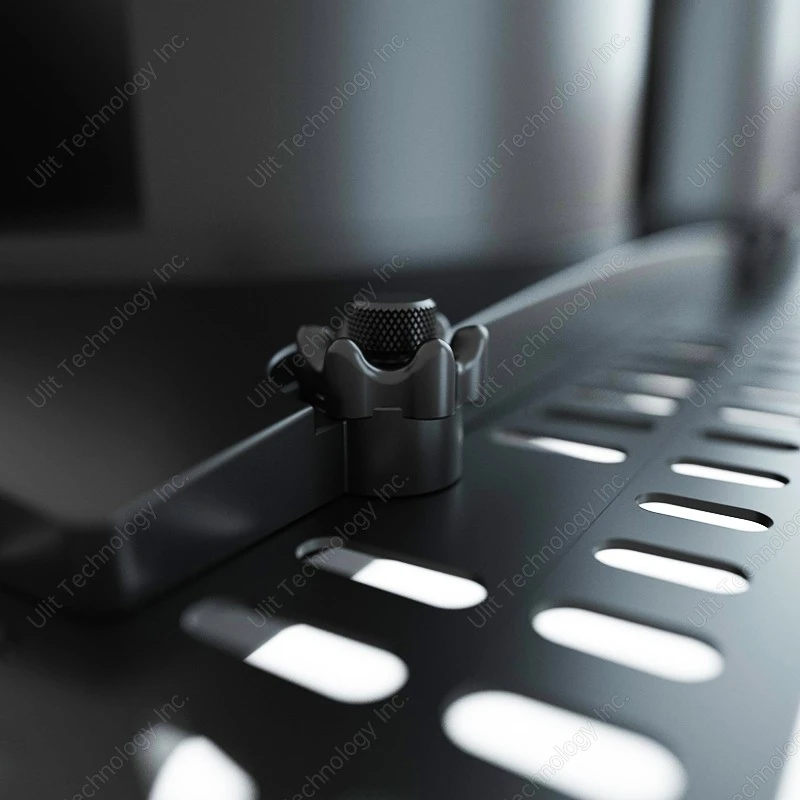

New-type integrated detachable hinge and locking structure design; When not locked, it can prevent opening and falling off;
- Each lamp panel can be opened independently; The lamp body can be adjusted from left to right, with adjustment angle equal or greater than 30°;

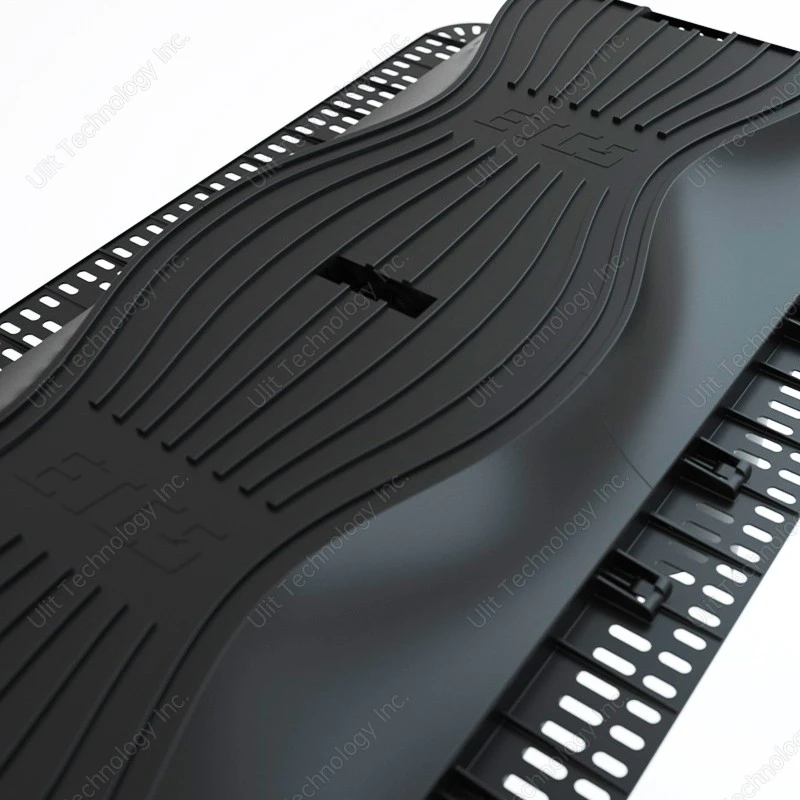

- Integrated blade design, beautiful, high strength, easy and quick installation;
- Possess PLC communication function; Support remotely querying the operating state of pedestrian countdown signals; Support proactively reporting failures of traffic lights no work, the red light and the green light being on at the same time, LED string light damage, communication and so on; Support luminance adjustment. (Optional)
Hot Tags: pedestrian countdown signals, China pedestrian countdown signals manufacturers, suppliers, factory
Product Parameters
|
Product Name |
300mm Metal Housing High Flux Pedestrian Traffic Light with Parallel Countdown |
| Display Content | Green Pedestrian (Static), Red Pedestrian (Static), Parallel Countdown |
| LED Light Source | CREE/OSRAM Hi-flux LED Chips |
| LED Quantity | 6 |

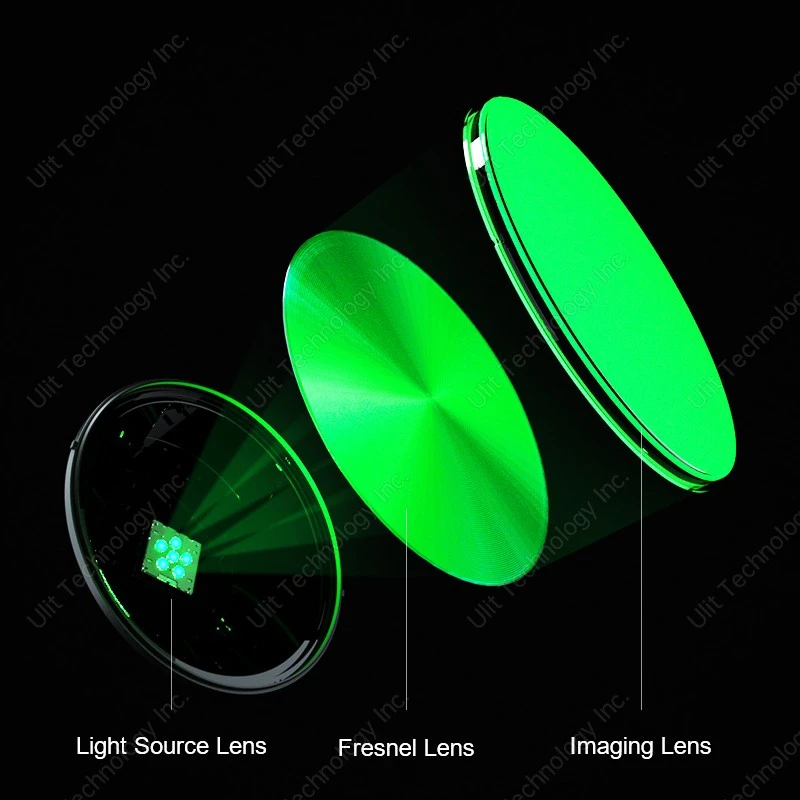

| Optical Configuration | Light Source Lens + Fresnel Lens + Imaging Lens |
| Photoelectric Efficiency | ≥90 lm/W |
| Light Panel Size | Φ300mm |
| Viewing Angle | 30° |
| Viewing Distance | ≥300m |
| Working Voltage | AC220V/AC110V/DC48V/DC24V/DC12V |
| Rated Power | ≤11W |
| Working Temperature | -40℃～80℃ |
| Working Humidity | ≤97%RH[(40±1)℃,No Condensation] |
| IP Rating | IP65 |
| Overall Dimensions | Length1,210mm * Width 490mm * Height 321mm (including the visor and the frame) |
| Housing Material | Magnesium Alloy, Black Spraying Housing |
| Net Weight | 11.25KG |
| Installation Method | Pole Type (stainless steel strip and functional fastener) |
Product Applications
Certificates
Company Profile
Located in Chongqing, China, Ulit Technology Inc. has been in intelligent traffic industry for more than 30 years with 15,000 square meter manufacturing base. With city intelligent traffic as main business, we can provide various advanced products, whole solutions, software and services related to city traffic, such as traffic control platform, traffic light controllers, traffic lights, traffic signs, countdowns, LED screens, video detectors, speed signs and various solar lights. With ISO 9001:2015 quality management system certification, our products comply with national standards and industry norms, as well as various international standards, such as CE, RoHS, FCC, EN12966 and EN12368. Strong support from our design and technology departments enables us to receive OEM and ODM projects.
Trade Shows
Production Workshop
FAQs
Q: Can I order a sample for testing?
A: Yes, we welcome sample orders to test. We can also make the samples exactly according to your detailed needs and requirements.
Q: How about your delivery time?
A: Shipping time depends on the specifications of the products you order. For in-stock products, shipping usually takes around 7-15 days. For customized products, the production time is typically around 30 days.
Q: How about the shipping method?
A: We can ship by sea, rail, and air. Samples are usually shipped via DHL, UPS, FedEx and other air transport methods.
Q: How about your warranty?
A: We offer a 2-year warranty and lifetime free remote technical support and service.
Q: How about the packages?
A: The products are first packed in cartons, and then the cartons are packed into standard export wooden cases.
