Product Overview

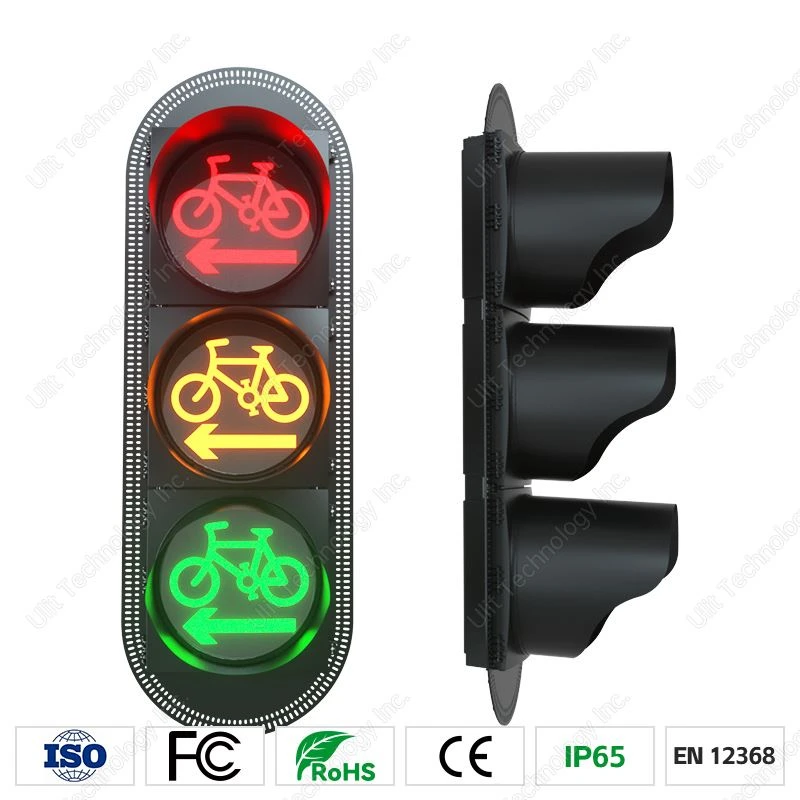

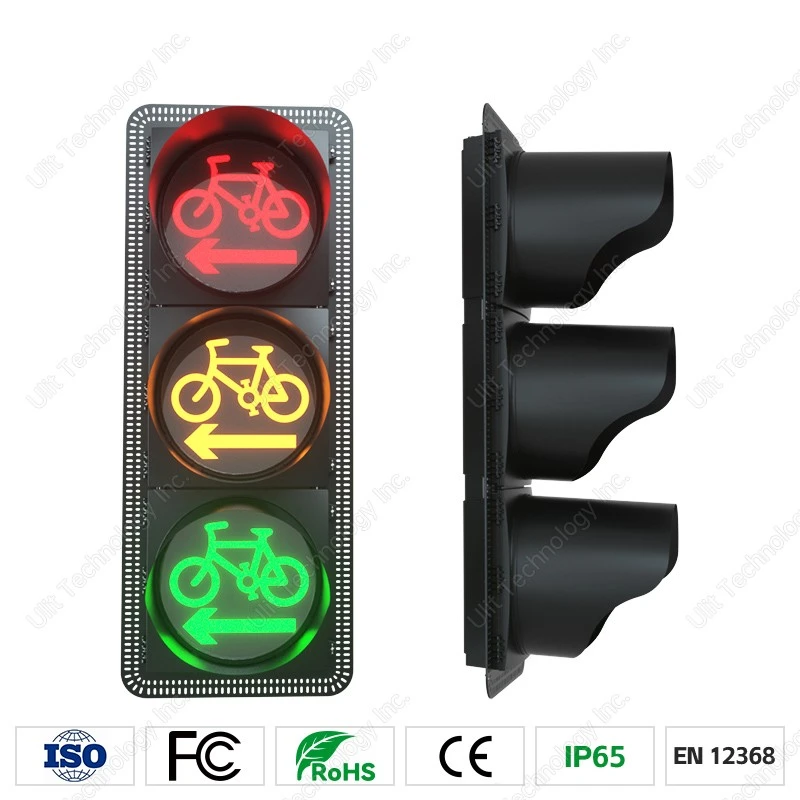

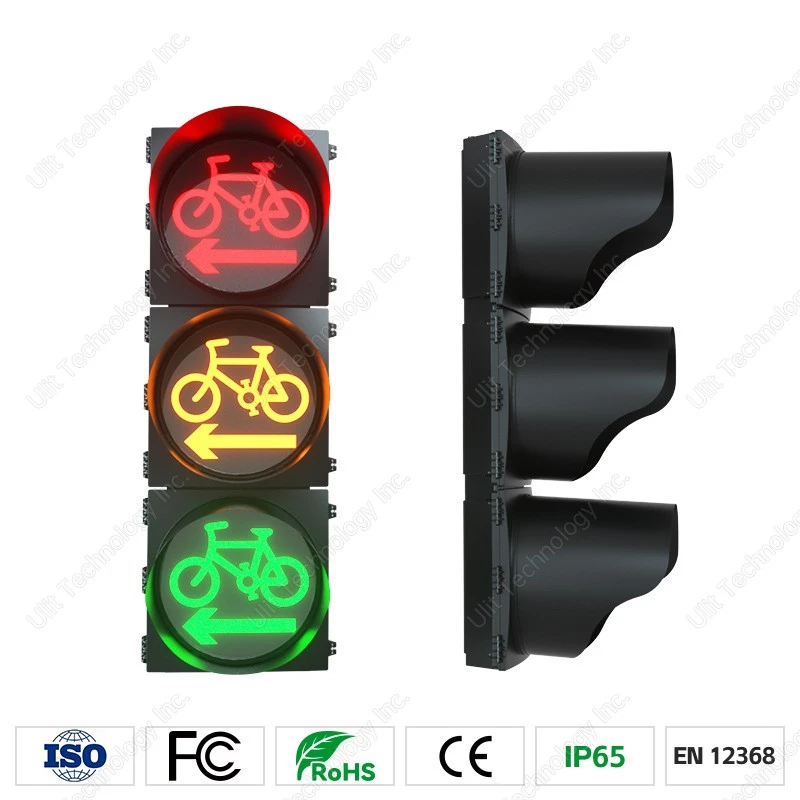

400mm High Flux Left Arrow and Bicycle Traffic Light
The high-flux double traffic light is composed of three 400mm diameter light panels. The separate light panels are arranged in geometric position, and each panel displays left arrow and bicycle double pattern. High flux LED light-emitting units with high photoelectric conversion rates are adopted, resulting in lower power consumption. Adopting optical design, the area light source is more in line with human visual characteristics, without causing glare. The housing is made of specialized PC material that is highly strong, hard, and resistant to heat, impact, corrosion, and aging. Passed CE, RoHS, FCC and EN12368 certifications.
Product Features
The housing is made of specialized PC material that is highly strong, hard, and resistant to heat, impact, corrosion, and aging, ensureing ultra-high safety for products;
Corrosion-resistant stainless steel strips are used as mounting accessories, ensuring a secure fit and preventing the double traffic light from falling off;
Adopt internationally renowned (CREE/OSRAM) LED chips with higher photoelectricity conversion rate; The service life of LEDs in the light-emitting unit is more than 10 years;
The UV-resistant, high-transmittance, colorless PC material mask will not yellow or change color during the whole service life;

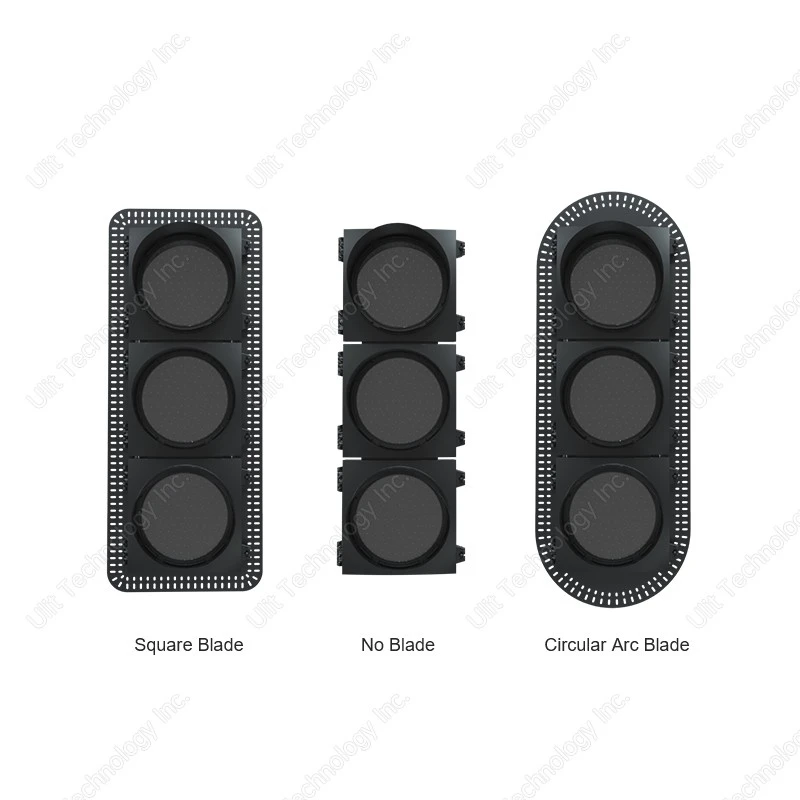

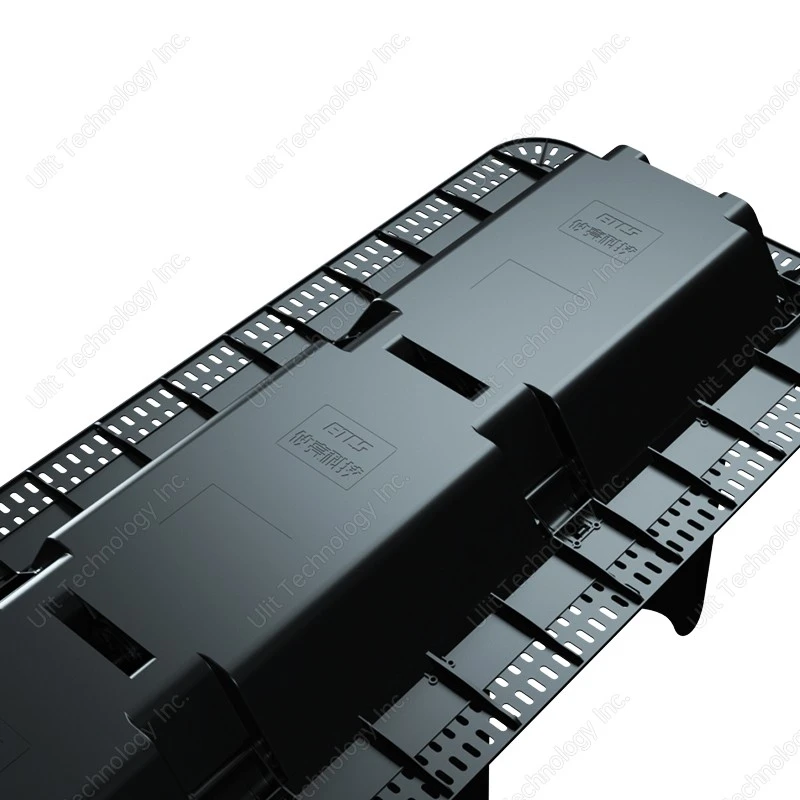

Back frame design; Supports horizontal or vertical installation; Each light panel can be opened individually; The light body can be adjusted at an angle of ≥30° from left to right, upward and downward;
Adopting optical design, the area light source is more in line with human visual characteristics, without causing glare;
PLC communication function can be optionally equipped; Supports remote query of the operating status of double traffic light; Supports the active reporting of faults such as traffic lights no work, LED light string damage, red signal and green signal being on at yhe same time, communication issues, etc.; Brightness can be adjusted.
Hot Tags: double traffic light, China double traffic light manufacturers, suppliers, factory
Product Parameters
|
Product Name |
400mm High Flux Left Arrow and Bicycle Traffic Light |
| Display Content | Left Arrow + Bicycle |
| LED Light Source | CREE/OSRAM Hi-flux LED Chips |
| LED Quantity | 6 |

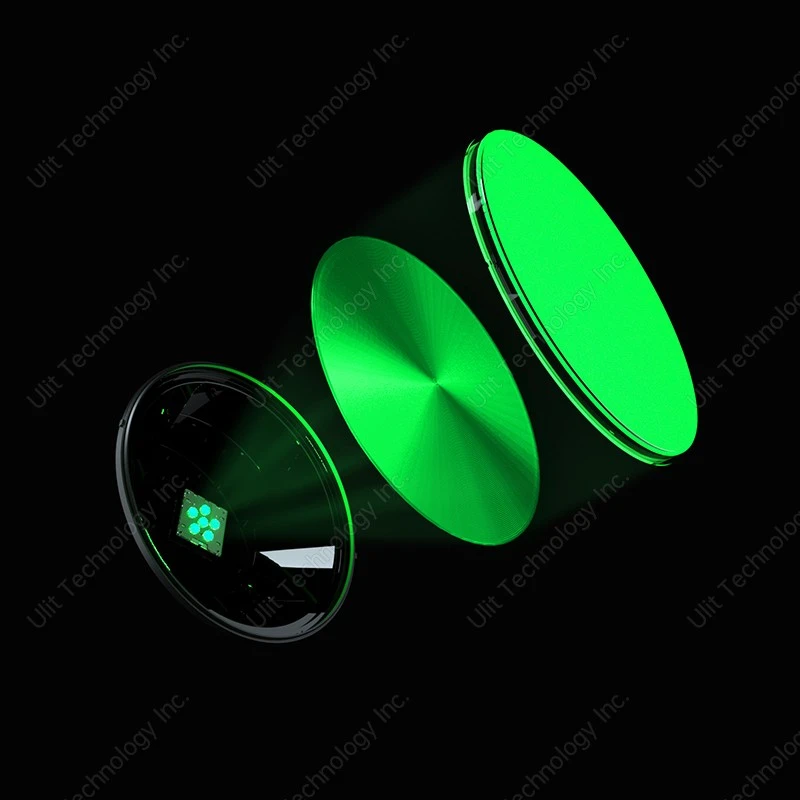

| Optical Configuration | Light Source Lens + Fresnel Lens + Imaging Lens |
| Photoelectric Efficiency | ≥90 lm/W |
| Communication Mode | HiPLC (Optional) |
| Light Panel Size | Φ400mm |
| Viewing Angle | 30° |
| Viewing Distance | ≥300m |
| Working Voltage | AC220V/AC110V/DC48V/DC24V/DC12V |
| Rated Power | ≤9W |
| Working Temperature | -40℃～80℃ |
| IP Rating | IP65 |
| Overall Dimensions | Length 1,498mm * Width 580mm * Height 539mm (including the visor and the frame) |
| Housing Material | PC |
| Net Weight | 11.25KG |
| Installation Method | Back Frame (stainless steel strip and functional fastener) |
Product Applications
