Product Overview

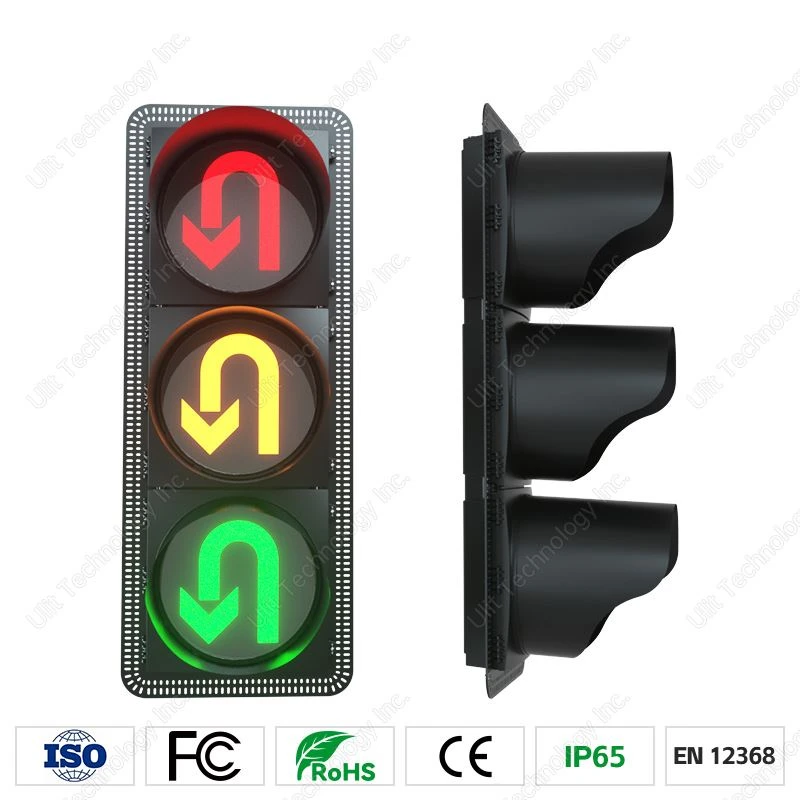

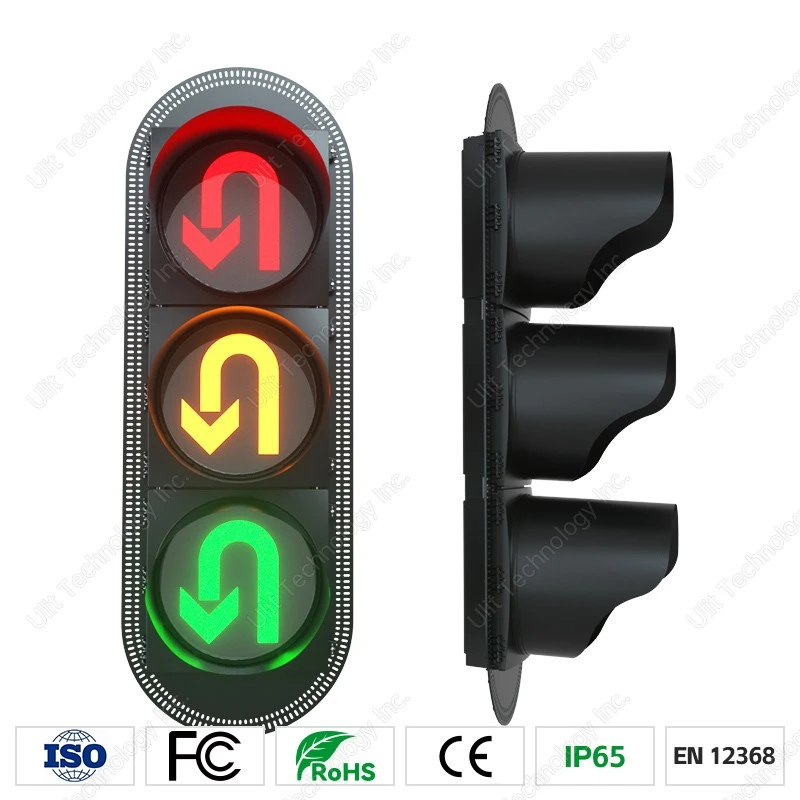

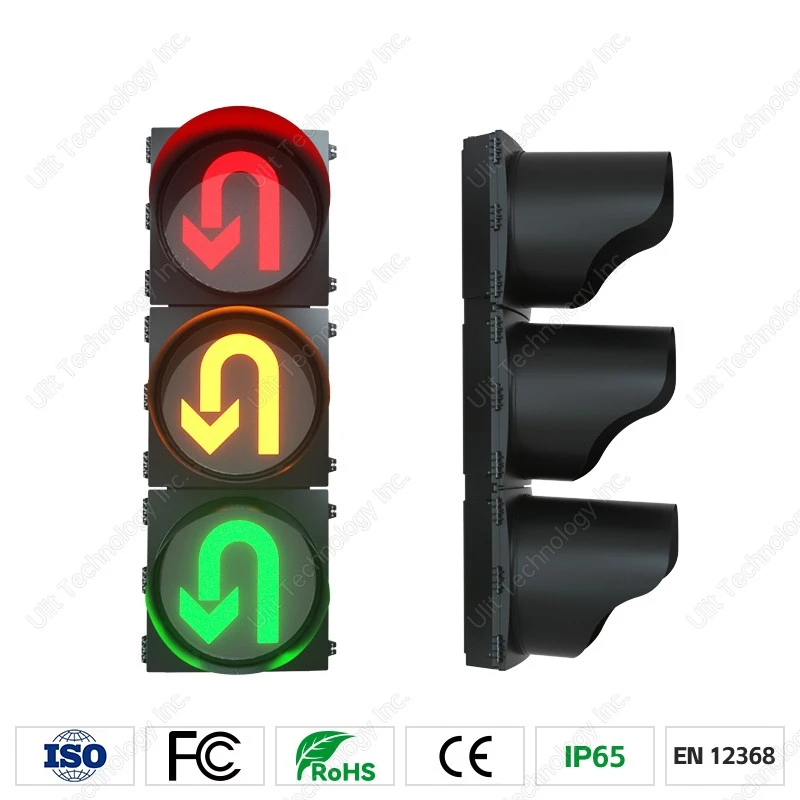

400mm High Flux U-turn Traffic Light
Three Φ400mm U-turn lights, three colors, separate light panels in geometric position. Adopt premium high flux LED light-emitting elements; High photoelectricity conversion rate, lower power consumption; Adopt optical design; Area light source conforms to the visual characteristics of human body better, no dazzling; The housing is made of dedicated PC material, which is heat-resistant, anti-impact, anti-corrosive, and anti-aging; Compliance with CE, RoHS, FCC and EN12368 certification.
Product Features
The PC housing with high strength and hardness is heat-resistant, anti-impact, anti-corrosive, and anti-aging, ensuring extremly high safety for the high flux traffic light;
Use internationally renowned (CREE/OSRAM) LED chips with higher photoelectricity conversion rate; The LEDs have a lifespan of over 10 years;
The UV-resistant, high-transmittance, colorless PC mask will not yellow or change color throughout the lamp's service life;
Adopt optical design; Area light source conforms to the visual characteristics of human body better, no dazzling;
-
Stainless steel strips are used as mounting accessories, which are firm, anti-corrosive, and ensure that the traffic lights do not fall off;
-

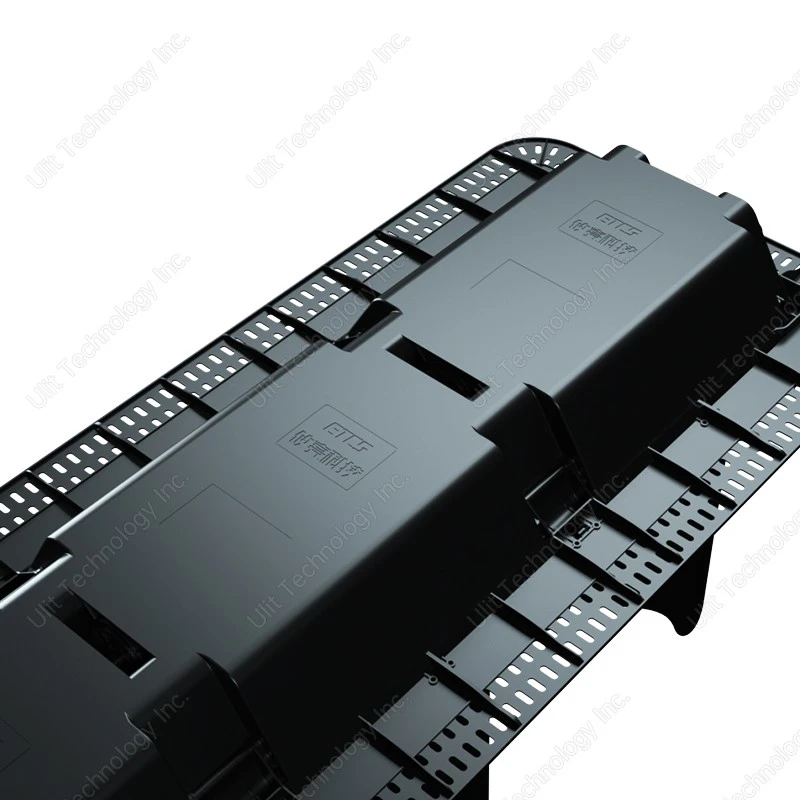

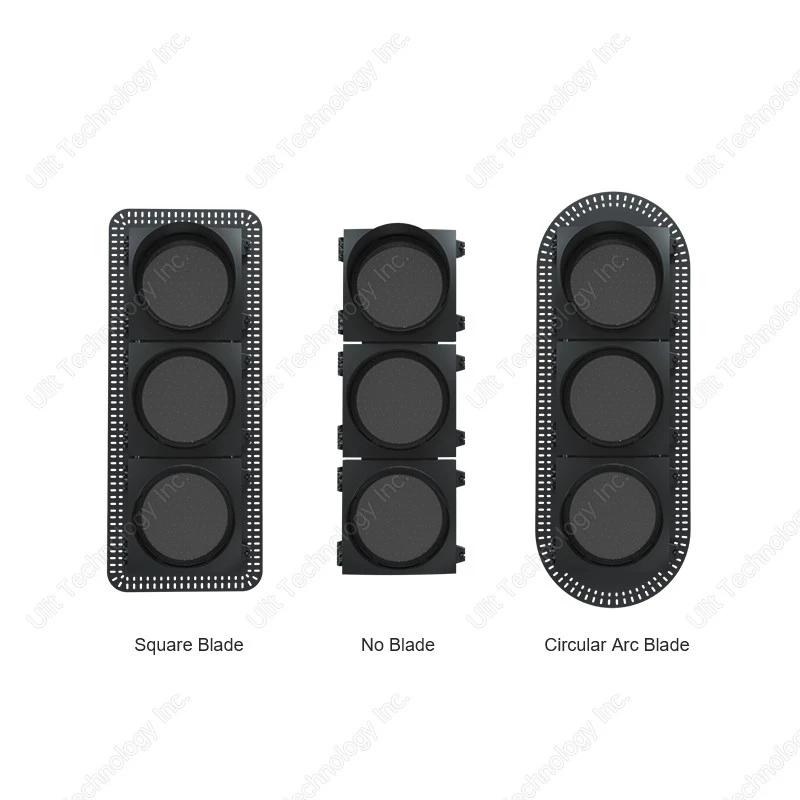

Back frame design; Can be installed horizontally or vertically; Each lamp panel can be individually opened; The lamp body can be adjusted from left to right, upward and downward, with adjustment angle equal or greater than 30°;
-
It has PLC communication function; Support remote query of high flux traffic light operation status; Support active reporting of faults such as traffic lights not working, red signal and green signal being on simultaneously, damaged LED light strings, communication error, etc; Support adjusting brightness. (Optional)
Hot Tags: high flux traffic light, China high flux traffic light manufacturers, suppliers, factory
Product Parameters
|
Product Name |
400mm High Flux U-turn Traffic Light |
| Display Content | U-turn |
| LED Light Source | CREE/OSRAM Hi-flux LED Chips |
| LED Quantity | 6 |

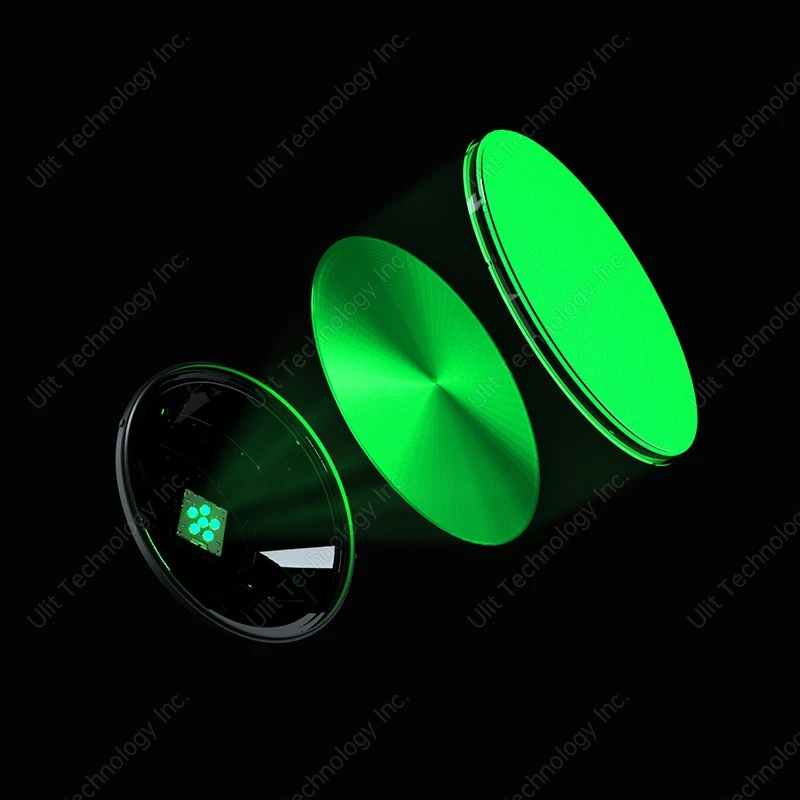

| Optical Configuration | Light Source Lens + Fresnel Lens + Imaging Lens |
| Photoelectric Efficiency | ≥90 lm/W |
| Communication Mode | HiPLC (Optional) |
| Light Panel Size | Φ400mm |
| Viewing Angle | 30° |
| Viewing Distance | ≥300m |
| Working Voltage | AC220V/AC110V/DC48V/DC24V/DC12V |
| Rated Power | ≤9W |
| Working Temperature | -40℃～80℃ |
| IP Rating | IP65 |
| Overall Dimensions | Length 1,498mm * Width 580mm * Height 539mm (including the visor and the frame) |
| Housing Material | PC |
| Net Weight | 11.25KG |
| Installation Method | Back Frame (stainless steel strip and functional fastener) |
Product Applications
Certificates
Company Profile
Ulit Technology Inc. has been deeply involved in the intelligent traffic industry for over 30 years, boasting a 15,000-square-meter production base. With urban intelligent traffic as our core business, our company provides a variety of advanced products, integrated solutions, software, and services, covering traffic control platforms, traffic light controllers, traffic lights, traffic signs, countdown timers, LED displays, video detectors, speed signs, and various solar lighting equipment. We also offer OEM/ODM services. Our products have passed multiple international certifications, including ISO/CE, RoHS, FCC, EN12368, and EN12966, and are exported to more than 30 countries and regions, including Mexico, the United States, Germany, Ireland, Romania, Greece, the Netherlands, Israel, and Saudi Arabia.
Trade Shows
Production Workshop
FAQs
Q: Can I have a sample?
A: Of course, we support sample orders.
Q: What's the delivery time?
A: Shipping time depends on the specifications of the products you order. For in-stock products, shipping usually takes around 7-15 days. For customized products, the production time is typically around 30 days.
Q: Which city or port do you ship from?
A: Our main manufacturing plant is in Chongqing, but we also have branch offices in other cities. We can ship from all major ports and cities in China.
Q: Do you have any MOQ limit?
A: Our company supports testing with one or more samples, and we can also customize samples according to your specific requirements. There is no minimum order quantity (MOQ) limit.
Q: Do you offer after-sales service?
A: Most of our products come with a 2-year warranty. If a product experiences a quality issue within the warranty period, we will send you replacement parts free of charge. After the warranty period expires, we will continue to provide free lifetime remote technical support and service.
