Traffic Light on the Ground

Traffic Light on the Ground
Product Introduction:

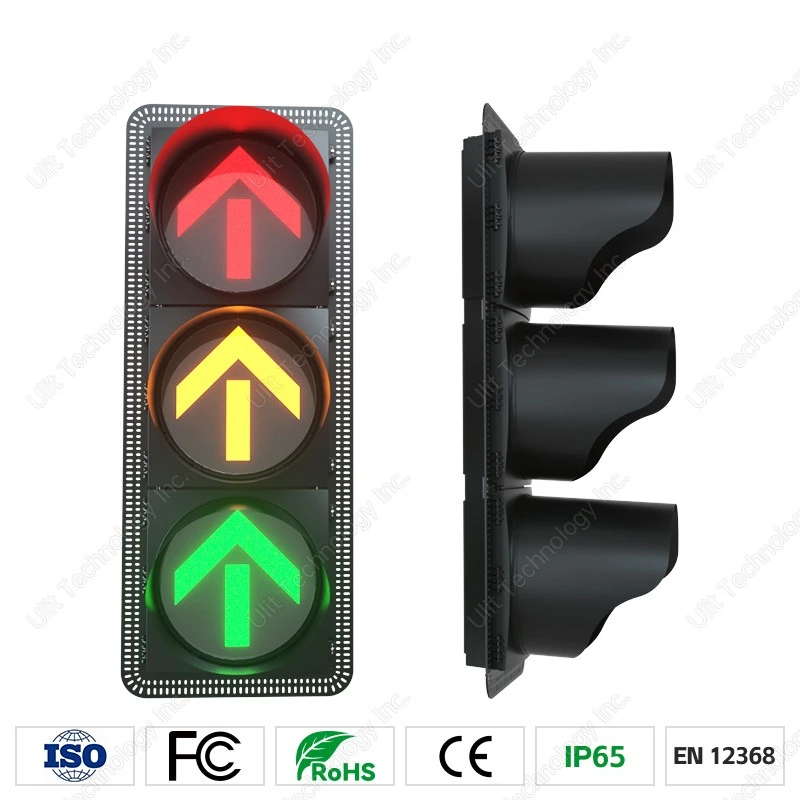

400mm High Flux Arrow Traffic Light
Three Φ400mm arrow lights, three colors, separate light panels in geometric position. Adopt high quality high flux LED light-emitting elements; High photoelectricity conversion rate, lower power consumption; Adopt optical design; Area light source conforms to the visual characteristics of human body better, no dazzling; The housing is made of dedicated PC material with high strength and hardness, better heat resistance, impact resistance, corrosion resistance and aging resistance; Compliance with CE, RoHS, FCC and EN12368 certification.
Send Inquiry
Description
Technical Parameters

Product Overview



traffic light on the ground supplier



400mm High Flux Arrow Traffic Light

Three Φ400mm arrow lights, three colors, separate light panels in geometric position. Adopt high quality high flux LED light-emitting elements; Higher photoelectricity conversion efficiency, lower power consumption; Adopt optical design; Area light source is more in line with the visual characteristics of human body better, no dazzling. The PC outer shell is high-strength and high-hardness, and provides superior resistance to heat, impact, corrosion, and aging; Compliance with CE, RoHS, FCC and EN12368 certification.



Product Features

traffic light on the ground features

traffic light on the ground housing

The dedicated PC outer shell is high-strength and high-hardness, and provides superior resistance to heat, impact, corrosion, and aging, ensuring high safety for the traffic light on the ground;

traffic light on the ground LED

Adopts internationally renowned CREE/OSRAM hight-flux LED chips with higher photoelectric conversion rate, lower power consumption, and an lifespan of more than 10 years;

traffic light on the ground light lens

The light lens of the traffic light on the ground adopts anti-ultraviolet high light transmittance colorless PC mask, no yellowing or discoloration during the whole service life;

  • Stainless steel strip as installation accessories, steady and anti-corrosion, no risk of falling off;

  • Back-frame design; The traffic light can be installed either vertically or horizontally; Each lamp panel can be opened independently; The lamp body can be adjusted from left to right, upward and downward, with adjustment angle equal or greater than 30°;

  • Optional PLC communication function; Supports remotely querying the operating state of traffic light on the ground; Supports proactively reporting faults; Supports luminance adjustment;

  • The area light source is more in line with human visual characteristics, without causing glare.



traffic light on the ground images



Hot Tags: Traffic Light on the Ground, China Traffic Light on the Ground manufacturers, suppliers, factory, five aspect traffic signal, pedestrian signal lamp

Product Parameters

traffic light on the ground size



Product Name

400mm High Flux Arrow Traffic Light
Display Content Arrow
LED Light Source CREE/OSRAM Hi-flux LED Chips
LED Quantity 6
Optical Configuration Light Source Lens + Fresnel Lens + Imaging Lens
Photoelectric Efficiency ≥90 lm/W
Communication Mode HiPLC (Optional)
Light Panel Size Φ400mm
Viewing Angle 30°
Viewing Distance ≥300m
Working Voltage AC220V/AC110V/DC48V/DC24V/DC12V
Rated Power ≤9W
Working Temperature -40℃~80℃
IP Rating IP65
Overall Dimensions Length 1,498mm * Width 580mm * Height 539mm (including the visor and the frame)
Housing Material PC
Net Weight 11.25KG
Installation Method Back Frame (stainless steel strip and functional fastener)



Product Applications

traffic light on the ground application
traffic light on the ground installation

Certificates

product certificates



company certificate



Company Profile

30+ Years of experience in intelligent traffic

Having been involved in intelligent traffic industry for more than 30 years, Ulit Technology Inc. is a leading manufacturer of traffic intelligent control system, traffic signal and display equipment, a leading provider of city traffic centralized control software, a national high-tech enterprise and a listed enterprise of Beijing Stock Exchange. We have been providing products and services to customers in the USA, Mexico, Germany, Ireland, Romania, Greece, the Netherlands, Israel, Saudi Arabia, India, Vietnam, Singapore and many other countries. Our company always advocates customer focus and adheres corporate philosophy of "innovation transcends dreams and hard work creates value". We keep perfecting our core technology products over ten years and are always strenuously making continuous contribution for unblocked city!

traffic light on the ground company

15,000+
Factory area
200+
staff members
100+
technical engineers
100+
overseas projects



Trade Shows



Exhibition



Production Workshop



Production workshop



FAQs



Q: Do your products come with accompanying software systems?

A: Yes. For products that require accompanying software, we provide our own proprietary software. Some of our products also support integration with software from other major manufacturers.

Q: How do you guarantee the quality of your products?

A: We have a very strict quality controlling system to ensure that all the products are delivered with high quality. Strict detection during each production step. Strict full inspection on products before shipment and intact product packaging ensured.

Q: Can you send me your catalogue?

A: Please send an email to our email address cqulit@sina.com for catalogue. We will reply you with our latest catalogue to your email.

Q: What's the price of the traffic light on the ground?

A: Price is negotiable. Based on different quantities and detailed requirements, the prices are a little different. Please kindly contact us for more detailed prices.

Q: Can I have some information about your scope of business?

A: Our company can provide various advanced products, whole solutions, software and services related to city traffic, such as traffic control platform, traffic light controllers, traffic lights, traffic signs, countdowns, LED screens, video detectors, speed signs and various solar lights.
