Product Overview

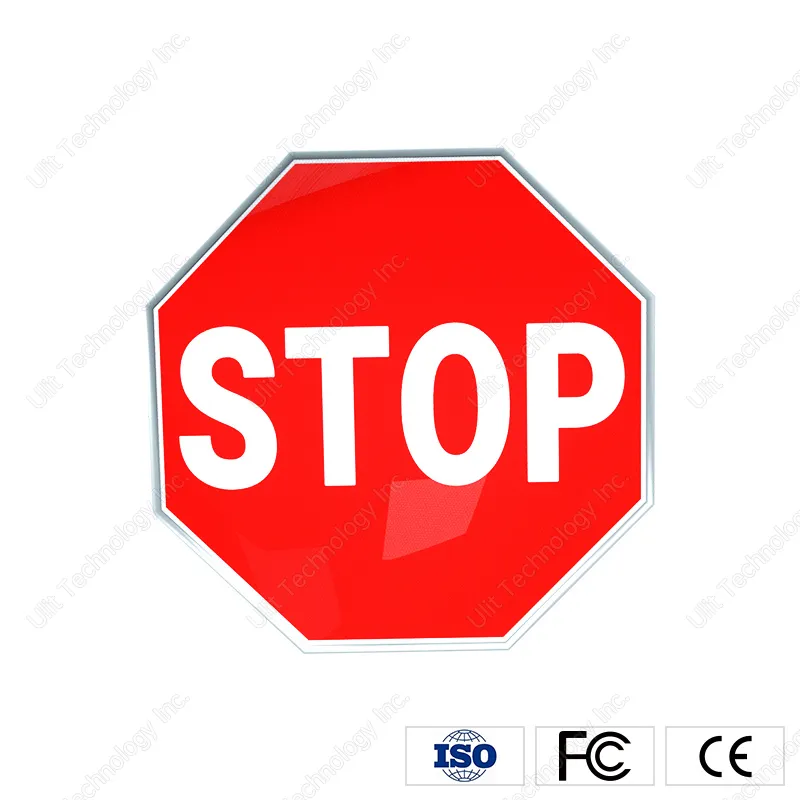

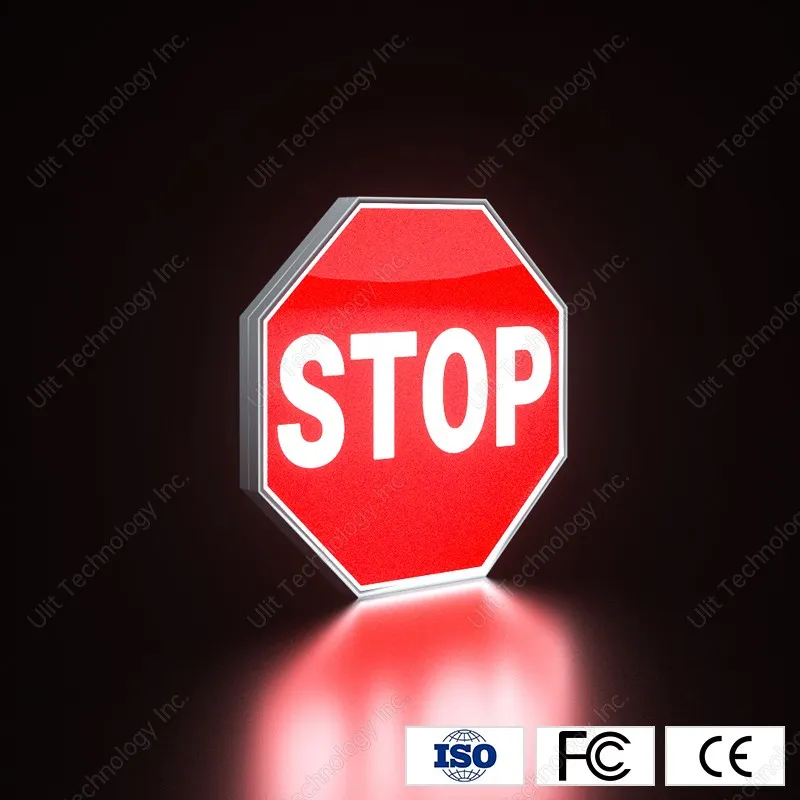

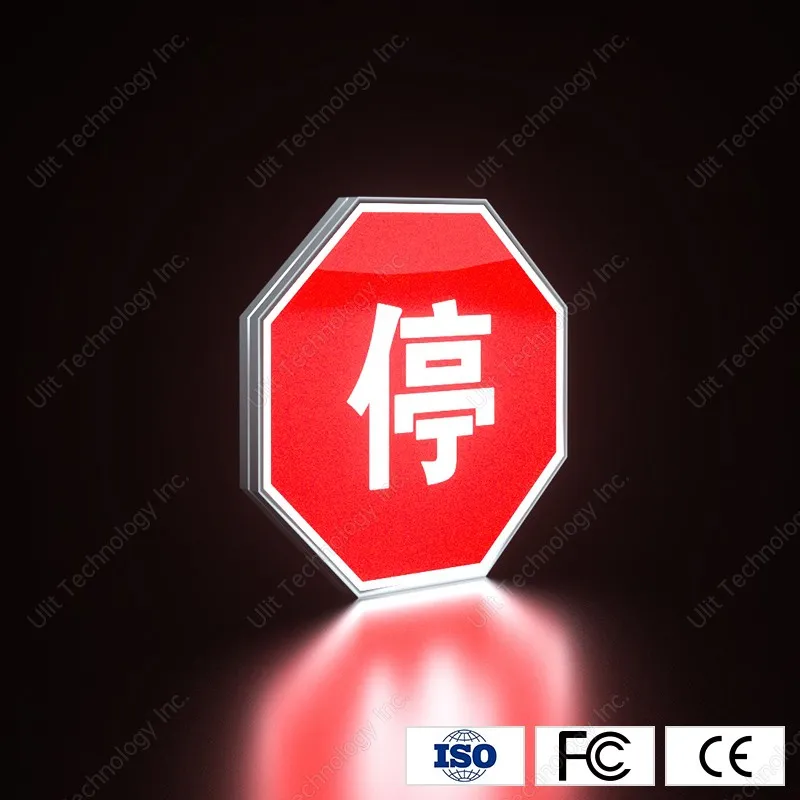

800mm Octagon STOP LED Active Luminous Traffic Signs

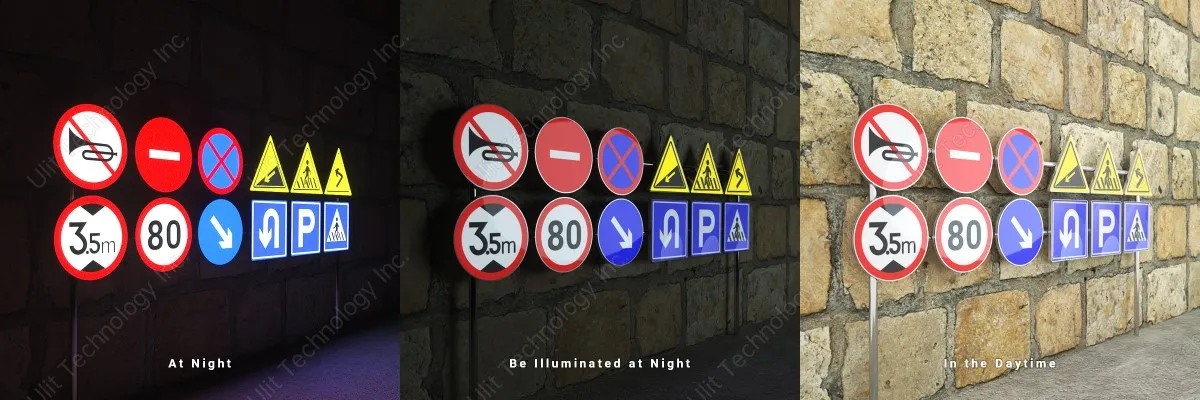

The 800mm octagon LED active luminous sign can be used as stop sign. It adopts high-efficiency LED light source panel, using retroreflective material to create penetrable light, displaying sign information with higher clarity than passive reflective traffic signs. Utilizing microprism-type reflective film, the sign's base plate, text strokes, and graphic outlines all allow light to pass through, making it suitable for scenarios with low visibility and poor visual recognition. It clearly and effectively signals the driver to stop, ensuring safety.
Product Features
- Full penetration type active light-emitting traffic signs, no joints on the pervious faceplate;
- Unique optical refraction design, the panel displays no shadow and has balanced brightness;
- Light-emitting components with strong penetrability and long visual range, meeting the usage requirements with all kinds of bad weather conditions;
- Low power consumption, high efficiency, light decay≤8%;
- The LED stop sign supports protocol docking and wired or wireless IoT application extension;
- It also supports adjusting the own brightness automatically according to the ambient brightness;
- The LED stop sign also supports controls such as flashing, always on, and off.
Hot Tags: stop sign, China stop sign manufacturers, suppliers, factory
Technical Parameters
|
Product Name |
800mm Octagon STOP LED Active Luminous Traffic Signs |
|
|
Reflective Film Grade |
Microprism Reflective Film |
|
|
Structure Material |
Aluminium Profile |
|
|

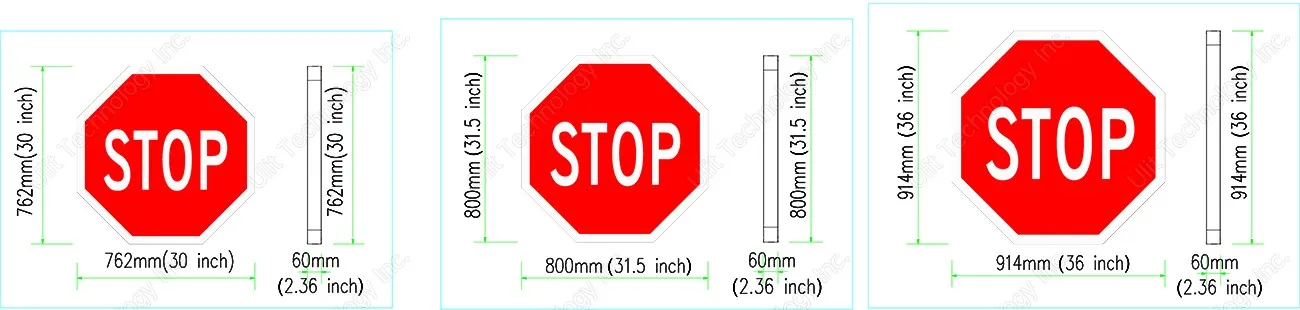

Overall Size |
Octagon, 800mm |
|
|
Luminance |
≥300cd/㎡, Support adjusting the luminance automatically according to the ambient brightness |
|
|
Visual Cognition Distance |
Static State≥250m, Dynamic State≥210m |
|
|
Visual Cognition Angle |
≥30° |
|
|
Uniformity of Luminance |
the non-uniformity of normal luminous intensity between the same color light-emitting unit pixels ≤5% |
|
|
Reliability |
Mean Time Between Failures (MTBF) ≥25,000h |
|
|
Light Attenuation |
50,000h≤8%; Attenuation Consistency ≤±5% |
|
|
Extension |
Support protocol docking; Support IoT application extension. |
|
|
Power Supply |
AC220V±15%, 50HZ/60Hz; Solar power is supported. |
|
|
Average Power Consumption |
≤60W/m2 |
|
|
Working Temperature |
-20℃～55℃ |
|
|
Working Humidity |
≤98%RH(40℃, No Condensation) |
|
|
Thickness |
60mm |
|
|
IP Rating |
IP55 |
|
|
Installation Method |
Single Pole Type/Outdoor Cantilever Type |
|

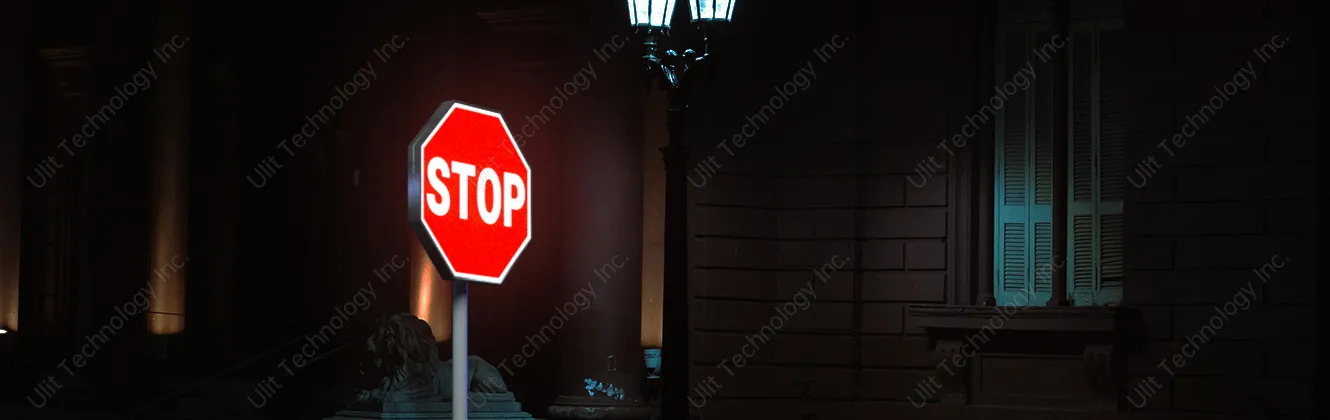

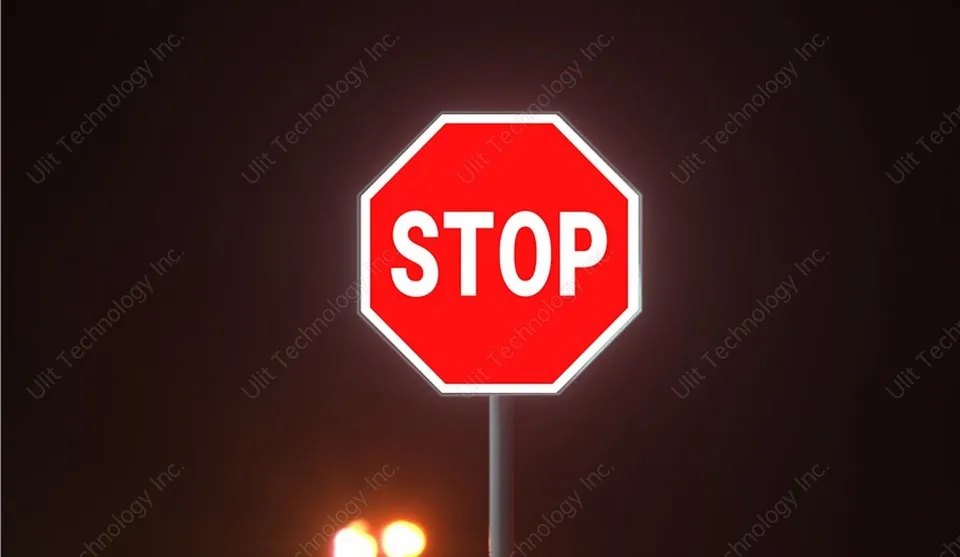

Product Applications
Certificates

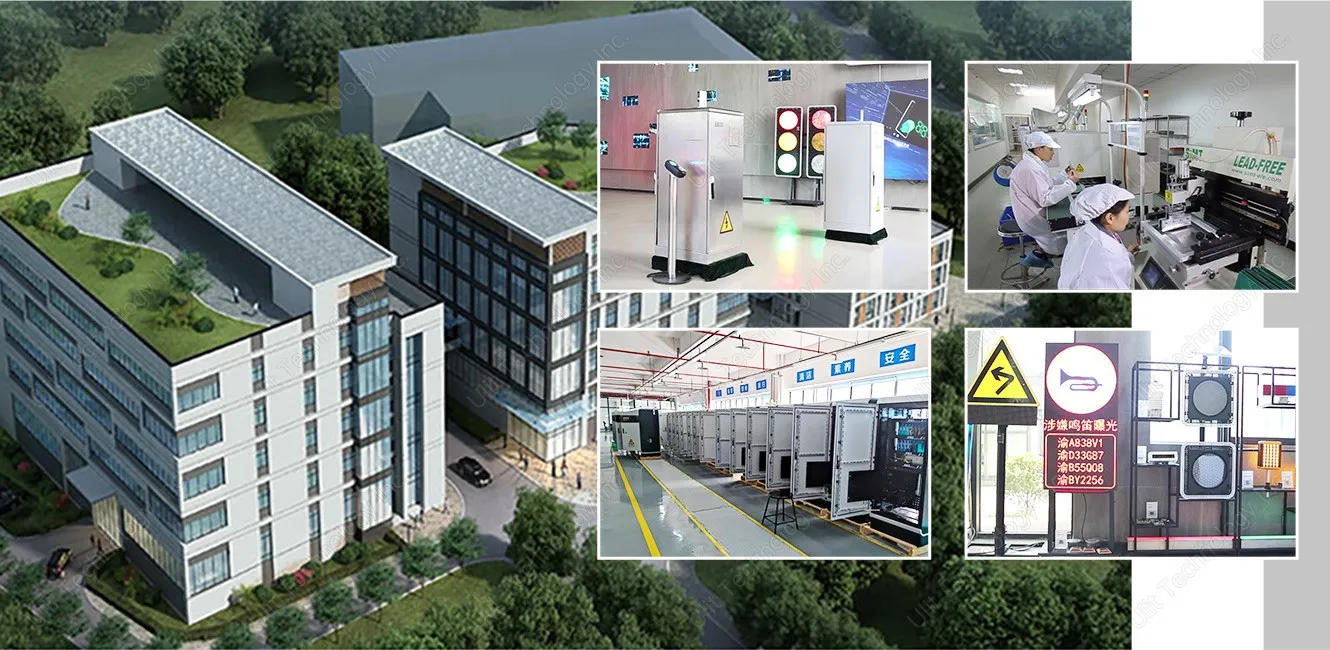

Company Profile
We have been deeply involved in intelligent traffic industry for over 30 years with 15,000 square meter manufacturing base. As a leading manufacturer of traffic intelligent control system, traffic signal and display equipment, a leading provider of city traffic centralized control software, a national high-tech enterprise and a listed enterprise of Beijing Stock Exchange, we also supply OEM/ODM services. Certified by ISO/CE, our products are sold to more than 30 countries, including the USA, Mexico, Germany, Ireland, Romania, Greece, the Netherlands, Israel, Saudi Arabia and so on.
Exhibitions

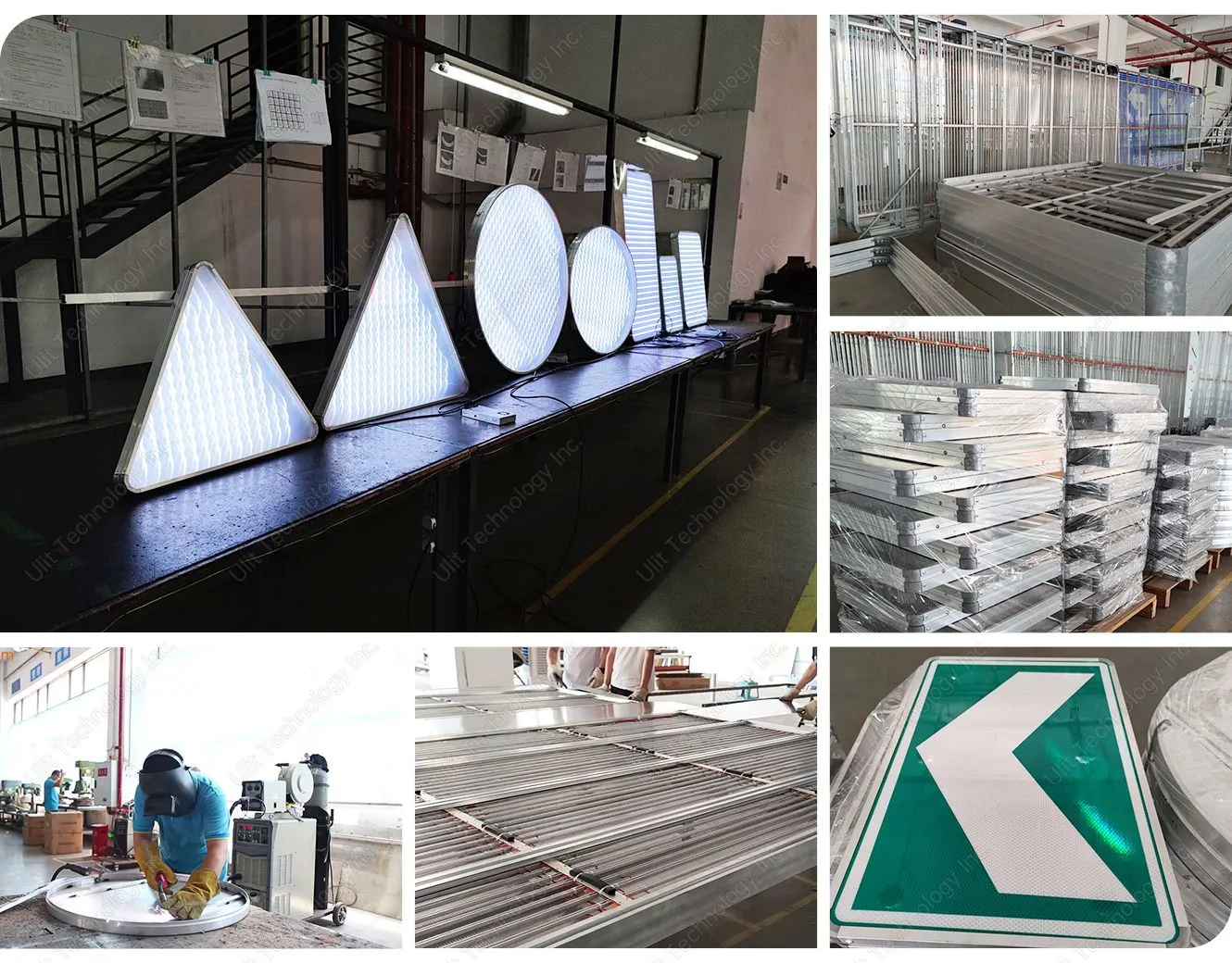

Production Workshop
