Product Overview

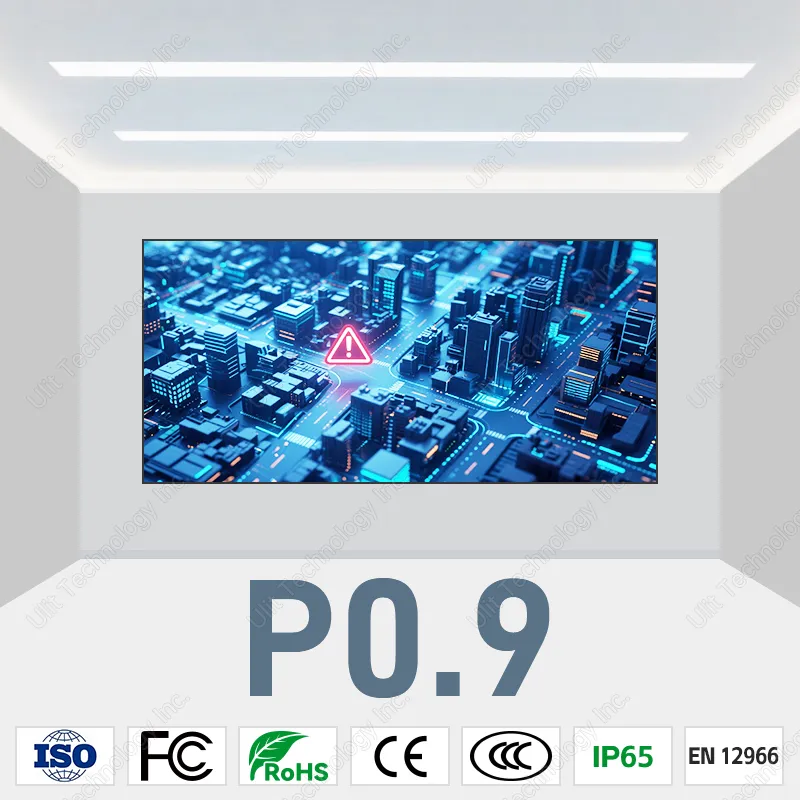

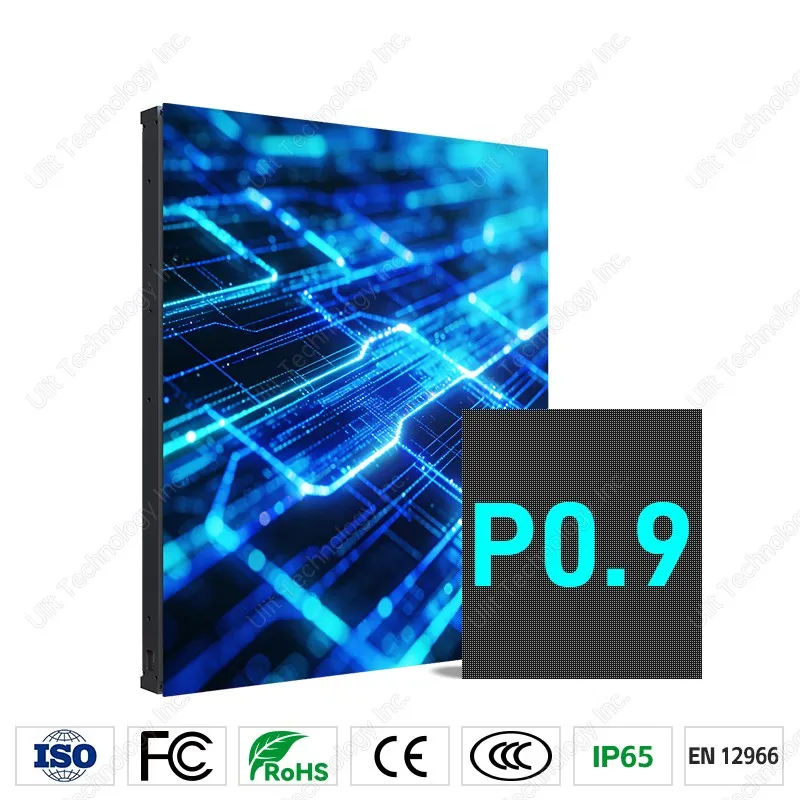

P0.9 Indoor Small Pixel Pitch LED Display Screen
P0.9 indoor small pixel pitch LED display screen is an indoor high-density full-color small pixel pitch fixed installation LED panel. It can be installed quickly and is extremely convenient to maintain from the front. The LED panel supports a variety of installation modes such as wall installation, right angle installation, magnetic installation and so on. The hidden wiring design in the whole screen inside is simple and beautiful, which makes the product to maximize the customers' experience and value in different application scenarios .
Product Features
- LED modules adopt hard connection design, easy and fast installation;
- With intelligent module design, it can automatically read and upload the calibration data of screen body to ensure the consistency of the screen after module replacement;
- No obvious wire design in the interior; Switching power supply adopts high elastic large area copper sheet to conduct electricity, which is far safer than the traditional open wire link;
- Die-casting molding cabinets with high precision are thin and light, which can effectively reduce the transportation cost and assembling difficulty;
- Hidden wiring design between cabinets makes the whole screen more beautiful;
- With floor protection, the cabinets of the LED panel can effectively protect the LEDs of the bottom;
- Concave-convex positioning design on the left and the right of the cabinets;
- The modules of the LED panel adopt COB process to avoid abnormal lighting and display caused by damp.
Hot Tags: led panel, China led panel manufacturers, suppliers, factory
Technical Parameters
|
Product Name |
P0.9 Indoor Small Pixel Pitch LED Display Screen |
|
Pixel Pitch |
0.9375mm |
|
Pixel Composition |
COB |
|
Pixel Density |
1,137,777dots/㎡ |
|
Module Resolution |
160*180 |
|
Module Size |
150mm*168.75mm |
|
Module Surface Technology |
Matte Fog Finish |
|
Module Surface Hardness |
4H |
|
Cabinet Resolution |
640*720/640*360 |
|
Cabinet Size |
35 Inches: 600mm*675mm*39.5mm 27 Inches: 600mm*337.5mm*39.5mm |
|
Cabinet Material |
Die Casting Aluminum |
|
Maintenance Mode |
Front Maintenance |
|
Cabinet Flatness |
≤0.1mm |
|
Gray Level |
14bit |
|
White Balance Brightness |
≥600 nit |
|
Color Gamut |
≥90% NTSC |
|
Color Coordinate |
Standard (0.2870, 0.2955), adjustable |
|
Color Temperature (K) |
Standard 9,300 |
|
Horizontal Viewing Angle/Vertical Viewing Angle |
160°/160° |
|
Refresh Rate |
1920～3840HZ |
|
Working Voltage |
AC100~240V,50/60Hz |
|
Average Power Consumption |
125 W/㎡ |
|
Maximum Power Consumption |
370 W/㎡ |
|
Working Temperature |
-10℃~40℃ |
|
IP Rating |
IP54/IP30 |
|
Installation Method |
Fixed Installation, Back Frame Installation, Hoisting Installation |
|
Cabinet Net Weight |
7.9KG (600mm*675mm, 35 Inch Cabinet) 4KG (600mm*337.5mm, 27 Inch Cabinet) |
|
Package Size |
35 Inch Cabinet; 664mm*263mm*741mm (4 Cabinets in 1 Carton) 27 Inch Cabinet; 664mm*263mm*403mm (4 Cabinets in 1 Carton) |
|
Package Weight |
35 Inch Cabinet Package: 33.6KG (4 Cabinets in 1 Carton) 27 Inch Cabinet Package: 18KG (4 Cabinets in 1 Carton) |

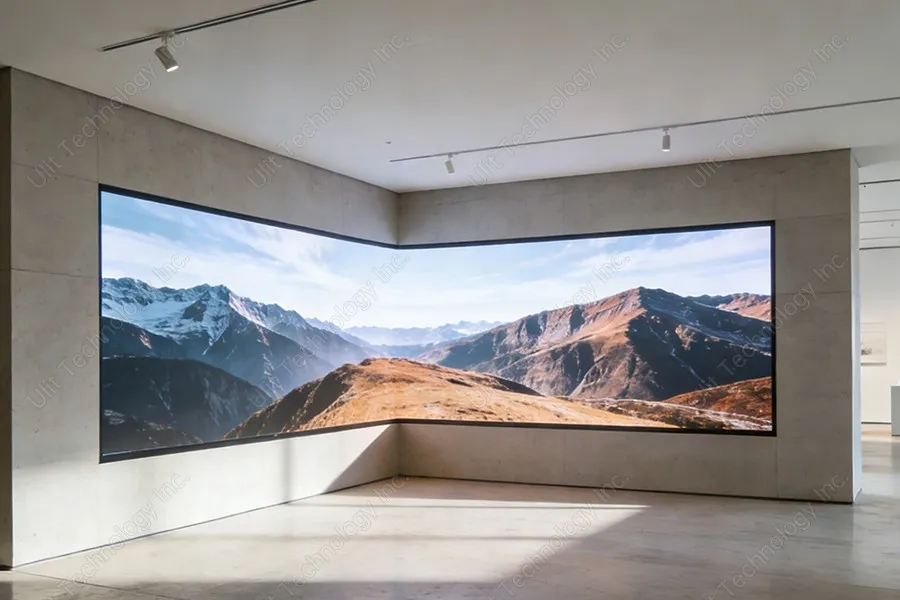

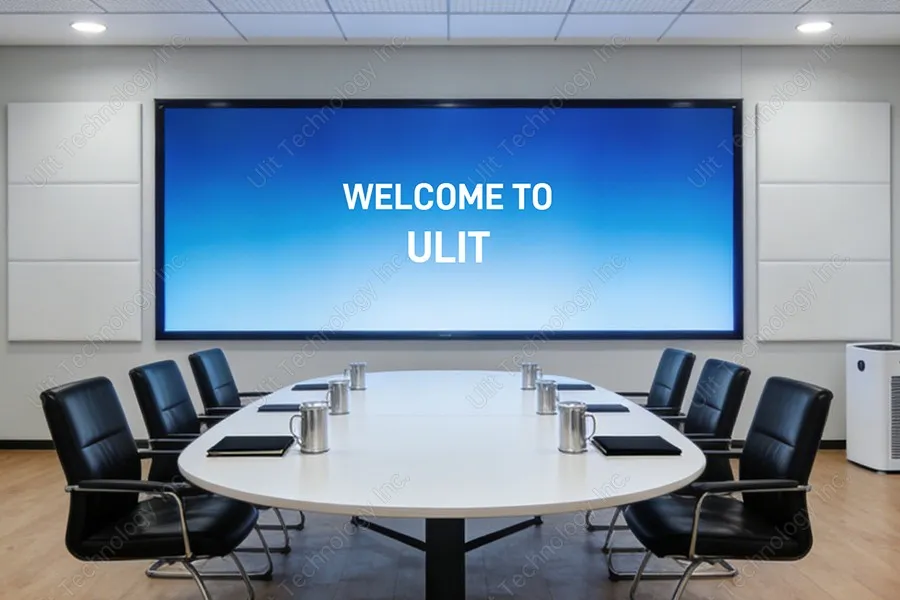

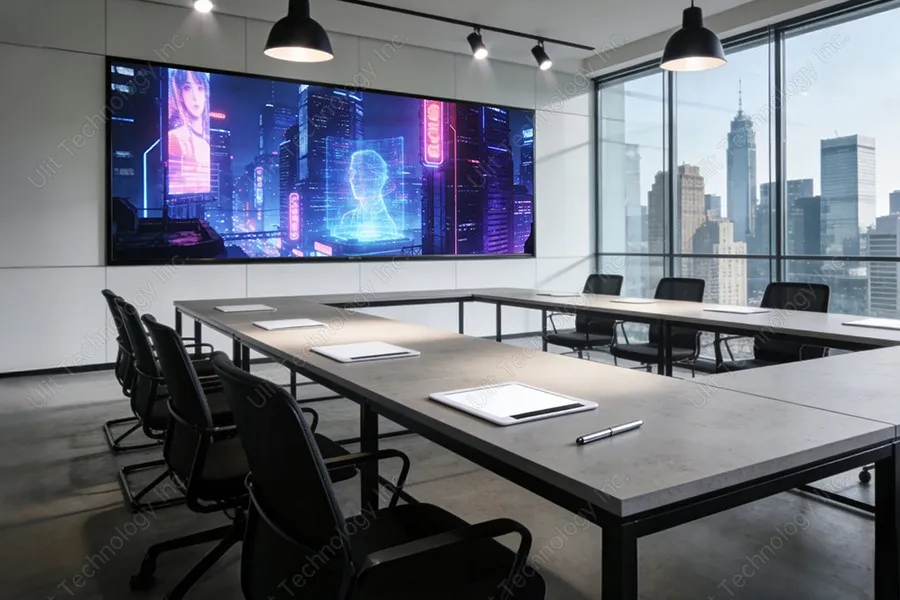

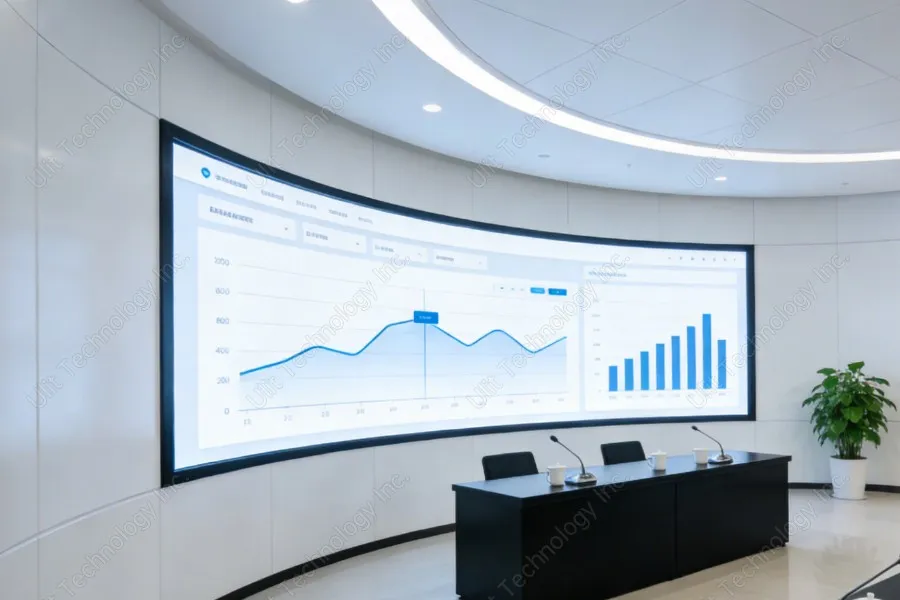

Product Applications
Certificates

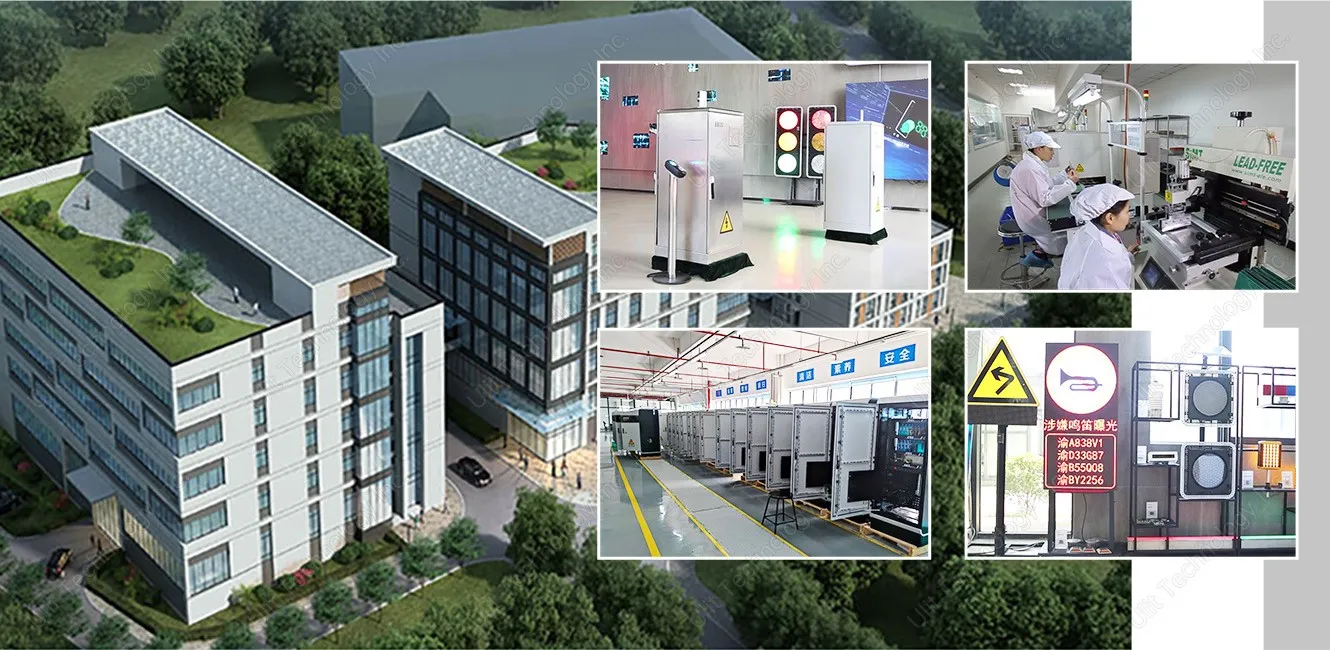

Company Profile
Ulit Technology Inc. has been deeply involved in the intelligent traffic industry for over 30 years, boasting a 15,000-square-meter production base. With urban intelligent traffic as our core business, our company provides a variety of advanced products, integrated solutions, software, and services, covering traffic control platforms, traffic light controllers, traffic lights, traffic signs, countdown timers, LED displays, video detectors, speed signs, and various solar lighting equipment. We also offer OEM/ODM services. Our products have passed multiple international certifications, including ISO/CE, RoHS, FCC, EN12368, and EN12966, and are exported to more than 30 countries and regions, including Mexico, the United States, Germany, Ireland, Romania, Greece, the Netherlands, Israel, and Saudi Arabia.
Exhibitions

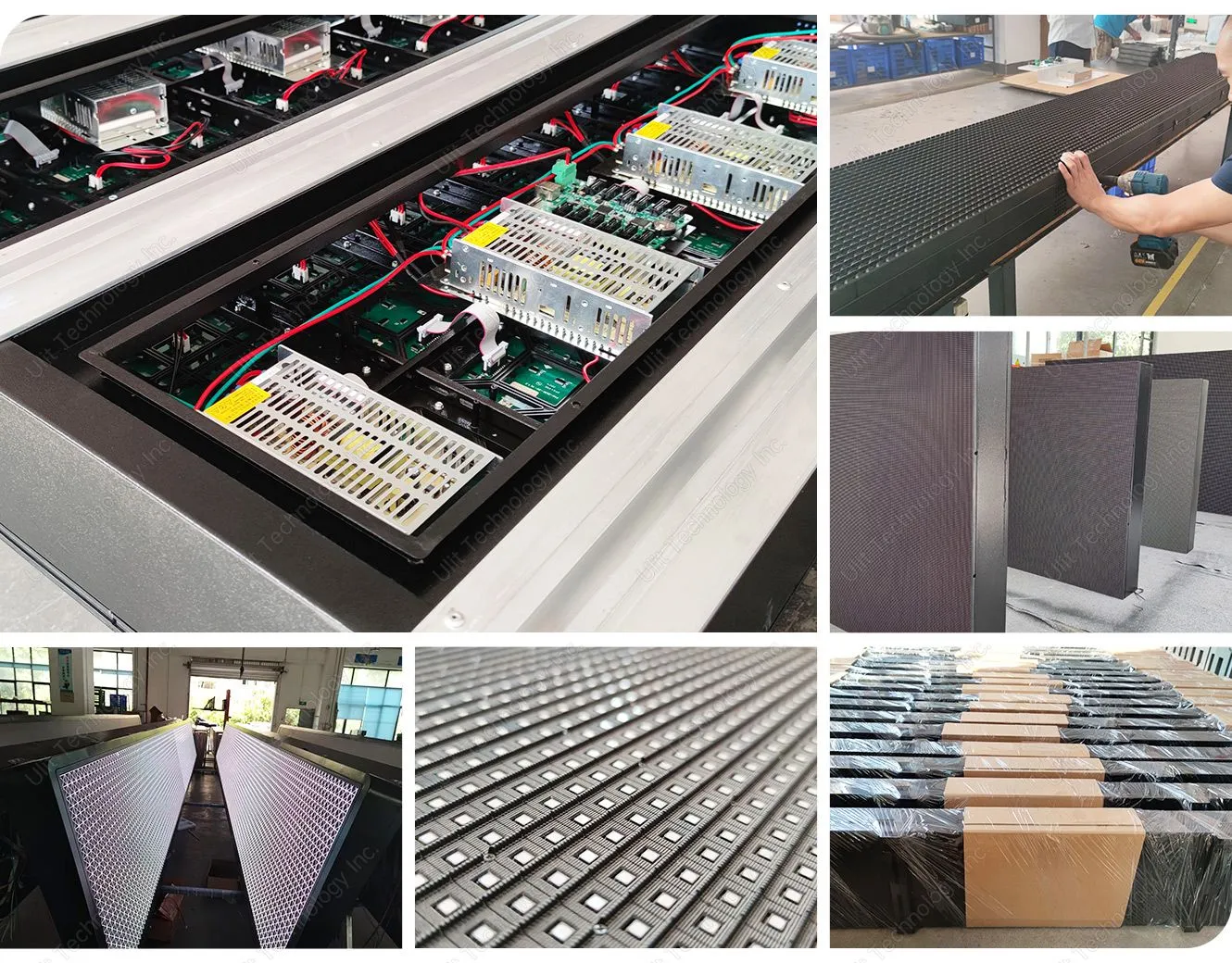

Production Workshop
