Product Overview

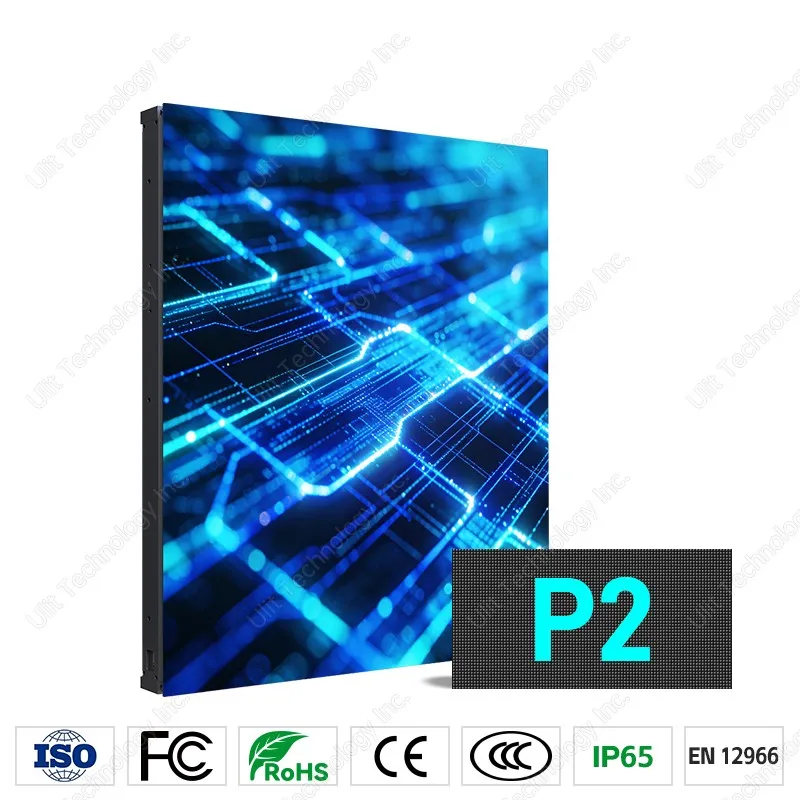

P2 Indoor Small Pixel Pitch LED Display Screen
The P2 indoor small-pitch screen LED display is an indoor high-density LED full-color small-pitch fixed installation product. The screen LED display can be installed quickly; The extremely convenient full front and rear maintenance method supports multiple installation methods such as wall-mounted installation without steel structure, right-angle installation, and full-box magnetic attraction installation. The back of the box is equipped with a hidden connection hole design, which is simple and beautiful. It solves the problem of having to make holes when installing network cables and power cords on the back of the super-large screen, maximizing the customer experience and value in different application scenarios. The product has passed CE, RoHS, CCC and EN12966 certifications.
Product Features
- It can be installed and maintained entirely from the front and back, which is simple and fast;
- Low-energy consumption design, energy-saving and environmentally friendly;
- Optional new-generation vacuum suction front maintenance tool to replace traditional magnetic tools, avoiding component damage caused by insufficient magnetic force during maintenance;
- Supports steel structures of multiple sizes, including 25*25mm, 30*30mm, and 40*40mm, for floor-standing installation;
- It supports multiple installation methods such as fixed installation, magnetic attraction installation, and back frame installation to meet the needs of different indoor installation projects;
- High refresh rate, fast response to image changes, and high dynamic clarity;
- The screen LED display supports flash correction storage for light panels, automatic color correction, and a better visual experience.
Hot Tags: screen led display, China screen led display manufacturers, suppliers, factory
Technical Parameters
|
Product Name |
P2 Indoor Small Pixel Pitch LED Display Screen |
|
Pixel Pitch |
2mm |
|
LED Package |
SMD |
|
Pixel Density |
250,000 dots/㎡ |
|
Module Size |
320mm*160mm |
|
Cabinet Size |
640mm*320mm |
|
Material |
Alloy (cabinet), PC (rear cover) |
|
Gray Level |
14bit |
|
Refresh Rate |
1,920HZ-3,840HZ |
|
Brightness |
≥450cd/m2 |
|
Viewing Angle |
160°/140° |
|
Working Voltage |
AC220±10%,50/60Hz |
|
IP Rating |
IP30/IP30 |
|
Installation Method |
Fixed Installation, Back Frame Installation, Magnetic Installation |
|
Maintenance Mode |
Front and Rear Maintenance |

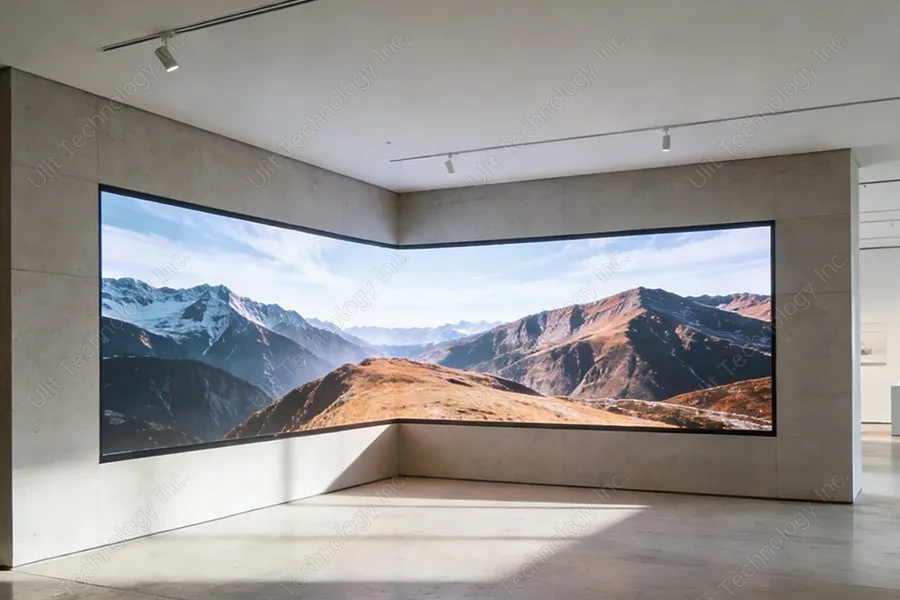

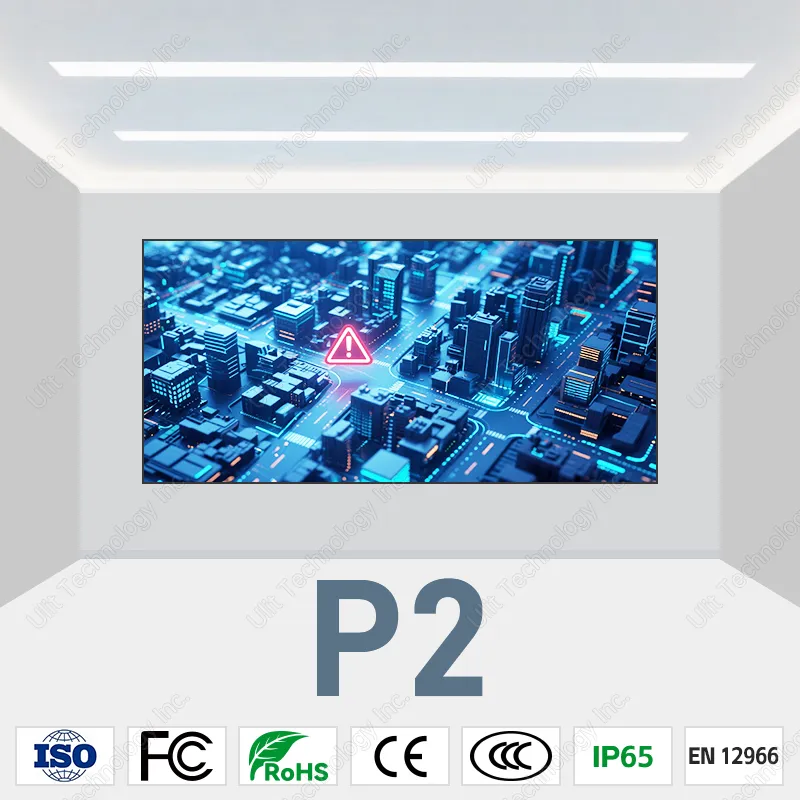

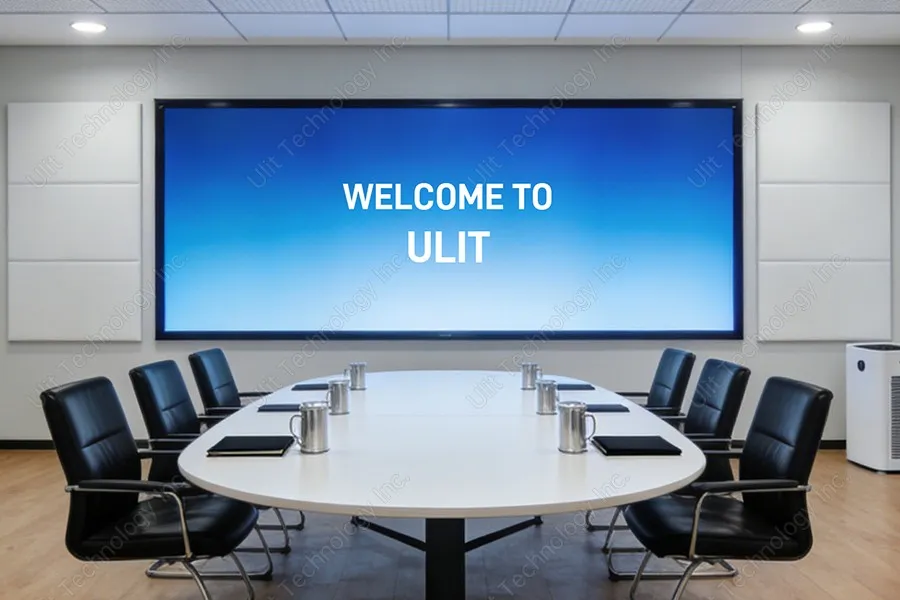

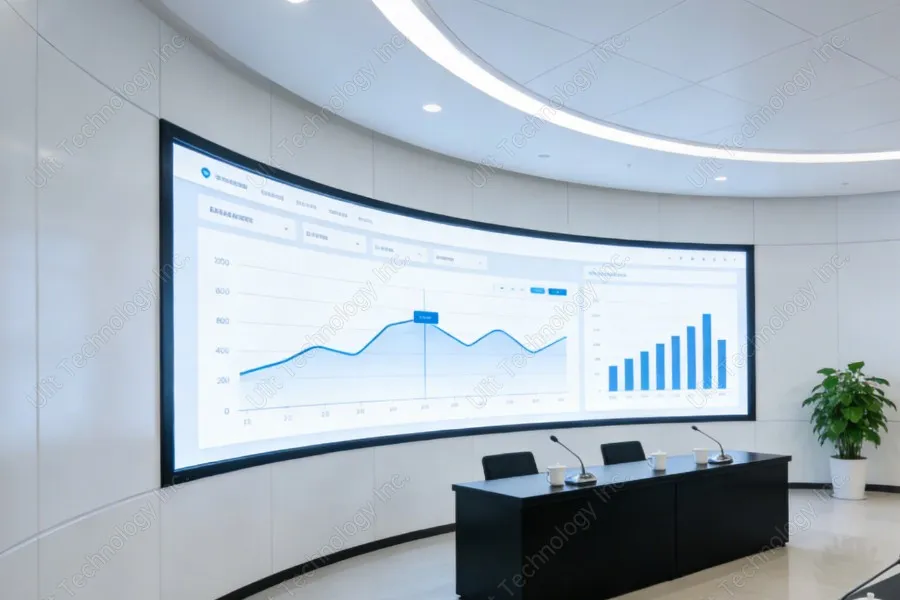

Product Applications
Certificates
Company Profile
Ulit Technology Inc. has been deeply involved in the intelligent traffic industry for over 30 years, boasting a 15,000-square-meter production base. With urban intelligent traffic as our core business, our company provides a variety of advanced products, integrated solutions, software, and services, covering traffic control platforms, traffic light controllers, traffic lights, traffic signs, countdown timers, LED displays, video detectors, speed signs, and various solar lighting equipment. We also offer OEM/ODM services. Our products have passed multiple international certifications, including ISO/CE, RoHS, FCC, EN12368, and EN12966, and are exported to more than 30 countries and regions, including Mexico, the United States, Germany, Ireland, Romania, Greece, the Netherlands, Israel, and Saudi Arabia.
Exhibitions
Production Workshop
FAQ
Q: Can I have a sample?
A: Of course, we support sample orders.
Q: What's the delivery time?
A: Shipping time depends on the specifications of the products you order. For in-stock products, shipping usually takes around 7-15 days. For customized products, the production time is typically around 30 days.
Q: Which city or port do you ship from?
A: Our main manufacturing plant is in Chongqing, but we also have branch offices in other cities. We can ship from all major ports and cities in China.
Q: Do you have any MOQ limit?
A: Our company supports testing with one or more samples, and we can also customize samples according to your specific requirements. There is no minimum order quantity (MOQ) limit.
Q: Do you offer after-sales service?
A: Most of our products come with a 2-year warranty. If a product experiences a quality issue within the warranty period, we will send you replacement parts free of charge. After the warranty period expires, we will continue to provide free lifetime remote technical support and service.
