Product Overview

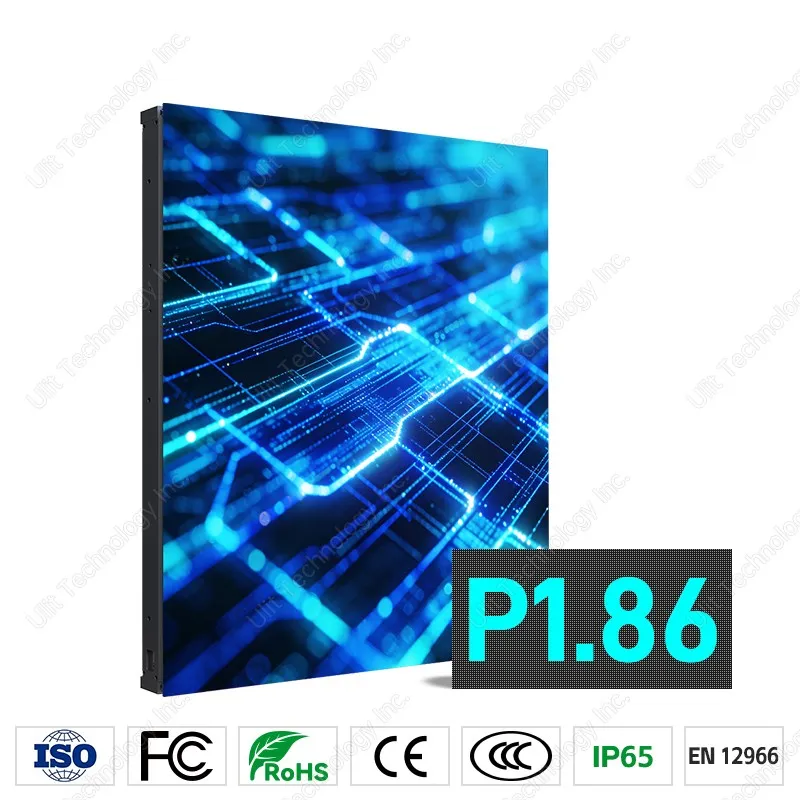

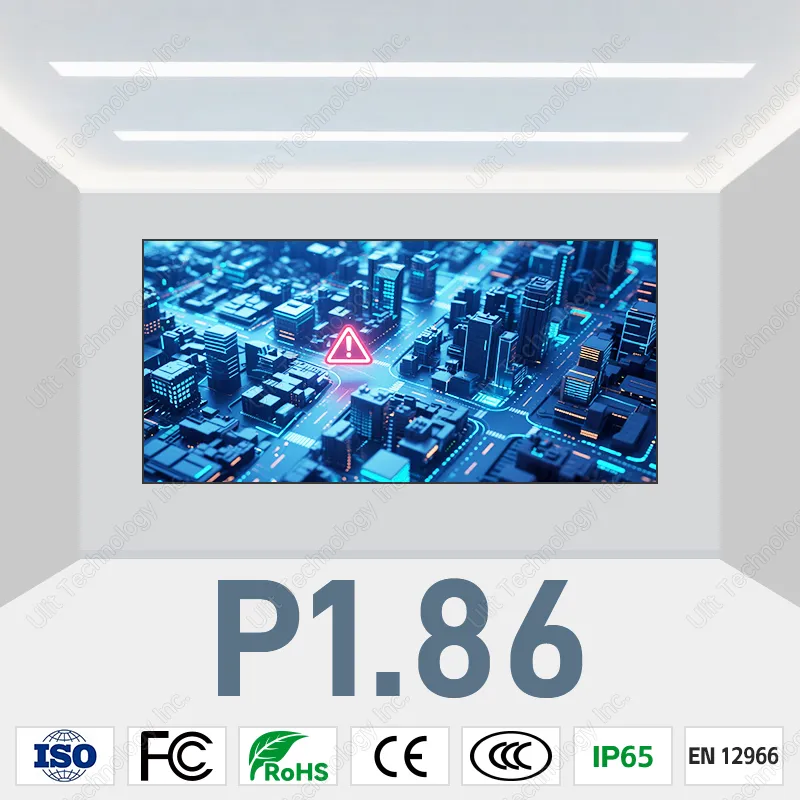

P1.86 Indoor Small Pixel Pitch LED Display Screen
The P1.86 indoor small-pitch LED display is a high-density, full-color, small-pitch fixed-mount LED screen board for indoor use. It allows for quick installation and extremely convenient front and rear maintenance. The LED screen board supports various installation methods, including steel-structure-free wall mounting, right-angle mounting, and magnetic mounting within the entire cabinet. The cabinet features a concealed connection hole design on the back, simplifying the design and solving the problem of needing to drill holes for network and power cables on the back of large screens. This maximizes the customer experience and value in various application scenarios. The product is CE, RoHS, CCC and EN12966 certified.
Product Features
- It can be fully installed front/back and fully maintained front/back;
- The LED screen board saves energy and is environmentally friendly;
- It can be equipped with a new generation of vacuum suction front maintenance tools to avoid adverse phenomena such as lamp knocking caused by insufficient suction force of traditional magnetic tools;
- When installed on the floor, it supports multiple specifications and sizes of steel structures such as 25*25mm,30*30mm, and 40*40mm;
- It supports installation methods such as seat mounting, back frame mounting, right-angle mounting, sky screen mounting, and full box magnetic attraction;
- High refresh rate, quick response to image changes, and high dynamic clarity;
- It supports Flash correction storage for the light board, automatic color correction, and provides a better visual experience.
Hot Tags: led screen board, China led screen board manufacturers, suppliers, factory
Technical Parameters
|
Product Name |
P1.86 Indoor Small Pixel Pitch LED Display Screen |
|
Pixel Pitch |
1.86mm |
|
LED Package |
SMD1515 |
|
Pixel Density |
288,906 dots/㎡ |
|
Module Size |
320mm*160mm |
|
Cabinet Size |
640mm*320mm |
|
Material |
Die Casting Aluminum (cabinet), PC (rear cover) |
|
Gray Level |
14bit |
|
Refresh Rate |
3,840HZ |
|
Brightness |
≥450cd/m2 |
|
Viewing Angle |
160°/140° |
|
Working Voltage |
AC220±10%,50/60Hz |
|
IP Rating |
IP30/IP30 |
|
Installation Method |
Fixed Installation, Back Frame Installation, Magnetic Installation |
|
Maintenance Mode |
Front and Rear Maintenance |

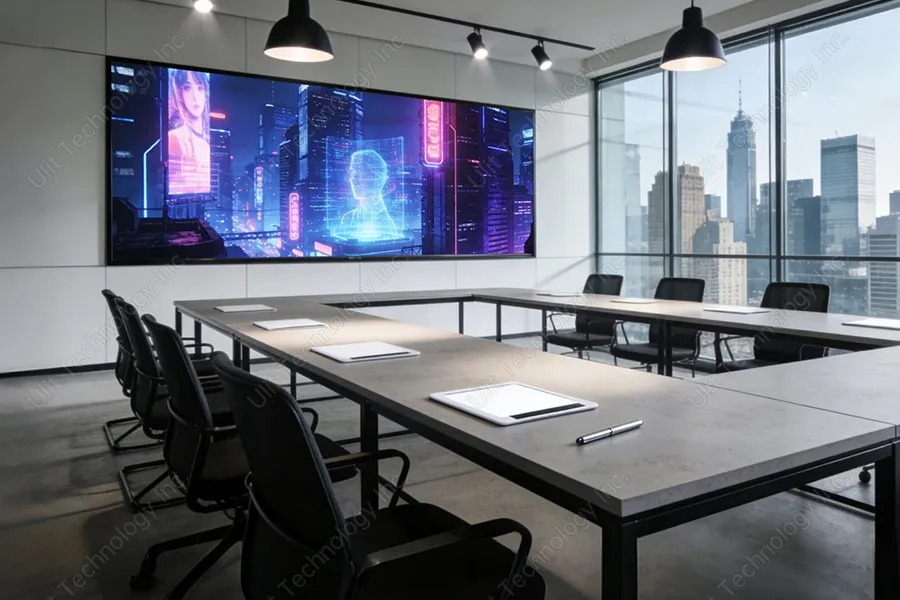

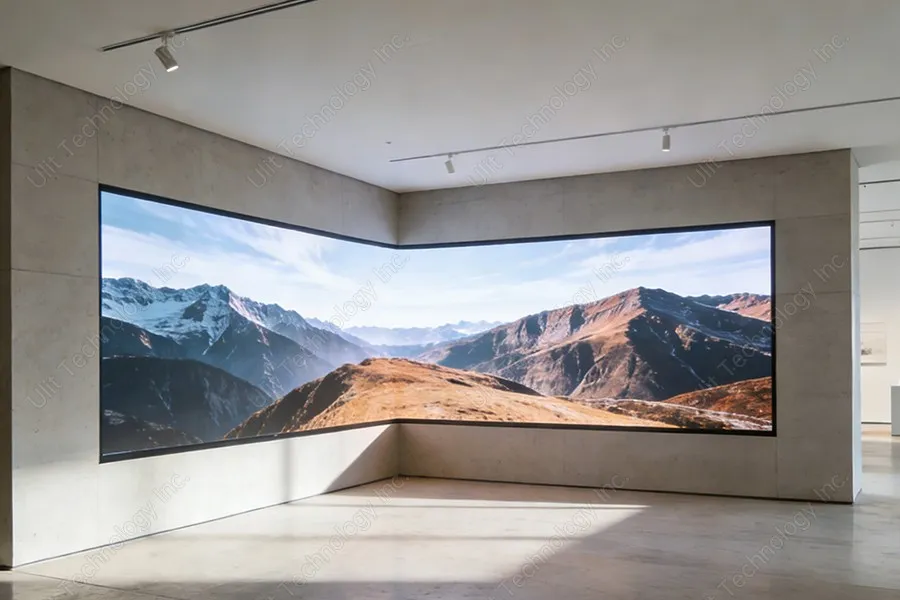

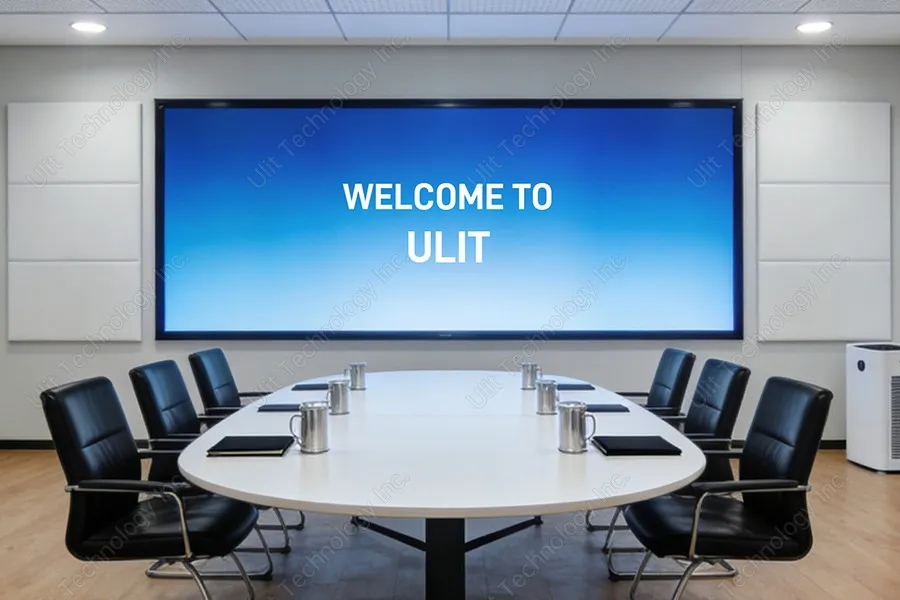

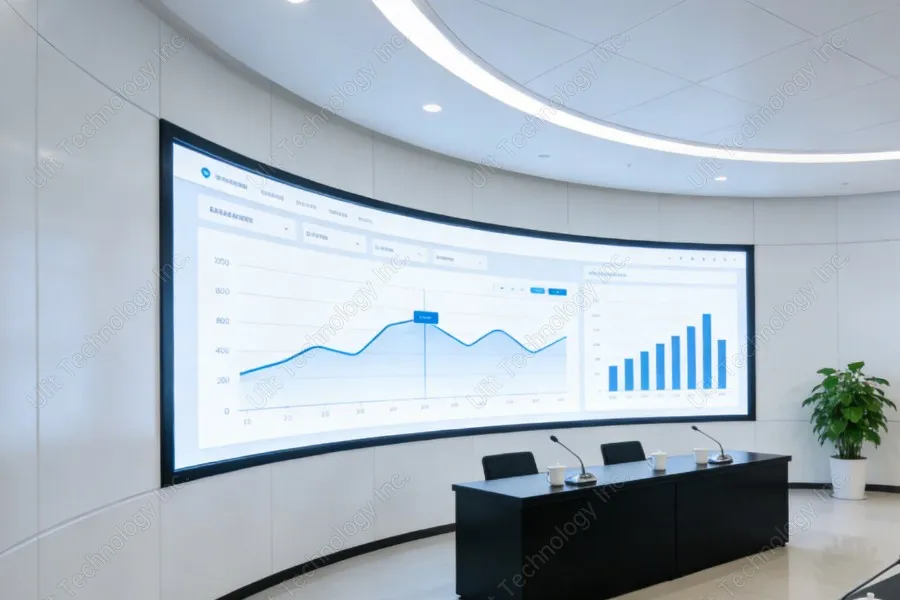

Product Applications
Certificates

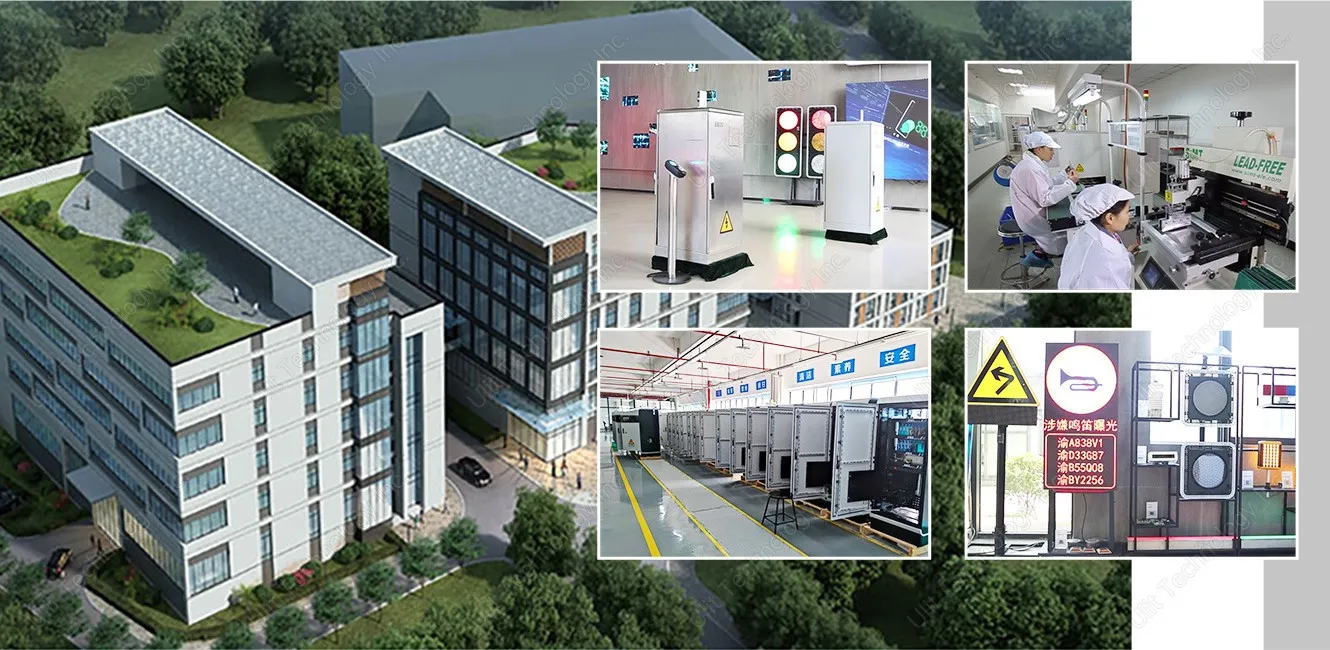

Company Profile
We have been deeply involved in intelligent traffic industry for over 30 years with 15,000 square meter manufacturing base. As a leading manufacturer of traffic intelligent control system, traffic signal and display equipment, a leading provider of city traffic centralized control software, a national high-tech enterprise and a listed enterprise of Beijing Stock Exchange, we also supply OEM/ODM services. Certified by ISO/CE, our products are sold to more than 30 countries, including the USA, Mexico, Germany, Ireland, Romania, Greece, the Netherlands, Israel, Saudi Arabia and so on.
Exhibitions

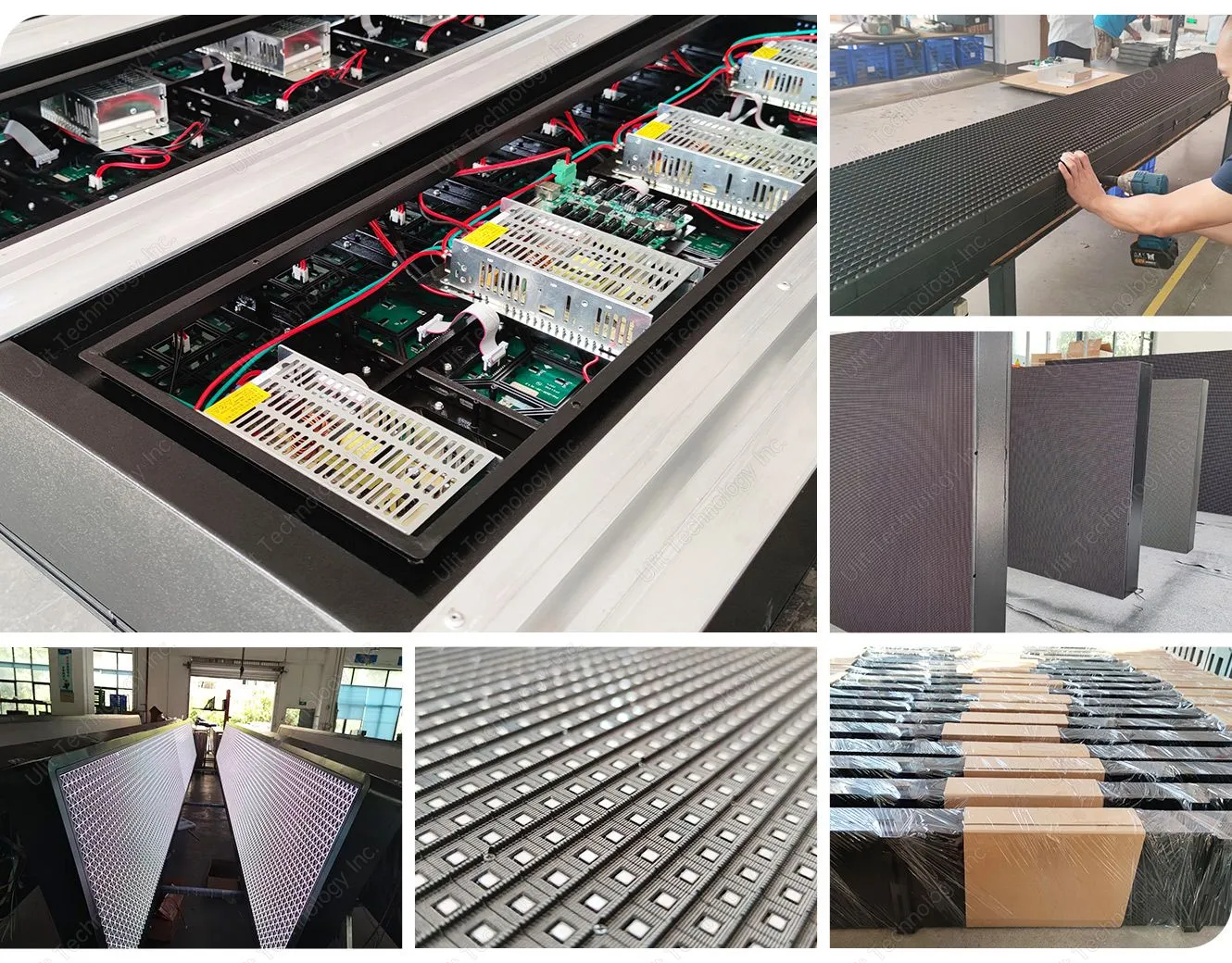

Production Workshop
FAQ
Q: Are you a factory?
A: Yes. We are a leading manufacturer of LED traffic signal products and intelligent traffic equipment, and a leading IoT (Internet of Things) solution provider in China.
Q: What are your best-selling products?
A: Traffic lights, traffic signs, traffic light systems, LED screens, traffic warning lights, radar speed signs, traffic light controllers, etc..
Q: Which certifications do you have?
A: CE, RoHS, FCC, EN12368, EN12966, IP65, MTC, ISO9001:2015, ISO14001:2015, CMMI-5, CCC and so on.
Q: Whether you could make our brand on your products?
A: Yes. Our R&D department provide strong technical support and enable us to receive OEM and ODM projects.
Q: What's your payment clause and delivery terms?
A: Payment Clause: T/T, L/C, Paypal, Western Union and so on.
Delivery Terms: EXW, FOB, CFR, CIF, DAP, DDP.
