Product Overview

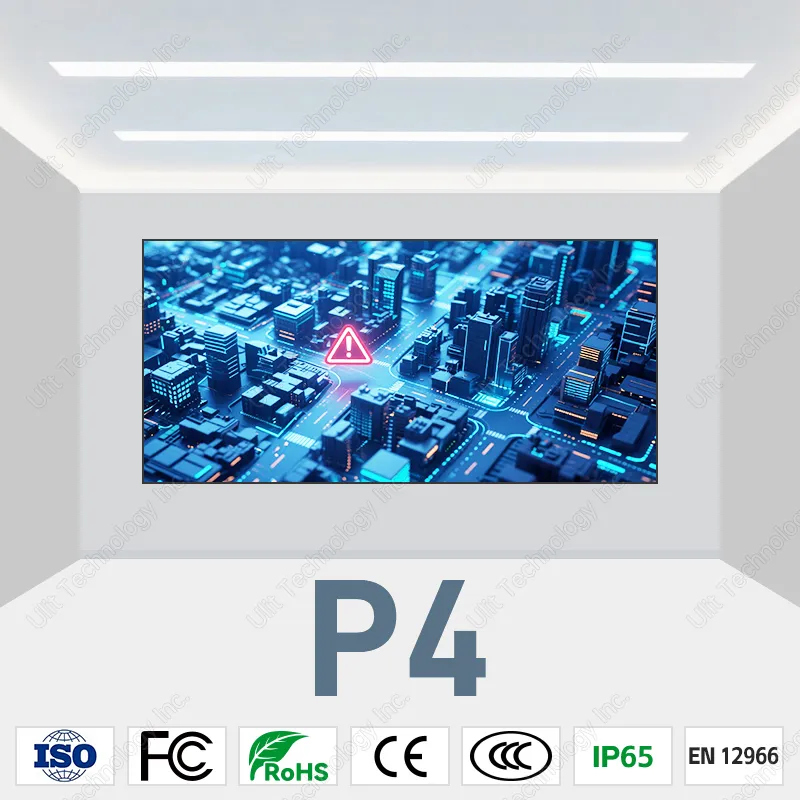

P4 Indoor Full Color LED Display Screen
The P4 indoor full color LED display panel screen can be used for the release of advertising and promotional information such as text and pictures indoors. Its display screen has extremely high color uniformity and fine pictures. Adopting multi-scanning technology and modular design, it has higher reliability and stability. The new surface mount packaged chips offer clearer display, more stable colors, and greater energy efficiency. Compliance with CE, RoHS, CCC and EN12966 certification.
Product Features
- Stainless steel strip as installation accessories, steady and anti-corrosion, no risk of falling off;
- Wide viewing angle, high brightness, natural picture display with high-definition;
- High-quality LED chips are adopted in the LED display panel, making the pictures more delicate and the colors more vivid;
- Support text, image and video display; It is convenient to quickly modify the display content and mode;
- Support automatically releasing information according to the preset display plans and priority levels in sequence;
- Support self-adaptive release control, adaptive matching of display content according to display screen size;
- Support information transmission and release, with tamper-proofing function;
- The LED display panel adopts high efficiency switching power supply, green and energy-saving design;
- Seamless splicing, adjustable intervals, and can be spliced into various sizes and shapes according to customer requirements.
Hot Tags: led display panel, China led display panel manufacturers, suppliers, factory
Technical Parameters
|
Product Name |
P4 Indoor Full Color LED Display Screen |
|
Pixel Pitch |
4mm |
|
Pixel Composition |
1R1G1B |
|
Display Brightness |
≥6,000cd/㎡; Support adjusting the brightness automatically or manually |
|
LED Package |
High Quality SMD LED Chips |
|
Module Size |
320mm*160mm |
|
Viewing Distance |
≥4m |
|
Viewing Angle |
≥110° |
|
Gray Level |
16bit |
|
Mean Time Between Failures (MTBF) |
≥100,000 Hours |
|
Blind Spot Rate |
≤1/10,000 (In Discrete State) |
|
Flatness |
Gap between Any Adjacent Pixels≤0.5mm; Module Splicing Gap＜0.5mm |
|
Working Voltage |
AC220V±15％ |
|
Power Switch Performance |
Full Load Efficiency≥85%, PF≥0.85 |
|
Average Power Consumption |
≤200W/㎡ |
|
Maximum Power Consumption |
≤500W/㎡ |
|
Working Temperature |
-20℃～60℃ |
|
Relative Humidity |
≤95%RH(25℃,No Condensation) |
|
IP Rating |
IP30 (Front) |

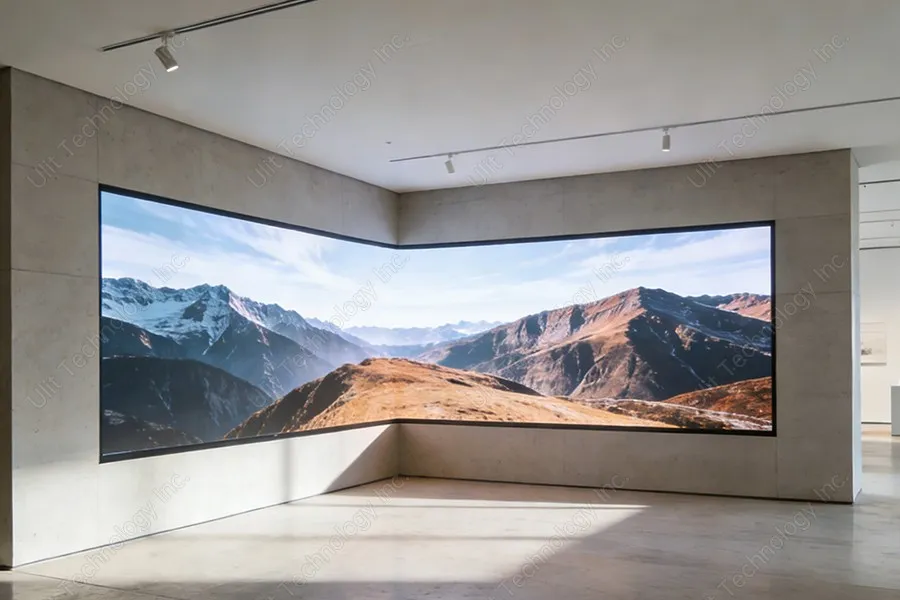

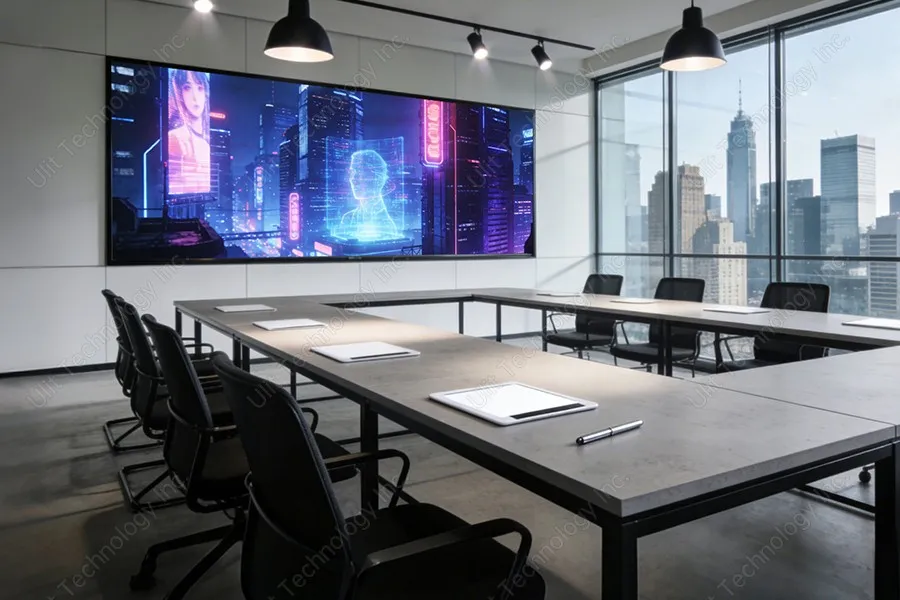

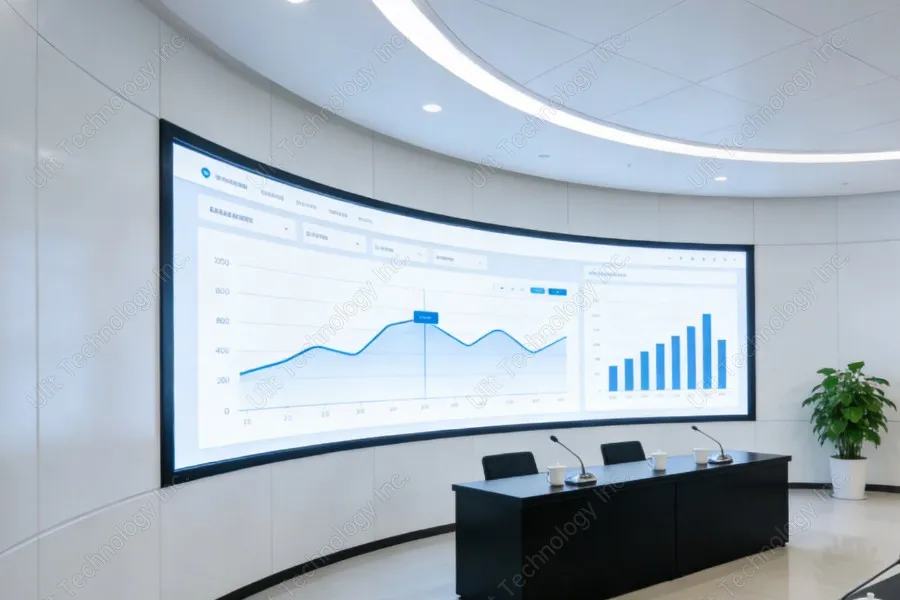

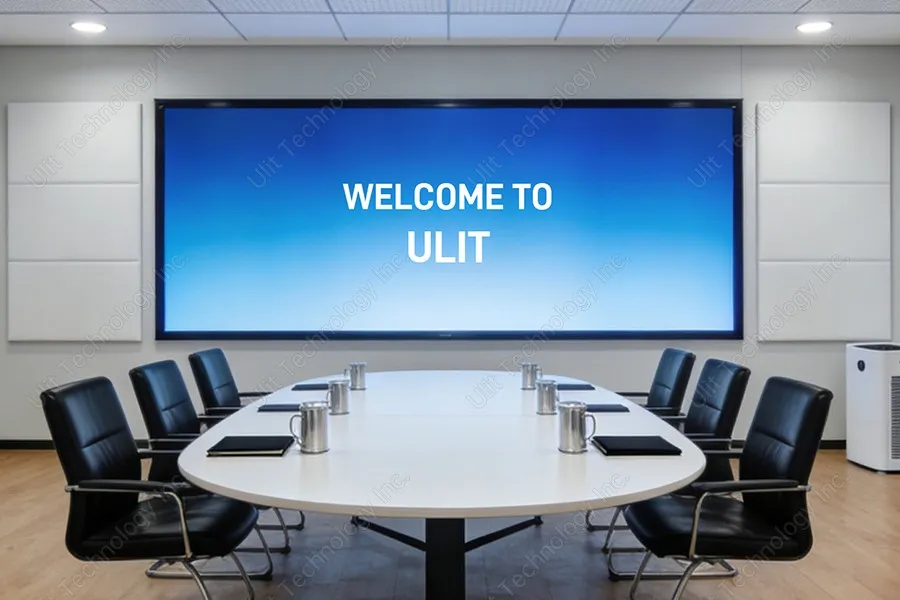

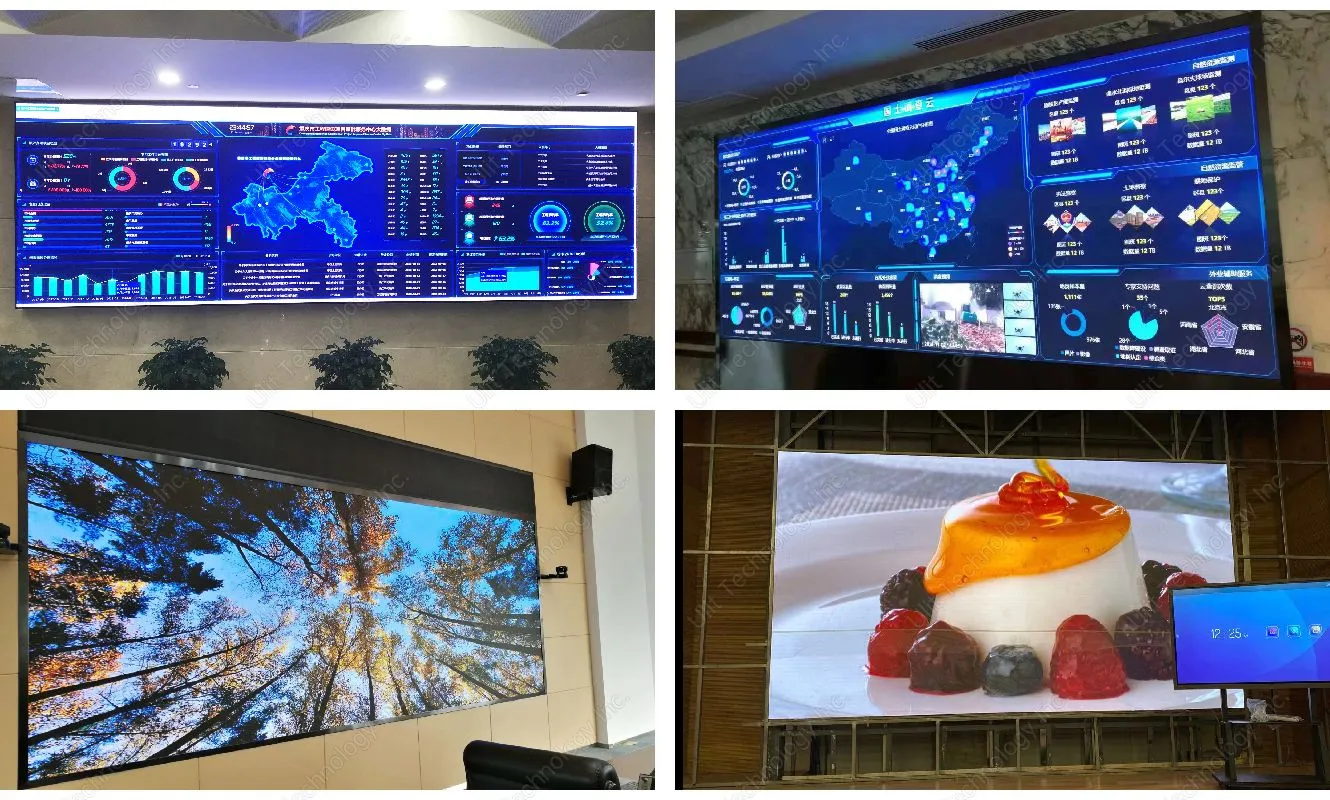

Product Applications

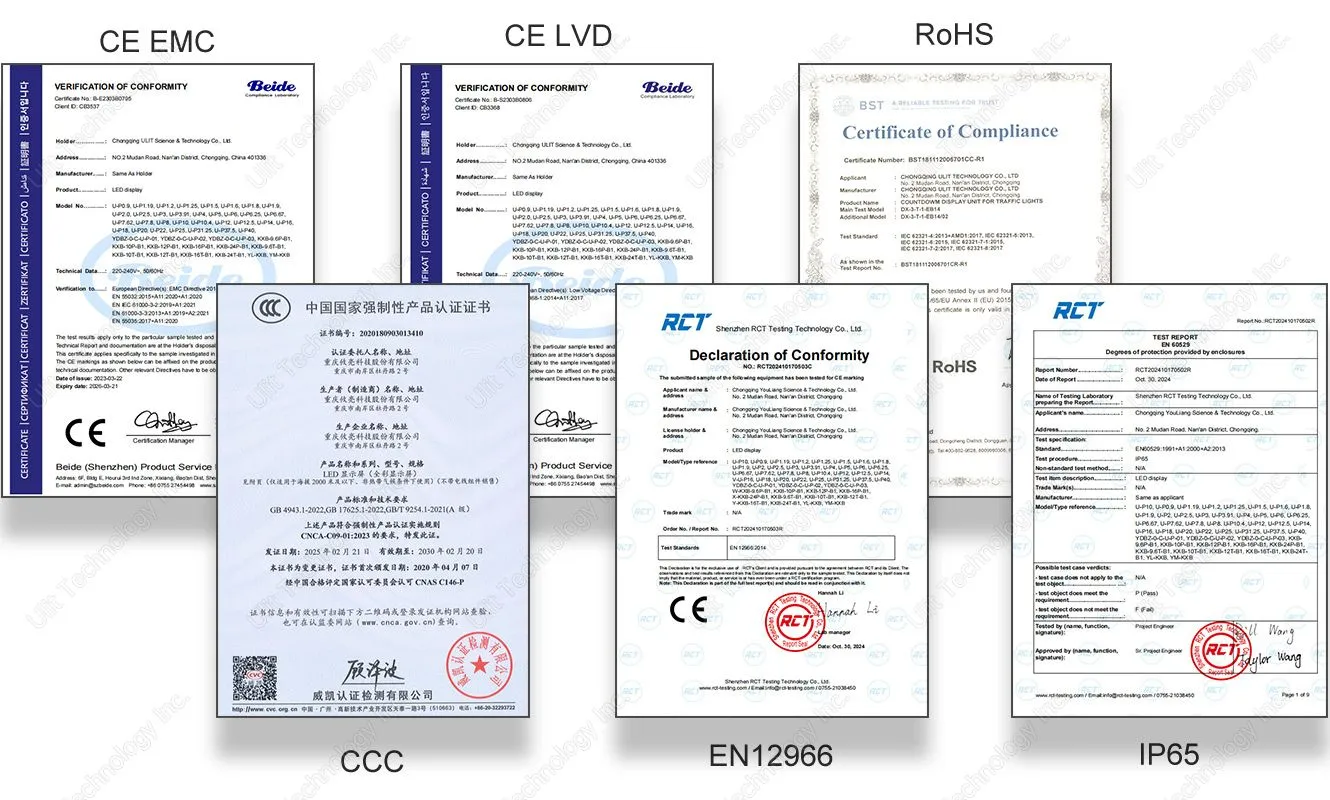

Certificates
Company Profile
We have been deeply involved in intelligent traffic industry for over 30 years with 15,000 square meter manufacturing base. As a leading manufacturer of traffic intelligent control system, traffic signal and display equipment, a leading provider of city traffic centralized control software, a national high-tech enterprise and a listed enterprise of Beijing Stock Exchange, we also supply OEM/ODM services. Certified by ISO/CE, our products are sold to more than 30 countries, including the USA, Mexico, Germany, Ireland, Romania, Greece, the Netherlands, Israel, Saudi Arabia and so on.
Exhibitions

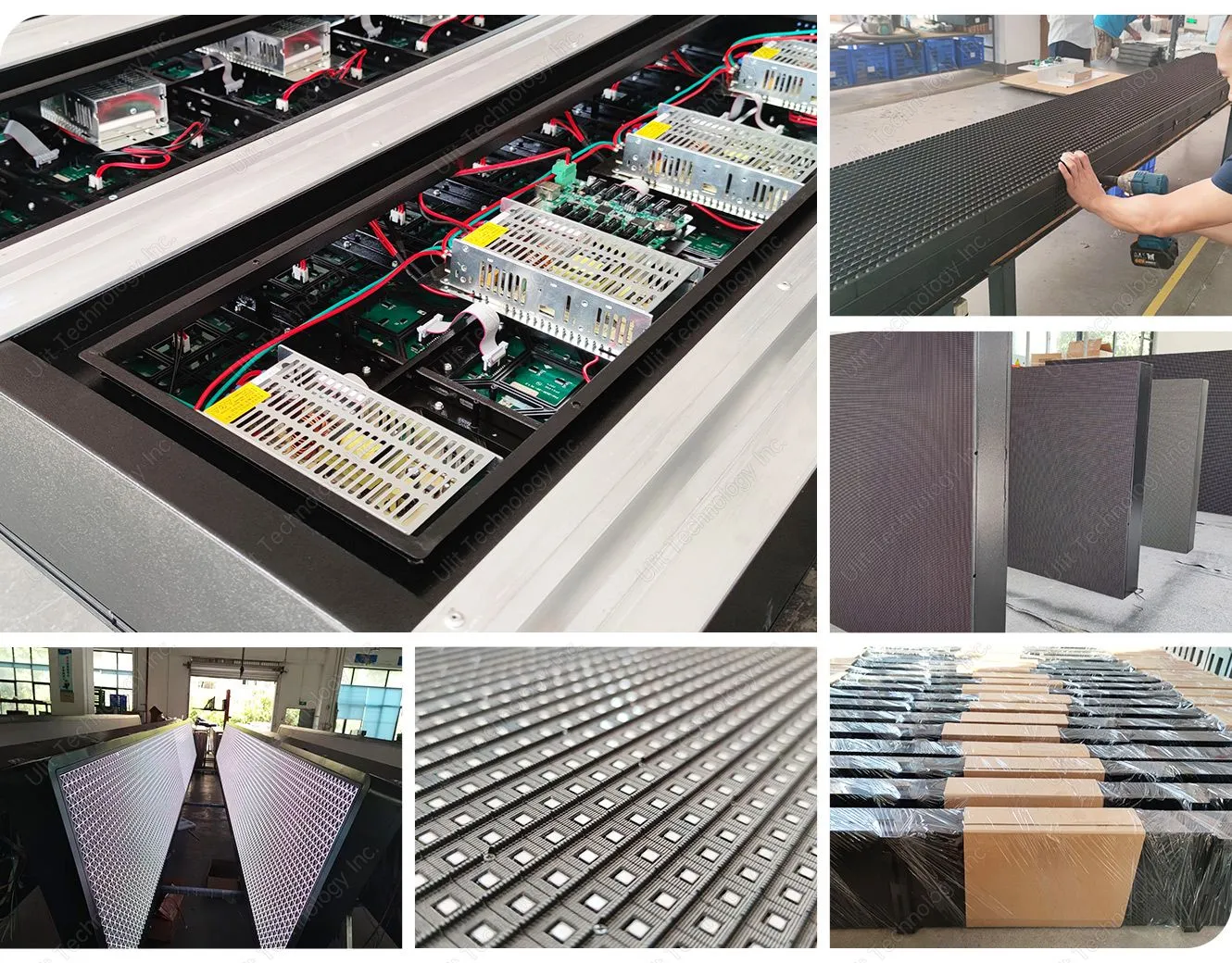

Production Workshop
FAQ
Q: Are you a factory?
A: Yes. We are a leading manufacturer of LED traffic signal products and intelligent traffic equipment, and a leading IoT (Internet of Things) solution provider in China.
Q: What are your best-selling products?
A: Traffic lights, traffic signs, traffic light systems, LED screens, traffic warning lights, radar speed signs, traffic light controllers, etc..
Q: Which certifications do you have?
A: CE, RoHS, FCC, EN12368, EN12966, IP65, MTC, ISO9001:2015, ISO14001:2015, CMMI-5, CCC and so on.
Q: Whether you could make our brand on your products?
A: Yes. Our R&D department provide strong technical support and enable us to receive OEM and ODM projects.
Q: What's your payment clause and delivery terms?
A: Payment Clause: T/T, L/C, Paypal, Western Union and so on.
Delivery Terms: EXW, FOB, CFR, CIF, DAP, DDP.
