Product Overview

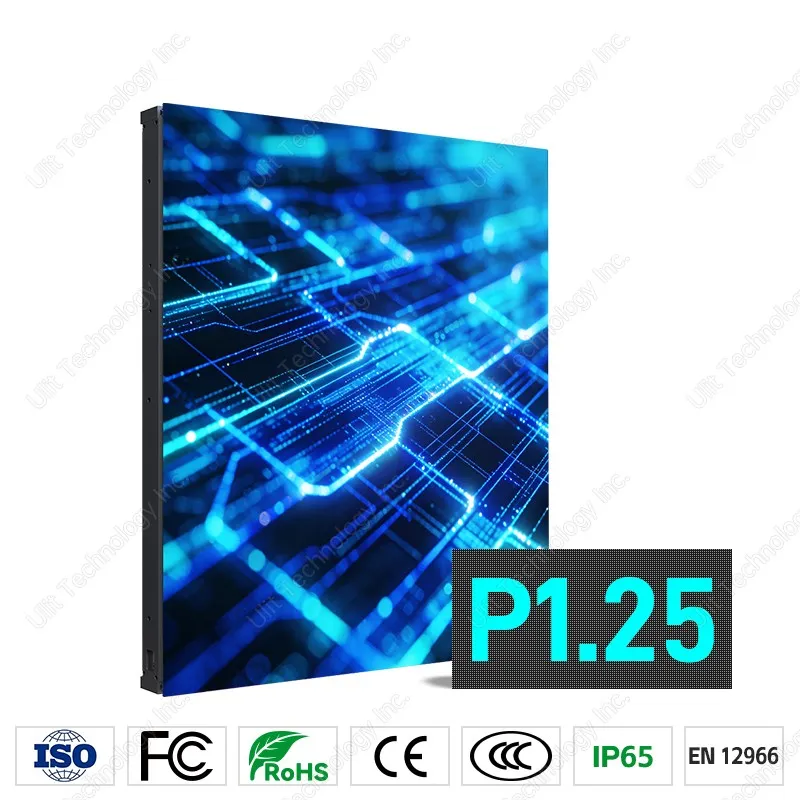

P1.25 Indoor Small Pixel Pitch LED Display Screen
P1.25 indoor small pixel pitch LED display screen is an indoor high-density full-color fixed installation LED wall panel. It can be installed quickly and is extremely convenient to maintain from the front and the rear. It supports a variety of installation modes such as wall installation, right angle installation, magnetic installation and so on. The rear of the cabinet has a built-in hidden port design that is both simple and beautiful. This solution effectively solves the challenge of opening holes when connecting network cables and power cables through the back of oversized screens and makes the product to maximize the customers' experience and value in different application scenarios . The LED wall panel complies with CE, RoHS, CCC and EN12966 certification.
Product Features
- The LED wall panel can be fully front/rear installation, fully front/rear maintenance;
- Energy-saving and environmental;
- It can be equipped with a new-generation vacuum suction front-access maintenance tool, effectively preventing issues like component collisions caused by insufficient magnetic force from traditional magnetic suction tools;
- The floor installation supports steel structures of various specifications, including 25mm×25 mm, 30mm×30 mm, 40mm×40 mm, and others;
- It supports various installation methods such as seat mounting, back frame mounting, right-angle mounting, sky screen mounting, and full screen magnetic attraction;
- High refresh rate, quick response to image changes, and high dynamic clarity;
- The LED wall panel also supports Flash correction storage for the light board, with automatic color correction for a better visual experience.
Hot Tags: led wall panel, China led wall panel manufacturers, suppliers, factory
Technical Parameters
|
Product Name |
P1.25 Indoor Small Pixel Pitch LED Display Screen |
|
Pixel Pitch |
1.25mm |
|
LED Package |
SMD1010 |
|
Pixel Density |
640,000dots/㎡ |
|
Module Size |
320mm*160mm |
|
Cabinet Size |
640mm*320mm |
|
Material |
Die Casting Aluminum (cabinet), PC (rear cover) |
|
Gray Level |
14bit |
|
Refresh Rate |
3,840HZ |
|
Brightness |
≥450cd/m2 |
|
Viewing Angle |
160°/140° |
|
Working Voltage |
AC220±10%,50/60Hz |
|
IP Rating |
IP30/IP30 |
|
Installation Method |
Fixed Installation, Back Frame Installation, Magnetic Installation |
|
Maintenance Mode |
Front and Rear Maintenance |

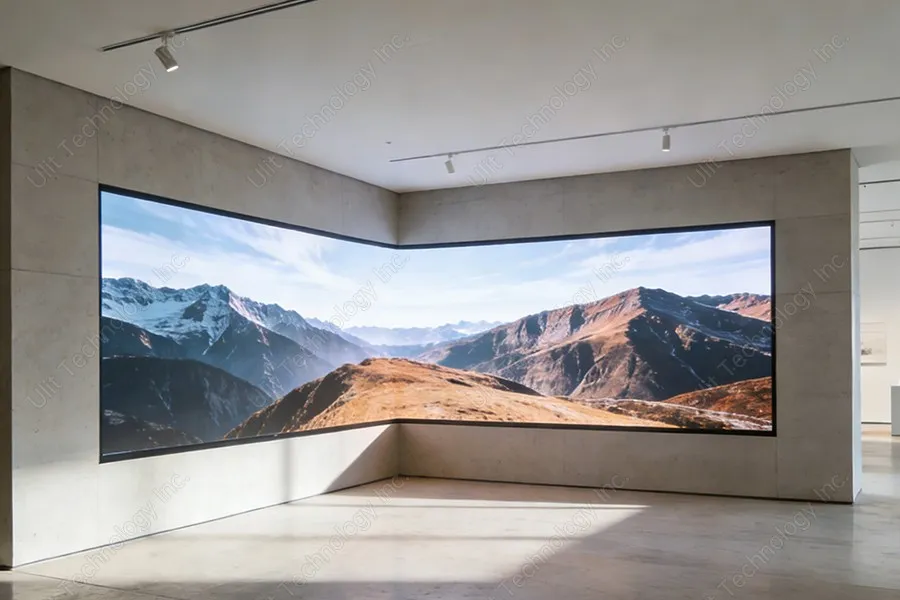

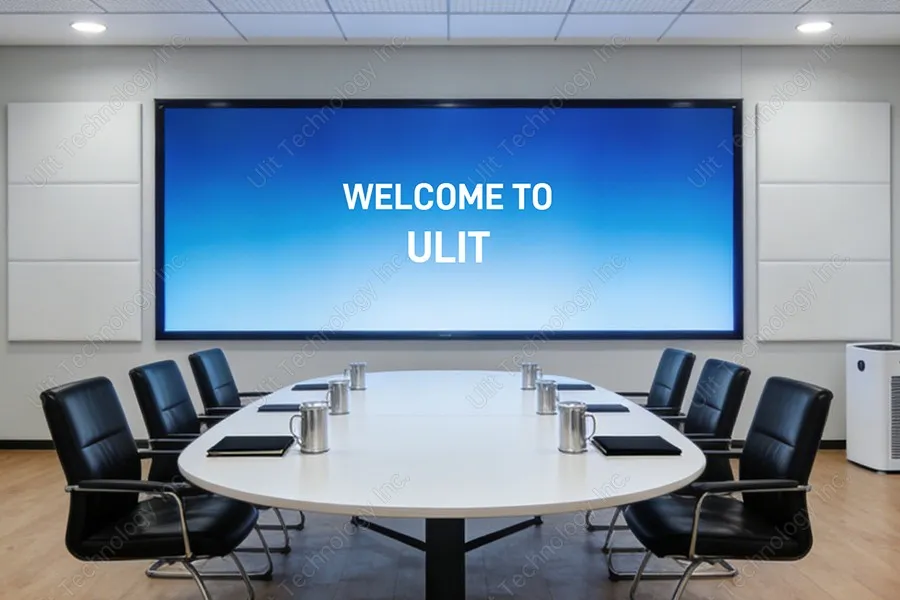

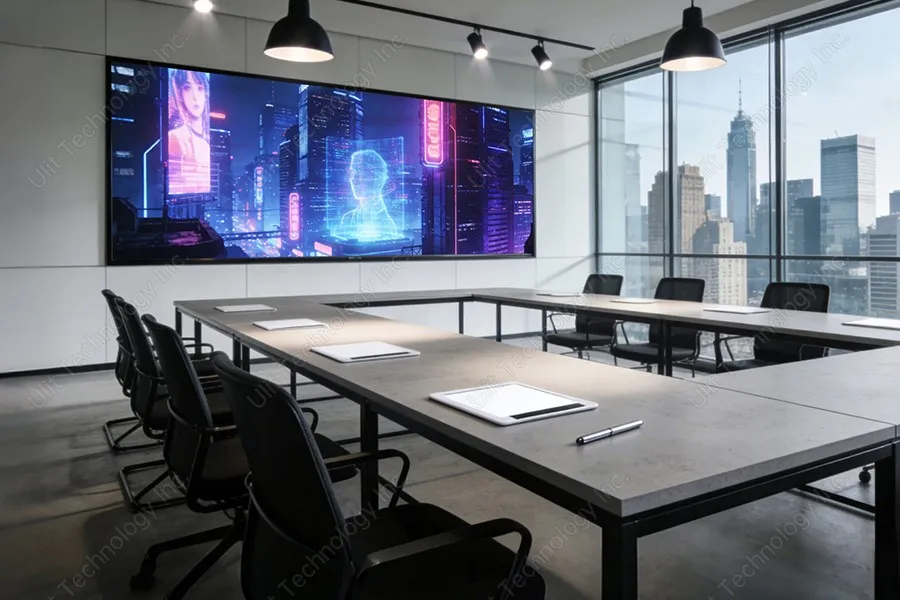

Product Applications
Certificates
Company Profile
Having been Involved in intelligent traffic industry for more than 30 years, Ulit Technology Inc. is a leading manufacturer of traffic intelligent control system, traffic signal and display equipment, a leading provider of city traffic centralized control software, a national high-tech enterprise and a listed enterprise of Beijing Stock Exchange. We have been providing products and services to customers in the USA, Mexico, Germany, Ireland, Romania, Greece, the Netherlands, Israel, Saudi Arabia, India, Vietnam, Singapore and many other countries. Our company always advocates customer focus and adheres corporate philosophy of "innovation transcends dreams and hard work creates value". We keep perfecting our core technology products over ten years and are always strenuously making continuous contribution for unblocked city!
Exhibitions
Production Workshop
FAQ
Q: Do your products come with accompanying software systems?
A: Yes. For products that require accompanying software, we provide our own proprietary software. Some of our products also support integration with software from other major manufacturers.
Q: How do you guarantee the quality of your products?
A: We have a very strict quality controlling system to ensure that all the products are delivered with high quality. Strict detection during each production step. Strict full inspection on products before shipment and intact product packaging ensured.
Q: Can you send me your catalogue?
A: Please send an email to our email address cqulit@sina.com for catalogue. We will reply you with our latest catalogue to your email.
Q: What's the price of the LED wall panel?
A: Price is negotiable. Based on different quantities and detailed requirements, the prices are a little different. Please kindly contact us for more detailed prices.
Q: Can I have some information about your scope of business?
A: Our company can provide various advanced products, whole solutions, software and services related to city traffic, such as traffic control platform, traffic light controllers, traffic lights, traffic signs, countdowns, LED screens, video detectors, speed signs and various solar lights.
