Red Stop Light

Red Stop Light
Product Introduction:
200mm High Flux Full Ball Traffic Light Module (Single Color)
The red stop light is a single color traffic light module with high flux. It can also be made yellow or green. Engineering plastics housing, light weight, good corrosion resistance and easy installation; Adopt high quality high flux LED light-emitting elements; High photo-electricity conversion rate, lower power consumption; Adopt optical design; Area light source conforms to the visual characteristics of human body better, no dazzling; Compliance with CE, RoHS, FCC and EN12368 certification.
Send Inquiry
Description
Technical Parameters

Product Overview

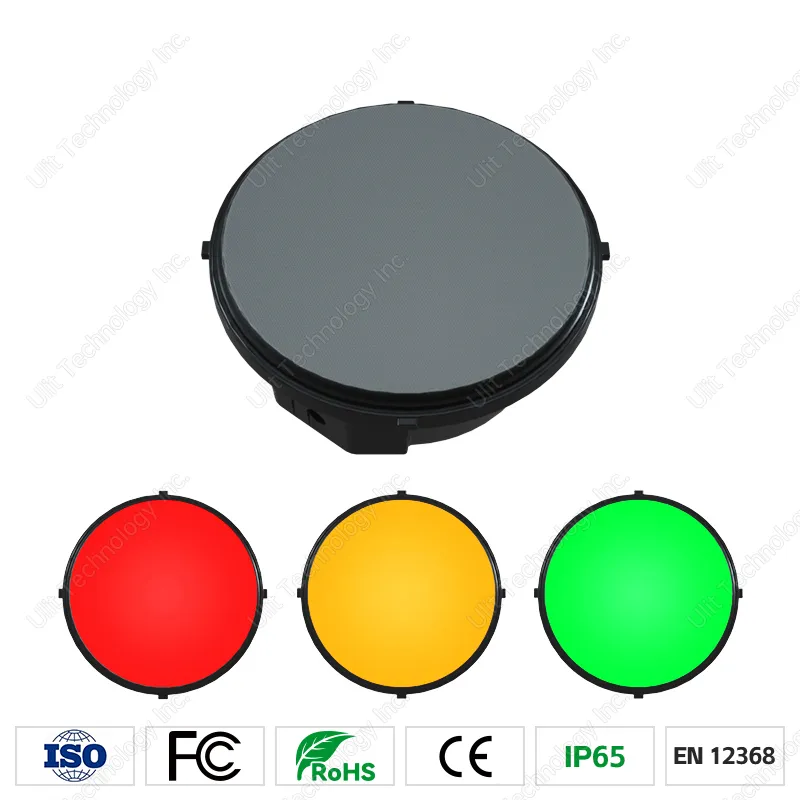

Red Stop Light



200mm High Flux Full Ball Traffic Light Module (Single Color)

200mm high-flux red stop light module is a single-color full ball traffic signal light module, also available with yellow or green stop lights. Encapsulated in engineering plastics, it is lightweight and effectively resistant to corrosion, impact, and rust. The light-emitting element uses high-flux LEDs with excellent photoelectric conversion efficiency and low power consumption;  It adopts area light source optical design, which is suitable for human visual characteristics and not dazzling. The red stop light module is CE, RoHS, FCC, and EN12368 certified.



Product Features



Red Stop Light High Flux



● Encapsulated in engineering plastics, it is lightweight and effectively resistant to corrosion, impact, and rust, ensuring the product's ultra-high safety for long-term outdoor use;

● The light lens of the red stop light module uses a colorless mask with UV resistance and high light transmittance. It will not turn yellow or change color throughout its entire service life;

● The light-emitting components adopt CREE/OSRAM LED chips, featuring high photoelectric conversion efficiency and low power consumption. The lifespan of LEDs can reach over 10 years;

● It adopts area light source optical design, which is suitable for human visual characteristics and not dazzling;

● The red stop light module possesses PLC communication function; Support remote query of traffic light operation status; Support active reporting of traffic light module faults; The brightness can be adjusted step by step according to environmental sensor data to adapt to the ambient brightness, so it is not dazzling at night. (Optional)



Hot Tags: red stop light, China red stop light manufacturers, suppliers, factory

Technical Parameters



Red Stop Light High Brightness



Red Stop Light Size



Product Name

200mm High Flux Full Ball Traffic Light Module (Single Color)

Display Content

Full Ball

Display Color

Red, Yellow or Green

LED Light Source

CREE/OSRAM Hi-flux LED Chips

LED Quantity

6

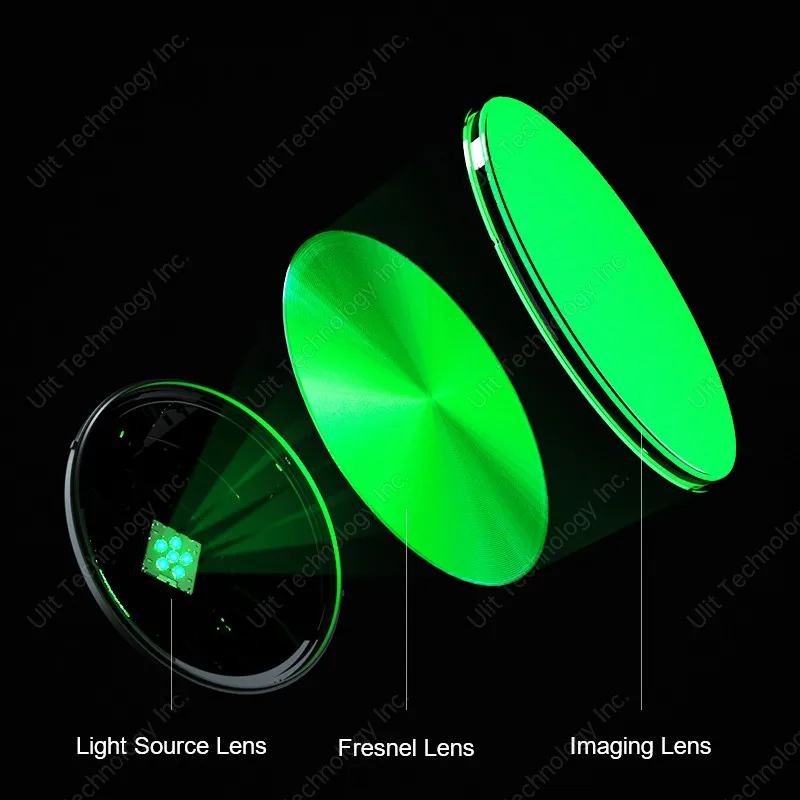

Optical Configuration

Light Source Lens + Fresnel Lens + Imaging Lens

Photoelectric Efficiency

≥90 lm/W

Display Size

Φ200mm

Viewing Distance

≥200m

Working Voltage

AC220V/AC110V/DC48V/DC24V/DC12V

Rated Power

≤5W

Working Temperature

-40℃~80℃

Working Humidity

≤97%RH[(40±1)℃, No Condensation]

IP Rating

IP65

Housing Material

ABS, PC

Product Dimension

Diameter 210mm * Thickness 104mm

Product Weight

1.4 KG



Product Applications

Red Stop Light Horizontal Mounting
Red Stop Light on Pole
Red Stop Light Hanging Installation
