Product Overview

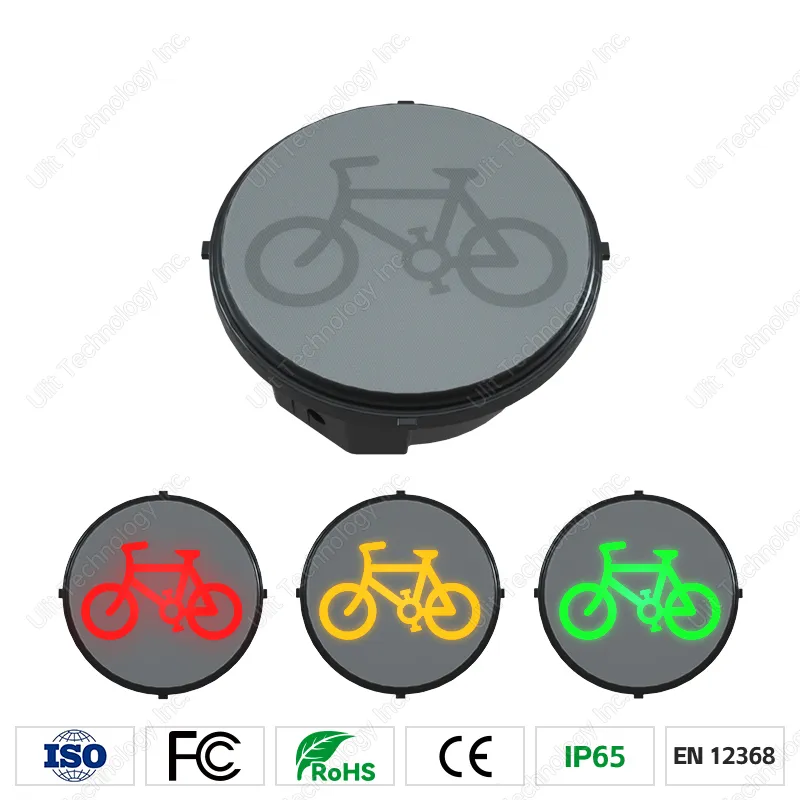

200mm High Flux Bicycle Traffic Light Module (Single Color)
Single color on each traffic light module. It can display red traffic, yellow traffic or green traffic of bicycles. It uses a light-weight and corrosion-resistant engineering plastic shell, and is very convenient to install. Adopt premium high-flux LED light-emitting components; Feature high photoelectric conversion rate, low power consumption, energy saving and high efficiency. There is an optical design of the area light source optimized according to the characteristics of human vision, which is not dazzling. Certified by CE, RoHS, FCC and EN12368.
Product Features
- Adopt colorless PC mask and have the advantages of UV protection, high light transmittance, and no yellowing or discoloration throughout their entire lifespan;
- Adopt internationally renowned (CREE/OSRAM) LED chips with higher photo-electricity conversion rate; The lifespan of LEDs in the light-emitting unit is more than 10 years;
- There is an optical design of the area light source optimized according to the characteristics of human vision, which is not dazzling;
- The light-weight engineering plastic shell provides high shock resistance and strong corrosion resistance, eliminating the risk of rust and ensuring the green traffic light has extremely high safety;
- Possess PLC communication function; Support remotely querying the operating state of traffic lights; Support active reporting of traffic signal module failures; Support gradual brightness adjustment ensuring it is not glaring at night; (Optional)
- Single color on each module unit, but it can manufactured into different images like a full ball, an left or right arrow, a u-turn and a bicycle with different colors as red traffic, yellow traffic or green traffic.
Hot Tags: green traffic, China green traffic manufacturers, suppliers, factory
Technical Parameters
|
Product Name |
200mm High Flux Bicycle Traffic Light Module (Single Color) |
|
Display Content |
Bicycle |
|
Display Color |
Red, Yellow or Green |
|
LED Light Source |
CREE/OSRAM Hi-flux LED Chips |
|
LED Quantity |
6 |
|

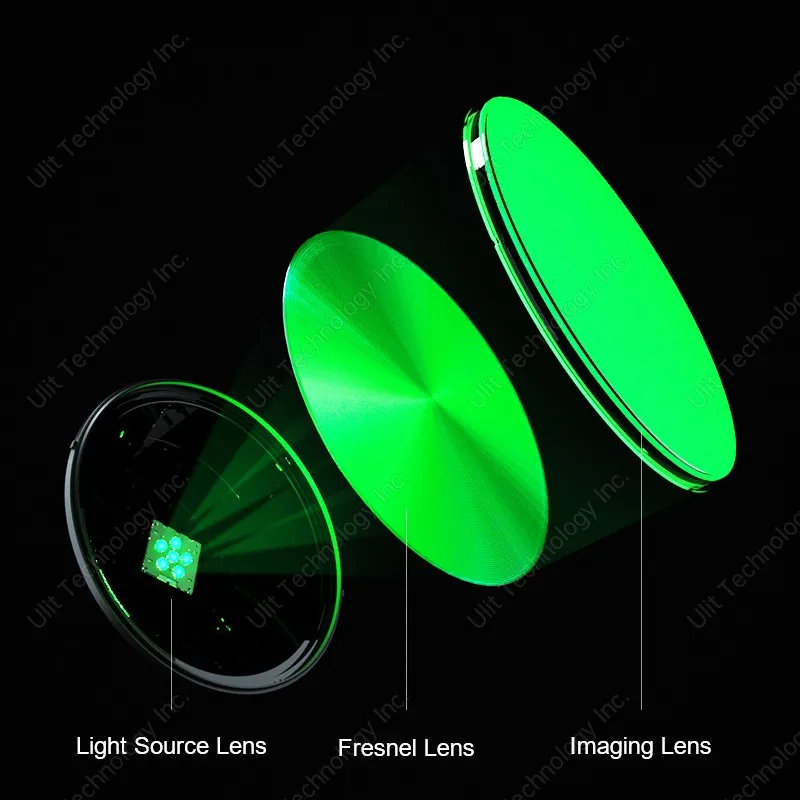

Optical Configuration |
Light Source Lens + Fresnel Lens + Imaging Lens |
|
Photoelectric Efficiency |
≥90 lm/W |
|
Display Size |
Φ200mm |
|
Viewing Distance |
≥200m |
|
Working Voltage |
AC220V/AC110V/DC48V/DC24V/DC12V |
|
Rated Power |
≤5W |
|
Working Temperature |
-40℃～80℃ |
|
Working Humidity |
≤97%RH[(40±1)℃, No Condensation] |
|
IP Rating |
IP65 |
|
Housing Material |
ABS, PC |
|
Product Dimension |
Diameter 210mm * Thickness 104mm |
|
Product Weight |
1.4 KG |
Product Applications
Certificates
Company Profile
Having been Involved in intelligent traffic industry for more than 30 years, Ulit Technology Inc. is a leading manufacturer of traffic intelligent control system, traffic signal and display equipment, a leading provider of city traffic centralized control software, a national high-tech enterprise and a listed enterprise of Beijing Stock Exchange. We have been providing products and services to customers in the USA, Mexico, Germany, Ireland, Romania, Greece, the Netherlands, Israel, Saudi Arabia, India, Vietnam, Singapore and many other countries. Our company always advocates customer focus and adheres corporate philosophy of "innovation transcends dreams and hard work creates value". We keep perfecting our core technology products over ten years and are always strenuously making continuous contribution for unblocked city!
Exhibitions
Production Process
FAQ
Q: Do your products come with accompanying software systems?
A: Yes. For products that require accompanying software, we provide our own proprietary software. Some of our products also support integration with software from other major manufacturers.
Q: How do you guarantee the quality of your products?
A: We have a very strict quality controlling system to ensure that all the products are delivered with high quality. Strict detection during each production step. Strict full inspection on products before shipment and intact product packaging ensured.
Q: Can you send me your catalogue?
A: Please send an email to our email address cqulit@sina.com for catalogue. We will reply you with our latest catalogue to your email.
Q: What's the price of the 200mm high flux bicycle traffic light module (single color)?
A: Price is negotiable. Based on different quantities and detailed requirements, the prices are a little different. Please kindly contact us for more detailed prices.
Q: Can I have some information about your scope of business?
A: Our company can provide various advanced products, whole solutions, software and services related to city traffic, such as traffic control platform, traffic light controllers, traffic lights, traffic signs, countdowns, LED screens, video detectors, speed signs and various solar lights.
