Product Overview

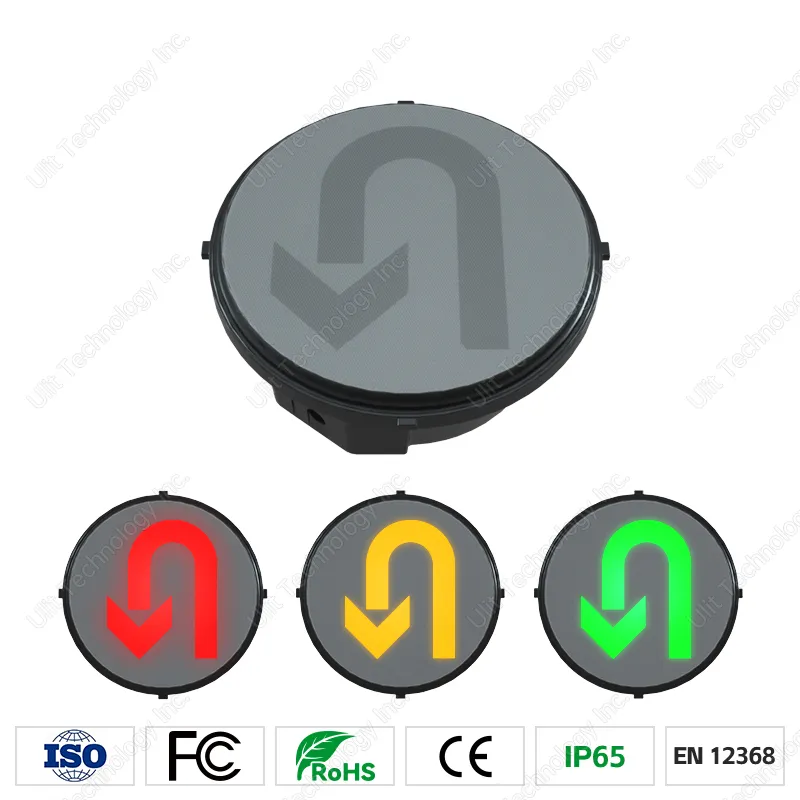

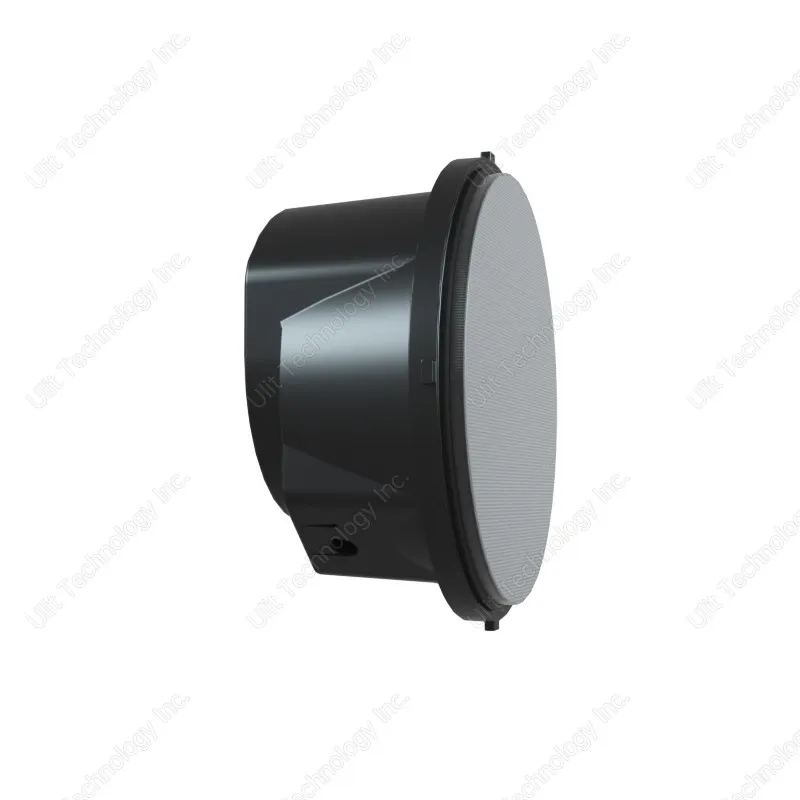

200mm High Flux U-Turn Traffic Light Module (Single Color)
The high-flux traffic light module is a small traffic light of diameter 200mm, a U-turn monochrome traffic light module. It features a monochrome display and is available in red, yellow, and green. Encapsulated in engineering plastic, it is light-weight and convenient to install, effectively resisting corrosion, impact, and rust. The surface light source is optimized with optical design based on the characteristics of the human eye, making it non-glaring.
Product Features
- Encapsulated in engineering plastic, it is light-weight and easy to install, effectively resisting corrosion, impact, and rust., and ensuring ultra-high safety of the product;
- Possess PLC communication function; Support remotely querying the operating state of traffic lights; Supports proactive reporting of issues such as simultaneous illumination of red and green lights, damaged LED light strings, and communication failures; Support luminance adjustment; (Optional)
- It uses a colorless mask with high light transmittance and strong UV resistance, and will not turn yellow or discolor throughout its entire lifespan;
- It uses high-quality CREE/OSRAM LED chips, which have excellent photoelectric conversion efficiency, low energy consumption; The LEDs have a lifespan of over ten years;
- The surface light source is optimized with optical design based on the characteristics of the human eye, making it non-glaring;
- Not only small traffic lights, we can also manufacture them to be other bigger sizes and different images.
Hot Tags: small traffic light, China small traffic light manufacturers, suppliers, factory
Technical Parameters
|
Product Name |
200mm High Flux U-Turn Traffic Light Module (Single Color) |
|
Display Content |
U-Turn |
|
Display Color |
Red, Yellow or Green |
|
LED Light Source |
CREE/OSRAM Hi-flux LED Chips |
|
LED Quantity |
6 |
|

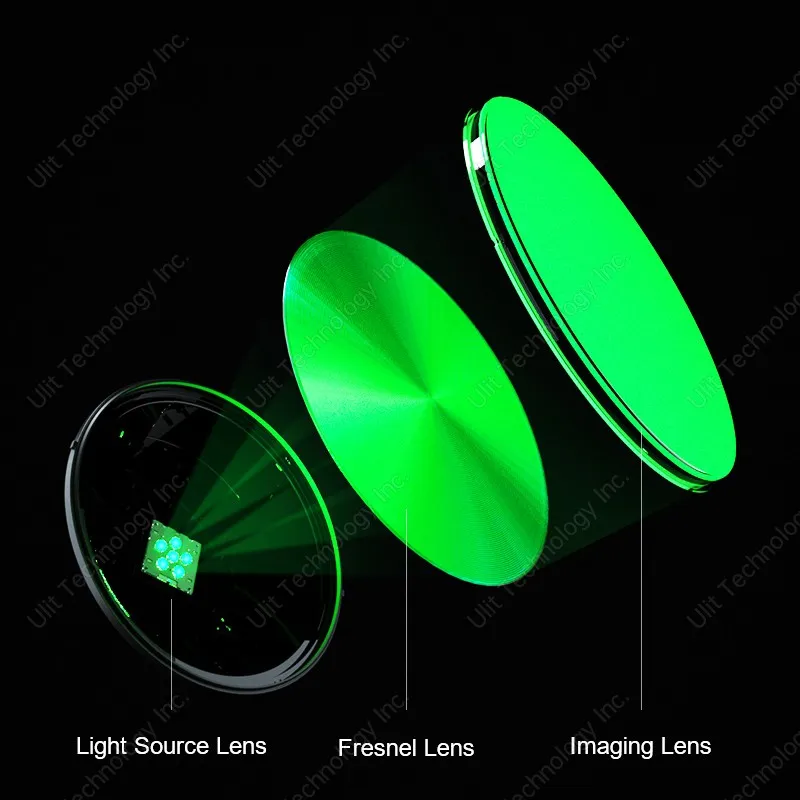

Optical Configuration |
Light Source Lens + Fresnel Lens + Imaging Lens |
|
Photoelectric Efficiency |
≥90 lm/W |
|
Display Size |
Φ200mm |
|
Viewing Distance |
≥200m |
|
Working Voltage |
AC220V/AC110V/DC48V/DC24V/DC12V |
|
Rated Power |
≤5W |
|
Working Temperature |
-40℃～80℃ |
|
Working Humidity |
≤97%RH[(40±1)℃, No Condensation] |
|
IP Rating |
IP65 |
|
Housing Material |
ABS, PC |
|
Product Dimension |
Diameter 210mm * Thickness 104mm |
|
Product Weight |
1.4 KG |
Product Applications
Certificates
Company Profile

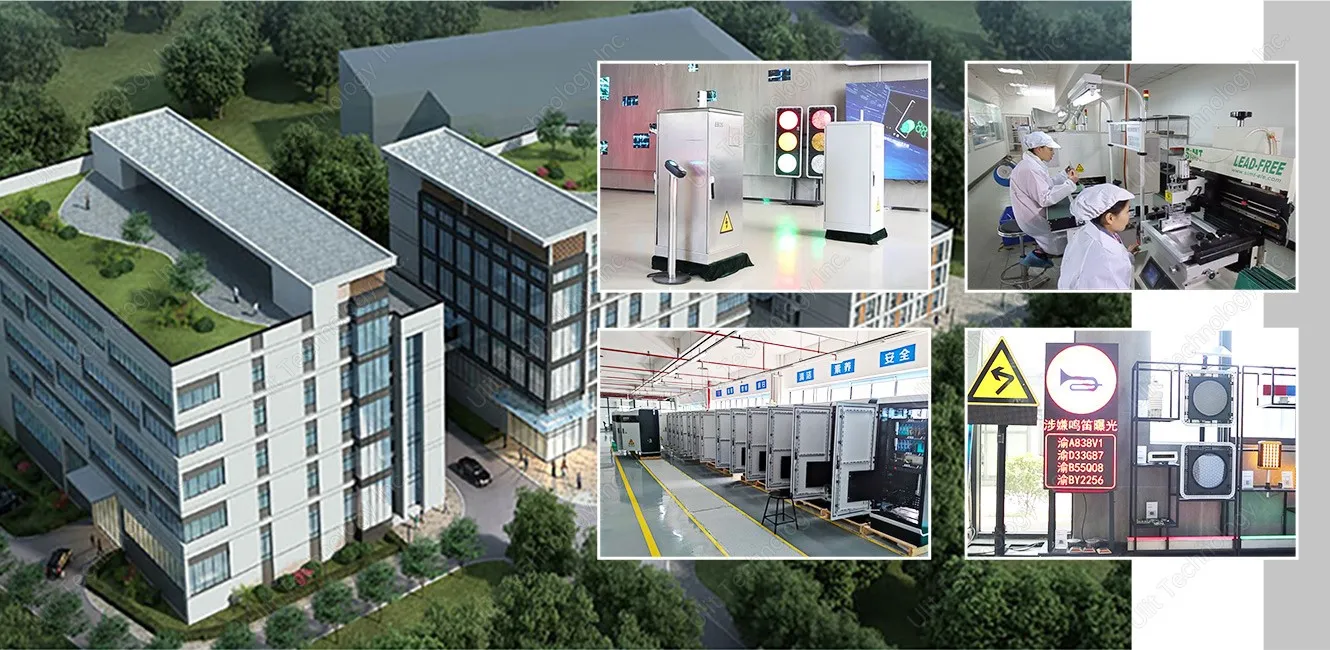

Located in Chongqing, China, Ulit Technology Inc. has been in intelligent traffic industry for more than 30 years with 15,000 square meter manufacturing base. With city intelligent traffic as main business, we can provide various advanced products, whole solutions, software and services related to city traffic, such as traffic control platform, traffic light controllers, traffic lights, traffic signs, countdowns, LED screens, video detectors, speed signs and various solar lights. With ISO 9001:2015 quality management system certification, our products comply with national standards and industry norms, as well as various international standards, such as CE, RoHS, FCC, EN12966 and EN12368. Strong support from our design and technology departments enables us to receive OEM and ODM projects.
Exhibitions
Production Workshop
FAQ
Q: Can I order a sample for testing?
A: Yes, we welcome sample orders to test. We can also make the samples exactly according to your detailed needs and requirements.
Q: How about your delivery time?
A: Typically, in-stock items can be shipped within 7-15 days after receiving the payment. The exact delivery time depends on the products and ordered quantities.
Q: How about the shipping method?
A: We can ship by sea, rail, and air. Samples are usually shipped via DHL, UPS, FedEx and other air transport methods.
Q: How about your warranty?
A: We offer a 2-year warranty and lifetime free remote technical support and service.
Q: How about the packages?
A: The products are first packed in cartons, and then the cartons are packed into standard export wooden cases.
