Product Overview

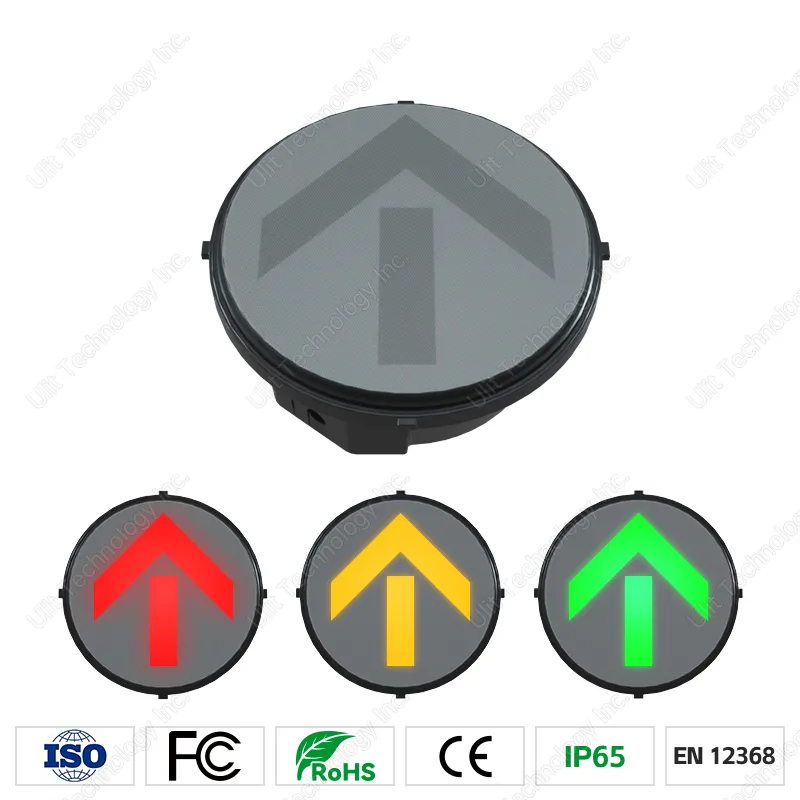

200mm High Flux Arrow Traffic Light Module (Single Color)
The Φ200mm high-flux arrow traffic light module is a single-color display module available in red signal light, yellow signal light, or green signal light. It features an engineering plastic housing, making it lightweight, corrosion-resistant, and easy to install. It utilizes high-quality, high-flux LED light-emitting units with high photoelectric conversion efficiency and lower power consumption. The optical design creates a surface light source that is more comfortable for human vision, preventing glare and dazzling effects.
Product Features
- Encapsulated in engineering plastic, lightweight, highly shock-resistant, corrosion-resistant, and rust-free, ensuring superior product safety;
- Uses internationally renowned LEDs, offering higher photoelectric conversion efficiency, with LEDs in the light-emitting unit having a lifespan of over 10 years;
- It features PLC communication functionality, supporting remote querying of signal light operating status; supports proactive reporting of faults such as module not lighting, simultaneous red and green lights between modules, damaged light strings, and communication issues; supports brightness adjustment, allowing for step-by-step brightness adjustment based on environmental sensor data, ensuring glare-free operation at night (optional IoT kit for use with IoT-enabled traffic light controllers).
- Each module has one color, which can be assembled into red signal light, yellow signal light, or green signal light;
- The light lens uses a high-transmittance, colorless, UV-resistant mask that will not yellow or discolor throughout the lamp's lifespan;
- The surface light source better conforms to human visual characteristics, being neither dazzling nor glaring
Hot Tags: green signal light, China green signal light manufacturers, suppliers, factory, 200mm arrow traffic signal, 200mm green led traffic light, 200mm led traffic signal head, 200mm red led traffic light, 200mm solar traffic signal, 200mm yellow traffic signal
Technical Parameters
|
Product Name |
200mm High Flux Arrow Traffic Light Module (Single Color) |
|
Display Content |
Arrow |
|
Display Color |
Red, Yellow or Green |
|
LED Light Source |
CREE/OSRAM Hi-flux LED Chips |
|
LED Quantity |
6 |
|

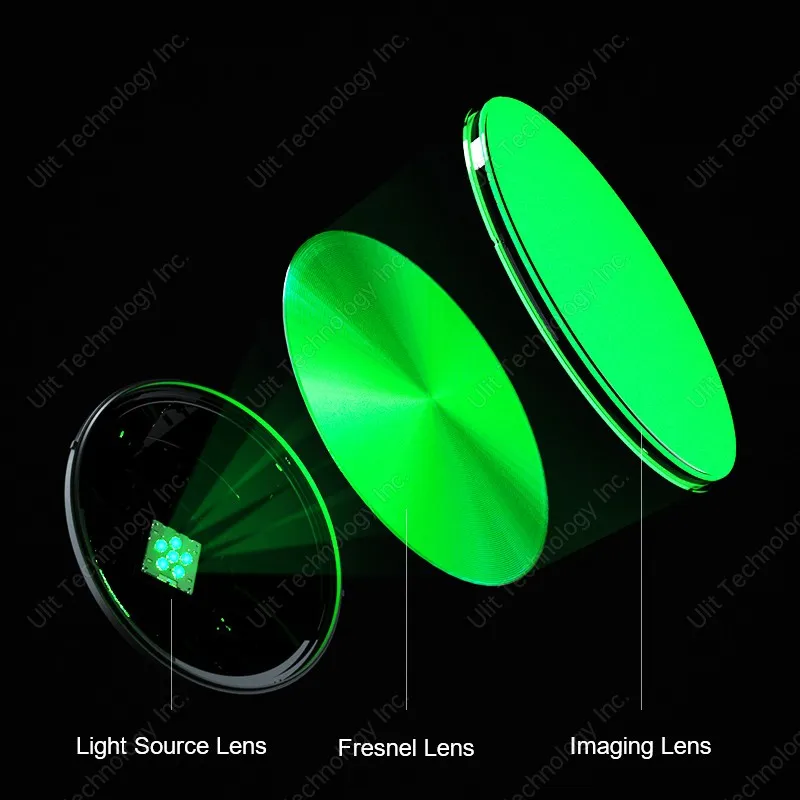

Optical Configuration |
Light Source Lens + Fresnel Lens + Imaging Lens |
|
Photoelectric Efficiency |
≥90 lm/W |
|
Display Size |
Φ200mm |
|
Viewing Distance |
≥200m |
|
Working Voltage |
AC220V/AC110V/DC48V/DC24V/DC12V |
|
Rated Power |
≤5W |
|
Working Temperature |
-40℃～80℃ |
|
Working Humidity |
≤97%RH[(40±1)℃, No Condensation] |
|
IP Rating |
IP65 |
|
Housing Material |
ABS, PC |
|
Product Dimension |
Diameter 210mm * Thickness 104mm |
|
Product Weight |
1.4 KG |
Product Applications
Certificates

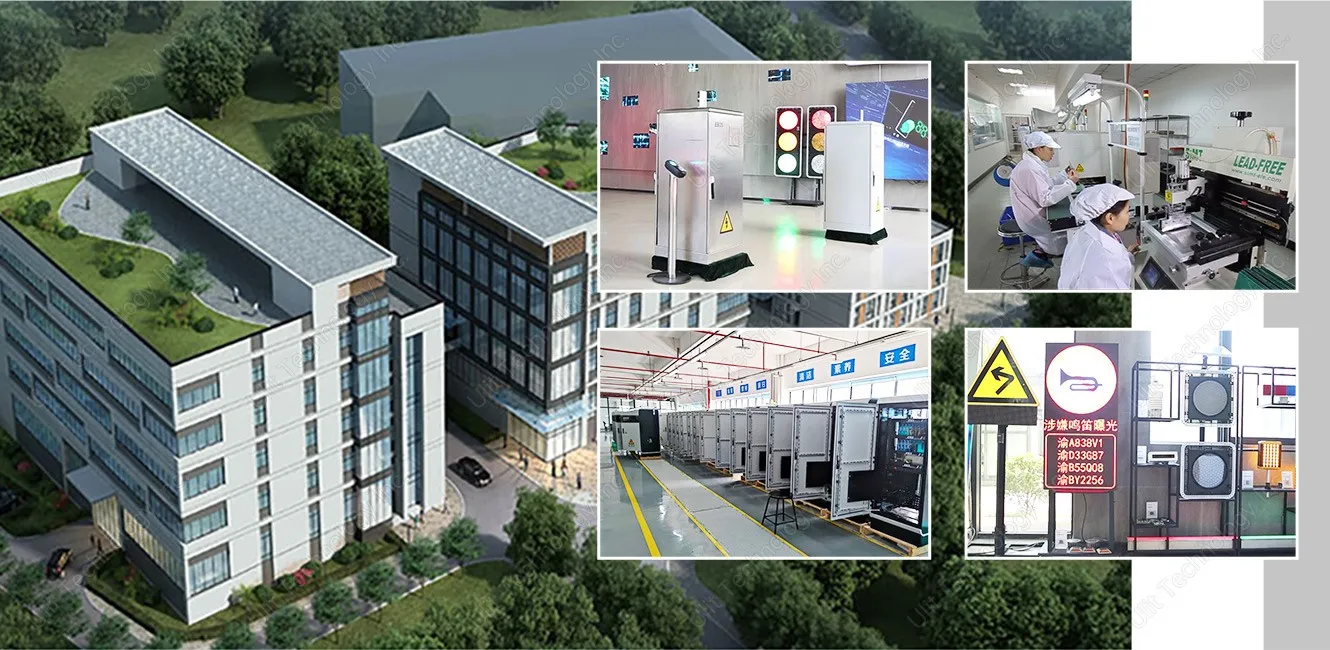

Company Profile
We have been deeply involved in intelligent traffic industry for over 30 years with 15,000 square meter manufacturing base. As a leading manufacturer of traffic intelligent control system, traffic signal and display equipment, a leading provider of city traffic centralized control software, a national high-tech enterprise and a listed enterprise of Beijing Stock Exchange, we also supply OEM/ODM services. Certified by ISO/CE, our products are sold to more than 30 countries, including the USA, Mexico, Germany, Ireland, Romania, Greece, the Netherlands, Israel, Saudi Arabia and so on.
Exhibitions

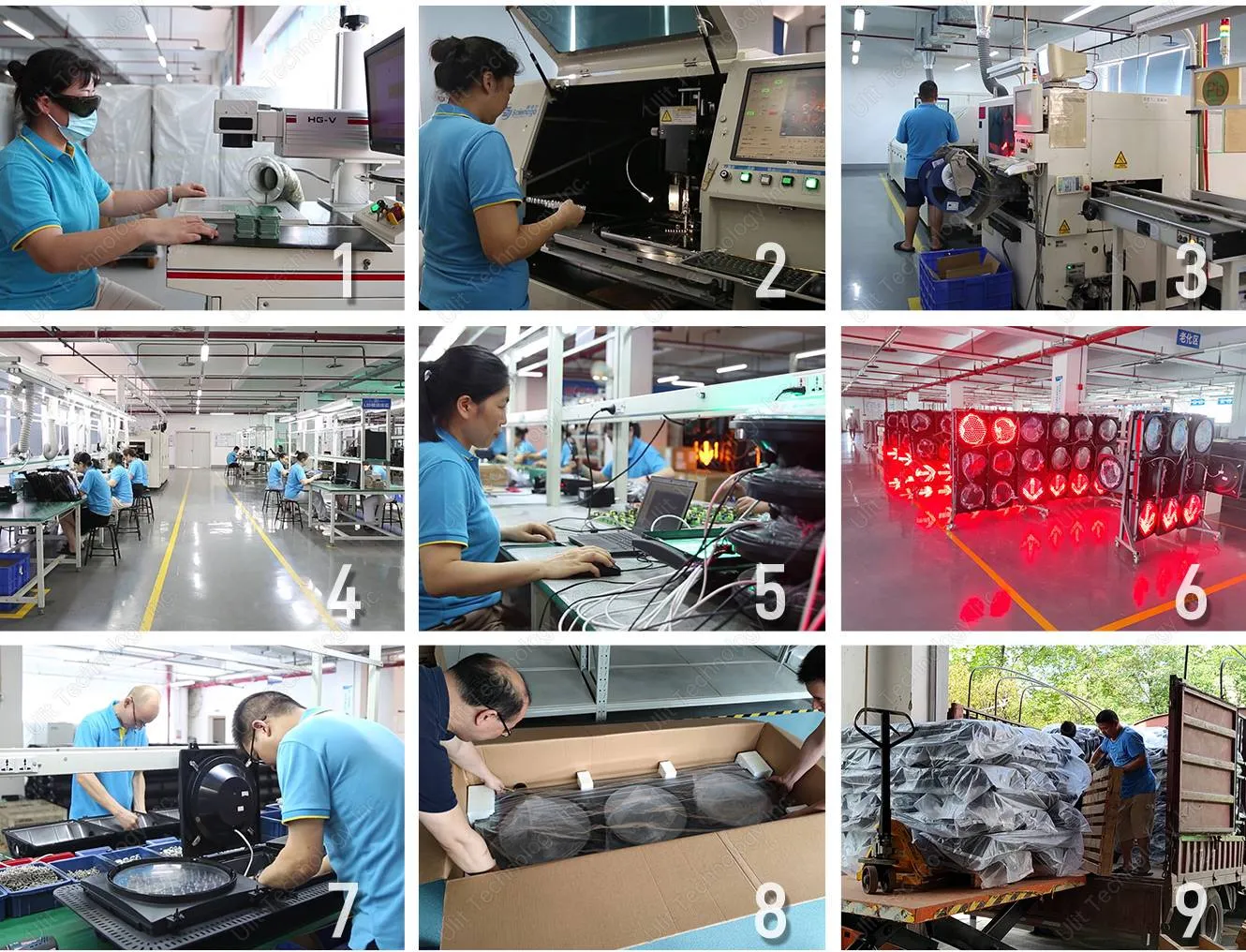

Production Process
FAQ
Q: Are you a factory?
A: Yes. We are a leading manufacturer of LED traffic signal products and intelligent traffic equipment, and a leading IoT (Internet of Things) solution provider in China.
Q: What are your best-selling products?
A: Traffic lights, traffic signs, traffic light systems, LED screens, traffic warning lights, radar speed signs, traffic light controllers, etc..
Q: Which certifications do you have?
A: CE, RoHS, FCC, EN12368, EN12966, IP65, MTC, ISO9001:2015, ISO14001:2015, CMMI-5, CCC and so on.
Q: Whether you could make our brand on your products?
A: Yes. Our R&D department provide strong technical support and enable us to receive OEM and ODM projects.
Q: What's your payment clause and delivery terms?
A: Payment Clause: T/T, L/C, Paypal, Western Union and so on.
Delivery Terms: EXW, FOB, CFR, CIF, DAP, DDP.
