Product Overview

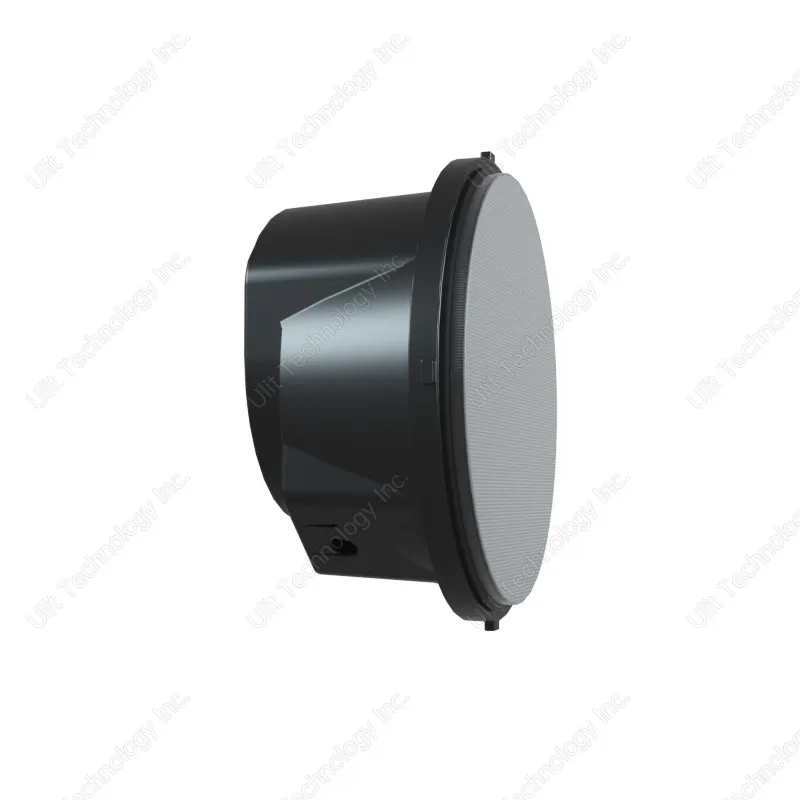

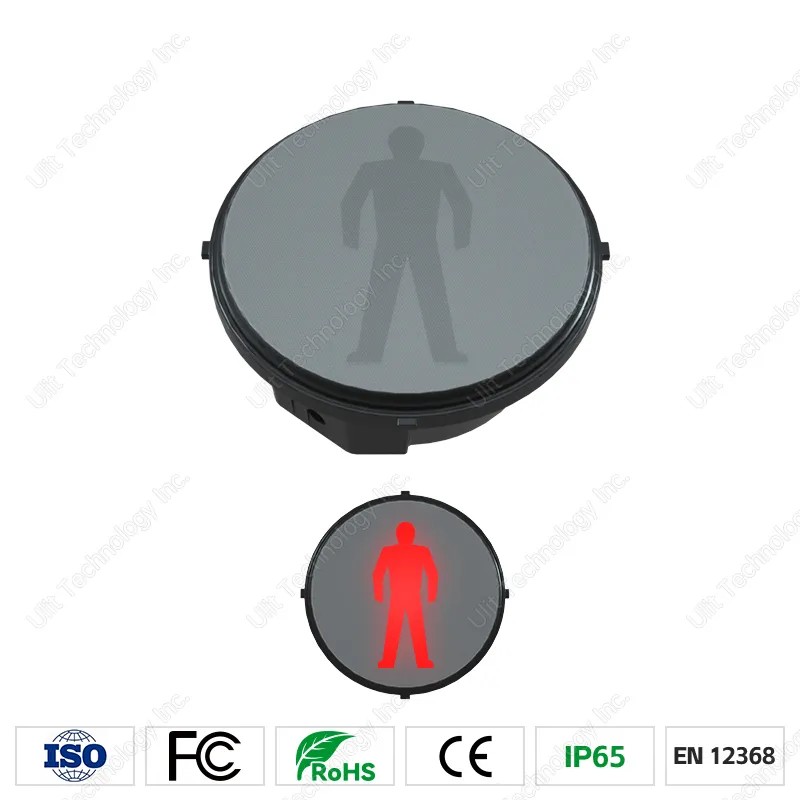

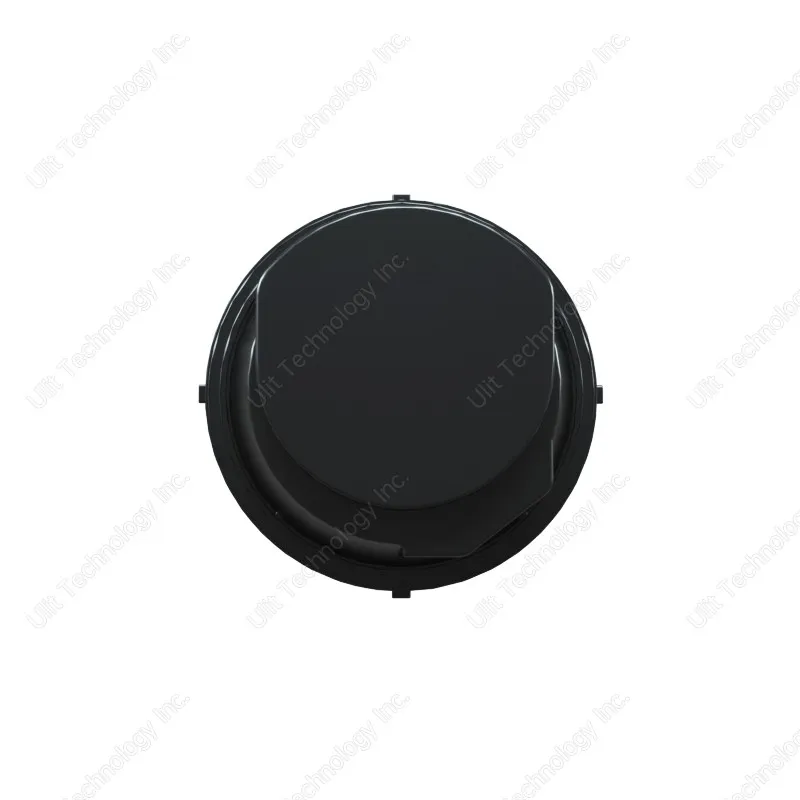

200mm Red High Flux Pedestrian Traffic Light Module
Red pedestrian light module for cross traffic light is encapsulated in engineering plastic, making it lightweight, corrosion-resistant, and impact-resistant, and convenient to install. It use high-quality, high-flux LED light-emitting elements, featuring high photoelectric conversion efficiency and low power consumption. Optimized optical design matches human visual characteristics, providing a surface light source that is not glaring. It complies with CE, RoHS, FCC, and EN12368 certifications.
Product Features
- The cross traffic light is encapsulated in engineering plastic, making it lightweight, corrosion-resistant, impact-resistant, rust-free, and highly safe, suitable for long-term outdoor use;
- Its light lens uses a colorless mask with UV resistance and high light transmittance, which will not yellow or discolor during its service life;
- The high-flux red pedestrian module adopts internationally renowned CREE/OSRAM LED chips, which have high photoelectric conversion efficiency and low energy consumption; The LEDs in the light-emitting unit have a lifespan of over ten years;
- Optimized optical design matches human visual characteristics, providing a surface light source that is not glaring;
- Optional PLC communication function; Support remote query of the operating status of cross traffic light; Support the active reporting of faults in traffic light modules; Support gradual adjustment of brightness, not dazzling at night.
Hot Tags: cross traffic light, China cross traffic light manufacturers, suppliers, factory
Technical Parameters
|
Product Name |
200mm Red High Flux Pedestrian Traffic Light Module |
|
Display Content |
Red Pedestrian |
|
Display Color |
Red |
|
LED Light Source |
CREE/OSRAM Hi-flux LED Chips |
|
LED Quantity |
6 |
|
Optical Configuration |

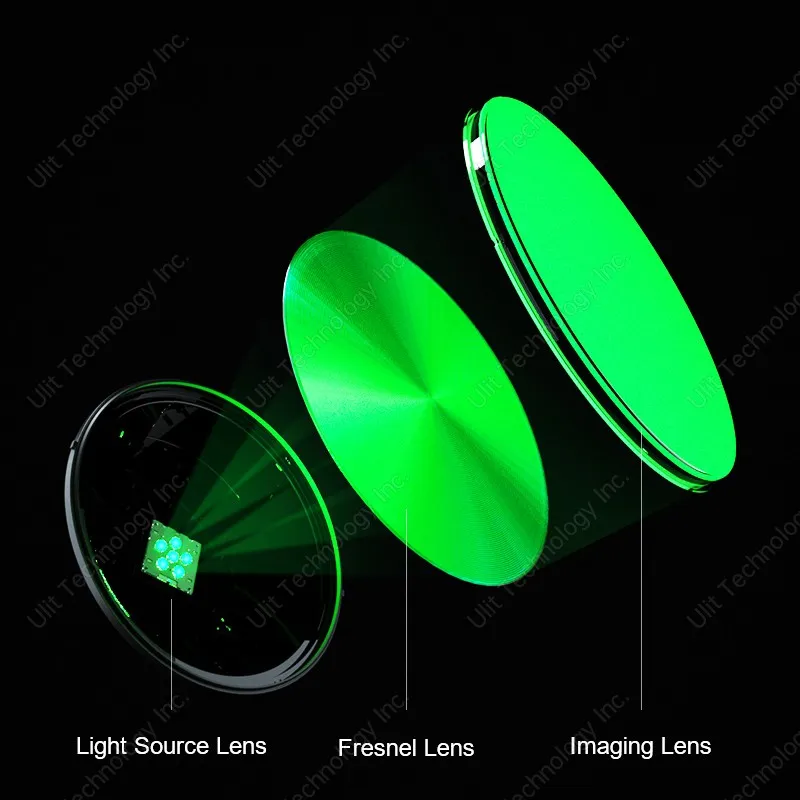

Light Source Lens + Fresnel Lens + Imaging Lens |
|
Photoelectric Efficiency |
≥90 lm/W |
|
Display Size |
Φ200mm |
|
Viewing Distance |
≥200m |
|
Working Voltage |
AC220V/AC110V/DC48V/DC24V/DC12V |
|
Rated Power |
≤5W |
|
Working Temperature |
-40℃～80℃ |
|
Working Humidity |
≤97%RH[(40±1)℃, No Condensation] |
|
IP Rating |
IP65 |
|
Housing Material |
ABS, PC |
|
Product Dimension |
Diameter 210mm * Thickness 104mm |
|
Product Weight |
1.4 KG |
Product Applications
Certificates
Company Profile
Ulit Technology Inc. has been deeply involved in the intelligent traffic industry for over 30 years, boasting a 15,000-square-meter production base. With urban intelligent traffic as our core business, our company provides a variety of advanced products, integrated solutions, software, and services, covering traffic control platforms, traffic light controllers, traffic lights, traffic signs, countdown timers, LED displays, video detectors, speed signs, and various solar lighting equipment. We also offer OEM/ODM services. Our products have passed multiple international certifications, including ISO/CE, RoHS, FCC, EN12368, and EN12966, and are exported to more than 30 countries and regions, including Mexico, the United States, Germany, Ireland, Romania, Greece, the Netherlands, Israel, and Saudi Arabia.
Exhibitions
Production Workshop
FAQ
Q: Can I have a sample?
A: Of course, we support sample orders.
Q: What's the delivery time?
A: Shipping time depends on the specifications of the products you order. For in-stock products, shipping usually takes around 7-15 days. For customized products, the production time is typically around 30 days.
Q: Which city or port do you ship from?
A: Our main manufacturing plant is in Chongqing, but we also have branch offices in other cities. We can ship from all major ports and cities in China.
Q: Do you have any MOQ limit?
A: Our company supports testing with one or more samples, and we can also customize samples according to your specific requirements. There is no minimum order quantity (MOQ) limit.
Q: Do you offer after-sales service?
A: Most of our products come with a 2-year warranty. If a product experiences a quality issue within the warranty period, we will send you replacement parts free of charge. After the warranty period expires, we will continue to provide free lifetime remote technical support and service.
