Product Overview

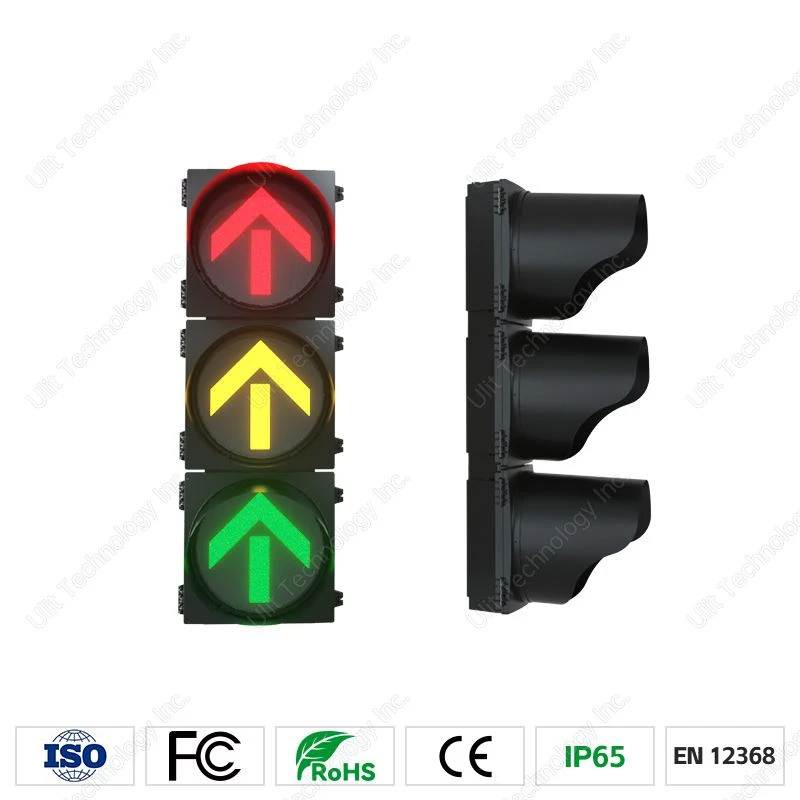

300mm High Flux Arrow Traffic Light
The high-flux arrow traffic light includes three separate arrow lamp panels, each Ф300mm in diameter, displaying different colors, serving as important traffic signals. High-quality high-flux LED chips offer high photoelectric conversion efficiency and lower power consumption. The area light source conforms to the visual characteristics of the human body and is not glaring. The PC housing boasts high strength and hardness, providing better heat resistance, impact resistance, corrosion resistance, and aging resistance. It is certified by CE, RoHS, FCC, and EN 12368.
Product Features
The PC housing boasts high strength and hardness, providing better heat resistance, impact resistance, corrosion resistance, and aging resistance, ensuring exceptional safety of the important traffic signals;
Adopt internationally renowned (CREE/OSRAM) LED chips with higher photoelectricity conversion rate, and the LED service life is over 10 years;
The UV-resistant, high-transmittance, colorless PC mask will not yellow or change color throughout the entire lamp's lifespan;
Area light source conforms to the visual characteristics of human body better, no dazzling.
- Stainless steel strip as installation accessories, steady and anti-corrosion, no risk of falling off;
- Back frame design; Can be installed horizontally or vertically; Each lamp panel can be opened independently; The lamp body can be adjusted from left to right, upward and downward, with adjustment angle equal or greater than 30°;
- It has PLC communication function; Support remote query of traffic light operation status; Support active reporting of faults such as traffic lights not working, red light and green light being on simultaneously, damaged light strings, communication issues and so on; Support adjusting brightness. (Optional)
Hot Tags: important traffic signals, China important traffic signals manufacturers, suppliers, factory
Product Parameters
|
Product Name |
300mm High Flux Arrow Traffic Light |
| Display Content | Arrow |
| LED Light Source | CREE/OSRAM Hi-flux LED Chips |
| LED Quantity | 6 |
| Optical Configuration | Light Source Lens + Fresnel Lens + Imaging Lens |
| Photoelectric Efficiency | ≥90 lm/W |
| Communication Mode | HiPLC (Optional) |
| Light Panel Size | Φ300mm |
| Viewing Angle | 30° |
| Viewing Distance | ≥300m |
| Working Voltage | AC220V/AC110V/DC48V/DC24V/DC12V |
| Rated Power | ≤6W |
| Working Temperature | -40℃～80℃ |
| IP Rating | IP65 |
| Overall Dimensions | Length 1,198mm * Width 480mm * Height 339mm (including the visor and the frame) |
| Housing Material | PC |
| Net Weight | 7.5KG |
| Installation Method | Back Frame (stainless steel strip and functional fastener) |
Product Applications
Certificates
Company Profile
Having been Involved in intelligent traffic industry for more than 30 years, Ulit Technology Inc. is a leading manufacturer of traffic intelligent control system, traffic signal and display equipment, a leading provider of city traffic centralized control software, a national high-tech enterprise and a listed enterprise of Beijing Stock Exchange. We have been providing products and services to customers in the USA, Mexico, Germany, Ireland, Romania, Greece, the Netherlands, Israel, Saudi Arabia, India, Vietnam, Singapore and many other countries. Our company always advocates customer focus and adheres corporate philosophy of "innovation transcends dreams and hard work creates value". We keep perfecting our core technology products over ten years and are always strenuously making continuous contribution for unblocked city!
Trade Shows
Production Workshop
FAQs
Q: Do your products come with accompanying software systems?
A: Yes. For products that require accompanying software, we provide our own proprietary software. Some of our products also support integration with software from other major manufacturers.
Q: How do you guarantee the quality of your products?
A: We have a very strict quality controlling system to ensure that all the products are delivered with high quality. Strict detection during each production step. Strict full inspection on products before shipment and intact product packaging ensured.
Q: Can you send me your catalogue?
A: Please send an email to our email address cqulit@sina.com for catalogue. We will reply you with our latest catalogue to your email.
Q: What's the price of the important traffic signals?
A: Price is negotiable. Based on different quantities and detailed requirements, the prices are a little different. Please kindly contact us for more detailed prices.
Q: Can I have some information about your scope of business?
A: Our company can provide various advanced products, whole solutions, software and services related to city traffic, such as traffic control platform, traffic light controllers, traffic lights, traffic signs, countdowns, LED screens, video detectors, speed signs and various solar lights.
