Product Overview
300mm High Flux U-turn Traffic Light
The 300mm U-turn traffic light is composed of a red U-turn lamp panel, a yellow U-turn lamp panel, and a green U-turn lamp panel, which are arranged in geometric positions. It can be used as various intersection traffic lights such as roundabout traffic lights. It adopts premium high flux LED light-emitting components, featuring higher photoelectric conversion efficiency and lower power consumption. The light source adopts an optical design, and the area light source is more in line with the characteristics of human vision and will not cause glare. The outer shell is made of specialized PC material, featuring high strength and hardness, as well as better heat resistance, impact resistance, corrosion resistance and aging resistance. Passed CE, RoHS, FCC and EN 12368 certifications.
Product Features
The high-strength and high-hardness PC outer shell has better heat resistance, impact resistance, corrosion resistance, and aging resistance, ensuring product safety.
Adopt internationally renowned (CREE/OSRAM) LED chips with higher photoelectricity conversion rate; The lifespan of LEDs in the light-emitting unit is more than 10 years;
The light lens uses colorless PC mask, which is UV resistant, has high light transmittance, and will not yellow or change color during the lamp's entire lifespan;
The light source adopts an optical design, and the area light source is more in line with the characteristics of human vision and will not cause glare;
- Stainless steel strip as installation accessories, steady and anti-corrosive, no risk of falling off;
- Back frame design; Support horizontal or vertical installation; Each lamp panel can be opened individually; The lamp body can be adjusted from left to right and upward to downward at an angle of ≥30°;
- Optional PLC communication function; Support remotely querying the operating state of the roundabout traffic lights; Support proactively reporting failures; Support luminance adjustment.
Hot Tags: roundabout traffic lights, China roundabout traffic lights manufacturers, suppliers, factory
Product Parameters
|
Product Name |
300mm High Flux U-turn Traffic Light |
| Display Content | U-turn |
| LED Light Source | CREE/OSRAM Hi-flux LED Chips |
| LED Quantity | 6 |

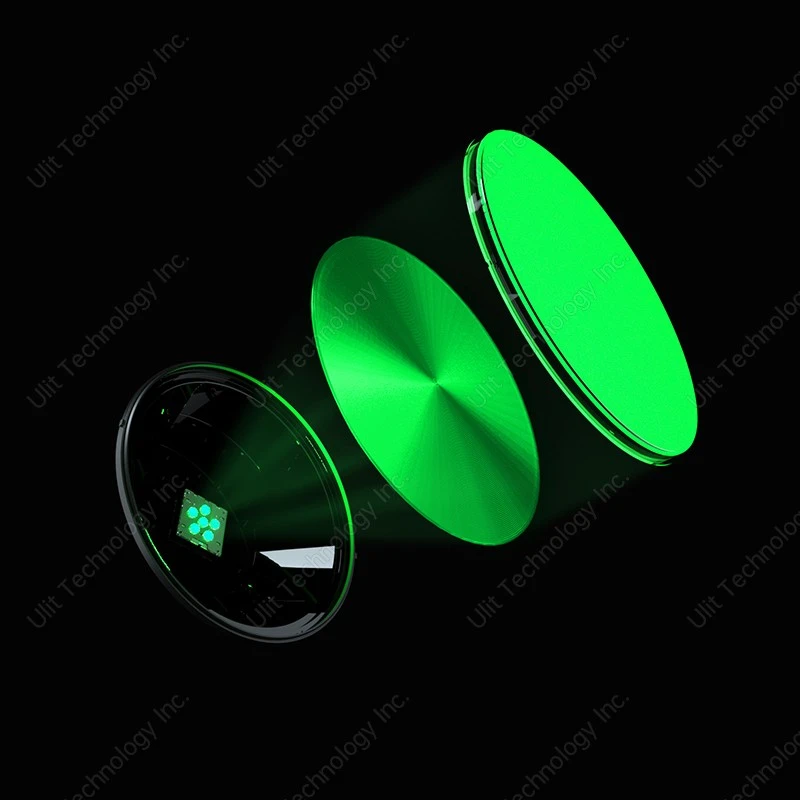

| Optical Configuration | Light Source Lens + Fresnel Lens + Imaging Lens |
| Photoelectric Efficiency | ≥90 lm/W |
| Communication Mode | HiPLC (Optional) |
| Light Panel Size | Φ300mm |
| Viewing Angle | 30° |
| Viewing Distance | ≥300m |
| Working Voltage | AC220V/AC110V/DC48V/DC24V/DC12V |
| Rated Power | ≤6W |
| Working Temperature | -40℃～80℃ |
| IP Rating | IP65 |
| Overall Dimensions | Length 1,198mm * Width 480mm * Height 339mm (including the visor and the frame) |
| Housing Material | PC |
| Net Weight | 7.5KG |
| Installation Method | Back Frame (stainless steel strip and functional fastener) |
Product Applications
Certificates
Company Profile
Located in Chongqing, China, Ulit Technology Inc. has been in intelligent traffic industry for more than 30 years with 15,000 square meter manufacturing base. With city intelligent traffic as main business, we can provide various advanced products, whole solutions, software and services related to city traffic, such as traffic control platform, traffic light controllers, traffic lights, traffic signs, countdowns, LED screens, video detectors, speed signs and various solar lights. With ISO 9001:2015 quality management system certification, our products comply with national standards and industry norms, as well as various international standards, such as CE, RoHS, FCC, EN12966 and EN12368. Strong support from our design and technology departments enables us to receive OEM and ODM projects.
Trade Shows
Production Workshop
FAQs
Q: Can I order a sample for testing?
A: Yes, we welcome sample orders to test. We can also make the samples exactly according to your detailed needs and requirements.
Q: How about your delivery time?
A: Shipping time depends on the specifications of the products you order. For in-stock products, shipping usually takes around 7-15 days. For customized products, the production time is typically around 30 days.
Q: How about the shipping method?
A: We can ship by sea, rail, and air. Samples are usually shipped via DHL, UPS, FedEx and other air transport methods.
Q: How about your warranty?
A: We offer a 2-year warranty and lifetime free remote technical support and service.
Q: How about the packages?
A: The products are first packed in cartons, and then the cartons are packed into standard export wooden cases.
