Product Overview

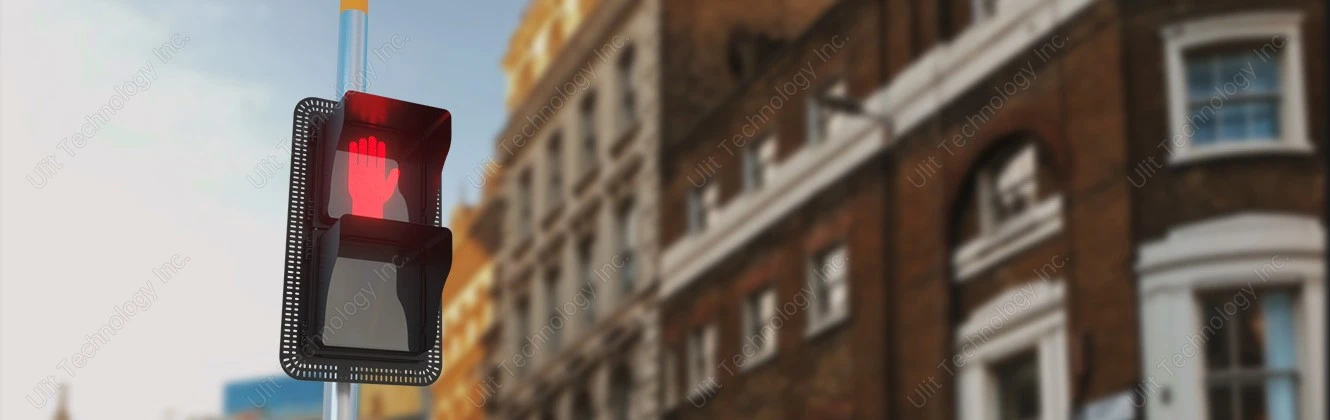

300*300mm High Flux Pedestrian and Hand Traffic Light
The pedestrian walking signal light consists of one 300*300mm traffic light with pedestrian image and one 300*300mm traffic light with hand image, two colors, separate light panels in geometric position. It also uses high-quality, high-flux LED light-emitting elements; High photoelectric conversion rate and low power consumption; Adopt optical design; Area light source conforms to the visual characteristics of human body better, no dazzling; The use of specialized PC material provides a high-strength, high-hardness housing with heat-resistant, impact-resistant, corrosion-resistant and aging-resistant properties.
Product Features
- The use of specialized PC material provides a high-strength, high-hardness housing with heat-resistant, impact-resistant, corrosion-resistant and aging-resistant properties;
- Stainless steel strips are used as installation accessories, ensuring a firm installation effect and corrosion resistance. There is no risk of the pedestrian walking signal light accidentally falling;
- Back frame design; Can be installed horizontally or vertically; Each lamp panel can be opened independently; The lamp body can be adjusted from left to right, upward and downward, with adjustment angle equal or greater than 30°;
- The light lens adopts anti-ultraviolet high light transmittance colorless PC mask, no yellowing or discoloration during the whole lifespan;
- Adopt internationally renowned (CREE/OSRAM) LED chips with higher photoelectricity conversion rate; The lifespan of LEDs in the light-emitting unit is more than 10 years;
- Possess PLC communication function; Support remotely querying the operating state of traffic lights; Support proactively reporting failures; Support adjusting luminance; (Optional)
- Area light source conforms to the visual characteristics of human body better, no dazzling.
Hot Tags: walking signal light, China walking signal light manufacturers, suppliers, factory, 300mm green traffic light, traffic light pole
Product Parameters
|
Product Name |
300*300mm High Flux Pedestrian and Hand Traffic Light |
| Display Content | Pedestrian and Hand |
| LED Light Source | CREE/OSRAM Hi-flux LED Chips |
| LED Quantity | 6 |
| Optical Configuration | Light Source Lens + Fresnel Lens + Imaging Lens |
| Photoelectric Efficiency | ≥90 lm/W |
| Light Panel Size | 300*300mm |
| Viewing Angle | 30° |
| Viewing Distance | ≥300m |
| Working Voltage | AC220V/AC110V/DC48V/DC24V/DC12V |
| Rated Power | ≤6W |
| Working Temperature | -40℃～80℃ |
| Working Humidity | ≤97%RH[(40±1)℃, No Condensation] |
| IP Rating | IP65 |
| Overall Dimensions | Length 845mm * Width 480mm * Height 339mm (including the visor and the frame) |
| Housing Material | PC |
| Net Weight | 6KG |
| Installation Method | Pole Type (stainless steel strip + functional fastener) |
