Product Overview

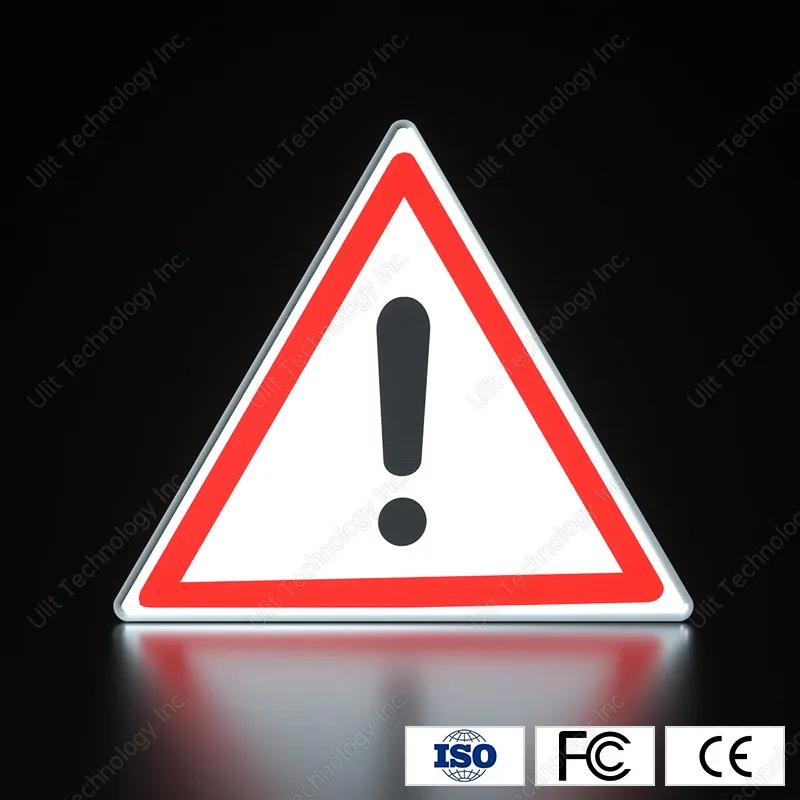

△700mm Warning LED Active Luminous Traffic Signs
The △700mm warning LED active luminous traffic sign is a traffic sign designed to improve driving safety on roads with poor visibility. The traffiic sign uses high-efficiency LED light source plate, combined with microprism reflective film, allowing light to fully penetrate the sign's base plate, text strokes, and graphic outlines, thus clearly and conspicuously displaying the warning information. In low-visibility environments such as fog, haze, and nighttime, it provides drivers with effective visual warnings and safety assurance.
Product Features
- The traffic sign adopts full penetration type active luminous design, with completely seamless light-transmitting faceplate;
- Unique optical refraction design, a traffic sign panel displays no shadow and has balanced brightness;
- The light-emitting components have strong penetrability and long visual range, meeting the needs of various low visibility and harsh weather conditions;
- Low power consumption, high efficiency, light decay≤8%;
- Support protocol docking and IoT application extension;
- Support adjusting the own brightness automatically according to the ambient brightness;
Hot Tags: a traffic sign, China a traffic sign manufacturers, suppliers, factory
Technical Parameters
|
Product Name |
△700mm Warning LED Active Luminous Traffic Signs |
|
Reflective Film Grade |
Microprism Reflective Film |
|
Structure Material |
Aluminium Profile |
|
Overall Size |
Triangle, Side Length 700mm |
|
Luminance |
≥150cd/㎡, Support adjusting the luminance automatically according to the ambient brightness |
|
Visual Cognition Distance |
Static State≥250m, Dynamic State≥210m |
|
Visual Cognition Angle |
≥30° |
|
Uniformity of Luminance |
the non-uniformity of normal luminous intensity between the same color light-emitting unit pixels ≤5% |
|
Reliability |
Mean Time Between Failures (MTBF) ≥25,000h |
|
Light Attenuation |
50,000h≤8%; Attenuation Consistency ≤±5% |
|
Extension |
Support protocol docking; Support IoT application extension. |
|
Power Supply |
AC220V±15, 50HZ/60Hz; Solar power is supported. |
|
Average Power Consumption |
≤20W |
|
Working Temperature |
-20℃～55℃ |
|
Working Humidity |
≤98%RH(40℃, No Condensation) |
|
Thickness |
60mm |
|
IP Rating |
IP55 |
|
Installation Method |
Single Pole Type/Outdoor Cantilever Type |
Product Applications
Certificates
Company Profile
We have been deeply involved in intelligent traffic industry for over 30 years with 15,000 square meter manufacturing base. As a leading manufacturer of traffic intelligent control system, traffic signal and display equipment, a leading provider of city traffic centralized control software, a national high-tech enterprise and a listed enterprise of Beijing Stock Exchange, we also supply OEM/ODM services. Certified by ISO/CE, our products are sold to more than 30 countries, including the USA, Mexico, Germany, Ireland, Romania, Greece, the Netherlands, Israel, Saudi Arabia and so on.
Exhibitions

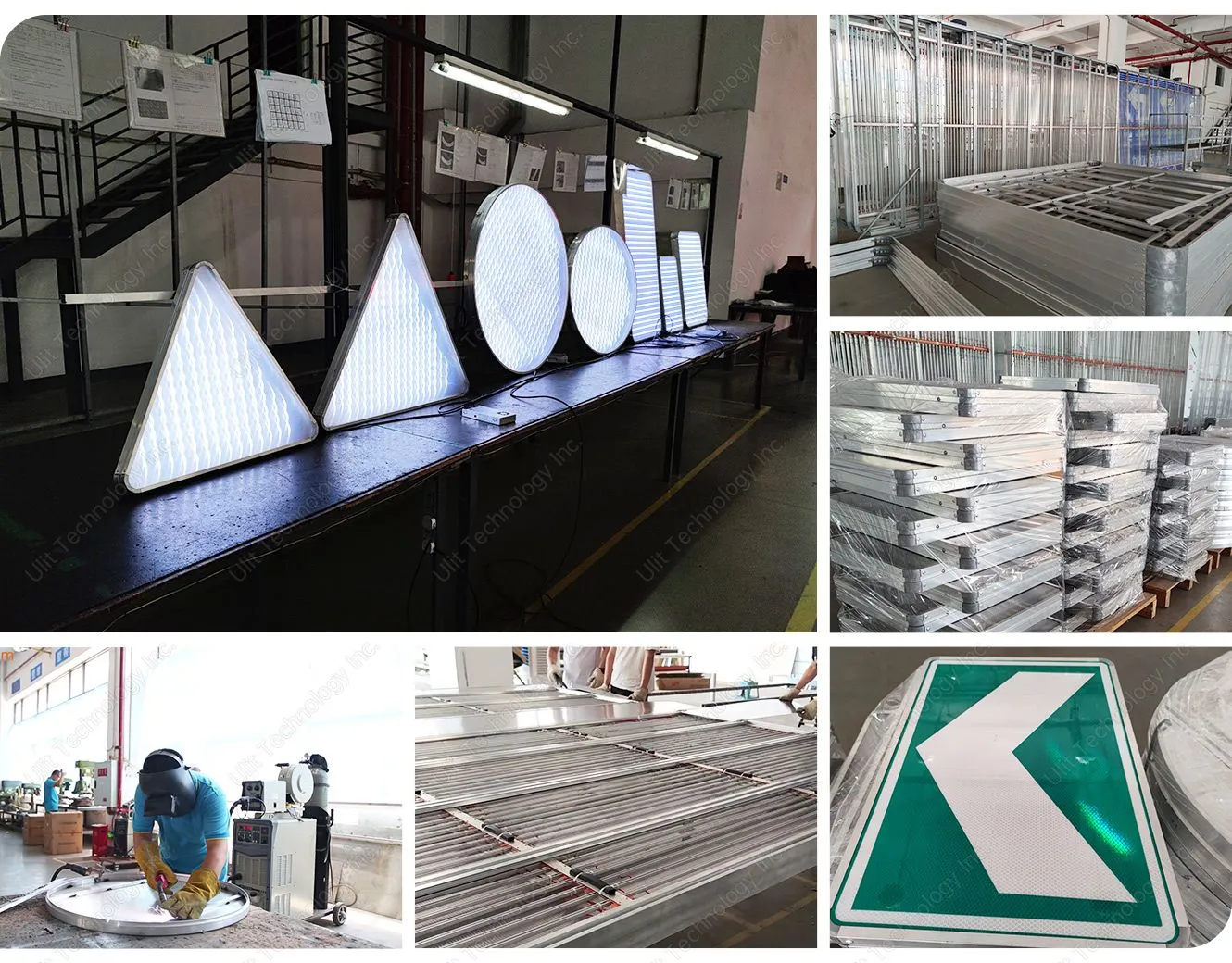

Production Workshop
FAQ
Q: Are you a factory?
A: Yes. We are a leading manufacturer of LED traffic signal products and intelligent traffic equipment, and a leading IoT (Internet of Things) solution provider in China.
Q: What are your best-selling products?
A: Traffic lights, traffic signs, traffic light systems, LED screens, traffic warning lights, radar speed signs, traffic light controllers, etc..
Q: Which certifications do you have?
A: CE, RoHS, FCC, EN12368, EN12966, IP65, MTC, ISO9001:2015, ISO14001:2015, CMMI-5, CCC and so on.
Q: Whether you could make our brand on your products?
A: Yes. Our R&D department provide strong technical support and enable us to receive OEM and ODM projects.
Q: What's your payment clause and delivery terms?
A: Payment Clause: T/T, L/C, Paypal, Western Union and so on.
Delivery Terms: EXW, FOB, CFR, CIF, DAP, DDP.
