Product Overview

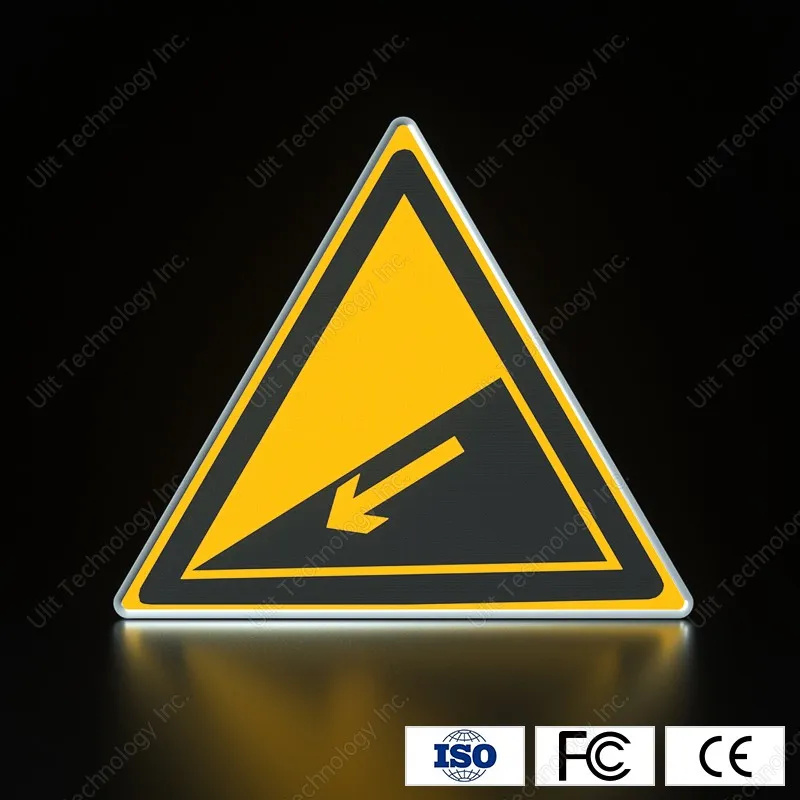

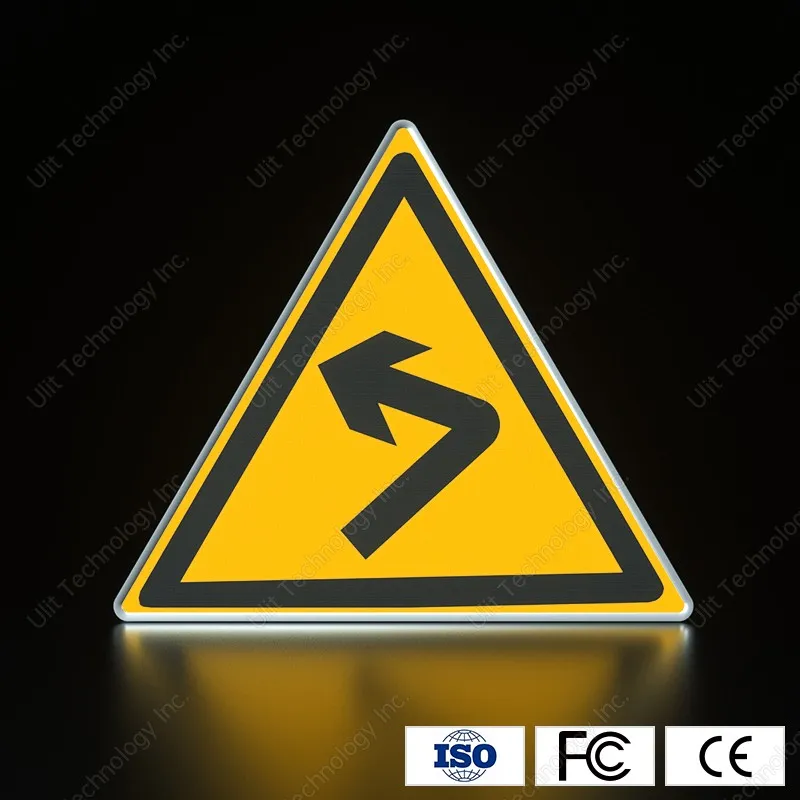

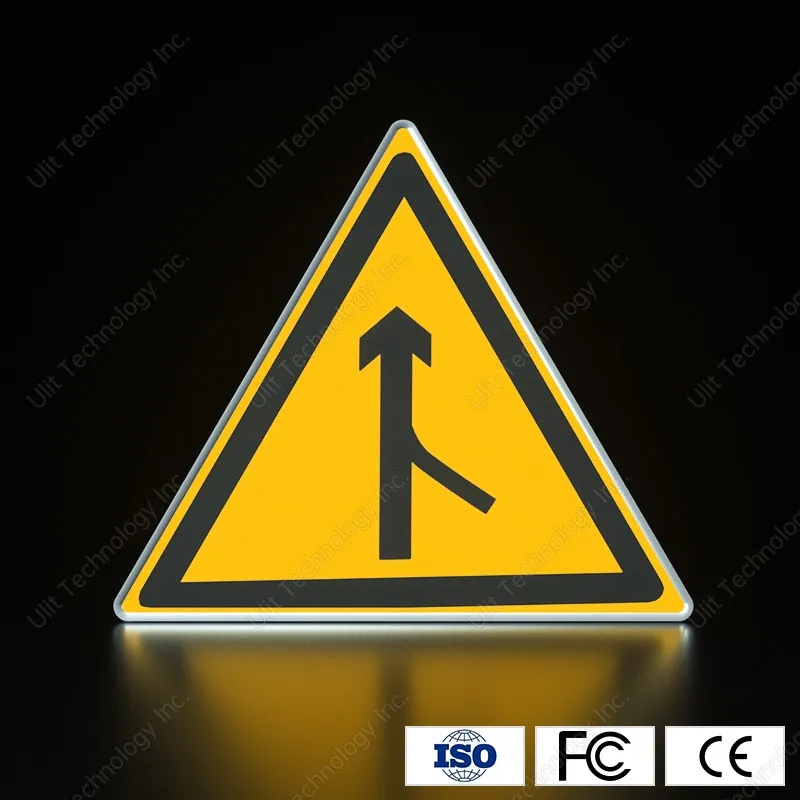

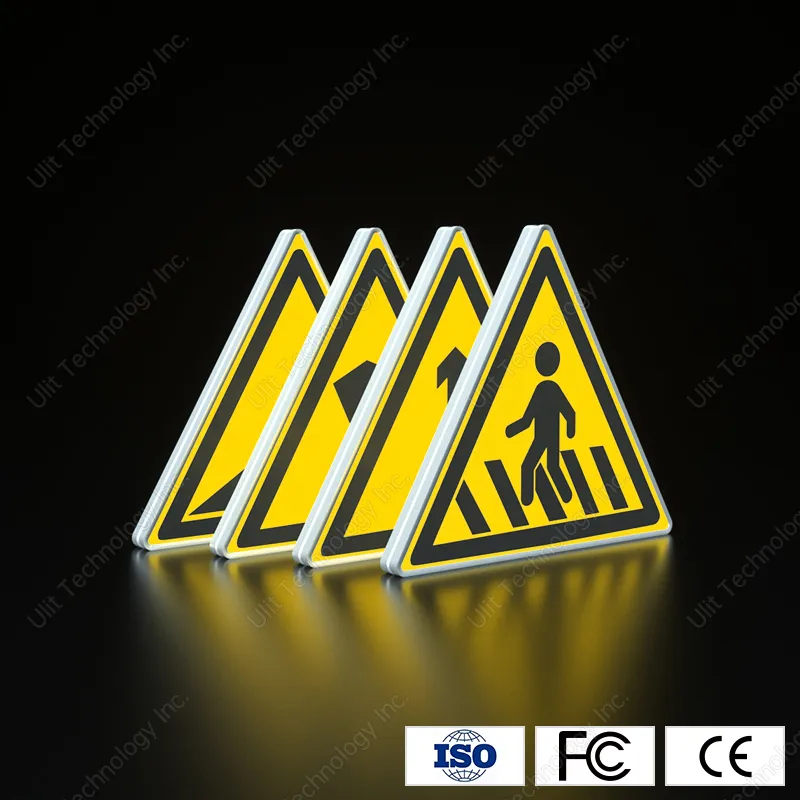

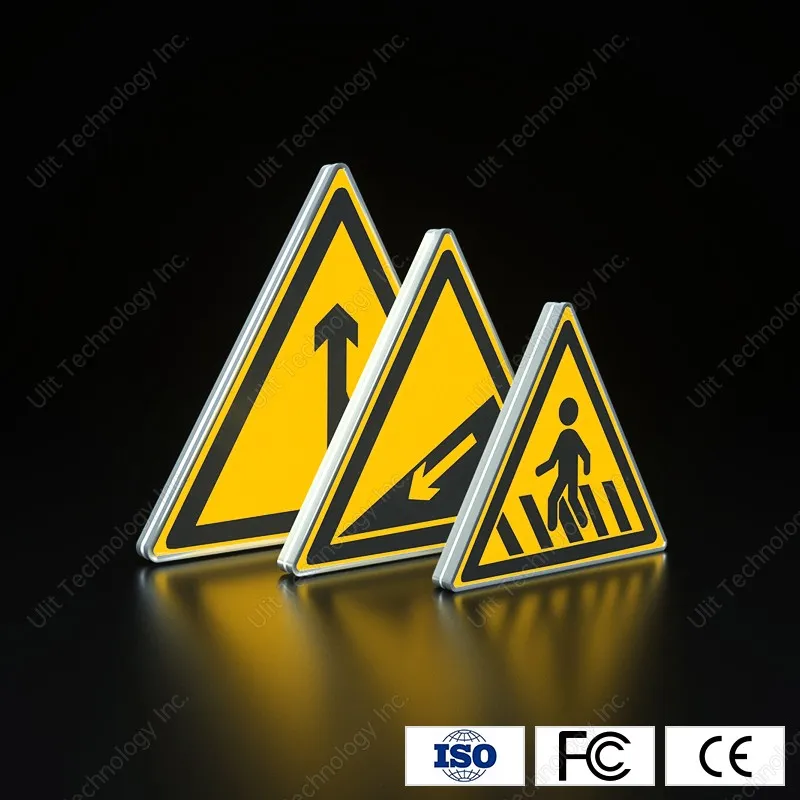

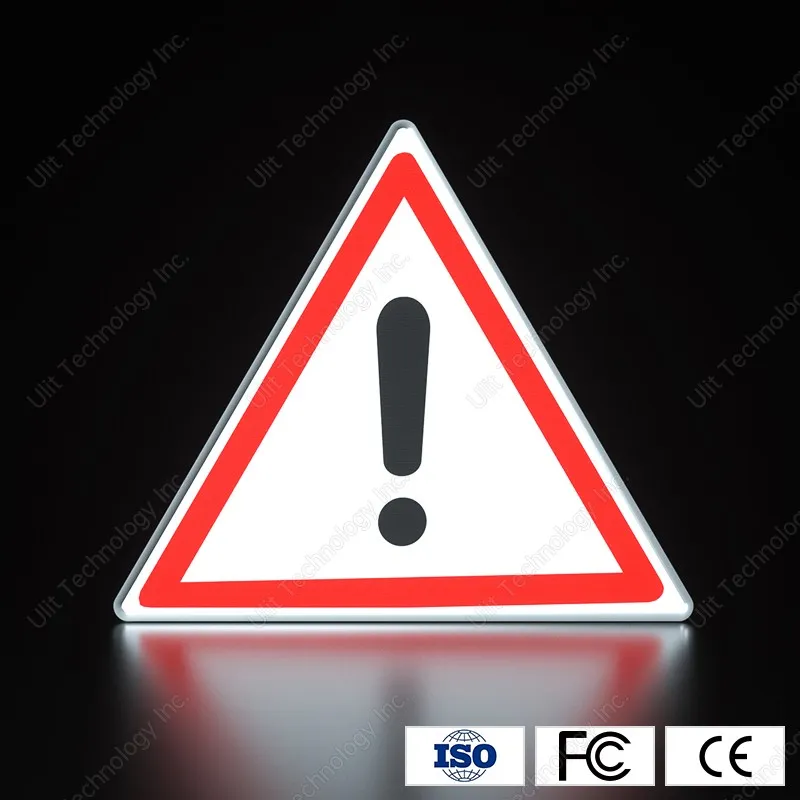

△1100mm Warning LED Active Luminous Traffic Signs
△1100mm warning LED active luminous crosswalk sign is a triangular active luminous warning sign that can be used as crosswalk sign or other warning signs. It adopts high-efficiency LED light source board and microprism reflective film, allowing light to fully penetrate the base plate, the strokes of the text and the outline of the graphic, thus presenting a clear and conspicuous warning message. Designed for roads with poor visibility, the crosswalk sign provides excellent safety and warning effects.

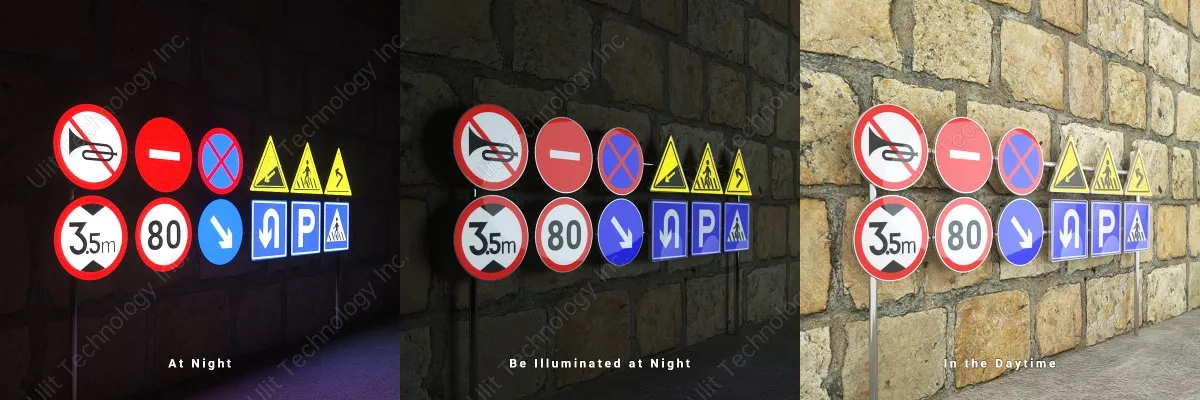

Product Features
- Full penetration type active light-emitting traffic signs, no joints on the pervious faceplate;
- Unique optical refraction design, the panel displays no shadow and has balanced brightness;
- Light-emitting components with strong penetrability and long visual range, meeting the usage requirements with all kinds of bad weather conditions;
- Low power consumption, high efficiency, light decay≤8%;
- The crosswalk sign supports protocol docking and IoT application extension;
- The crosswalk sign also supports adjusting the own brightness automatically according to the ambient brightness.
Hot Tags: crosswalk sign, China crosswalk sign manufacturers, suppliers, factory
Technical Parameters
|
Product Name |
△1100mm Warning LED Active Luminous Traffic Signs |
|
Reflective Film Grade |
Microprism Reflective Film |
|
Structure Material |
Aluminium Profile |
|
Overall Size |
Triangle, Side Length 1100mm |
|
Luminance |
≥150cd/㎡, Support adjusting the luminance automatically according to the ambient brightness |
|
Visual Cognition Distance |
Static State≥250m, Dynamic State≥210m |
|
Visual Cognition Angle |
≥30° |
|
Uniformity of Luminance |
the non-uniformity of normal luminous intensity between the same color light-emitting unit pixels ≤5% |
|
Reliability |
Mean Time Between Failures (MTBF) ≥25,000h |
|
Light Attenuation |
50,000h≤8%; Attenuation Consistency ≤±5% |
|
Extension |
Support protocol docking; Support IoT application extension. |
|
Power Supply |
AC220V±15%, 50HZ/60Hz; Solar power is supported. |
|
Average Power Consumption |
≤30W |
|
Working Temperature |
-20℃～55℃ |
|
Working Humidity |
≤98%RH(40℃, No Condensation) |
|
Thickness |
60mm |
|
IP Rating |
IP55 |
|
Installation Method |
Single Pole Type/Outdoor Cantilever Type |

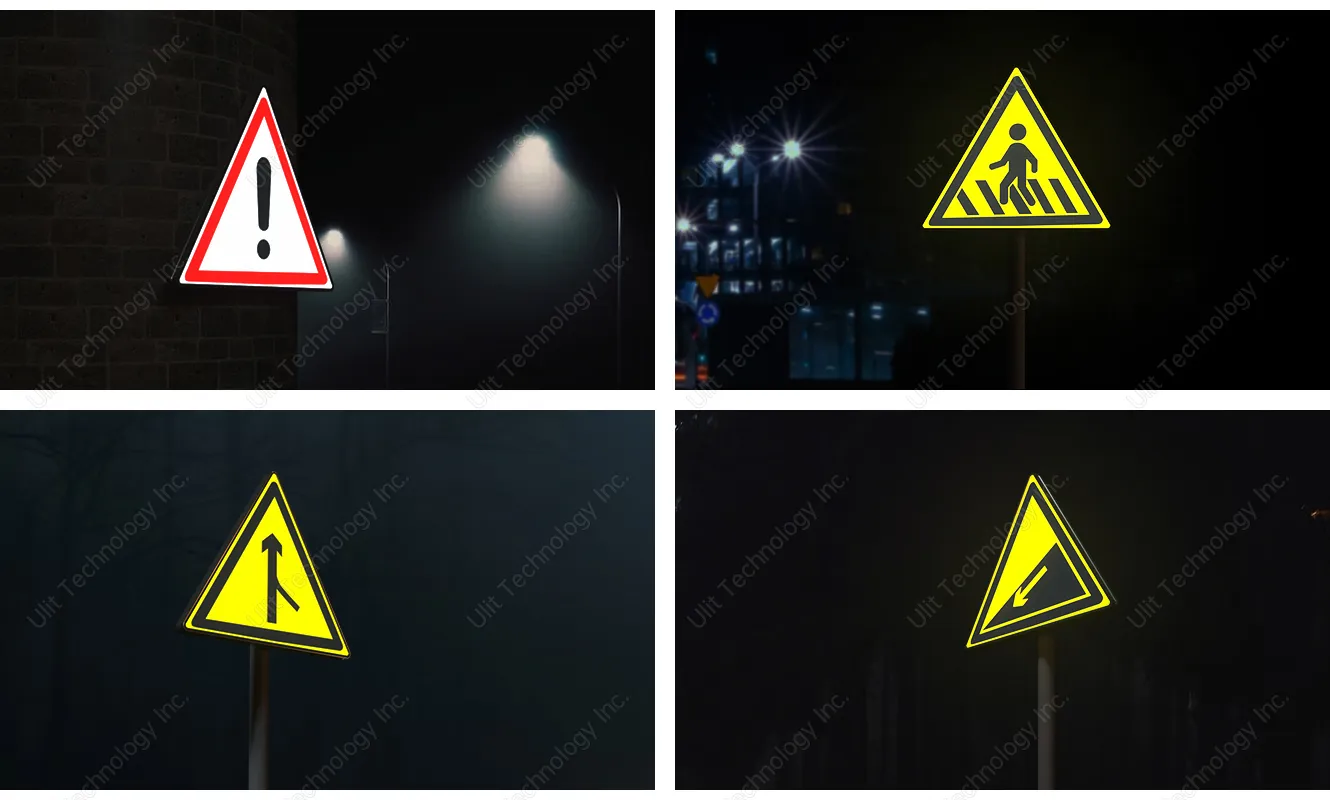

Product Applications
Certificates
Company Profile
Having been Involved in intelligent traffic industry for more than 30 years, Ulit Technology Inc. is a leading manufacturer of traffic intelligent control system, traffic signal and display equipment, a leading provider of city traffic centralized control software, a national high-tech enterprise and a listed enterprise of Beijing Stock Exchange. We have been providing products and services to customers in the USA, Mexico, Germany, Ireland, Romania, Greece, the Netherlands, Israel, Saudi Arabia, India, Vietnam, Singapore and many other countries. Our company always advocates customer focus and adheres corporate philosophy of "innovation transcends dreams and hard work creates value". We keep perfecting our core technology products over ten years and are always strenuously making continuous contribution for unblocked city!
Exhibitions

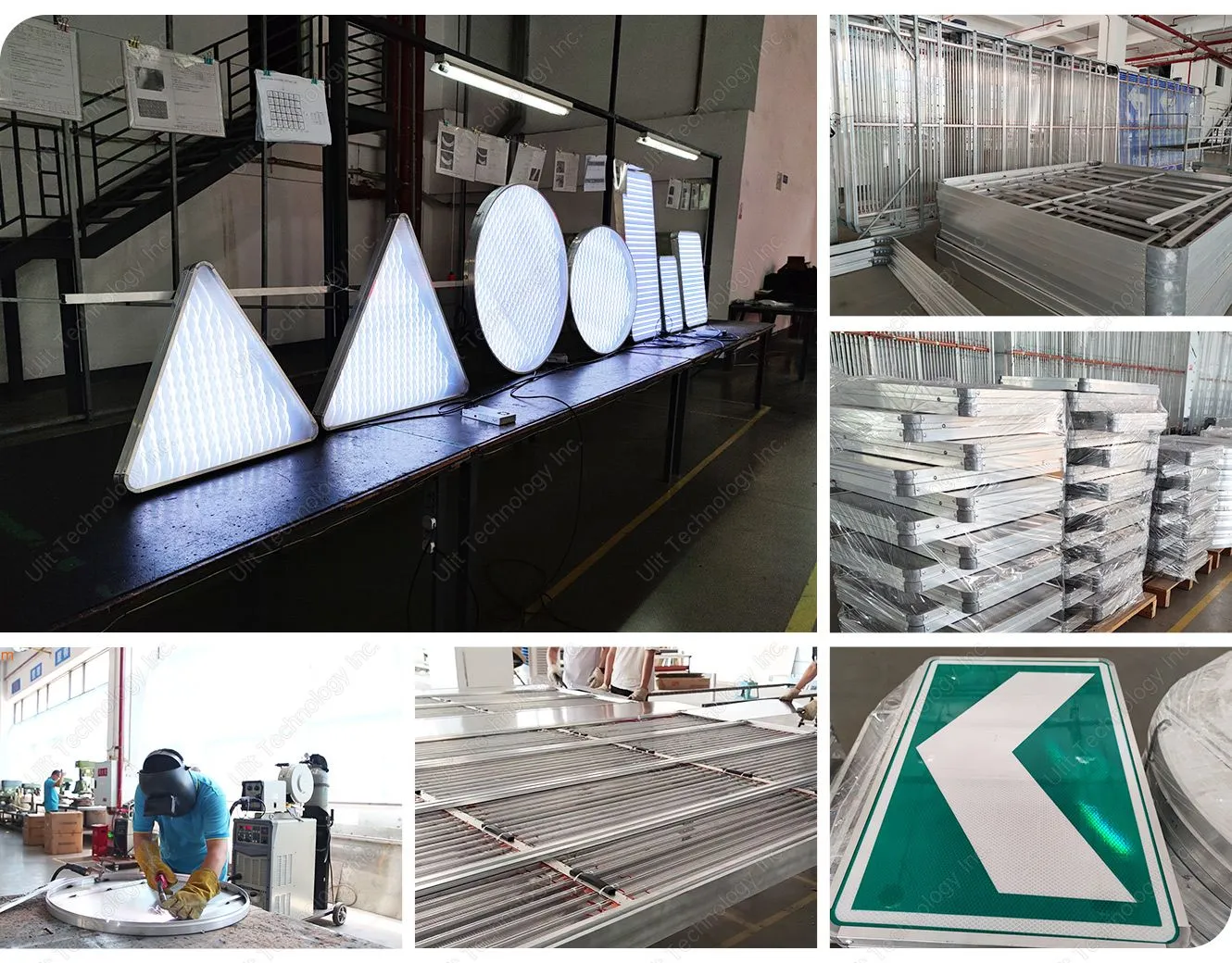

Production Workshop
FAQ
Q: Do your products come with accompanying software systems?
A: Yes. For products that require accompanying software, we provide our own proprietary software. Some of our products also support integration with software from other major manufacturers.
Q: How do you guarantee the quality of your products?
A: We have a very strict quality controlling system to ensure that all the products are delivered with high quality. Strict detection during each production step. Strict full inspection on products before shipment and intact product packaging ensured.
Q: Can you send me your catalogue?
A: Please send an email to our email address cqulit@sina.com for catalogue. We will reply you with our latest catalogue to your email.
Q: What's the price of the crosswalk sign?
A: Price is negotiable. Based on different quantities and detailed requirements, the prices are a little different. Please kindly contact us for more detailed prices.
Q: Can I have some information about your scope of business?
A: Our company can provide various advanced products, whole solutions, software and services related to city traffic, such as traffic control platform, traffic light controllers, traffic lights, traffic signs, countdowns, LED screens, video detectors, speed signs and various solar lights.
