Product Overview

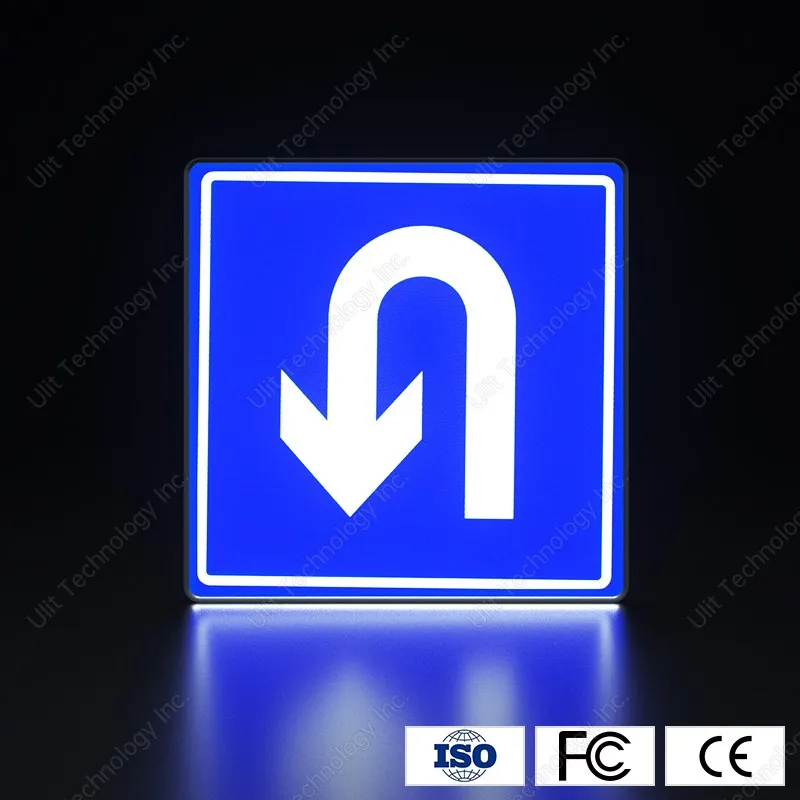

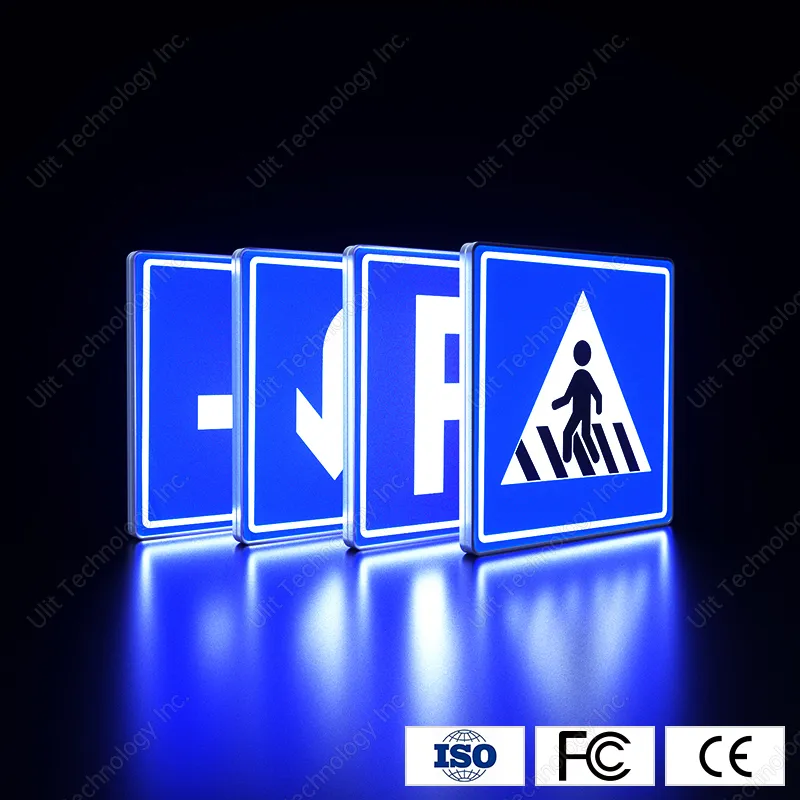

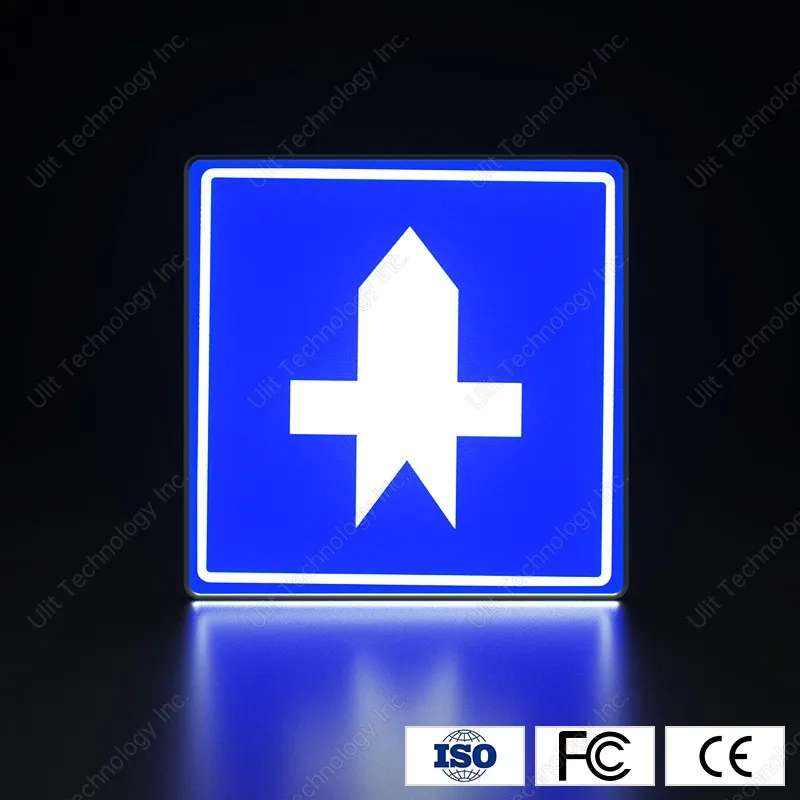

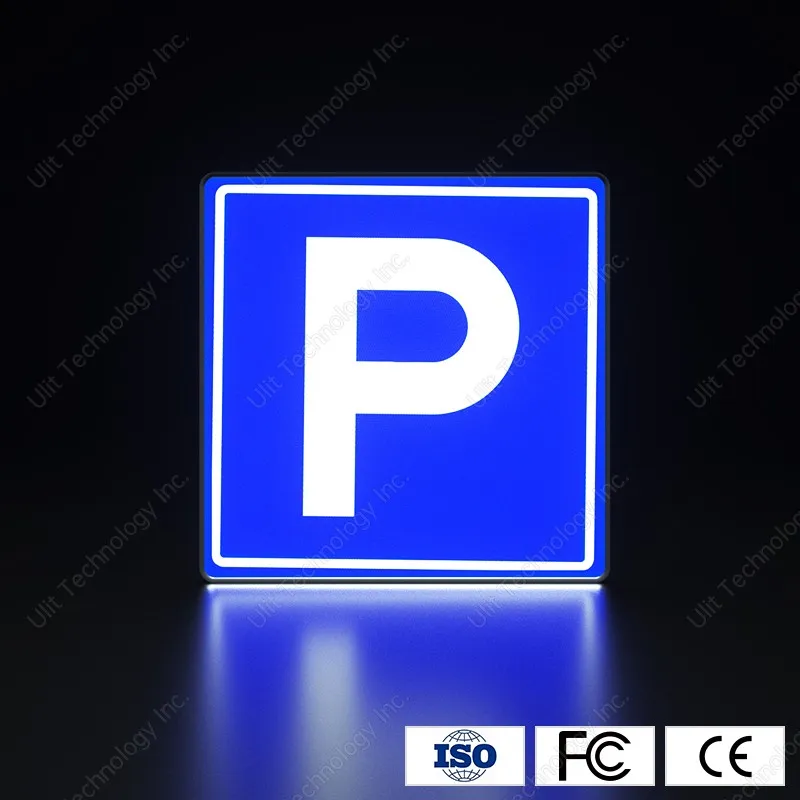

800mm*800mm Directional LED Active Luminous Traffic Signs
800mm*800mm directional LED active luminous traffic signs utilize high-efficiency LED light-emitting panels and microprism reflective films to present clear directional information. Because the light source can fully penetrate the sign's base plate, text strokes, and graphic outlines, these traffic signs provide prominent visual guidance in dimly lit environments or on roads with poor visibility. As important traffic signals, they significantly improve traffic safety and provide drivers with clear warnings.
Product Features
- Adopting full penetration active light-emitting design, the surface of the light-emitting panel has no joints;
- With its unique refractive optical structure, the traffic sign panel has no shadow and provides balanced display brightness;
- The traffic sign is equipped with high-performance light-emitting components with strong penetration, ensuring long-distance visibility even in fog, heavy rain, or other inclement weather conditions;
- It has low power consumption, with light decay within 8%, making it highly efficient and energy-saving;
- Support protocol docking and IoT application extension;
- As road signal traffic signal, the LED signs support adjusting the own brightness automatically according to the ambient brightness.
Hot Tags: signal traffic signal, China signal traffic signal manufacturers, suppliers, factory
Technical Parameters
|
Product Name |
800mm*800mm Directional LED Active Luminous Traffic Signs |
|
Reflective Film Grade |
Microprism Reflective Film |
|
Structure Material |
Aluminium Profile |
|
Overall Size |
Square, 800mm*800mm |
|
Luminance |
≥300cd/㎡, Support adjusting the luminance automatically according to the ambient brightness |
|
Visual Cognition Distance |
Static State≥250m, Dynamic State≥210m |
|
Visual Cognition Angle |
≥30° |
|
Uniformity of Luminance |
the non-uniformity of normal luminous intensity between the same color light-emitting unit pixels ≤5% |
|
Reliability |
Mean Time Between Failures (MTBF) ≥25,000h |
|
Light Attenuation |
50,000h≤8%; Attenuation Consistency ≤±5% |
|
Extension |
Support protocol docking; Support IoT application extension. |
|
Power Supply |
AC220V±15%, 50HZ/60Hz; Solar power is supported. |
|
Average Power Consumption |
≤39W |
|
Working Temperature |
-20℃～55℃ |
|
Working Humidity |
≤98%RH(40℃, No Condensation) |
|
Thickness |
60mm |
|
IP Rating |
IP55 |
|
Installation Method |
Single Pole Type/Outdoor Cantilever Type |
Product Applications
Certificates
Company Profile
We have been deeply involved in intelligent traffic industry for over 30 years with 15,000 square meter manufacturing base. As a leading manufacturer of traffic intelligent control system, traffic signal and display equipment, a leading provider of city traffic centralized control software, a national high-tech enterprise and a listed enterprise of Beijing Stock Exchange, we also supply OEM/ODM services. Certified by ISO/CE, our products are sold to more than 30 countries, including the USA, Mexico, Germany, Ireland, Romania, Greece, the Netherlands, Israel, Saudi Arabia and so on.
Exhibitions
Production Workshop
FAQ
Q: Are you a factory?
A: Yes. We are a leading manufacturer of LED traffic signal products and intelligent traffic equipment, and a leading IoT (Internet of Things) solution provider in China.
Q: What are your best-selling products?
A: Traffic lights, traffic signs, traffic light systems, LED screens, traffic warning lights, radar speed signs, traffic light controllers, etc..
Q: Which certifications do you have?
A: CE, RoHS, FCC, EN12368, EN12966, IP65, MTC, ISO9001:2015, ISO14001:2015, CMMI-5, CCC and so on.
Q: Whether you could make our brand on your products?
A: Yes. Our R&D department provide strong technical support and enable us to receive OEM and ODM projects.
Q: What's your payment clause and delivery terms?
A: Payment Clause: T/T, L/C, Paypal, Western Union and so on.
Delivery Terms: EXW, FOB, CFR, CIF, DAP, DDP.
