Product Overview

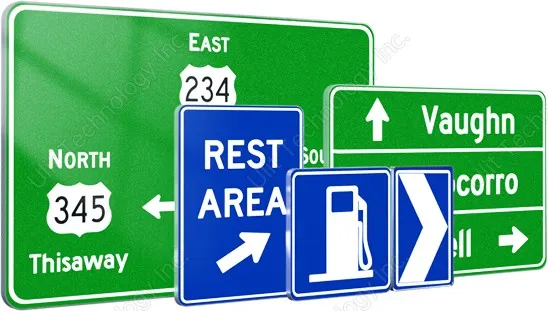

Rectangle Directional LED Active Luminous Traffic Signs
Rectangle directional LED active luminous traffic signals and signs utilize high-efficiency LED light source panels, forming penetrable light through reverse reflection material to display high-definition information. They can be used for various directional traffic signs. The traffic signals and signs adopt micro-prism reflective films, ensuring penetrable light in the sign base plate, text strokes, and graphic outlines, resulting in excellent nighttime reflectivity and active luminescence. They are suitable for road environments with low visibility and poor field of vision, ensuring road safety and effectively guiding road users.
Product Features
- Support big size full penetration type active light-emitting traffic signs, no joints on the pervious faceplate;
- Unique optical refraction design, the panel displays no shadow and has balanced brightness;
- Light-emitting components with strong penetrability and long visual range, meeting the usage requirements with all kinds of bad weather conditions;
- Low power consumption, high efficiency, light decay≤8%;
- The traffic signals and signs support protocol docking and wired or wireless IoT application extension;
- They support adjusting the own brightness automatically according to the ambient brightness;
- The traffic signals and signs also support controls such as flashing, always on, and off.
Hot Tags: traffic signals and signs, China traffic signals and signs manufacturers, suppliers, factory
Technical Parameters
|
Product Name |
Rectangle Directional LED Active Luminous Traffic Signs |
|
Reflective Film Grade |
Microprism Reflective Film |
|
Structure Material |
Aluminium Profile |
|
Overall Size |
Rectangle, Customizable |
|
Luminance |
≥300cd/㎡, Support adjusting the luminance automatically according to the ambient brightness |
|
Visual Cognition Distance |
Static State≥250m, Dynamic State≥210m |
|
Visual Cognition Angle |
≥30° |
|
Uniformity of Luminance |
the non-uniformity of normal luminous intensity between the same color light-emitting unit pixels ≤5% |
|
Reliability |
Mean Time Between Failures (MTBF) ≥25,000h |
|
Light Attenuation |
50,000h≤8%; Attenuation Consistency ≤±5% |
|
Extension |
Support protocol docking; Support IoT application extension. |
|
Power Supply |
AC220V±15%, 50HZ/60Hz; Solar power is supported. |
|
Average Power Consumption |
≤60W/m2 |
|
Working Temperature |
-20℃～55℃ |
|
Working Humidity |
≤98%RH(40℃, No Condensation) |
|
Thickness |
60mm/80mm |
|
IP Rating |
IP55 |
|
Installation Method |
Single Pole Type/Outdoor Cantilever Type |
Product Applications
Certificates
Company Profile
Ulit Technology Inc. has been deeply involved in the intelligent traffic industry for over 30 years, boasting a 15,000-square-meter production base. With urban intelligent traffic as our core business, our company provides a variety of advanced products, integrated solutions, software, and services, covering traffic control platforms, traffic light controllers, traffic lights, traffic signs, countdown timers, LED displays, video detectors, speed signs, and various solar lighting equipment. We also offer OEM/ODM services. Our products have passed multiple international certifications, including ISO/CE, RoHS, FCC, EN12368, and EN12966, and are exported to more than 30 countries and regions, including Mexico, the United States, Germany, Ireland, Romania, Greece, the Netherlands, Israel, and Saudi Arabia.
Exhibitions
Production Workshop
FAQ
Q: Can I have a sample?
A: Of course, we support sample orders.
Q: What's the delivery time?
A: Shipping time depends on the specifications of the products you order. For in-stock products, shipping usually takes around 7-15 days. For customized products, the production time is typically around 30 days.
Q: Which city or port do you ship from?
A: Our main manufacturing plant is in Chongqing, but we also have branch offices in other cities. We can ship from all major ports and cities in China.
Q: Do you have any MOQ limit?
A: Our company supports testing with one or more samples, and we can also customize samples according to your specific requirements. There is no minimum order quantity (MOQ) limit.
Q: Do you offer after-sales service?
A: Most of our products come with a 2-year warranty. If a product experiences a quality issue within the warranty period, we will send you replacement parts free of charge. After the warranty period expires, we will continue to provide free lifetime remote technical support and service.
