Product Overview

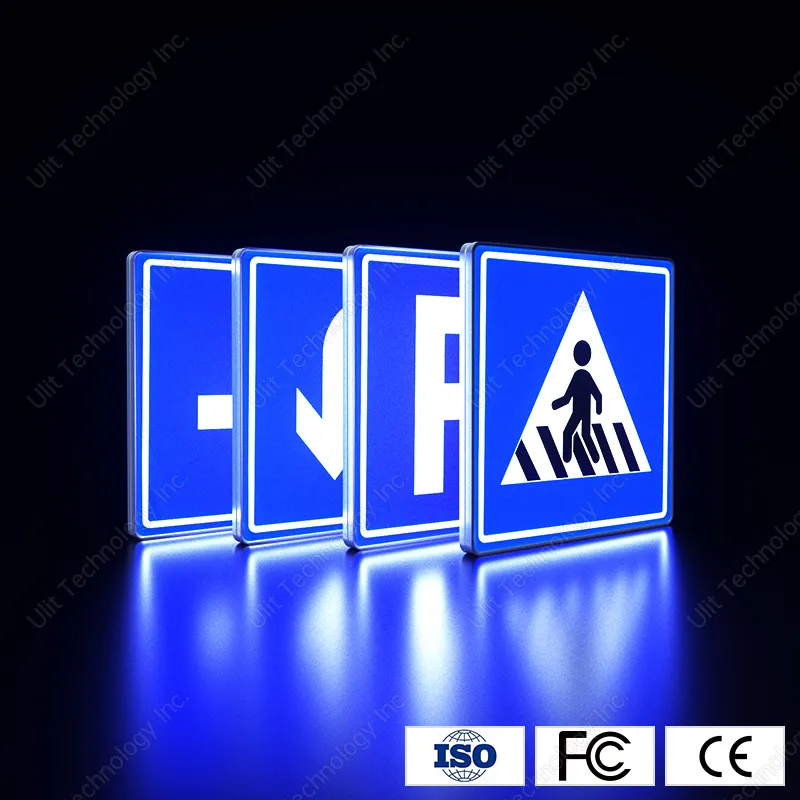

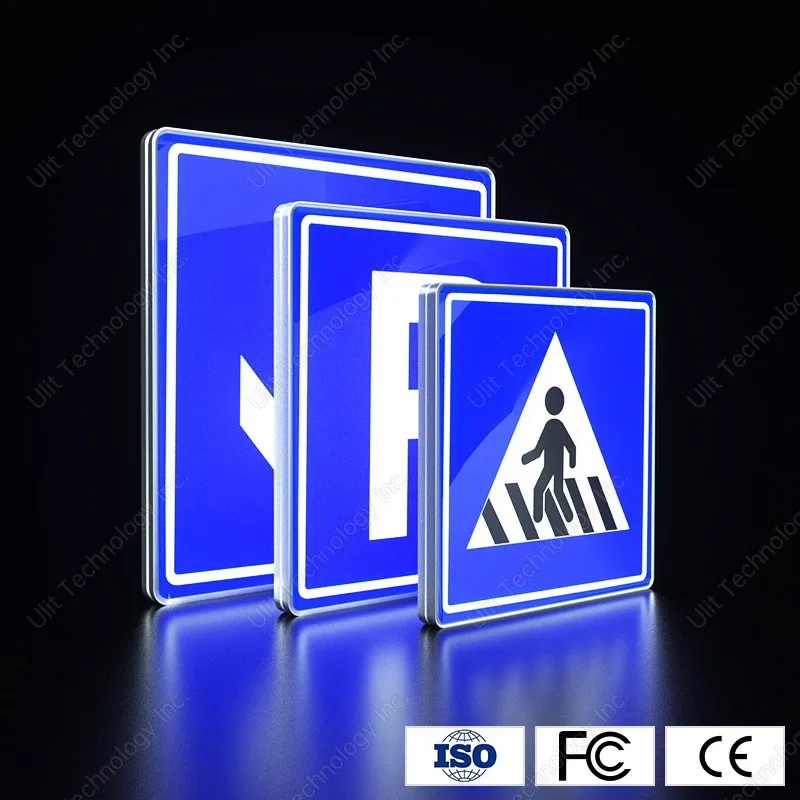

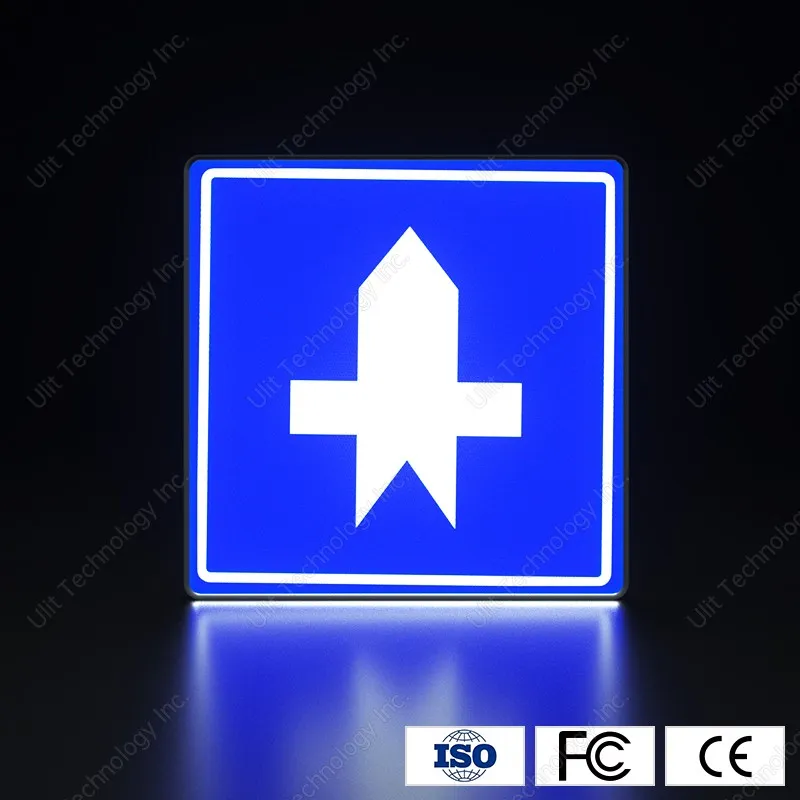

1200mm*1200mm Directional LED Active Luminous Traffic Signs
1200mm*1200mm directional LED active luminous traffic sign is square active luminous traffic sign designed to provide directional guidance in areas with limited visibility. Its visibility far surpasses that of passive reflective traffic signs. Using high-efficiency LED light source board and microprism reflective film, light can completely penetrate the traffic sign's base plate, lettering, and graphic outlines, thus creating a clear and evenly bright indication throughout the entire panel area. This sign supports all directional information, including one way sign and other types of directional signs.
Product Features
- Full penetration type active light-emitting traffic signs, no joints on the pervious faceplate;
- The unique optical refraction design prevents shadows from forming on the surface of the one way sign, achieving uniform brightness across the entire display area;
- Light-emitting components with strong penetrability and long visual range, meeting the usage requirements with all kinds of bad weather conditions;
- Low power consumption, high efficiency, light decay≤8%;
- Support protocol docking and IoT application extension;
- It can automatically adjust the brightness of the traffic sign itself to maintain optimal visibility under various ambient lighting conditions;
- The contents of the signs can be all different types, like one way sign.
Hot Tags: one way sign, China one way sign manufacturers, suppliers, factory
Technical Parameters
|
Product Name |
1200mm*1200mm Directional LED Active Luminous Traffic Signs |
|
Reflective Film Grade |
Microprism Reflective Film |
|
Structure Material |
Aluminium Profile |
|
Overall Size |
Square,1200mm*1200mm |
|
Luminance |
≥300cd/㎡, Support adjusting the luminance automatically according to the ambient brightness |
|
Visual Cognition Distance |
Static State≥250m, Dynamic State≥210m |
|
Visual Cognition Angle |
≥30° |
|
Uniformity of Luminance |
the non-uniformity of normal luminous intensity between the same color light-emitting unit pixels ≤5% |
|
Reliability |
Mean Time Between Failures (MTBF) ≥25,000h |
|
Light Attenuation |
50,000h≤8%; Attenuation Consistency ≤±5% |
|
Extension |
Support protocol docking; Support IoT application extension. |
|
Power Supply |
AC220V±15%, 50HZ/60Hz; Solar power is supported. |
|
Average Power Consumption |
≤87W |
|
Working Temperature |
-20℃～55℃ |
|
Working Humidity |
≤98%RH(40℃, No Condensation) |
|
Thickness |
60mm |
|
IP Rating |
IP55 |
|
Installation Method |
Single Pole Type/Outdoor Cantilever Type |
Product Applications
Certificates

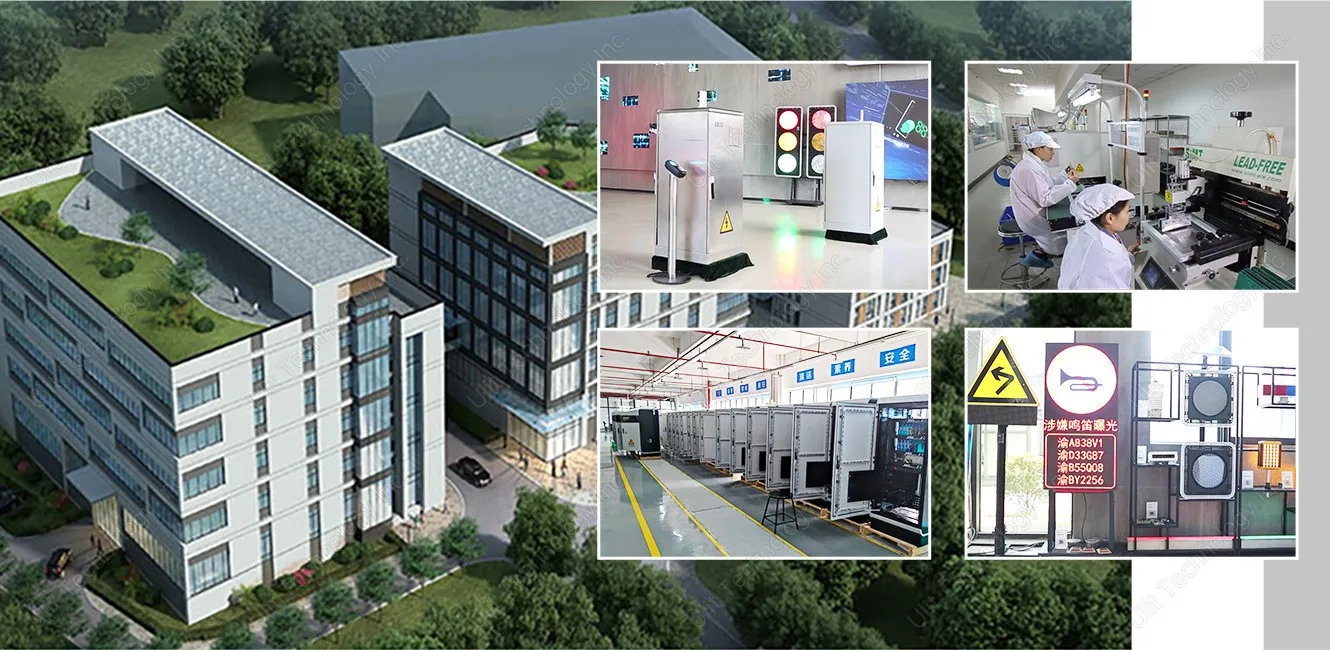

Company Profile
Having been Involved in intelligent traffic industry for more than 30 years, Ulit Technology Inc. is a leading manufacturer of traffic intelligent control system, traffic signal and display equipment, a leading provider of city traffic centralized control software, a national high-tech enterprise and a listed enterprise of Beijing Stock Exchange. We have been providing products and services to customers in the USA, Mexico, Germany, Ireland, Romania, Greece, the Netherlands, Israel, Saudi Arabia, India, Vietnam, Singapore and many other countries. Our company always advocates customer focus and adheres corporate philosophy of "innovation transcends dreams and hard work creates value". We keep perfecting our core technology products over ten years and are always strenuously making continuous contribution for unblocked city!
Exhibitions

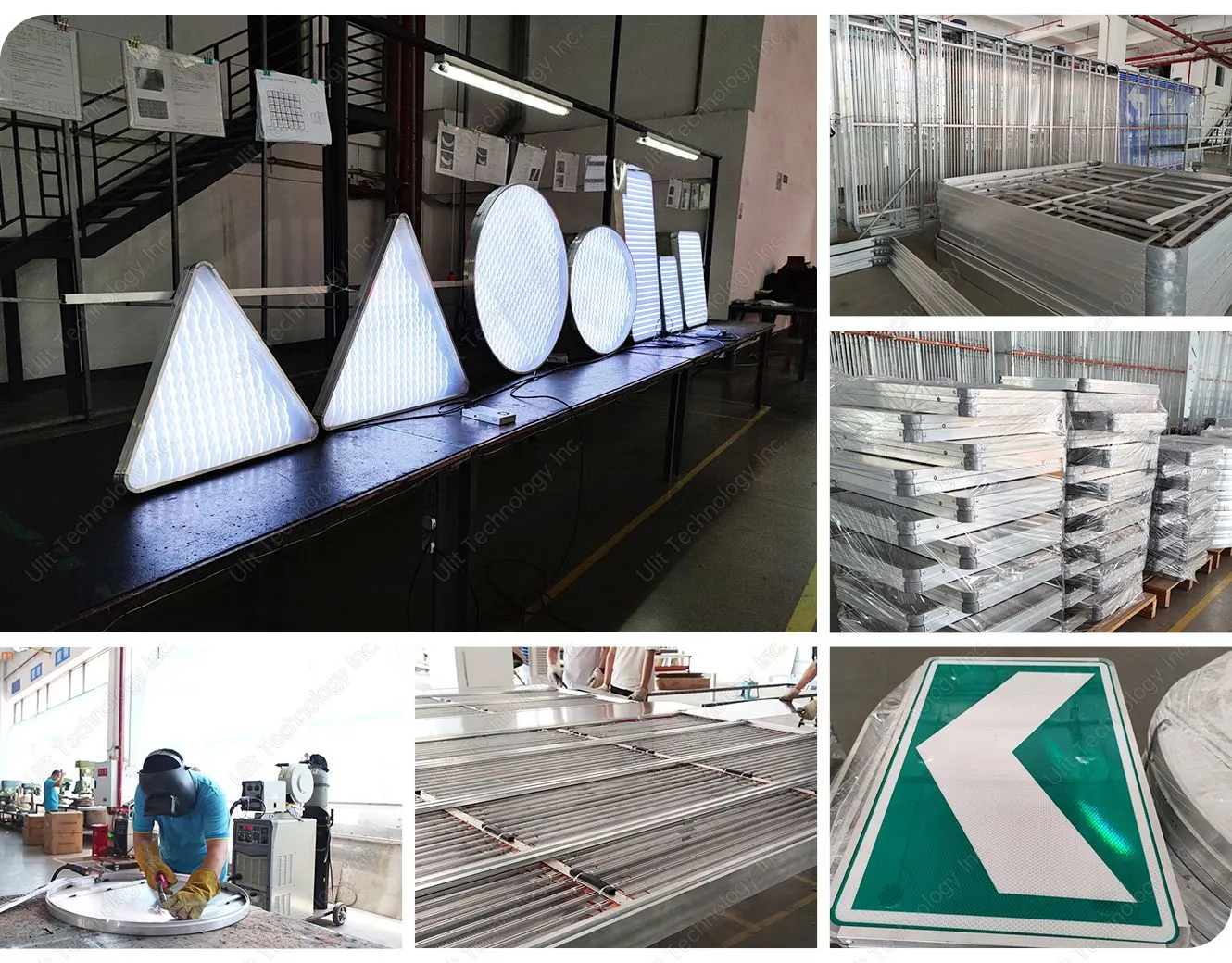

Production Workshop
FAQ
Q: Do your products come with accompanying software systems?
A: Yes. For products that require accompanying software, we provide our own proprietary software. Some of our products also support integration with software from other major manufacturers.
Q: How do you guarantee the quality of your products?
A: We have a very strict quality controlling system to ensure that all the products are delivered with high quality. Strict detection during each production step. Strict full inspection on products before shipment and intact product packaging ensured.
Q: Can you send me your catalogue?
A: Please send an email to our email address cqulit@sina.com for catalogue. We will reply you with our latest catalogue to your email.
Q: What's the price of a one way sign?
A: Price is negotiable. Based on different quantities and detailed requirements, the prices are a little different. Please kindly contact us for more detailed prices.
Q: Can I have some information about your scope of business?
A: Our company can provide various advanced products, whole solutions, software and services related to city traffic, such as traffic control platform, traffic light controllers, traffic lights, traffic signs, countdowns, LED screens, video detectors, speed signs and various solar lights.
