Product Overview

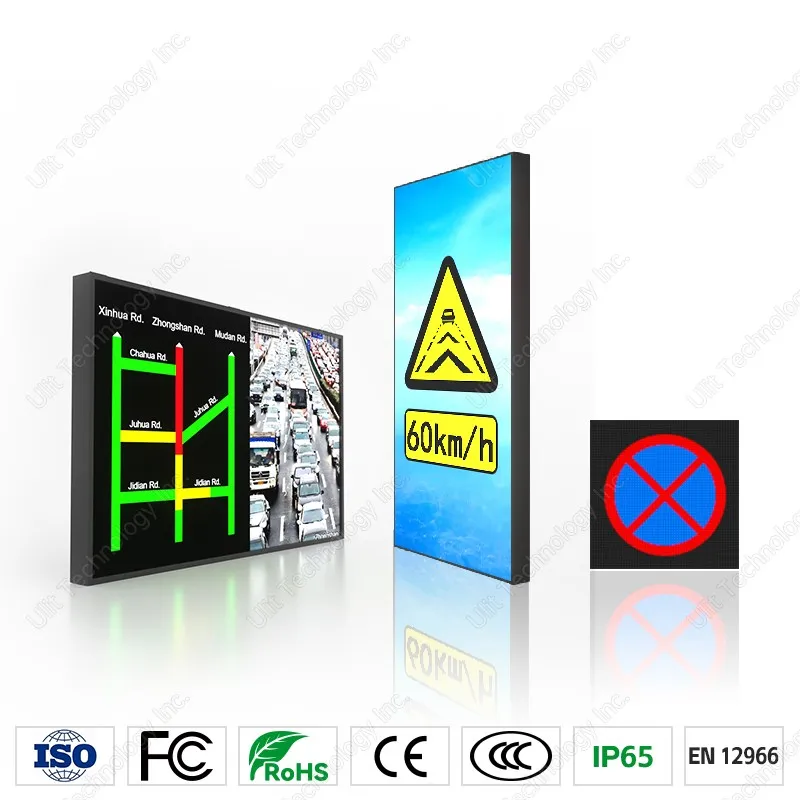

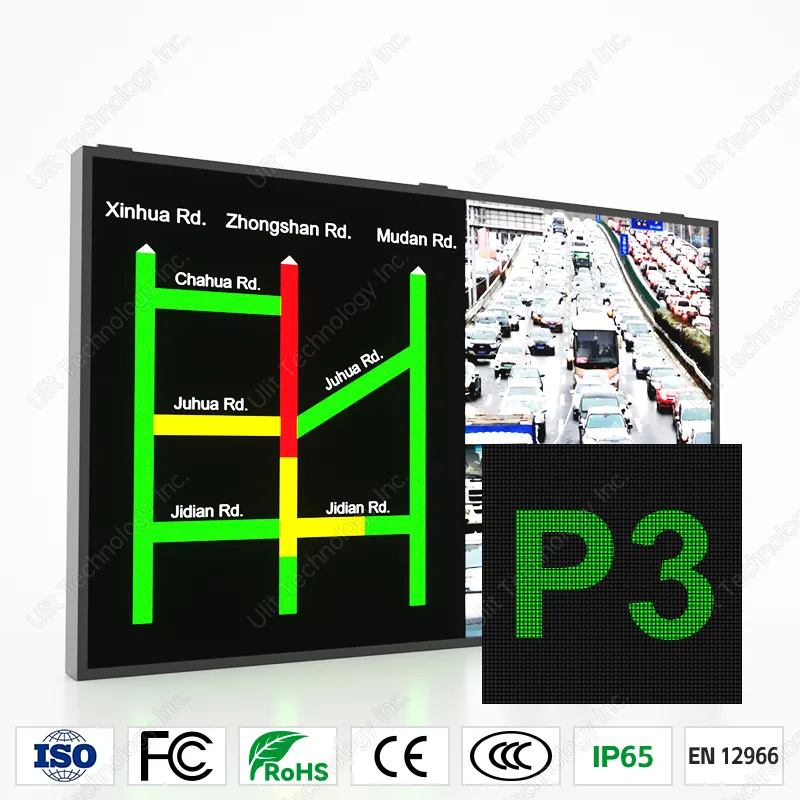

P3 Outdoor Full-Color LED Display Screen
The P3 outdoor full-color LED display screen is primarily used for real-time road condition updates, traffic flow guidance, and public traffic information broadcasts. It effectively addresses city traffic congestion and improves road efficiency and safety. It is widely applicable to various road scenarios, including highways, urban trunk roads, and tunnel entrances. This LED display uses traffic-specific LEDs; The cabinet is lightweight, durable and anti-corrosion, not easily deformed in extreme temperature environments, providing excellent protection. It supports extending IoT applications. Certified by CCC, CE, RoHS, FCC, EN12966 and IP65.
Product Features
- It features a lightweight suspended sealed frame structure;
- The LED display has a large and comprehensive full-color traffic sign library, which can display traffic sign accurately and clearly;
- It is compatible with text, image, and video playback, and supports easy and quick adjustments to displayed content and method, so that pedestrians and vehicles can obtain real-time and accurate traffic information;
- It can automatically execute the playback plan based on the preset sequence and priority, achieving the automatic release of comprehensive guidance information;
- The adaptive publishing control feature can automatically adjust the size and proportion of the displayed content to match the screen size;
- The LED display is equipped with an anti-tampering mechanism for information transmission and release, ensuring the stability and reliability of the LED display's operation and preventing traffic chaos;
- Supports direct exposure and presentation of traffic violation data;
- Support docking with related control platform traffic guidance information release system;
- Equipped with a high-efficiency switching power supply, it is green and energy-saving.
Hot Tags: led display, China led display manufacturers, suppliers, factory
Technical Parameters
|
Product Name |
P3 Outdoor Full-Color LED Display Screen |
|
Pixel Pitch |
3mm |
|
Pixel Composition |
1R1G1B |
|
Display Brightness |
≥4,000cd/㎡; Support adjusting the brightness automatically or manually |
|
LED Packaging |
Dedicated Traffic LED Chips, SMD |
|
Module Size |
192mm×192mm |
|
Cabinet Size |
768mm*768mm (Support Customization) |
|
Viewing Distance |
≥3 m |
|
Viewing Angle |
≥110° |
|
Gray Level |
16bit |
|
Mean Time Between Failures (MTBF) |
≥100,000 Hours |
|
Blind Spot Rate |
≤1/10,000 |
|
Flatness |
Gap between Any Adjacent Pixels≤0.5mm; Module Splicing Gap＜0.5mm |
|
Working Voltage |
AC220V±15％ |
|
Power Switch Performance |
Full Load Efficiency≥85%, PF≥0.85 |
|
Average Power Consumption |
≤300W/㎡ |
|
Maximum Power Consumption |
≤700W/㎡ |
|
Working Temperature |
-20℃～60℃ |
|
Relative Humidity |
≤95%RH(25℃,No Condensation) |
|
External Protection |
Waterproof, Moisture-proof, Dustproof, Anti-corrosion, Antiflaming |
|
IP Rating |
IP65 (Front), IP53 (Back) |

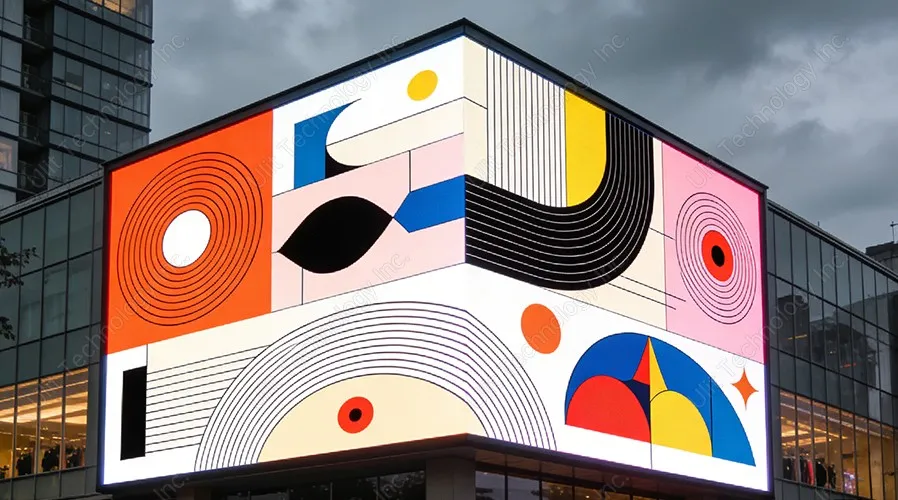

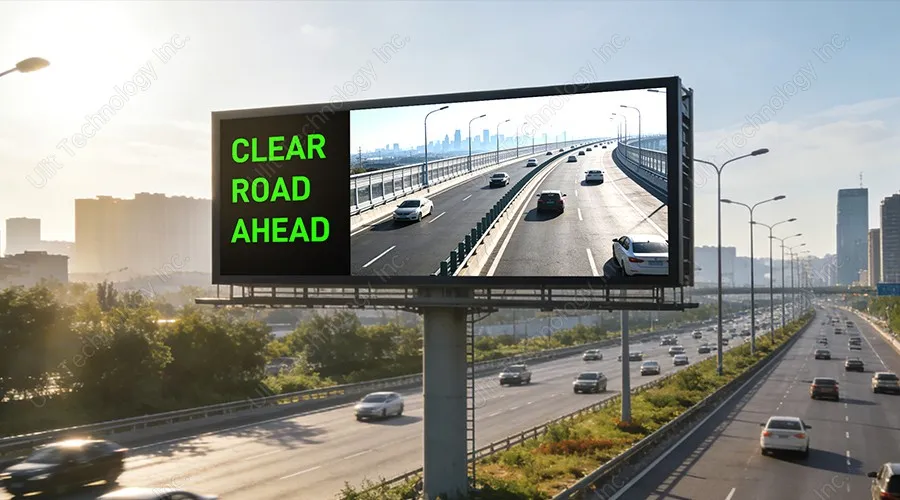

Product Applications
Certificates
Company Profile

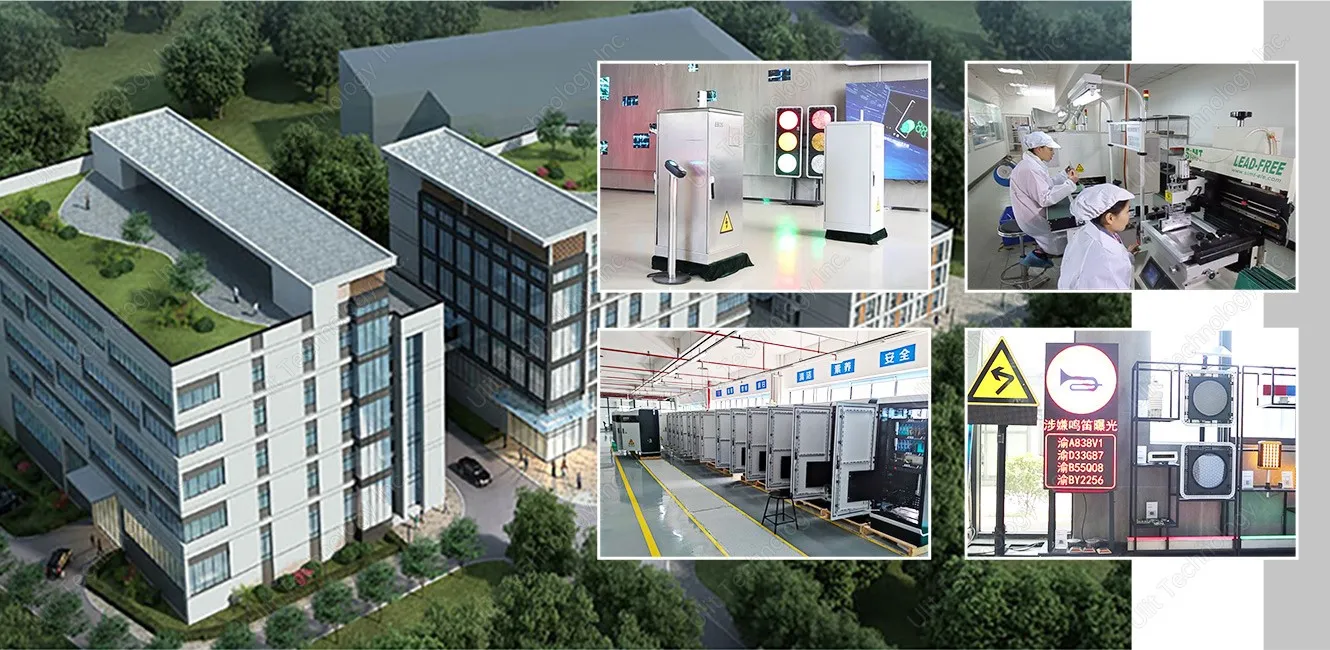

Located in Chongqing, China, Ulit Technology Inc. has been in intelligent traffic industry for more than 30 years with 15,000 square meter manufacturing base. With city intelligent traffic as main business, we can provide various advanced products, whole solutions, software and services related to city traffic, such as traffic control platform, traffic light controllers, traffic lights, traffic signs, countdowns, LED screens, video detectors, speed signs and various solar lights. With ISO 9001:2015 quality management system certification, our products comply with national standards and industry norms, as well as various international standards, such as CE, RoHS, FCC, EN12966 and EN12368. Strong support from our design and technology departments enables us to receive OEM and ODM projects.
Exhibitions
FAQ
Q: Can I order a sample for testing?
A: Yes, we welcome sample orders to test. We can also make the samples exactly according to your detailed needs and requirements.
Q: How about your delivery time?
A: Typically, in-stock items can be shipped within 7-15 days after receiving the payment. The exact delivery time depends on the products and ordered quantities.
Q: How about the shipping method?
A: We can ship by sea, rail, and air. Samples are usually shipped via DHL, UPS, FedEx and other air transport methods.
Q: How about your warranty?
A: We offer a 2-year warranty and lifetime free remote technical support and service.
Q: How about the packages?
A: The products are first packed in cartons, and then the cartons are packed into standard export wooden cases.
