Product Overview

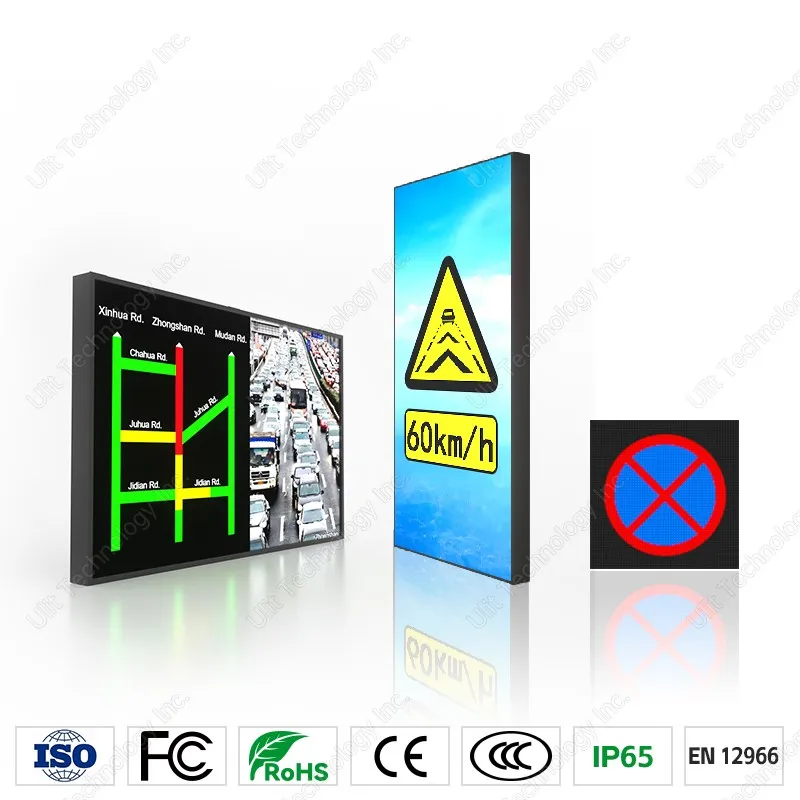

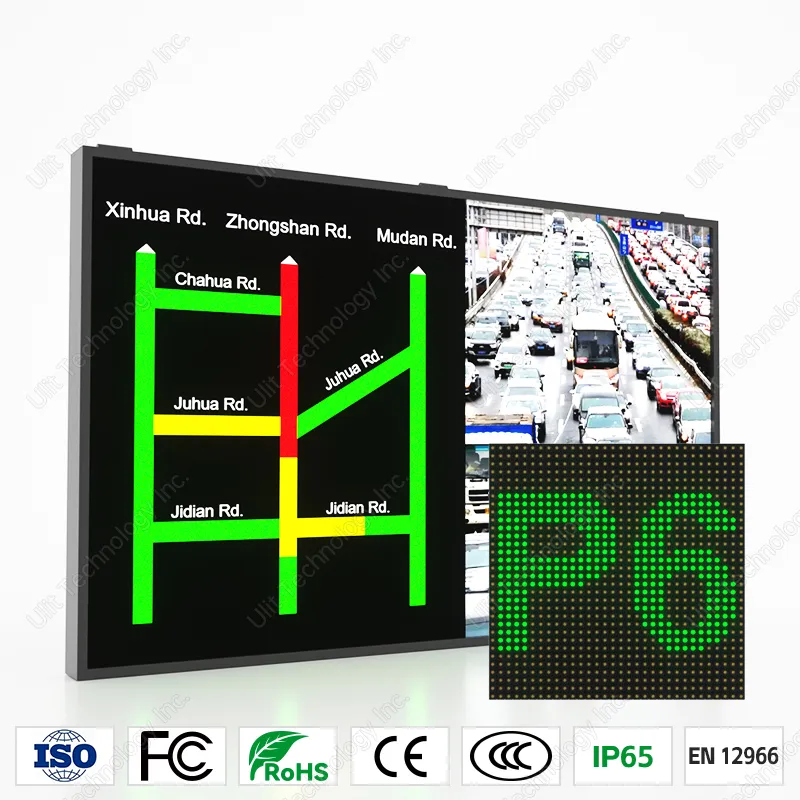

P6 Outdoor Full-Color LED Display Screen
The P6 outdoor full-color LED screen display board serves as a medium for disseminating real-time and accurate traffic information to the public. It uses traffic-specific LEDs, which can display multimedia content and remain clearly visible even under complex outdoor weather conditions, making it easy for road users to identify information. Encased in a sturdy and lightweight cabinet, it is not easily deformed even at extreme temperatures and supports a wide operating temperature range of -20℃ to +60℃; It features waterproof, moisture-proof, dustproof, corrosion-resistant, and flame-retardant external protection, enabling long-term outdoor use. The LED screen display board has obtained CCC, CE, RoHS, FCC, EN12966, and IP65 certifications.
Product Features
- It adopts a lightweight, suspended, sealed frame structure, simplifying outdoor deployment;
- Supports full-color traffic sign library display and retrieval, ensuring accurate and aesthetically pleasing graphic display;
- The display content is not limited to a single text format; It supports multimedia formats and allows for easy and quick modification of the displayed content and display method;
- Can automatically publish comprehensive road guidance information according to pre-set plans and sequences;
- Support adaptive publishing control, adjusting the display content size to match the screen without compression or stretching;
- It protects information transmission and publishing from external intrusion through anti-tampering mechanisms, ensuring the security of displayed information and preventing traffic chaos;
- Supports direct exposure and display of data such as electronic police, illegal parking, and pedestrian violations;
- Supports integration with relevant traffic guidance information publishing systems; Support the expansion of Internet of Things applications;
- Advanced switching power supply, high efficiency, energy saving.
Hot Tags: led screen display board, China led screen display board manufacturers, suppliers, factory
Technical Parameters
|
Product Name |
P6 Outdoor Full-Color LED Display Screen |
|
Pixel Pitch |
6mm |
|
Pixel Composition |
1R1G1B |
|
Display Brightness |
≥6,000cd/㎡; Support adjusting the brightness automatically or manually |
|
LED Packaging |
Dedicated Traffic LED Chips, SMD |
|
Module Size |
192mm×192mm |
|
Cabinet Size |
768mm*768mm (Support Customization) |
|
Viewing Distance |
≥6 m |
|
Viewing Angle |
≥110° |
|
Gray Level |
16bit |
|
Mean Time Between Failures (MTBF) |
≥100,000 Hours |
|
Blind Spot Rate |
≤1/10,000 |
|
Flatness |
Gap between Any Adjacent Pixels≤0.5mm; Module Splicing Gap＜0.5mm |
|
Working Voltage |
AC220V±15％ |
|
Power Switch Performance |
Full Load Efficiency≥85%, PF≥0.85 |
|
Average Power Consumption |
≤300W/㎡ |
|
Maximum Power Consumption |
≤700W/㎡ |
|
Working Temperature |
-20℃～60℃ |
|
Relative Humidity |
≤95%RH(25℃,No Condensation) |
|
External Protection |
Waterproof, Moisture-proof, Dustproof, Anti-corrosion, Antiflaming |
|
IP Rating |
IP65 (Front), IP53 (Back) |

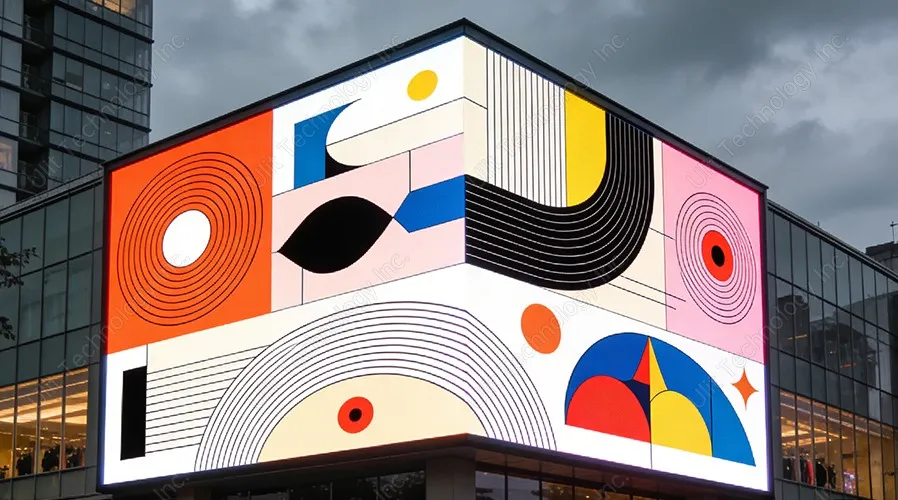

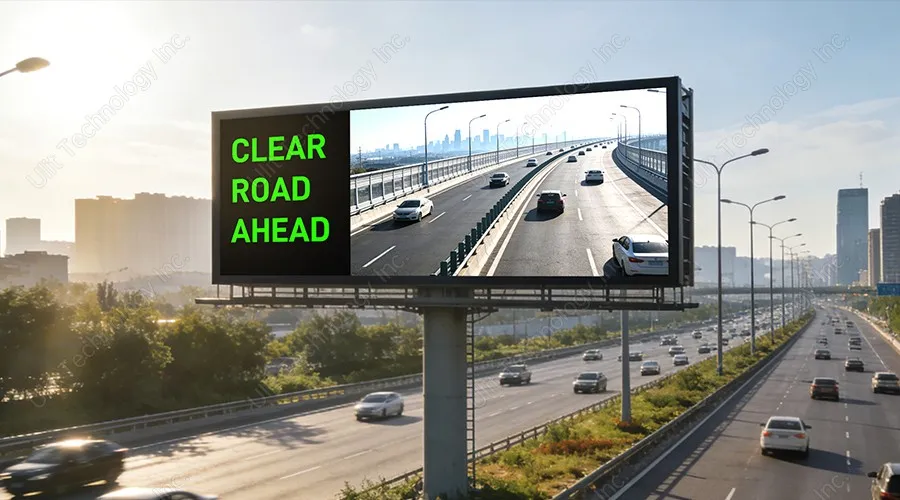

Product Applications
Certificates
Company Profile
We have been deeply involved in intelligent traffic industry for over 30 years with 15,000 square meter manufacturing base. As a leading manufacturer of traffic intelligent control system, traffic signal and display equipment, a leading provider of city traffic centralized control software, a national high-tech enterprise and a listed enterprise of Beijing Stock Exchange, we also supply OEM/ODM services. Certified by ISO/CE, our products are sold to more than 30 countries, including the USA, Mexico, Germany, Ireland, Romania, Greece, the Netherlands, Israel, Saudi Arabia and so on.
Exhibitions

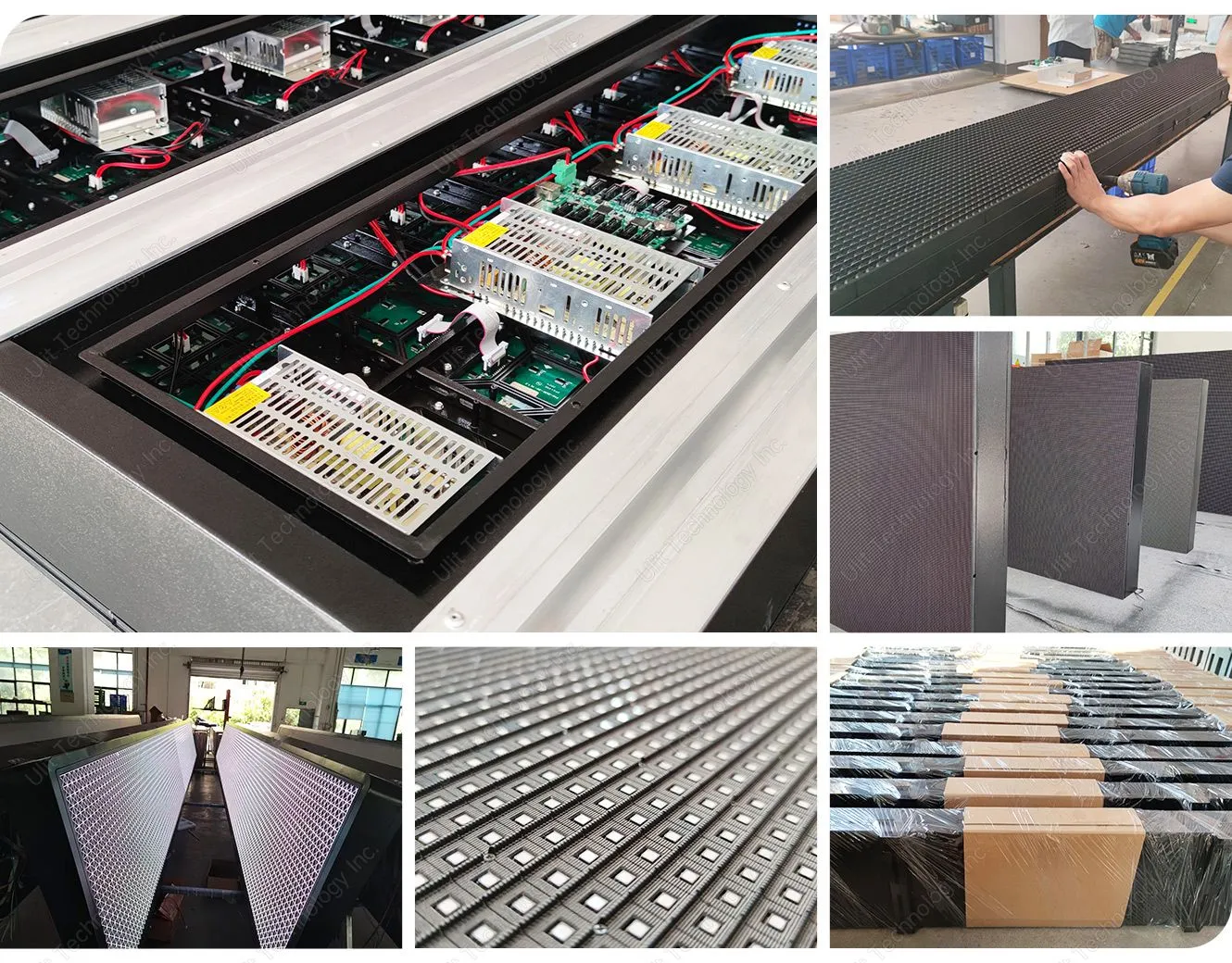

Production Workshop
FAQ
Q: Are you a factory?
A: Yes. We are a leading manufacturer of LED traffic signal products and intelligent traffic equipment, and a leading IoT (Internet of Things) solution provider in China.
Q: What are your best-selling products?
A: Traffic lights, traffic signs, traffic light systems, LED screens, traffic warning lights, radar speed signs, traffic light controllers, etc..
Q: Which certifications do you have?
A: CE, RoHS, FCC, EN12368, EN12966, IP65, MTC, ISO9001:2015, ISO14001:2015, CMMI-5, CCC and so on.
Q: Whether you could make our brand on your products?
A: Yes. Our R&D department provide strong technical support and enable us to receive OEM and ODM projects.
Q: What's your payment clause and delivery terms?
A: Payment Clause: T/T, L/C, Paypal, Western Union and so on.
Delivery Terms: EXW, FOB, CFR, CIF, DAP, DDP.
