Product Overview

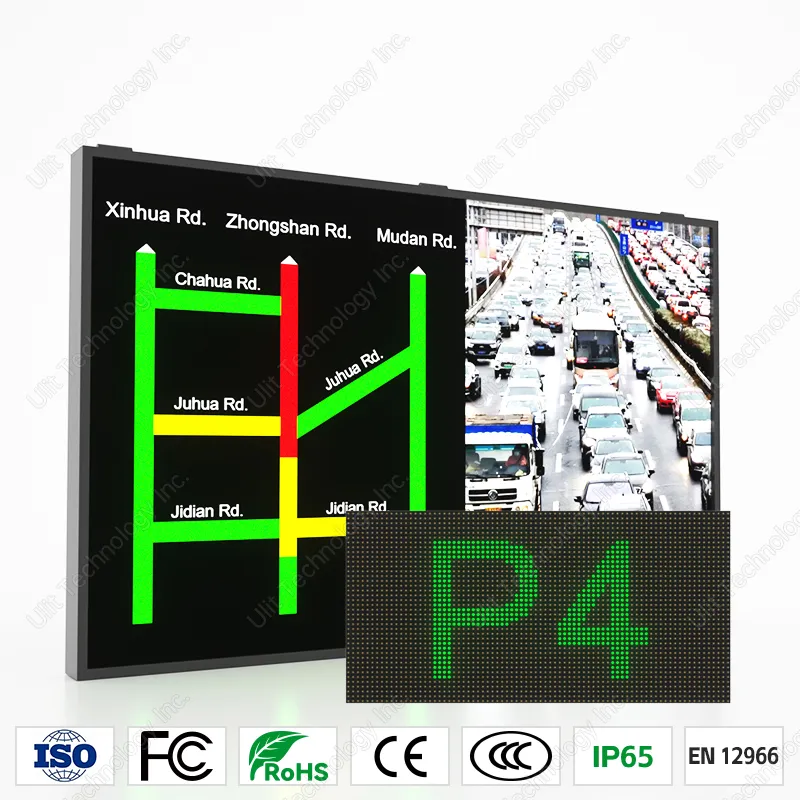

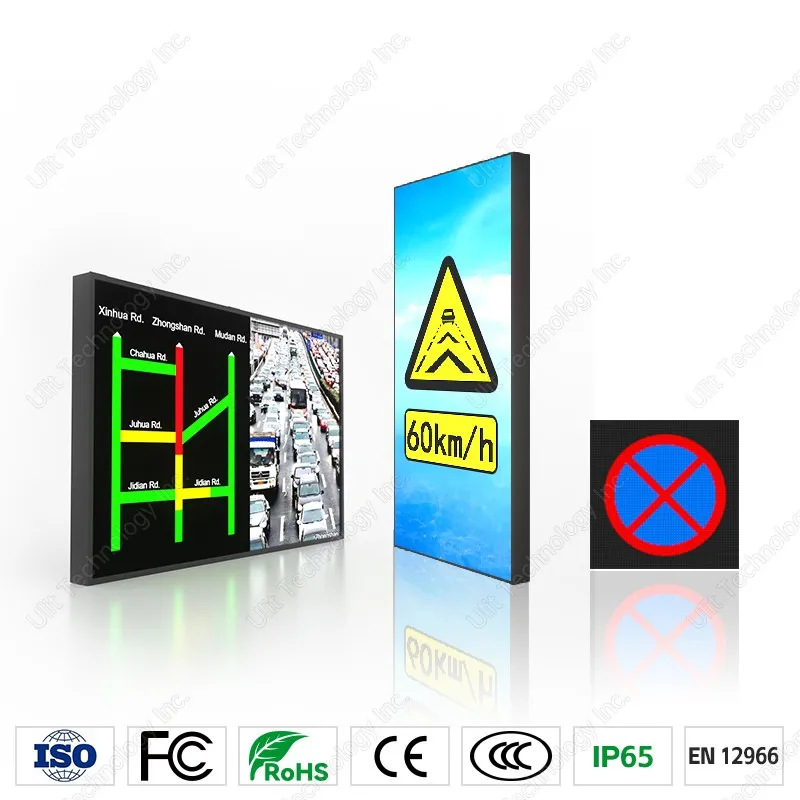

P4 Outdoor Full-Color LED Display Screen
The P4 outdoor full-color LED screen display is used for providing drivers and pedestrians with real-time traffic conditions and guidance, playing a vital role in ensuring smooth road traffic and improving public traffic safety. The screen uses high-quality traffic-specific LEDs, offering excellent display effects. The cabinet is robust, light-weight, highly corrosion-resistant, and maintains structural stability under extreme temperatures, allowing for long-term outdoor use. The LED screen display has passed CCC, CE, RoHS, FCC, EN12966, and IP65 certifications.
Product Features
- The hanging light-weight sealed frame design facilitates installation;
- The LED screen display features a full-color traffic sign library for accurate and clear sign display;
- It can display text, graphics, and video content, with content and display modes easily and quickly modified;
- It supports automatic release of guidance information according to preset playback schemes and priority sequences;
- Self-adaptive release control function ensures that the display content ratio is compatible with the screen size;
- It protects the LED screen display's data transmission and releasing process from unauthorized tampering, ensuring information security and preventing traffic chaos;
- Support directly exposing and displaying the data of electronic police (traffic camera), illegal parking and pedestrian violation;
- It can interface with relevant traffic information release platforms;
- Equipped with an energy-efficient switching power supply, it is environmentally friendly.
Hot Tags: led screen display, China led screen display manufacturers, suppliers, factory
Technical Parameters
|
Product Name |
P4 Outdoor Full-Color LED Display Screen |
|
Pixel Pitch |
4mm |
|
Pixel Composition |
1R1G1B |
|
Display Brightness |
≥6,000cd/㎡; Support adjusting the brightness automatically or manually |
|
LED Packaging |
Dedicated Traffic LED Chips, SMD |
|
Module Size |
320mm*160mm |
|
Cabinet Size |
960mm*960mm (Support Customization) |
|
Viewing Distance |
≥4 m |
|
Viewing Angle |
≥110° |
|
Gray Level |
16bit |
|
Mean Time Between Failures (MTBF) |
≥100,000 Hours |
|
Blind Spot Rate |
≤1/10,000 |
|
Flatness |
Gap between Any Adjacent Pixels≤0.5mm; Module Splicing Gap＜0.5mm |
|
Working Voltage |
AC220V±15％ |
|
Power Switch Performance |
Full Load Efficiency≥85%, PF≥0.85 |
|
Average Power Consumption |
≤300W/㎡ |
|
Maximum Power Consumption |
≤700W/㎡ |
|
Working Temperature |
-20℃～60℃ |
|
Relative Humidity |
≤95%RH(25℃,No Condensation) |
|
External Protection |
Waterproof, Moisture-proof, Dustproof, Anti-corrosion, Antiflaming |
|
IP Rating |
IP65 (Front), IP53 (Back) |

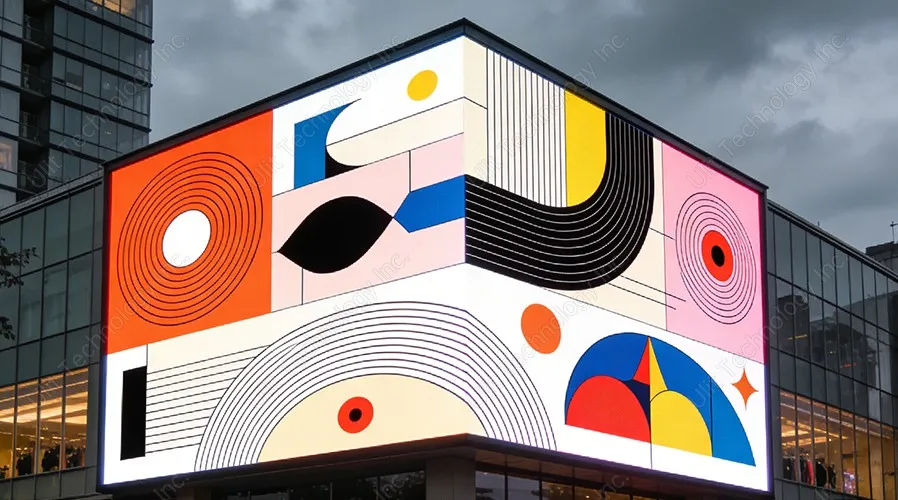

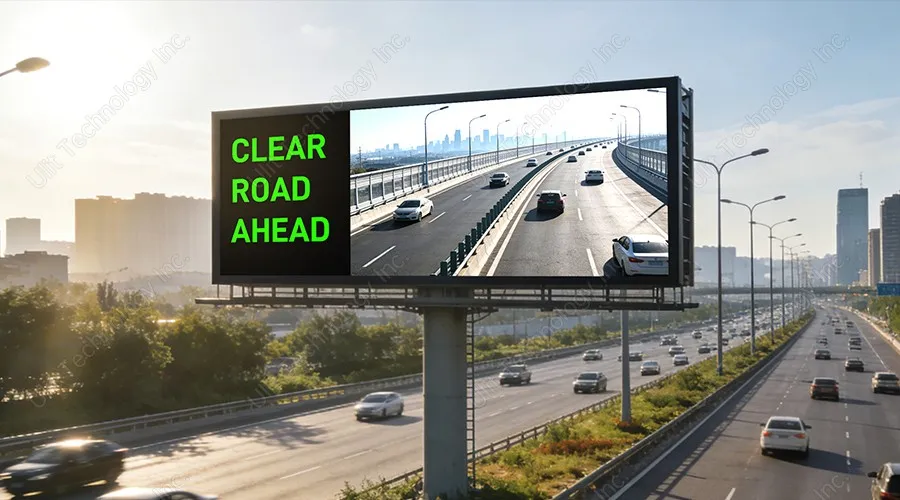

Product Applications

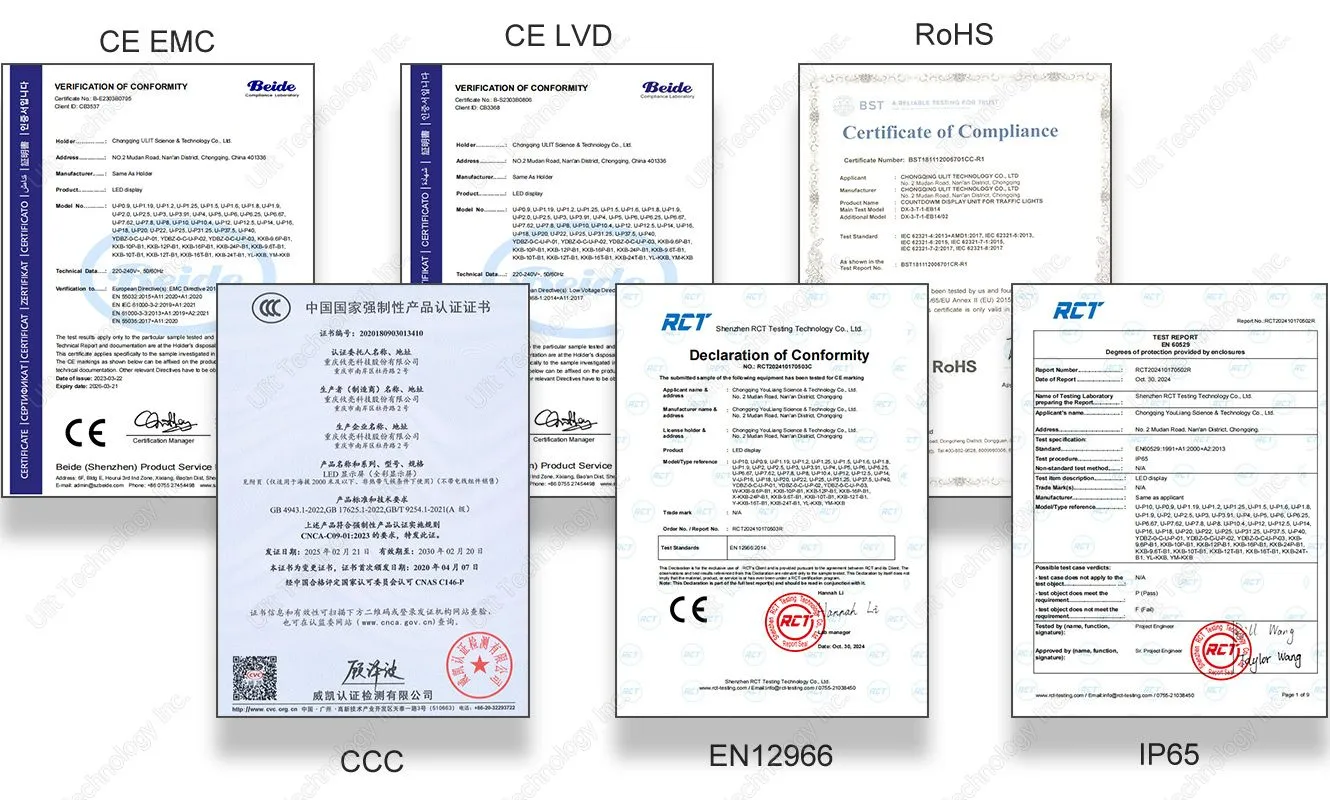

Certificates
Company Profile
Having been Involved in intelligent traffic industry for more than 30 years, Ulit Technology Inc. is a leading manufacturer of traffic intelligent control system, traffic signal and display equipment, a leading provider of city traffic centralized control software, a national high-tech enterprise and a listed enterprise of Beijing Stock Exchange. We have been providing products and services to customers in the USA, Mexico, Germany, Ireland, Romania, Greece, the Netherlands, Israel, Saudi Arabia, India, Vietnam, Singapore and many other countries. Our company always advocates customer focus and adheres corporate philosophy of "innovation transcends dreams and hard work creates value". We keep perfecting our core technology products over ten years and are always strenuously making continuous contribution for unblocked city!
Exhibitions
Production Workshop
FAQ
Q: Do your products come with accompanying software systems?
A: Yes. For products that require accompanying software, we provide our own proprietary software. Some of our products also support integration with software from other major manufacturers.
Q: How do you guarantee the quality of your products?
A: We have a very strict quality controlling system to ensure that all the products are delivered with high quality. Strict detection during each production step. Strict full inspection on products before shipment and intact product packaging ensured.
Q: Can you send me your catalogue?
A: Please send an email to our email address cqulit@sina.com for catalogue. We will reply you with our latest catalogue to your email.
Q: What's the price of the LED screen display?
A: Price is negotiable. Based on different quantities and detailed requirements, the prices are a little different. Please kindly contact us for more detailed prices.
Q: Can I have some information about your scope of business?
A: Our company can provide various advanced products, whole solutions, software and services related to city traffic, such as traffic control platform, traffic light controllers, traffic lights, traffic signs, countdowns, LED screens, video detectors, speed signs and various solar lights.
