Product Overview

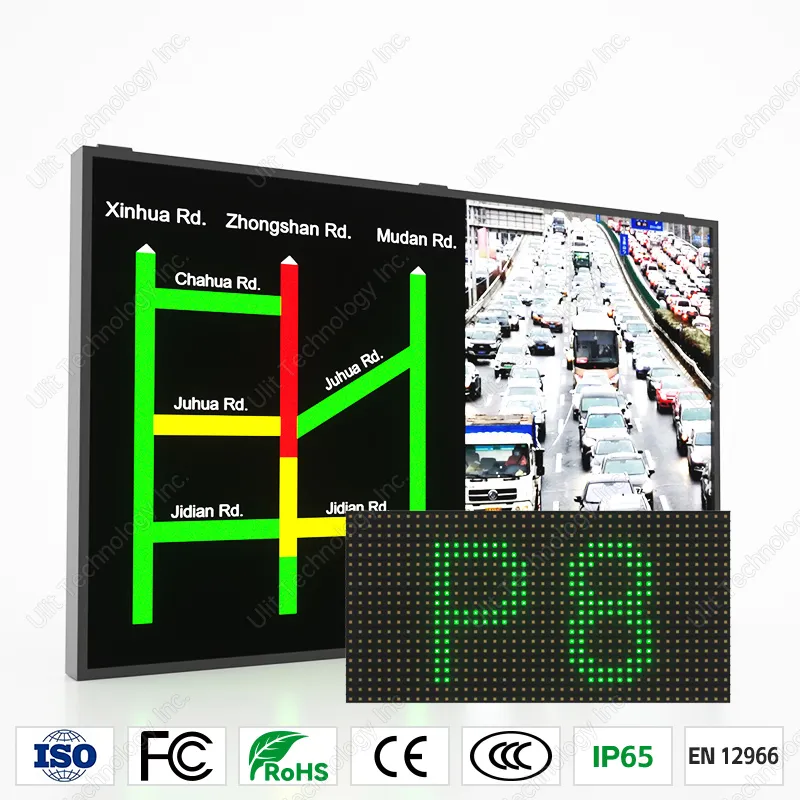

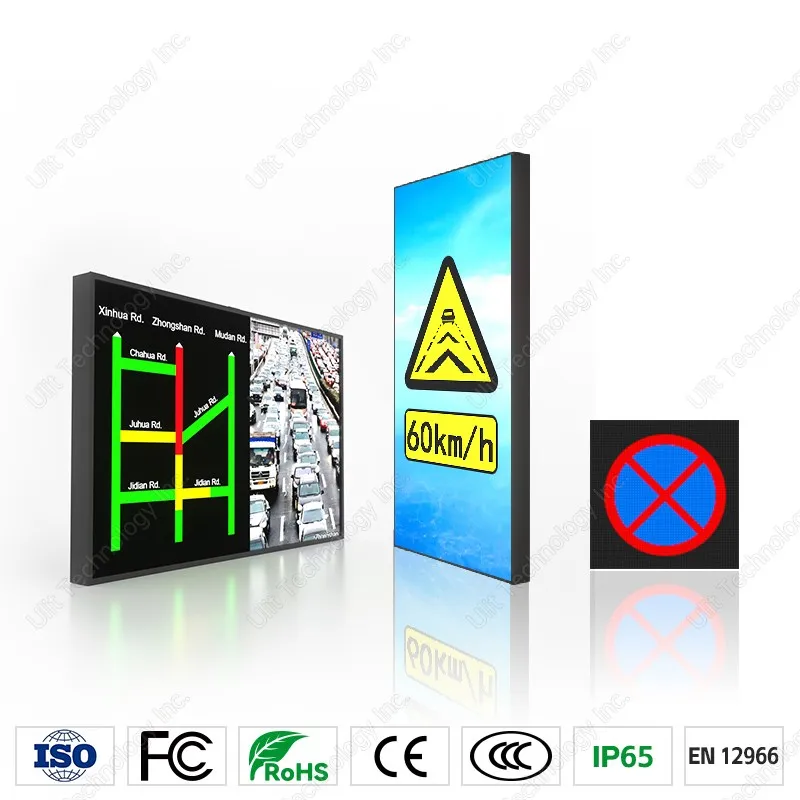

P8 Outdoor Full-Color LED Display Screen
The P8 outdoor full-color LED sign board can be used as all kinds of traffic message signs to realize releasing all kinds of traffic information to road traffic participants. It is one of the important means to prevent, alleviate and eliminate road traffic congestion. The display unit adopts dedicated traffic LEDs; The cabinet is light weight, high strength, suitable for high and low temperature conditions, small deformation and good corrosion resistance; Support extending IoT applications; Compliance with CCC, CE, RoHS, FCC, EN12966, IP65 certification.
Product Features
- Suspended lightweight sealed frame design;
- Supports full-color traffic sign library display invocation, with accurate and beautiful graphic display;
- Supports text, image and video display, allowing for convenient and quick modification of display content and methods;
- Supports sequential preset playback plans and priorities, and automatically releases comprehensive induction display information;
- Supports adaptive release control, which adaptively matches the display content based on the screen size;
- Supports information transmission and release with anti-illegal tampering functions;
- Support direct exposure and display of data such as electric alarm, illegal parking, and pedestrian violations;
- Support integration with relevant traffic guidance information release systems;
- The LED sign board adopts high-efficiency switching power supply and green energy-saving design.
Hot Tags: led sign board, China led sign board manufacturers, suppliers, factory
Technical Parameters
|
Product Name |
P8 Outdoor Full-Color LED Display Screen |
|
Pixel Pitch |
8mm |
|
Pixel Composition |
1R1G1B |
|
Display Brightness |
≥6,000cd/㎡; Support adjusting the brightness automatically or manually |
|
LED Packaging |
Dedicated Traffic LED Chips, SMD |
|
Module Size |
320mm*160mm |
|
Cabinet Size |
960mm*960mm (Support Customization) |
|
Viewing Distance |
≥8 m |
|
Viewing Angle |
≥110° |
|
Gray Level |
16bit |
|
Mean Time Between Failures (MTBF) |
≥100,000 Hours |
|
Blind Spot Rate |
≤1/10,000 |
|
Flatness |
Gap between Any Adjacent Pixels≤0.5mm; Module Splicing Gap＜0.5mm |
|
Working Voltage |
AC220V±15％ |
|
Power Switch Performance |
Full Load Efficiency≥85%, PF≥0.85 |
|
Average Power Consumption |
≤300W/㎡ |
|
Maximum Power Consumption |
≤700W/㎡ |
|
Working Temperature |
-20℃～60℃ |
|
Relative Humidity |
≤95%RH(25℃,No Condensation) |
|
External Protection |
Waterproof, Moisture-proof, Dustproof, Anti-corrosion, Antiflaming |
|
IP Rating |
IP65 (Front), IP53 (Back) |

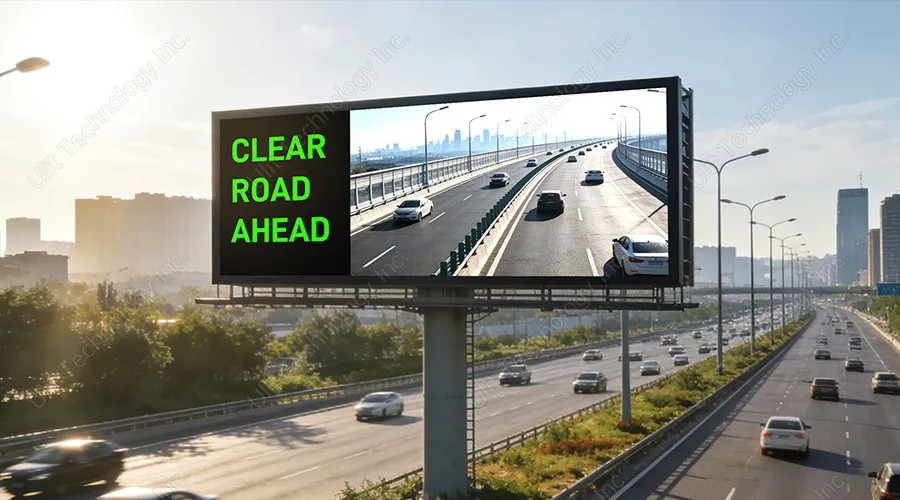

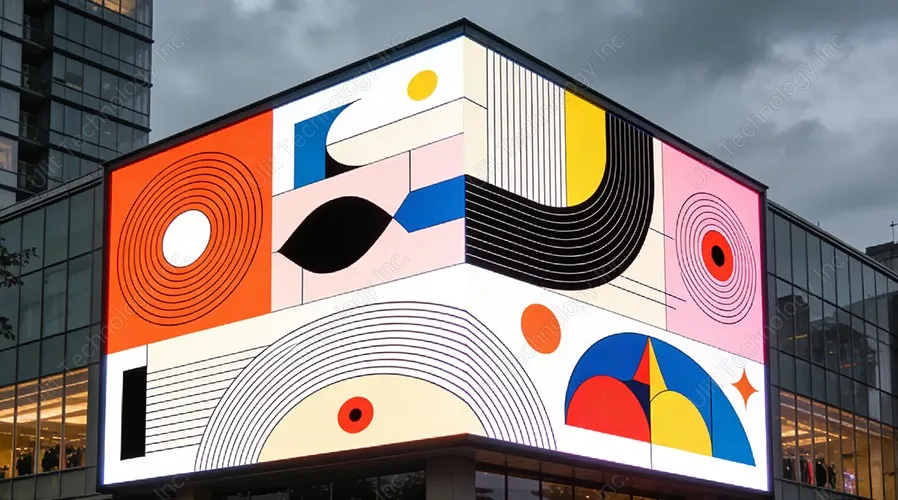

Product Applications
Certificates
Company Profile

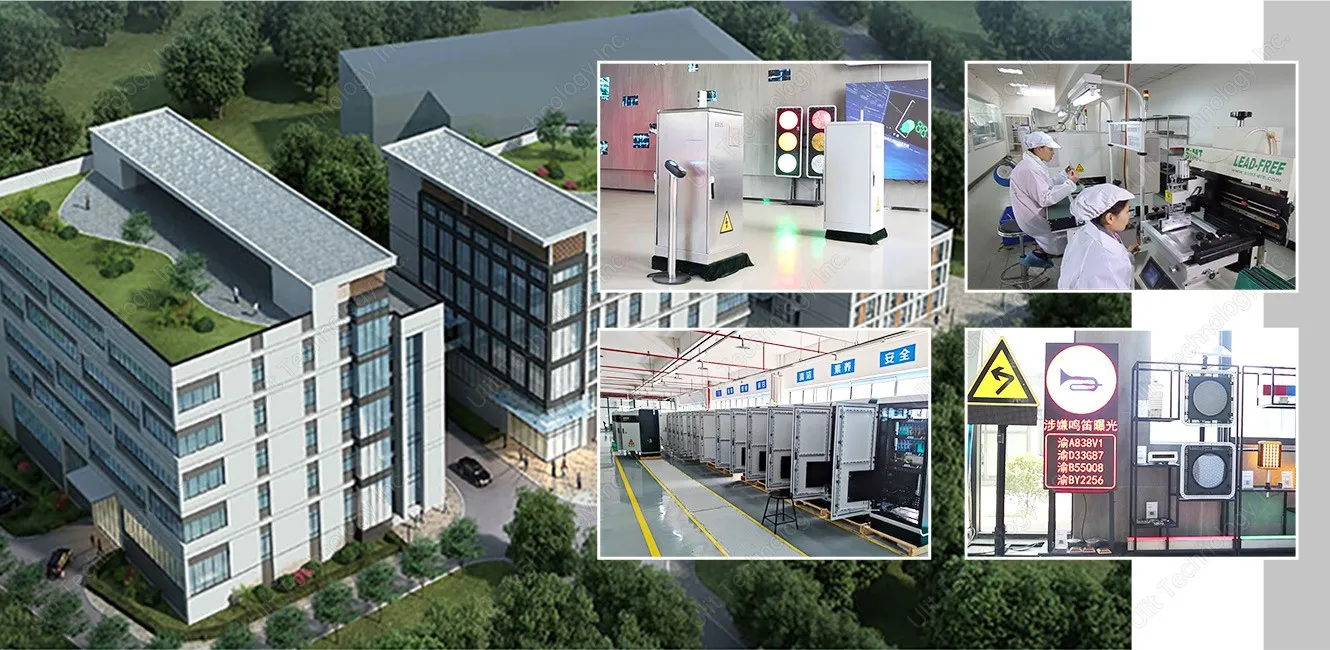

Located in Chongqing, China, Ulit Technology Inc. has been in intelligent traffic industry for more than 30 years with 15,000 square meter manufacturing base. With city intelligent traffic as main business, we can provide various advanced products, whole solutions, software and services related to city traffic, such as traffic control platform, traffic light controllers, traffic lights, traffic signs, countdowns, LED screens, video detectors, speed signs and various solar lights. With ISO 9001:2015 quality management system certification, our products comply with national standards and industry norms, as well as various international standards, such as CE, RoHS, FCC, EN12966 and EN12368. Strong support from our design and technology departments enables us to receive OEM and ODM projects.
Exhibitions

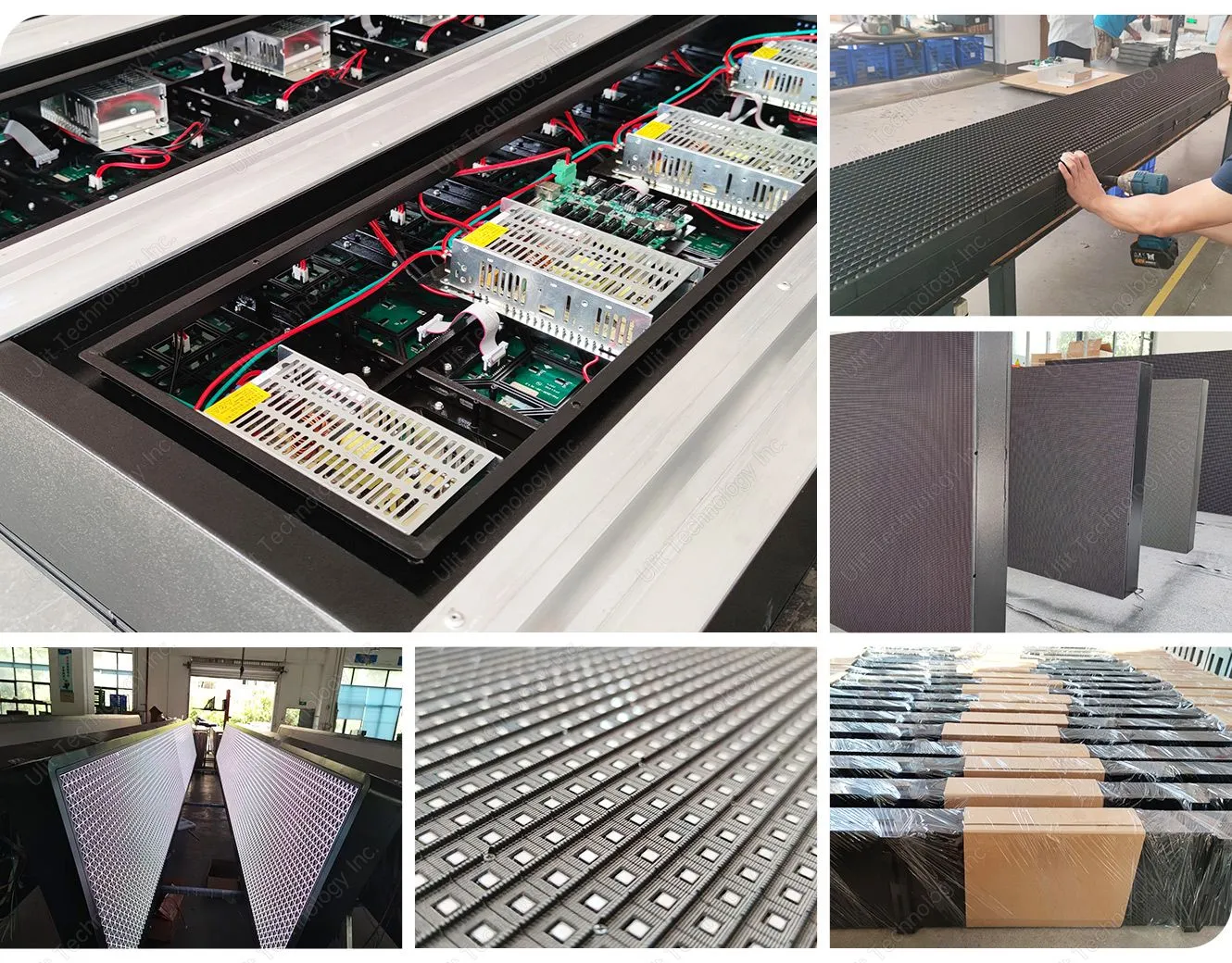

Production Workshop
FAQ
Q: Can I order a sample for testing?
A: Yes, we welcome sample orders to test. We can also make the samples exactly according to your detailed needs and requirements.
Q: How about your delivery time?
A: Typically, in-stock items can be shipped within 7-15 days after receiving the payment. The exact delivery time depends on the products and ordered quantities.
Q: How about the shipping method?
A: We can ship by sea, rail, and air. Samples are usually shipped via DHL, UPS, FedEx and other air transport methods.
Q: How about your warranty?
A: We offer a 2-year warranty and lifetime free remote technical support and service.
Q: How about the packages?
A: The products are first packed in cartons, and then the cartons are packed into standard export wooden cases.
