Products Description

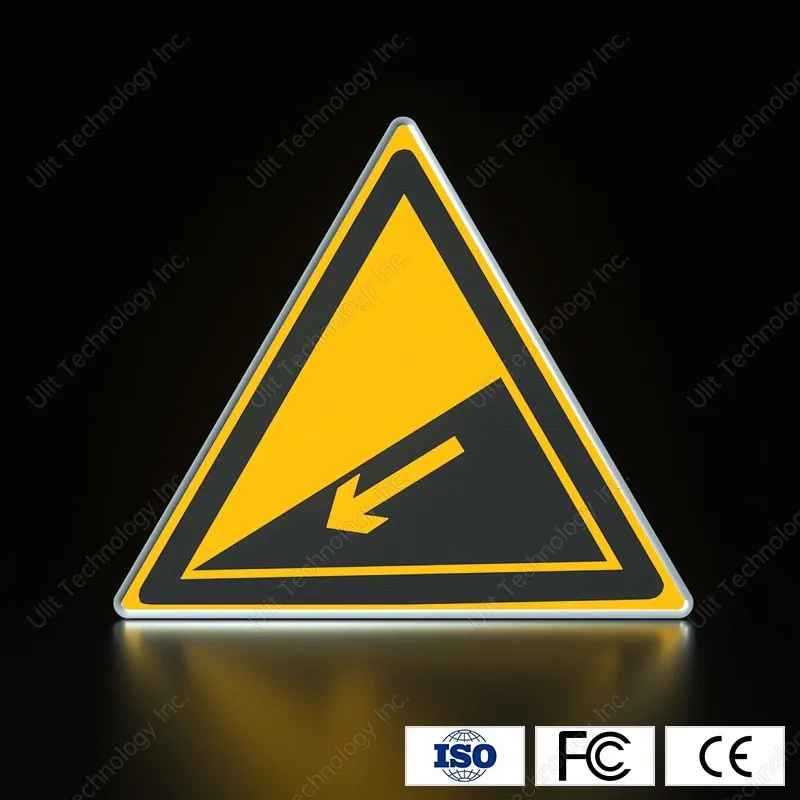

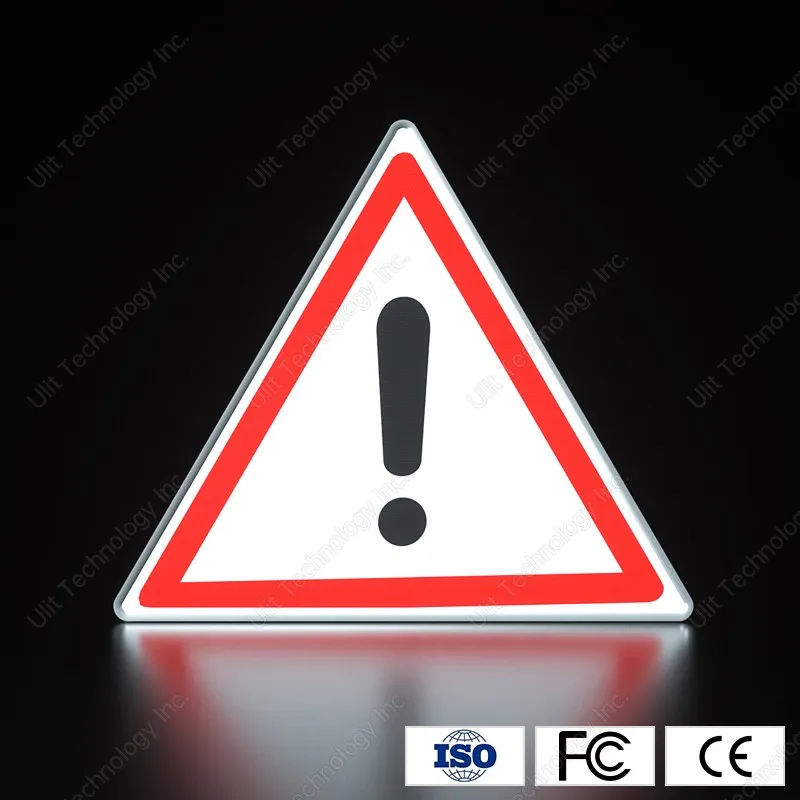

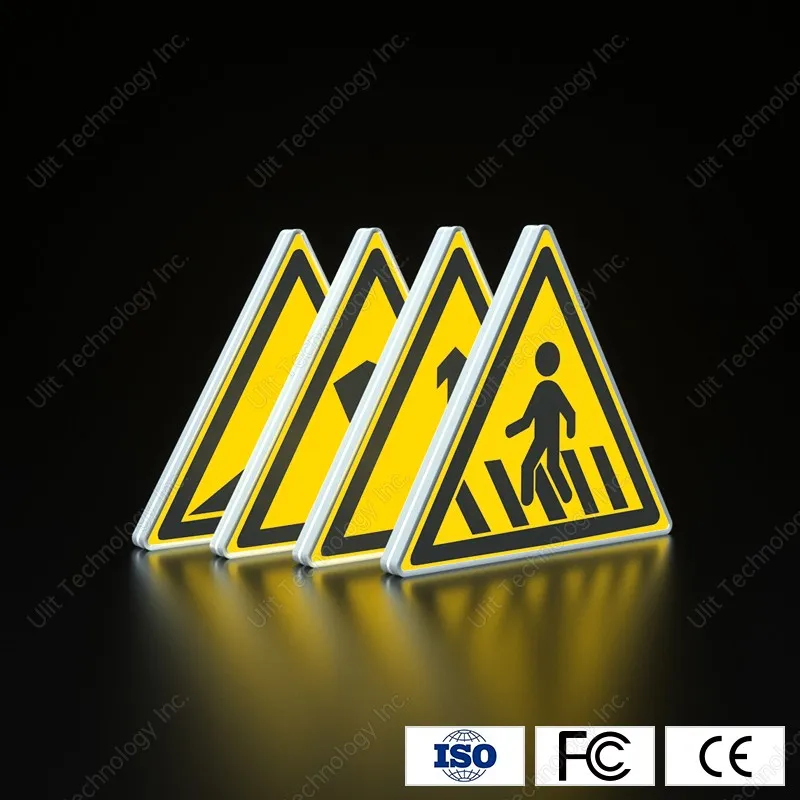

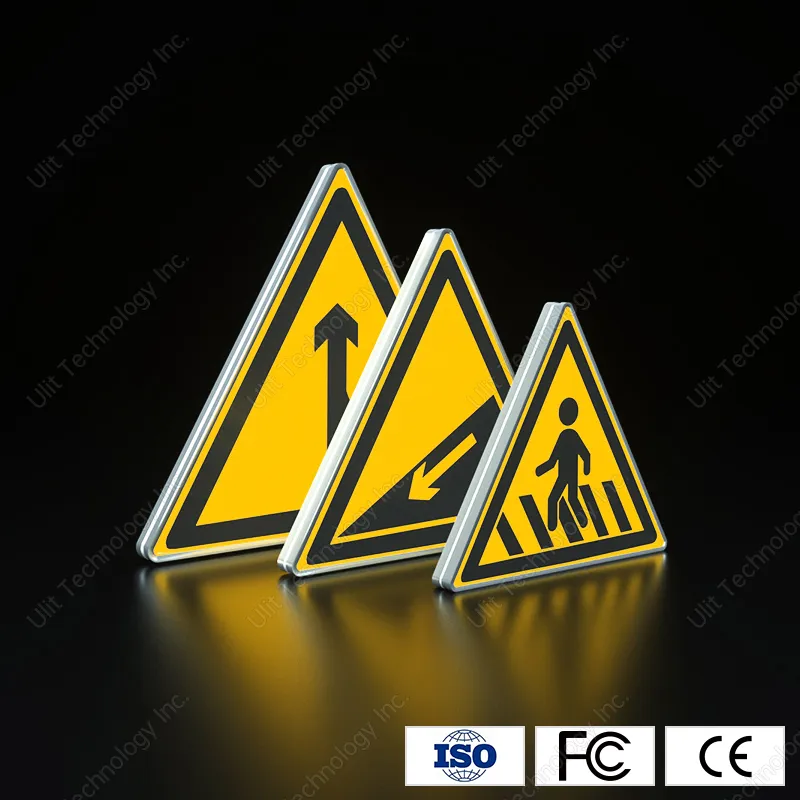

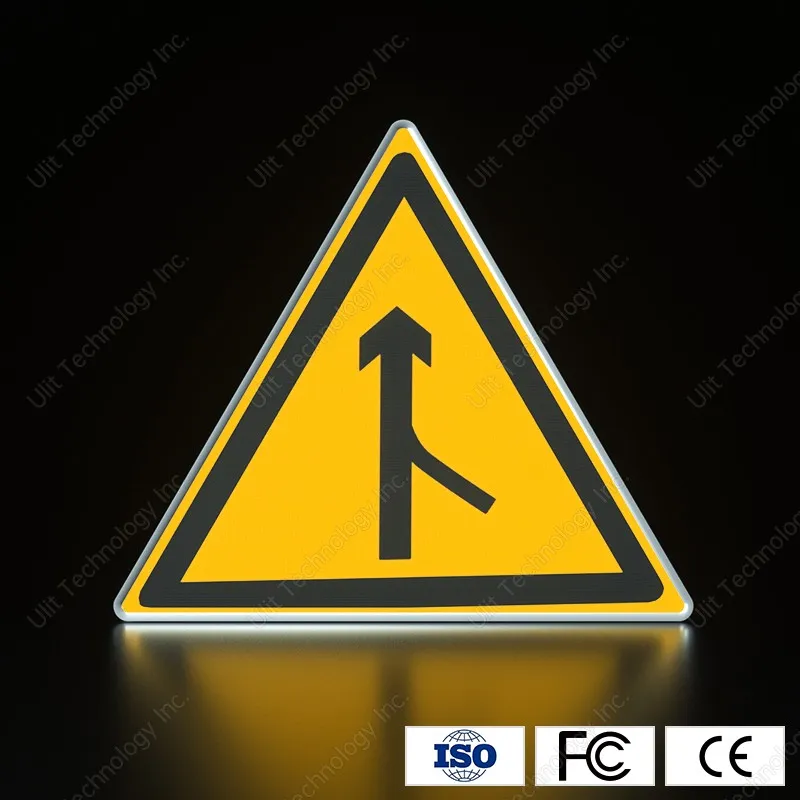

△1300mm Warning LED Active Luminous Traffic Signs
△1300mm LED road safety signs are high-visibility triangular active luminous signs. Their high-efficiency LED light source plate emits light that penetrates reverse reflection material, ensuring high-definition display of warning information. Utilizing microprism reflective film, they allow light to penetrate through the sign's base plate, text strokes, and graphic outlines, providing clear warnings to drivers even on roads with low visibility, ensuring road safety.
Product Features
- The road safey signs use fully penetration type active light-emitting structure, and the light-transmitting panel is complete and seamless;
- Unique optical refraction design, the panel displays no shadow and has balanced brightness;
- Light-emitting components with strong penetrability and long visual range, meeting the usage requirements with all kinds of bad weather conditions;
- Low power consumption, high efficiency, light decay≤8%;
- The LED road safety signs support protocol docking and wired or wireless IoT application extension;
- Support adjusting the own brightness automatically according to the ambient brightness;
- They also support controls such as flashing, always on, and off;
- Available in various sizes including △700mm, △900mm, △1100mm, and △1300mm.
Hot Tags: road safety signs, China road safety signs manufacturers, suppliers, factory
Technical Parameters
|
Product Name |
△1300mm Warning LED Active Luminous Traffic Signs |
|
Reflective Film Grade |
Microprism Reflective Film |
|
Structure Material |
Aluminium Profile |
|
Overall Size |
Triangle, Side Length 1300mm |
|
Luminance |
≥150cd/㎡, Support adjusting the luminance automatically according to the ambient brightness |
|
Visual Cognition Distance |
Static State≥250m, Dynamic State≥210m |
|
Visual Cognition Angle |
≥30° |
|
Uniformity of Luminance |
the non-uniformity of normal luminous intensity between the same color light-emitting unit pixels ≤5% |
|
Reliability |
Mean Time Between Failures (MTBF) ≥25,000h |
|
Light Attenuation |
50,000h≤8%; Attenuation Consistency ≤±5% |
|
Extension |
Support protocol docking; Support IoT application extension. |
|
Power Supply |
AC220V±15%, 50HZ/60Hz; Solar power is supported. |
|
Average Power Consumption |
≤60W/m2 |
|
Working Temperature |
-20℃～55℃ |
|
Working Humidity |
≤98%RH(40℃, No Condensation) |
|
Thickness |
60mm 60mm |
|
IP Rating |
IP55 |
|
Installation Method |
Single Pole Type/Outdoor Cantilever Type |
Product Applications
Certificates
Company Profile
Ulit Technology Inc. has been deeply involved in the intelligent traffic industry for over 30 years, boasting a 15,000-square-meter production base. With urban intelligent traffic as our core business, our company provides a variety of advanced products, integrated solutions, software, and services, covering traffic control platforms, traffic light controllers, traffic lights, traffic signs, countdown timers, LED displays, video detectors, speed signs, and various solar lighting equipment. We also offer OEM/ODM services. Our products have passed multiple international certifications, including ISO/CE, RoHS, FCC, EN12368, and EN12966, and are exported to more than 30 countries and regions, including Mexico, the United States, Germany, Ireland, Romania, Greece, the Netherlands, Israel, and Saudi Arabia.
Exhibitions

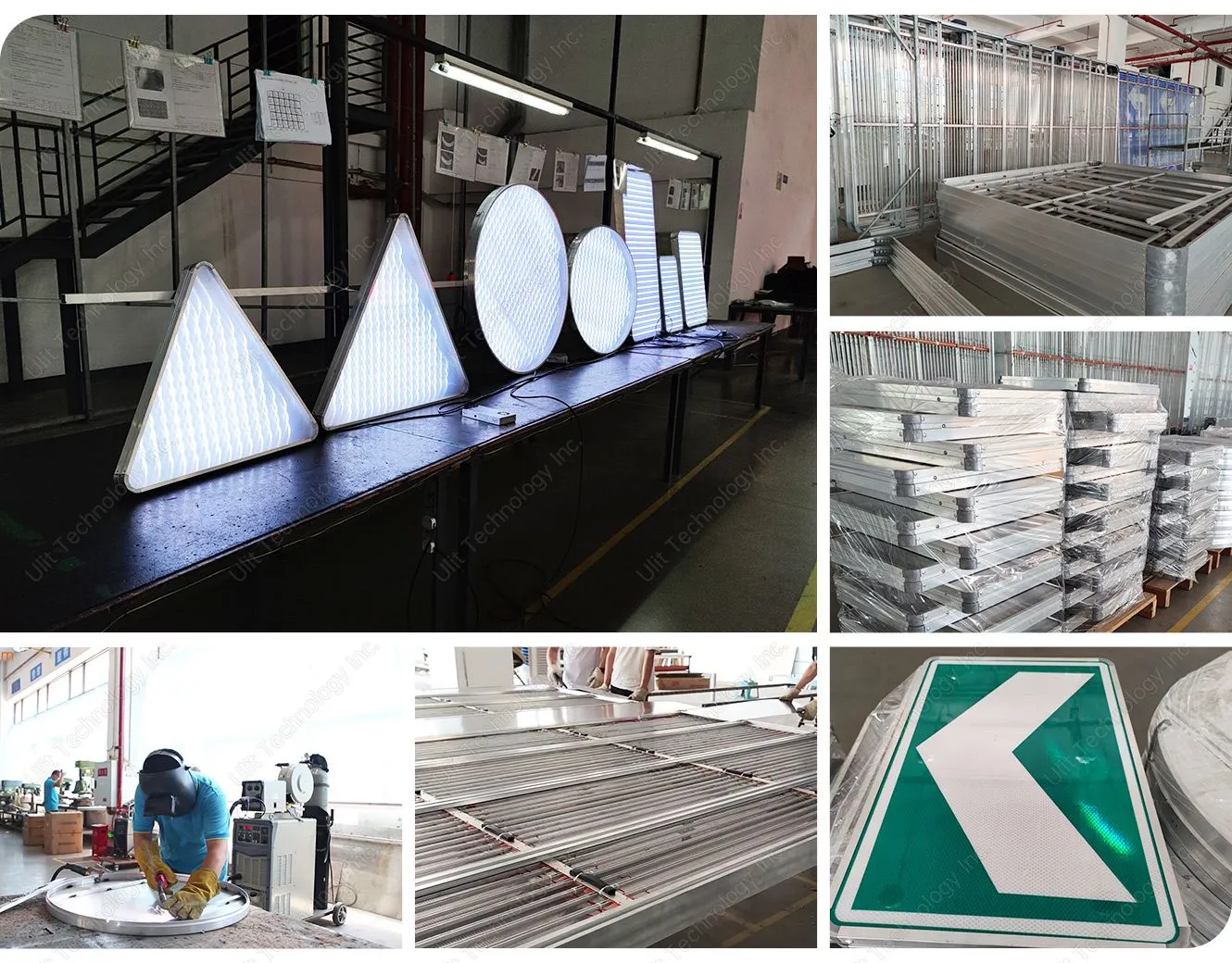

Production Workshop
FAQ
Q: Can I have a sample?
A: Of course, we support sample orders.
Q: What's the delivery time?
A: Shipping time depends on the specifications of the products you order. For in-stock products, shipping usually takes around 7-15 days. For customized products, the production time is typically around 30 days.
Q: Which city or port do you ship from?
A: Our main manufacturing plant is in Chongqing, but we also have branch offices in other cities. We can ship from all major ports and cities in China.
Q: Do you have any MOQ limit?
A: Our company supports testing with one or more samples, and we can also customize samples according to your specific requirements. There is no minimum order quantity (MOQ) limit.
Q: Do you offer after-sales service?
A: Most of our products come with a 2-year warranty. If a product experiences a quality issue within the warranty period, we will send you replacement parts free of charge. After the warranty period expires, we will continue to provide free lifetime remote technical support and service.
