Product Overview

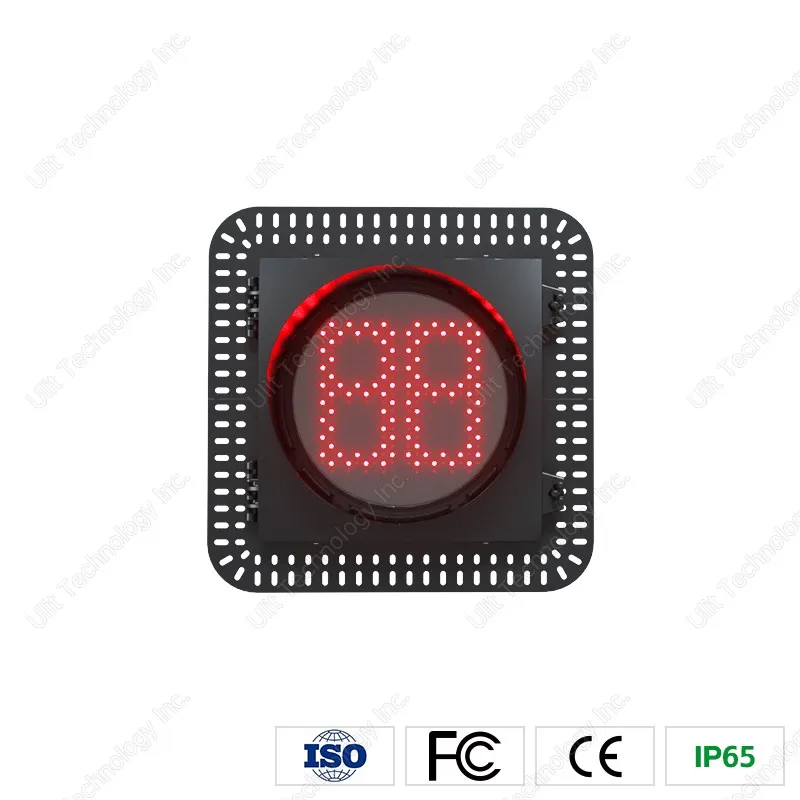

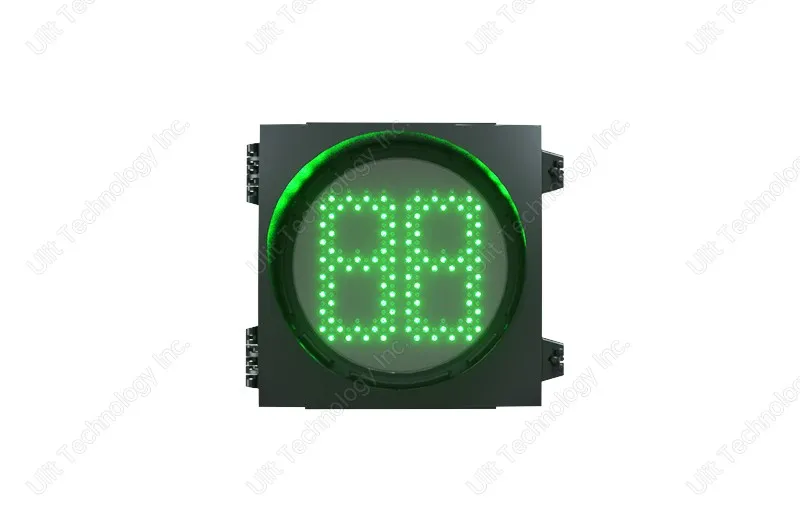

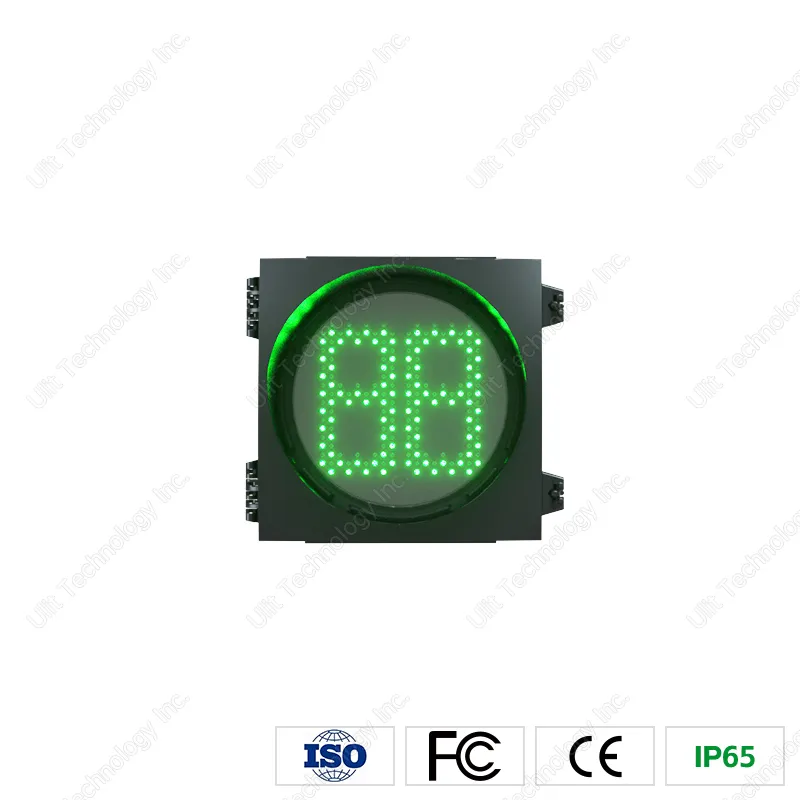

Φ200mm Two Digit Countdown Timer
The pedestrian countdown signal is a 200mm diameter two digit countdown timer. It features a dual-color countdown display, providing intuitive visuals, uniform brightness, and excellent visibility, and there will be no phenomenon of missing entire strokes. It utilizes high-strength, high-hardness PC shell, offering superior impact resistance, heat resistance, aging resistance, and corrosion resistance, ensuring safe use. The pedestrian countdown signal complies with global CE, FCC, and RoHS standards.
Product Features
It adopts two-digit display and can show red and green;
It supports single-phase or dual-phase display, following type (learning type), communication type (real-time type) and self-adaptive control scheduling display;
It uses high-performance, ultra-bright LED components;
The high-strength, high-hardness PC housing effectively resists heat, impacts, corrosion, and aging, ensuring the safety of pedestrian countdown signal;
Use corrosion-resistant stainless steel strips as primary mounting fasteners, ensuring a secure installation and eliminating the risk of falling;
Feature a special detachable, waterproof, modular design, making on-site maintenance extremely convenient;
- Support turning on or off the display under non-communication mode and counting and displaying traffic light time of more than 2 times in one signal cycle;
- The pedestrian countdown signal adopts new-type integrated detachable hinge and locking structure design; When not locked, it can prevent opening and falling off.
Hot Tags: pedestrian countdown signal, China pedestrian countdown signal manufacturers, suppliers, factory
Technical Parameters
|
Product Name |
Φ200mm Two Digit Countdown Timer |
|
Viewing Angle |
30° |
|
Viewing Distance |
≥500m |
|
Communication Mode |
RS485 |
|
Working Voltage |
AC220V/AC110V/DC48V/DC24V/DC12V |
|
Rated Power |
≤4W |
|
Working Temperature |
-20℃～70℃ |
|
Working Humidity |
≤95%RH[(40±2)℃, No Condensation] |
|
IP Rating |
IP65 |
|
Overall Dimensions |
Length 339mm * Width 288mm * Height 257mm (excluding the frame) |
|
Digital Display Range |
0-99 |
|
Housing Material |
PC |
|
Installation Method |
Back Frame (stainless steel strip and special fasteners) |
Product Applications
Certificates
Company Profile
We have been deeply involved in intelligent traffic industry for over 30 years with 15,000 square meter manufacturing base. As a leading manufacturer of traffic intelligent control system, traffic signal and display equipment, a leading provider of city traffic centralized control software, a national high-tech enterprise and a listed enterprise of Beijing Stock Exchange, we also supply OEM/ODM services. Certified by ISO/CE, our products are sold to more than 30 countries, including the USA, Mexico, Germany, Ireland, Romania, Greece, the Netherlands, Israel, Saudi Arabia and so on.
Exhibitions
Production Workshop
FAQ
Q: Are you a factory?
A: Yes. We are a leading manufacturer of LED traffic signal products and intelligent traffic equipment, and a leading IoT (Internet of Things) solution provider in China.
Q: What are your best-selling products?
A: Traffic lights, traffic signs, traffic light systems, LED screens, traffic warning lights, radar speed signs, traffic light controllers, etc..
Q: Which certifications do you have?
A: CE, RoHS, FCC, EN12368, EN12966, IP65, MTC, ISO9001:2015, ISO14001:2015, CMMI-5, CCC and so on.
Q: Whether you could make our brand on your products?
A: Yes. Our R&D department provide strong technical support and enable us to receive OEM and ODM projects.
Q: What's your payment clause and delivery terms?
A:Payment Clause: T/T, L/C, Paypal, Western Union and so on.
Delivery Terms: EXW, FOB, CFR, CIF, DAP, DDP.
